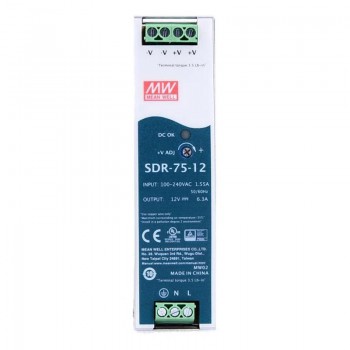

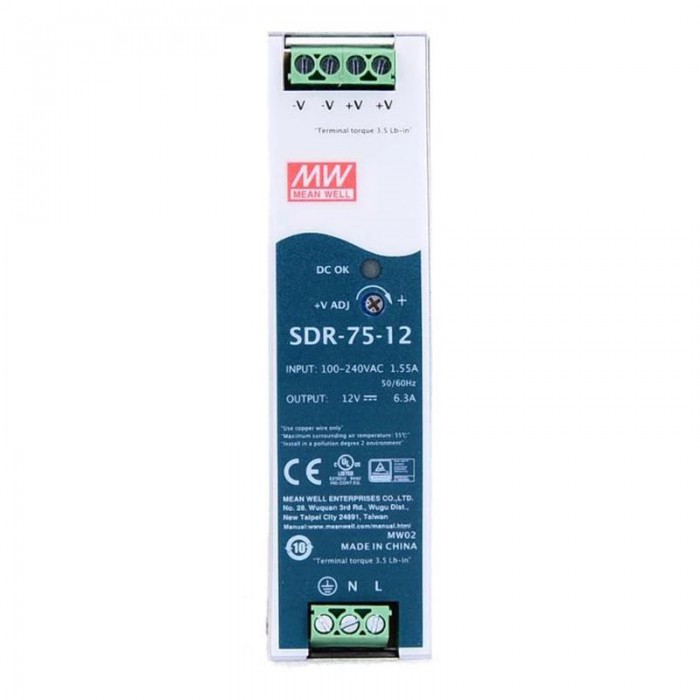

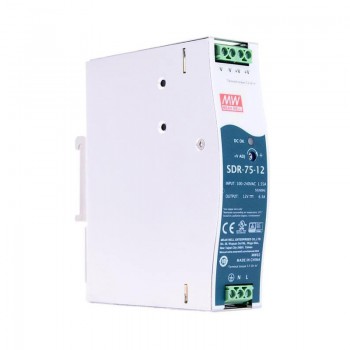

Meanwell SDR-75-12 75.6W 12VDC 6.3A 115/230VAC DIN Rail Power Supply

Meanwell SDR-75-12 75.6W 12VDC 6.3A 115/230VAC DIN Rail Power Supply
NO.:SDR-75-12
Review: Post a review
Latest price:$39.45
Buy It Now:$26.30
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $25.75 2%
10 $25.20 4%
50 $24.65 6%
100 $24.10 8%
Add To Cart

SDR-75-12 MEAN WELL 75.6W 12VDC 6.3A 115/230VAC DIN Rail Power Supply



Features

Brand MEANWELL

12V DC 6.3A output

AC input voltage range: 88 ~ 264VAC

Rated power: 75.6W

High efficiency 90% and low power dissipation

150% peak load capability

Protections: Short circuit / Overload / Over voltage / Over temperature

Cooling by free air convection

Can be installed on DIN rail TS-35/7.5 or 15

UL 508 (industrial control equipment) approved

BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level

100% full load burn-in test

3 years warranty



Applications

Industrial automation machinery

Industrial control system

Mechanical and electrical equipment

Electronic instruments, equipments or apparatus

Household appliances



Resources

Full Datasheet: SDR-75-12.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Mean Well SDR-240-24 240W 24VDC 10A 115/230VAC with PFC Function DIN Rail Power Supply
Next: Meanwell WDR-120-24 120W 24VDC 5A 180~550VAC DIN Rail Power Supply
Power Supply Specification
Max. Output Current(A) 6.3
Power(W) 112.5
Brand MEANWELL
Output Voltage(VDC) 12
Input Voltage(VAC/VDC) 88 - 264 / 124 - 370
PFC Function No
Dim.(LxWxH)(mm/in.) 32 x 125.2 x 102 / 1.26 x 4.93 x 4.02
Input Frequency(Hz) 47 - 63
Efficiency(%) 88.5%
Physical Specification
Product Type POWER SUPPLY
