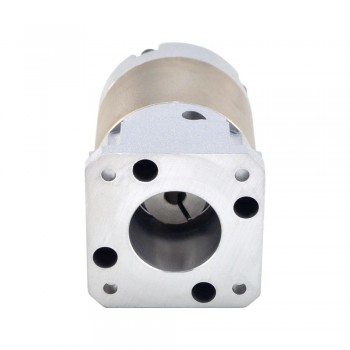

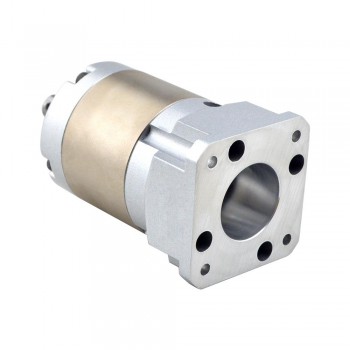

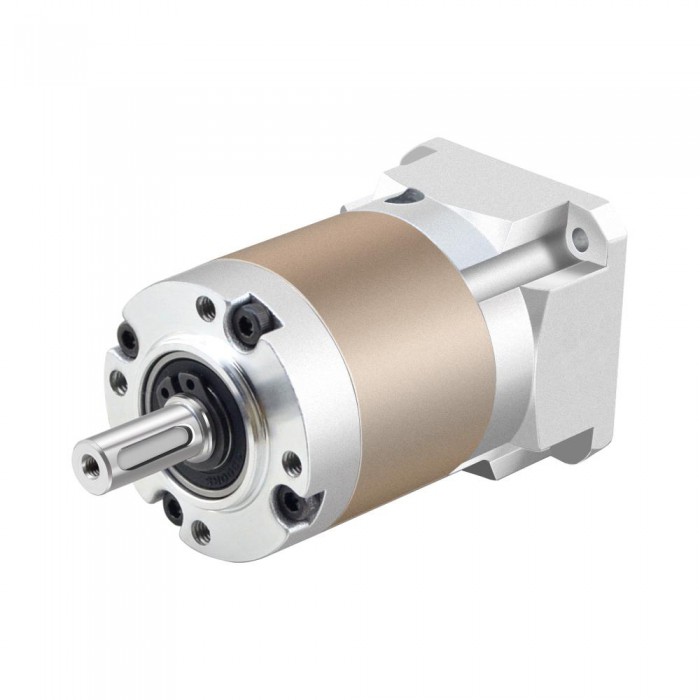

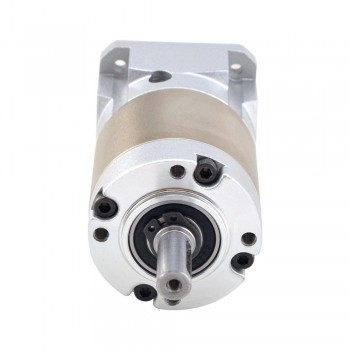

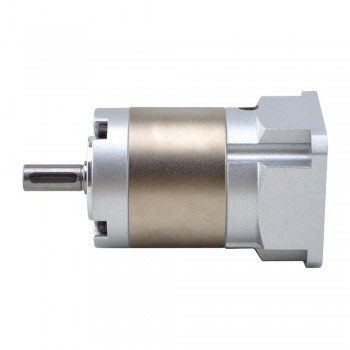

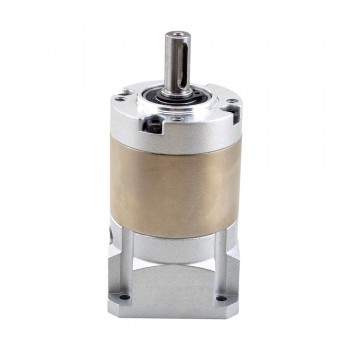

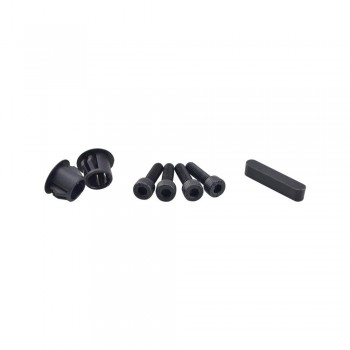

TQEG Series Planetary Gearbox 20:1 Backlash 20 Arcmin for Nema 17 Stepper Motor BLDC Motor & Servo Motor
- Manuals and Documentation: Gearbox Datasheet:
Our Price:$50.43
TQEG Series Planetary Gearbox Gear Ratio 20:1 Backlash 20 arc-min for Nema 17 Stepper Motor
It features a 20:1 gear ratio, ≤20 arc‑min backlash (no‑load), and includes a built‑in input shaft coupling compatible with standard NEMA 17 stepper, brushless DC, and servo motors.
Gearbox Specifications
Manufacturer Part Number: TQEG17-G20
Gearbox Type: Planetary
Gear Ratio: 20: 1
Efficiency: 94%
Backlash at No-load: <=20 arcmin
Max.Permissible Torque: 12 Nm(106.21 lb-in)
Moment Permissible Torque: 24 Nm(212.42 lb-in)
Noise: <=55dB
Waterproof Rating: IP54
Lifetime: 20000 hours
Physical Specifications
Frame Size: 42 x 42 mm
Gearbox Length: 67 mm
Output Shaft Type: Keyway
Output Shaft Diameter: Φ8 mm
Output Shaft Length: 21.5 mm
Input Shaft Diameter: Φ5 mm
Input Shaft Length: 24 mm
| Physical Specification | |
|---|---|
| Frame Size(mm) | 42 x 42 |
| Weight(g) | 382 |
| Gearbox Length(mm) | 67 |
| Input Shaft Diameter(mm) | 5 |
| Input Shaft Length(mm) | 24 |
| Output Shaft Diameter(mm) | 8 |
| Output Shaft Length(mm) | 21.5 |
| Suit for Motor | Nema 17 |
| Gearbox Type | PLE Series |
| Gear Ratio | 20 |
| Backlash at No-load | <=20 arcmin |
| Product Type | PLE Series Planetary Gearbox |
| Output Shaft Type | Keyway Shaft |
