TQMG Series Planetary Gearbox Gear 20:1 Backlash 30 Arc-min for Nema 17 Stepper Motor BLDC Motor & Servo Motor

TQMG Series Planetary Gearbox Gear 20:1 Backlash 30 Arc-min for Nema 17 Stepper Motor BLDC Motor & Servo Motor
NO.:TQMG17-G20
Post a review
Special Offer in Black Friday 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till December 3th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$28.69
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $27.26 5%
10 $26.68 7%
50 $25.82 10%
100 $24.96 13%
Add To Cart

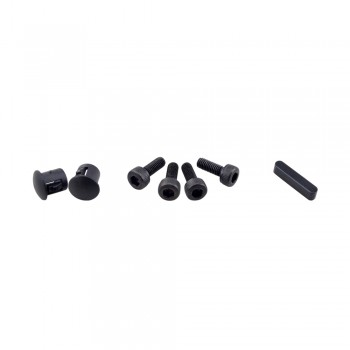

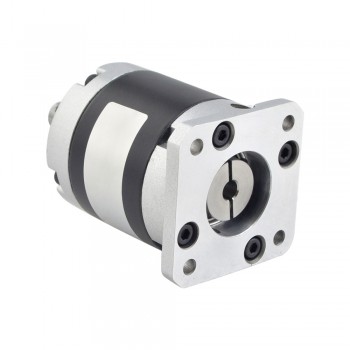

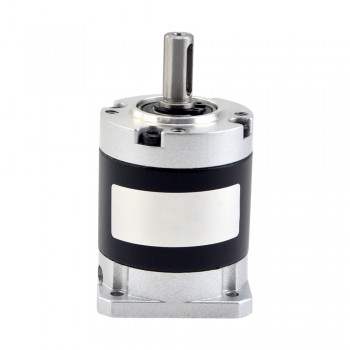

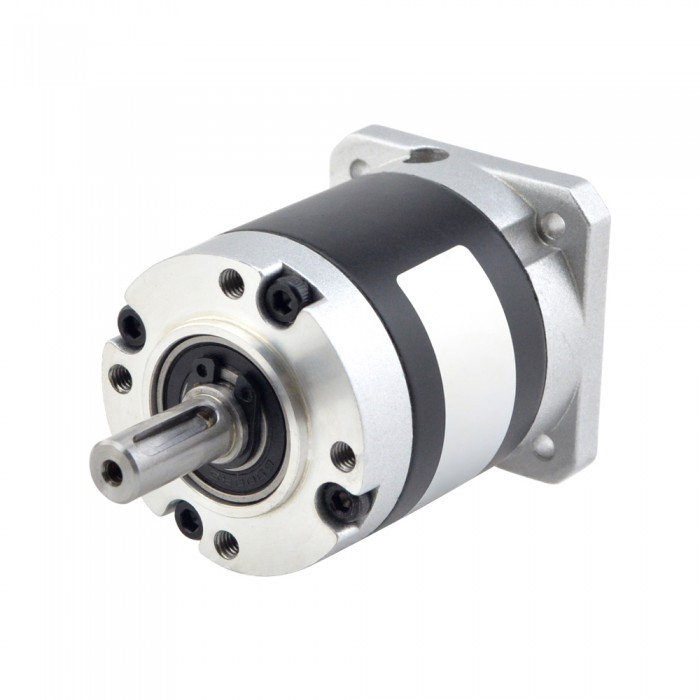

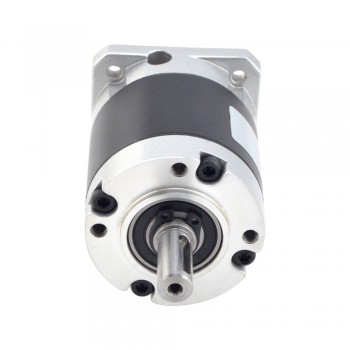

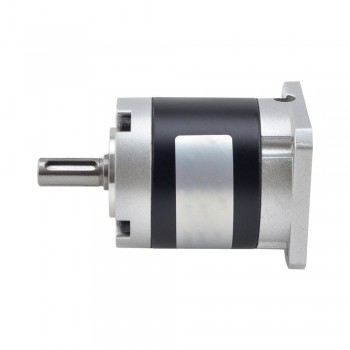

TQMG Series Planetary Gearbox Gear Ratio 20:1 Backlash 30 arc-min for Nema 17 Stepper Motor



It with gear ratio 20:1 and a maximum 50arc-min backlash. Diffent with the TQEG series' steel gears, TQMG series' gears are made of powder metallurgy.

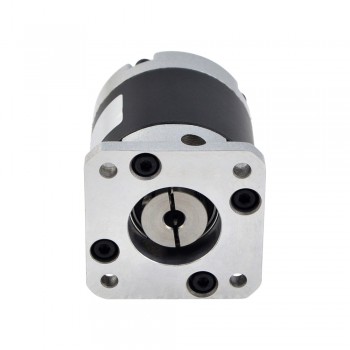

This inline planetary gearbox built-in an input shaft coupling which can match standard 5mm short shaft Nema 17 stepper motor, brushless dc motor and brushed dc motor.

One of matchable motor is 17HS15-1584S, for other motors, please contact our technical support to custom the motor shaft.



Gearbox Specifications

Manufacturer Part Number:TQMG17-G20

Gearbox Type: Planetary

Gear Ratio: 20: 1

Efficiency: 90%

Backlash at No-load: <=50arcmin

Max.Permissible Torque: 10Nm(88.51lb-in)

Noise: <=55dB

Waterproof Rating: IP54

Lifetime: 20000hours



Physical Specifications

Frame Size: 42 x 42mm

Gearbox Length: 51mm

Output Shaft Type: Key way

Output Shaft Diameter: Φ8mm

Output Shaft Length: 21.5mm

Input Shaft Diameter: Φ5mm

Input Shaft Length: 9.5mm



Resources

Gearbox Datasheet:TQMG17-G20.pdf

TQMG17-G20.STEP





Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: E Series Nema 23 Stepper Motor D-Cut Shaft Bipolar 1.8 Degree 1.9Nm (269oz.in) 2.8A 3.2V 57x57x76mm 4 Wires
Next: Short Shaft NEMA 23 Integrated Easy Servo Motor 180w 3000rpm 0.6Nm(84.98oz.in) 20-50VDC 57 x 57 mm
Physical Specification
Frame Size(mm) 42 x 42
Weight(g) 320
Gearbox Length(mm) 51
Input Shaft Diameter(mm) 5
Input Shaft Length(mm) 9.5
Output Shaft Diameter(mm) 8
Output Shaft Length(mm) 21.5
Suit for Motor Nema 17
Gearbox Type PLM Series
Gear Ratio 20
Backlash at No-load <=50arcmin
Product Type PLM Series Planetary Gearbox
Output Shaft Type Keyway Shaft
