TQEG Series Planetary Gearbox 50:1 Backlash 20 Arcmin for Nema 17 Stepper Motor BLDC Motor & Servo Motor
- Manuals and Documentation: Gearbox Datasheet:
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till June 30th, 2026
- Note:No coupon code needed, please place order directly!

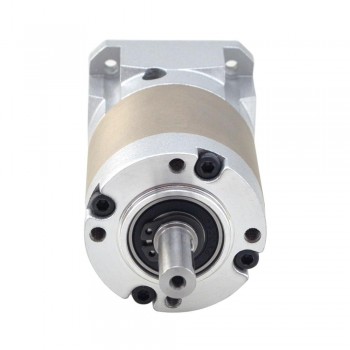

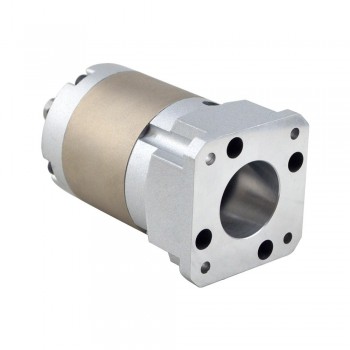

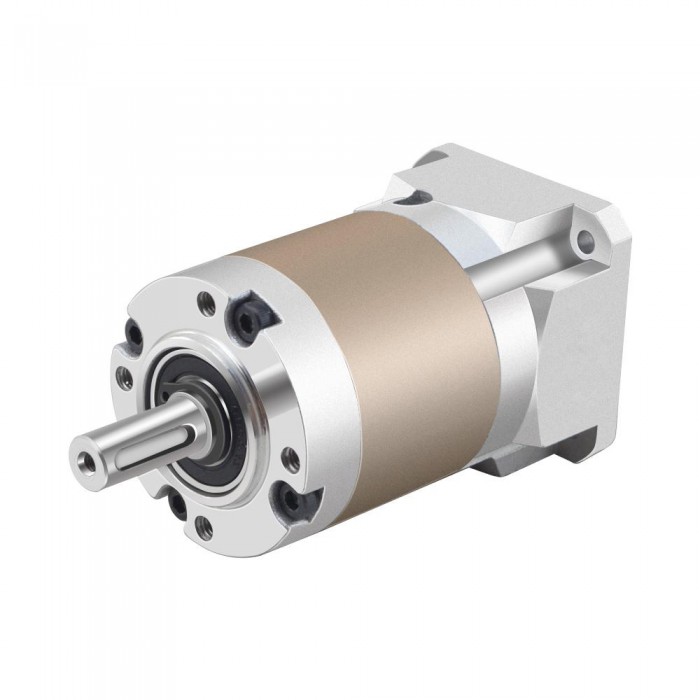

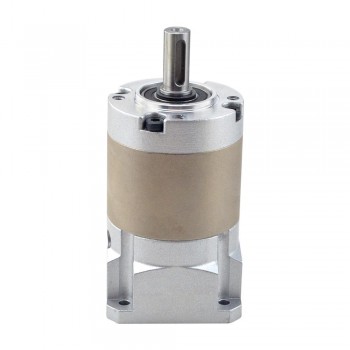

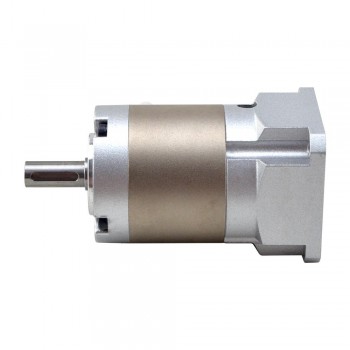

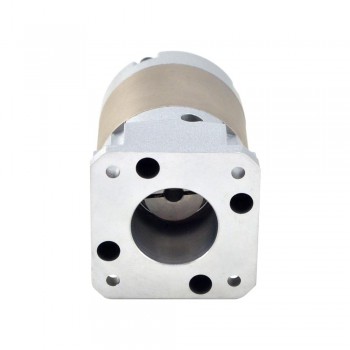

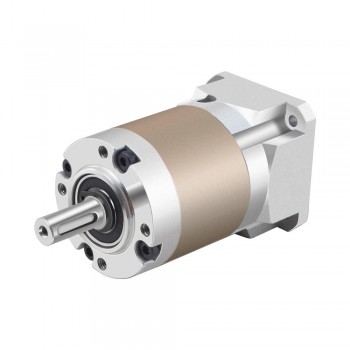

TQEG Series Planetary Gearbox Gear Ratio 50:1 Backlash 20 arc-min for Nema 17 Stepper Motor
It features a 50:1 gear ratio, ≤20 arc‑min backlash (no‑load), and includes a built‑in input shaft coupling compatible with standard NEMA 17 stepper, brushless DC, and servo motors.
Gearbox Specifications
Manufacturer Part Number: TQEG17-G50
Gearbox Type: Planetary
Gear Ratio: 50: 1
Efficiency: 94%
Backlash at No-load: <=20 arcmin
Max.Permissible Torque: 10 Nm(88.51 lb-in)
Moment Permissible Torque: 20 Nm(177.01 lb-in)
Noise: <=55dB
Waterproof Rating: IP54
Lifetime: 20000 hours
Physical Specifications
Frame Size: 42 x 42 mm
Gearbox Length: 67 mm
Output Shaft Type: Key way
Output Shaft Diameter: Φ8 mm
Output Shaft Length: 21.5 mm
Input Shaft Diameter: Φ5 mm
Input Shaft Length: 24 mm
| Physical Specification | |
|---|---|
| Frame Size(mm) | 42 x 42 |
| Weight(g) | 391 |
| Gearbox Length(mm) | 67 |
| Input Shaft Diameter(mm) | 5 |
| Input Shaft Length(mm) | 24 |
| Output Shaft Diameter(mm) | 8 |
| Output Shaft Length(mm) | 21.5 |
| Suit for Motor | Nema 17 |
| Gearbox Type | PLE Series |
| Gear Ratio | 50 |
| Backlash at No-load | <=20 arcmin |
| Product Type | PLE Series Planetary Gearbox |
| Output Shaft Type | Keyway Shaft |
Eileen – 29 Jun 2024
Good product. I am particularly concerned about the quality of the product. When I received the goods, I found that this product was not damaged during transportation. I am very happy.
eric.doucet – 17 Aug 2023
Had a few questions before ordering and got prompt replies. Requested express shipping and it arrived ahead of the estimated date. Gearbox itself seems well made and fits the application.
