TQEG Series Planetary Gearbox 10:1 Backlash 15 Arcmin for Nema 17 Stepper Motor BLDC Motor & Servo Motor

TQEG Series Planetary Gearbox 10:1 Backlash 15 Arcmin for Nema 17 Stepper Motor BLDC Motor & Servo Motor
NO.:TQEG17-G10
Post a review
Special Offer in May 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till May 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$45.54
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $43.26 5%
10 $42.35 7%
50 $40.99 10%
100 $39.62 13%
Add To Cart

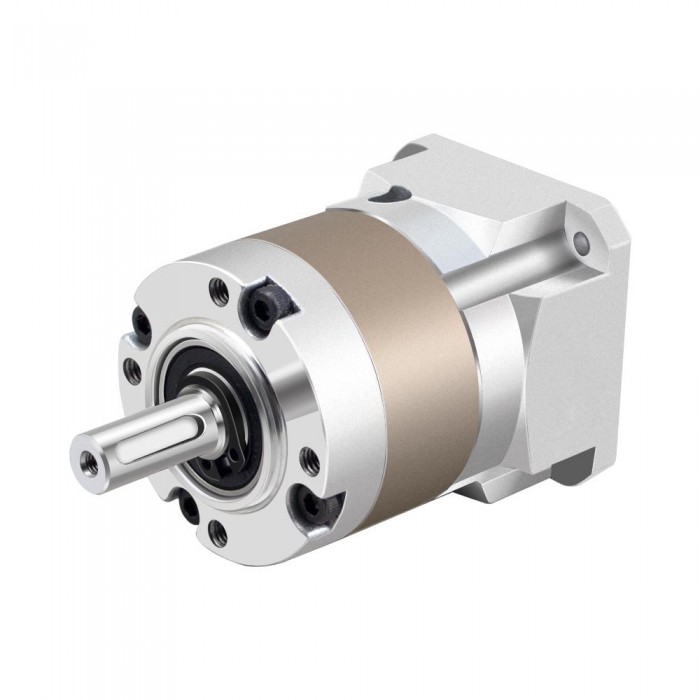

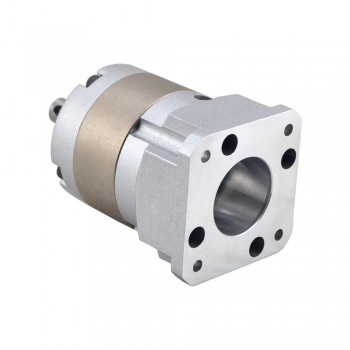

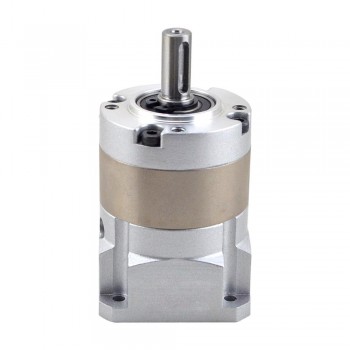

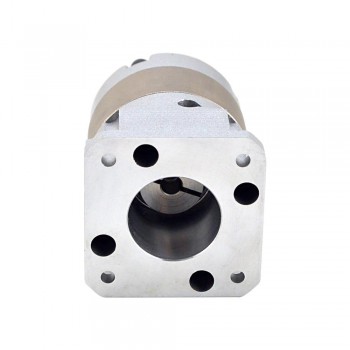

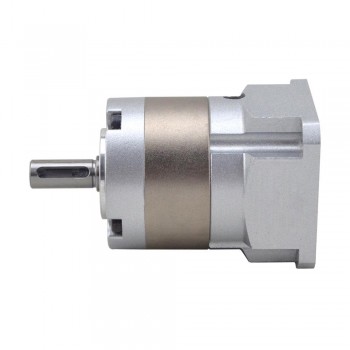

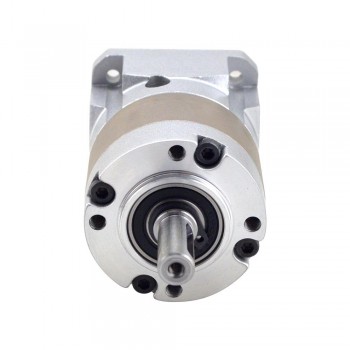

TQEG Series Planetary Gearbox Gear Ratio 10:1 Backlash 15 arc-min for Nema 17 Stepper Motor



This planetary gearbox is belong to TQEG series gearbox, it with gear ratio 10:1 and a maximum 15 arc-min backlash. This inline planetary gearbox built-in an input shaft coupling which can match any standard Nema 17 stepper motor, brushless dc motor and servo motor.



Gearbox Specifications

Manufacturer Part Number: TQEG17-G10

Gearbox Type: Planetary

Gear Ratio: 10: 1

Efficiency: 96%

Backlash at No-load: <=15 arcmin

Max.Permissible Torque: 5 Nm(44.25 lb-in)

Moment Permissible Torque: 10 Nm(88.51 lb-in)

Noise: <=55dB

Waterproof Rating: IP54

Lifetime: 20000 hours



Physical Specifications

Frame Size: 42 x 42 mm

Gearbox Length: 56 mm

Output Shaft Type: Key way

Output Shaft Diameter: Φ8 mm

Output Shaft Length: 21.5 mm

Input Shaft Diameter: Φ5 mm

Input Shaft Length: 24 mm



Resources

Gearbox Datasheet: TQEG17-G10.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: TQEG Series Planetary Gearbox 5:1 Backlash 15 Arcmin for Nema 17 Stepper Motor BLDC Motor & Servo Motor
Next: TQEG Series Planetary Gearbox 20:1 Backlash 20 Arcmin for Nema 17 Stepper Motor BLDC Motor & Servo Motor
Physical Specification
Frame Size(mm) 42 x 42
Weight(g) 296
Gearbox Length(mm) 56
Input Shaft Diameter(mm) 5
Input Shaft Length(mm) 24
Output Shaft Diameter(mm) 8
Output Shaft Length(mm) 21.5
Suit for Motor Nema 17
Gearbox Type PLE Series
Gear Ratio 10
Backlash at No-load <=15 arcmin
Product Type PLE Series Planetary Gearbox
Output Shaft Type Keyway Shaft
