TQEG Series Planetary Gearbox 100:1 Backlash 20 Arcmin for Nema 17 Stepper Motor, BLDC Motor & Servo Motor
TQEG Series Planetary Gearbox Gear Ratio 100:1 Backlash 20 arc-min for Nema 17 Stepper Motor

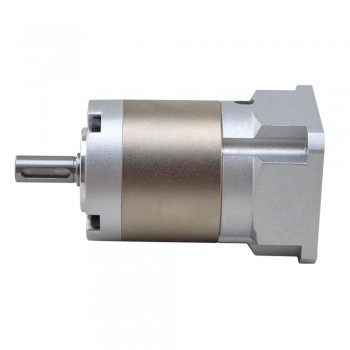

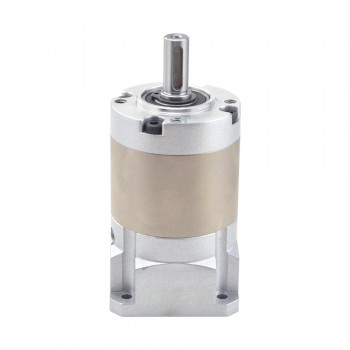

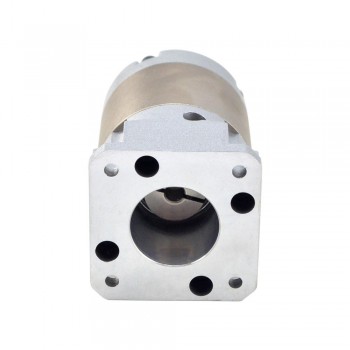

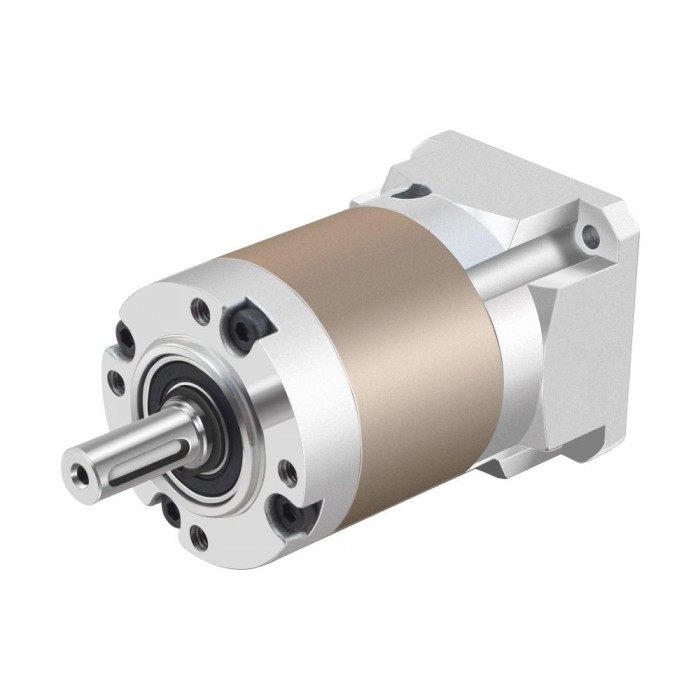

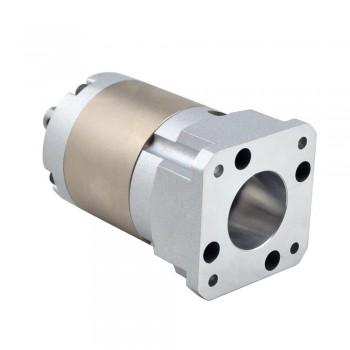

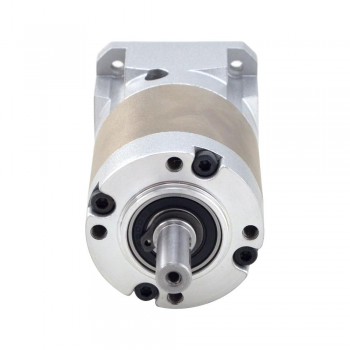

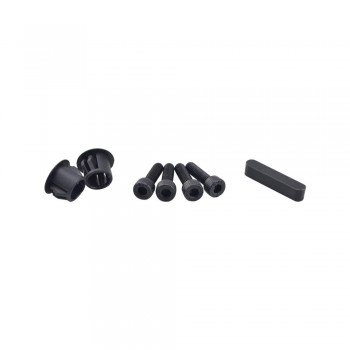

This planetary gearbox is belong to TQEG series gearbox, it with gear ratio 100:1 and a maximum 20 arc-min backlash. This inline planetary gearbox built-in an input shaft coupling which can match any standard Nema 17 stepper motor, brushless dc motor and servo motor.
Gearbox Specifications
Manufacturer Part Number: TQEG17-G100
Gearbox Type: Planetary
Gear Ratio: 100: 1
Efficiency: 94%
Backlash at No-load: <=20 arcmin
Max.Permissible Torque: 10 Nm(88.51 lb-in)
Moment Permissible Torque: 20 Nm(177.01 lb-in)
Noise: <=55dB
Waterproof Rating: IP54
Lifetime: 20000 hours
Physical Specifications
Frame Size: 42 x 42 mm
Gearbox Length: 67 mm
Output Shaft Type: Key way
Output Shaft Diameter: Φ8 mm
Output Shaft Length: 21.5 mm
Input Shaft Diameter: Φ5 mm
Input Shaft Length: 24 mm
Resources
Gearbox Datasheet: TQEG17-G100.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Physical Specification | |
|---|---|
| Gear Ratio | 100:1 |
| Output Shaft Type | Keyway |
| Frame Size(mm) | 42 x 42 |
| Weight(g) | 391 |
| Gearbox Length(mm) | 67 |
| Input Shaft Diameter(mm) | 5 |
| Input Shaft Length(mm) | 24 |
| Output Shaft Diameter(mm) | 8 |
| Output Shaft Length(mm) | 21.5 |
| Suit for Motor | Nema 17 |
| Gearbox Type | PLE Series |
| Backlash at No-load | <=20 arcmin |
| Product Type | PLE Series Planetary Gearbox |
