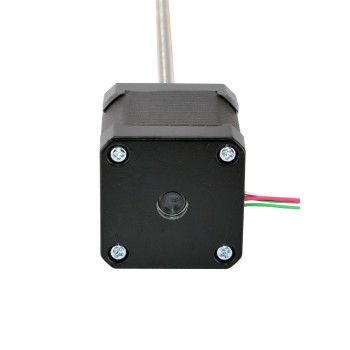

Nema 17 External Stepper Motor Linear Actuator Bipolar 1.8 Deg 1.3A 5V Lead Screw 250mm

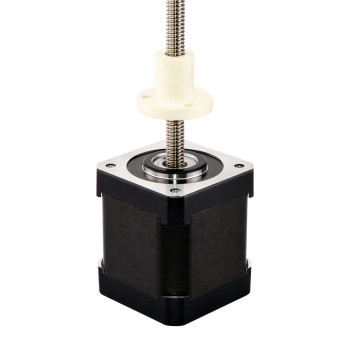

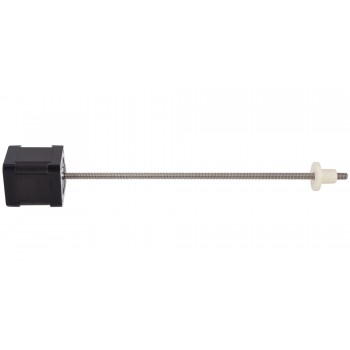

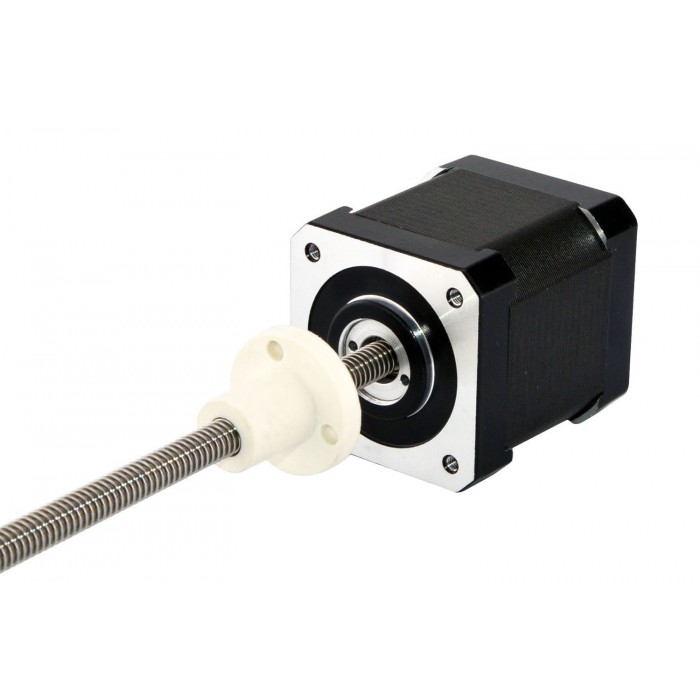

The motor part is 48mm body 1.8 degree 1.3A Nema 17 stepper motor, and it has integrated with a 6.35mm (0.25") diameter 250mm (9.8425") length lead screw and a POM screw nut, the linear travel is 0.794mm (0.03125") per revolution.
Electrical Specification
Manufacturer Part Number: 17LS19-1304P-250E
Motor Type: External Linear Stepper
Step Angle: 1.8°
Minimal Thrust: 560N (300pps)
Rated Current/phase: 1.3A
Phase Resistance: 3.96ohms
Voltage: 5V
Inductance: 6.66mH±20%(1KHz)
Physical Specification
Frame Size: 42 x 42mm
Body Length: 48mm
Lead Screw Length: 250mm(9.8425")

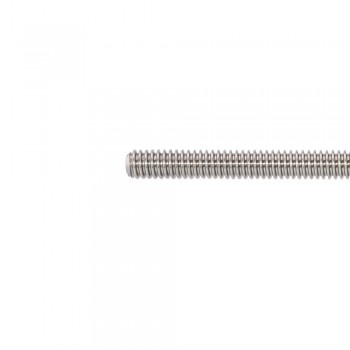

Lead Screw Diameter: Φ6.35mm(0.25")
Lead/Step: 0.00396875mm(0.00015625" )
Lead Travel/Revolution: 0.794mm(0.03125")
Number of Leads: 4
Lead Length: 300mm
Weight : 352g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Red
|
Red/White
|
Green/White
|
Green
|
Resources
Full Datasheet: 17LS19-1304P-250E.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 6.66 |
| Minimal Thrust(N) | 560 |
| Motor Type | External |
| Phase Resistance(ohm) | 3.96 |
| Rated Current (A) | 1.3 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 47.75 |
| Lead Screw Diameter(mm) | 6.35 |
| Lead Screw Length(mm) | 250 |
| Lead Revolution(mm) | 0.79375 |
| Linear Travel / Step(mm) | 0.00396875 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Frame Size(mm) | Nema 17 (42 x 42) |
