Nema 17 Non-captive Stepper Motor Linear Actuator Bipolar 1.8 Deg 5V 1.3A Lead Screw 250mm

Nema 17 Non-captive Stepper Motor Linear Actuator  Bipolar 1.8 Deg 5V 1.3A Lead Screw 250mm
NO.:17LS19-1304Q-250N
Post a review
Special Offer in March 2024:
  • 5% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till March 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$92.11
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $87.50 5%
10 $85.66 7%
50 $82.90 10%
100 $80.14 13%
Add To Cart

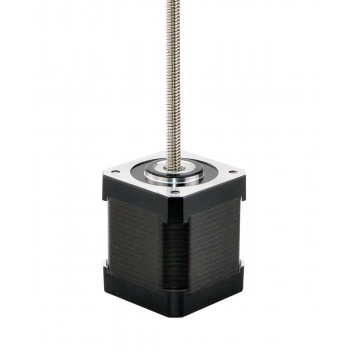

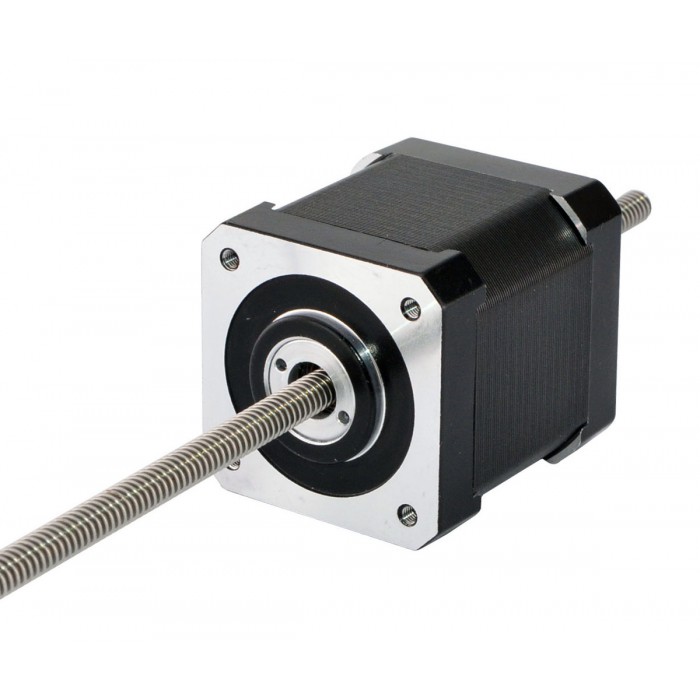

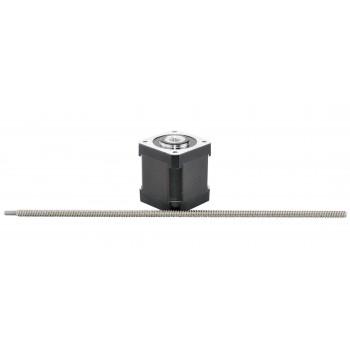

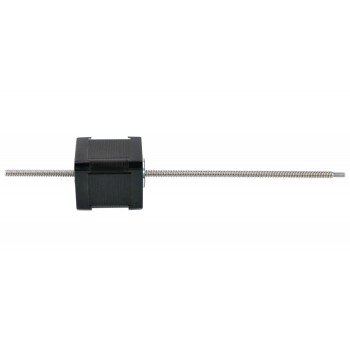

This model is almost exactly same as Haydon Kerk 43000 series size 17 double stack non-captive stepper motor linear actuator. The motor part is 48mm body 1.8 degree 1.3A Nema 17 stepper motor, and it works with a 5.54mm (0.2181") diameter 250mm (9.8425") length lead screw, the linear travel is 4.877mm (0.192") per revolution.

Electrical Specification

  • Manufacturer Part Number: 17LS19-1304Q-250N
  • Motor Type: Non-captive Linear Stepper
  • Step Angle: 1.8°
  • Minimal Thrust: 133N (300pps)
  • Rated Current/phase: 1.3A
  • Phase Resistance: 3.96ohms
  • Voltage: 5V
  • Inductance: 6.66mH±20%(1KHz)

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 48mm

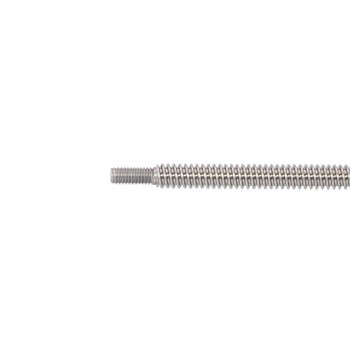

  • Lead Screw Length: 250mm(9.8425")
  • Lead Screw Diameter: Φ5.54mm(0.2181")
  • Lead/Step: 0.024384mm(0.00096" )
  • Lead Travel/Revolution: 4.877mm(0.192")
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight : 352g

Connection

A+
A-
B+
B-
Red
Red/White
Green/White
Green



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 Non-captive Stepper Motor Linear Actuator 1.8 Degree 1.3A 5V Lead Screw 250mm
Next: Nema 17 External Stepper Motor Linear Actuator 1.8° 2.6A 2.33V 4 Wires Lead Screw 250mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 6.66
Minimal Thrust(N) 133
Motor Type Non-Captive
Phase Resistance(ohm) 3.96
Rated Current (A) 1.3
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 47.75
Lead Screw Diameter(mm) 5.54
Lead Screw Length(mm) 250
Lead Revolution(mm) 4.8768
Linear Travel / Step(mm) 0.024384
No. of Lead 4
Lead Length(mm) 300
Frame Size(mm) Nema 17 (42 x 42)
