NEMA 14 Non-Captive Acme Stepper Motor Linear Actuator 1.5A Bipolar 1.8 Deg 0.14Nm Lead Revolution 2.54mm(0.1") Lead Screw 200mm

NEMA 14 Non-Captive Acme Stepper Motor Linear Actuator 1.5A Bipolar 1.8 Deg 0.14Nm Lead Revolution 2.54mm(0.1") Lead Screw 200mm
NO.:14N13S1504GF5-200RS
Post a review
Special Offer in March 2024:
  • 5% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till March 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$40.42
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $38.40 5%
10 $37.59 7%
50 $36.38 10%
100 $35.17 13%
Add To Cart

NEMA 14 Non-Captive Acme Linear Stepper Motor 1.5A 34mm Stack Screw Lead 2.54mm(0.1") Lead Length 200mm

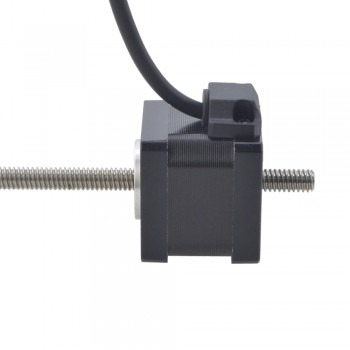

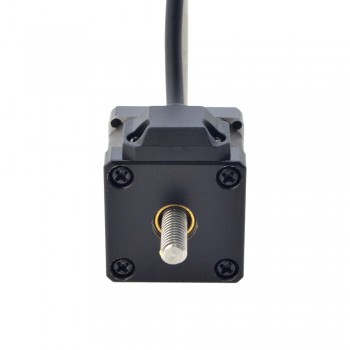

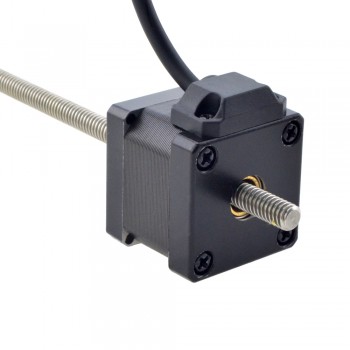

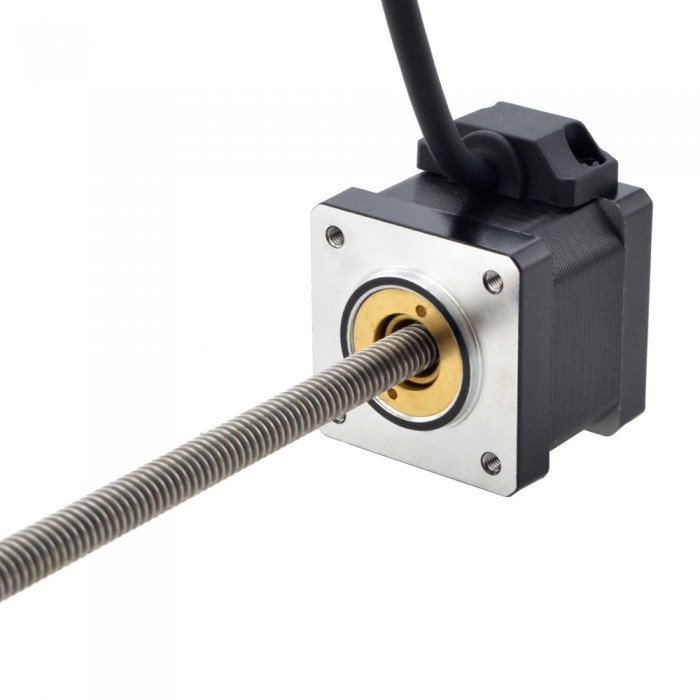

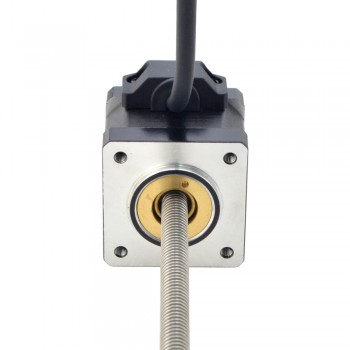

This model is a Nema 14 Non-Captive screw linear stepper motor with a 34mm body length, 1.8 degree step angle and 1.5A rated current. It is integrated with a Φ6.35mm(0.25") diameter, 200mm(7.874") lead screw length and a POM screw nut, the linear travel is 2.54mm(0.1") per revolution.



Electrical Specification

Manufacturer Part Number: 14N13S1504GF5-200RS

Motor Type: Non-Captive

Step Angle: 1.8°

Holding Torque: 0.14Nm(19.82oz.in)

Rated Current/phase: 1.5A

Phase Resistance: 0.95ohms

Inductance: 1mH±20%(1KHz)



Physical Specification

Frame Size: 35 x 35mm

Body Length: 34mm

Lead Screw Length: 200mm(7.874")

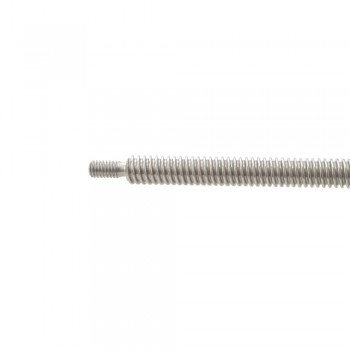

Lead Screw Diameter: Φ6.35mm(0.25")

Lead/Step: 0.0127mm(0.0005")

Lead Travel/Revolution: 2.54mm(0.1")

Number of Leads: 4

Number of Thread Starts: 2

Lead Length: 500mm



Connection

A+ A- B+ B-
Red Red/White Green Green/White



Resources



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: NEMA 14 External Ball Screw Linear Stepper Motor 1.8 Deg 0.2Nm 1.5A 47mm Stack Lead Revolution 2mm(0.07874") Lead Screw 150mm
Next: NEMA 14 Non-Captive Acme Stepper Motor Linear Actuator 1.8 Deg 0.2Nm 1.5A 47mm Stack Lead Revolution 1.27mm(0.05") Lead Screw 200mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 1
Phase Resistance(ohm) 0.95
Rated Current (A) 1.5
Step Angle(deg.) 1.8
Linear Motor Type Non-Captive
Physical Specification
Body Length(mm) 34
Frame Size(mm) Nema 11 (28 x 28)
Lead Length(mm) 500
Lead Screw Diameter(mm) 6.35
Lead Screw Length(mm) 200
No. of Lead 4
Lead Travel/Revolution(mm) 2.54
Lead Travel/Step(mm) 0.0127
IP Rating 40
