NEMA 14 External Ball Screw Linear Stepper Motor 1.8 Deg 0.2Nm 1.5A 47mm Stack Lead Revolution 2mm(0.07874") Lead Screw 150mm

NEMA 14 External Ball Screw Linear Stepper Motor 1.5A 47mm Stack Screw Lead 2mm(0.07874") Lead Length 150mm

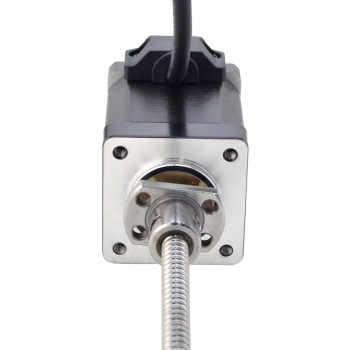

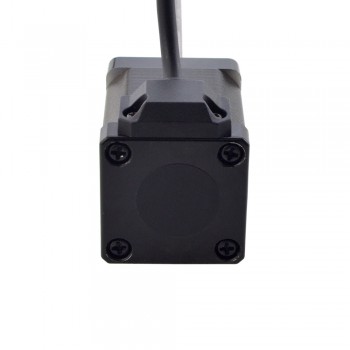

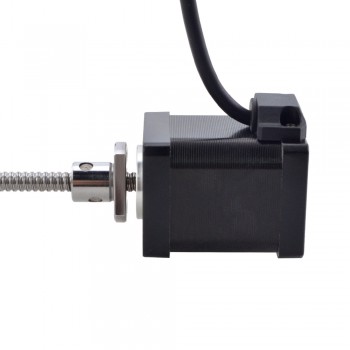

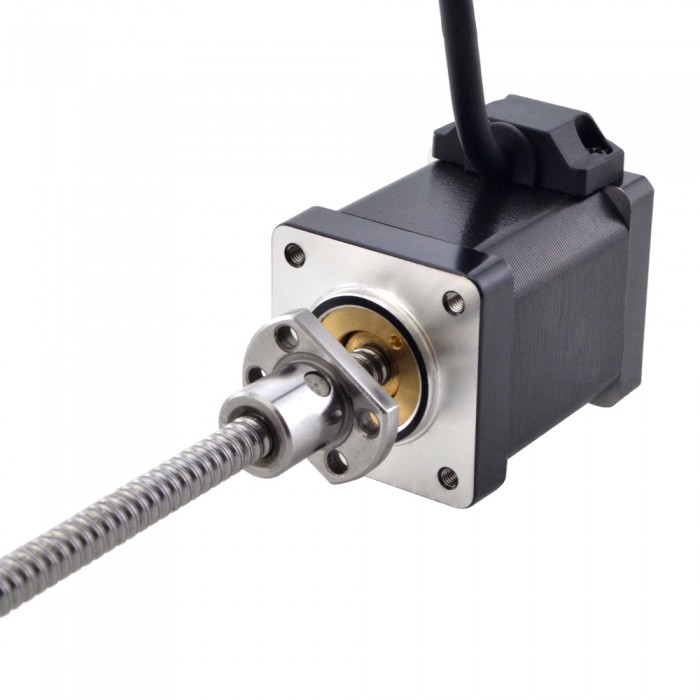

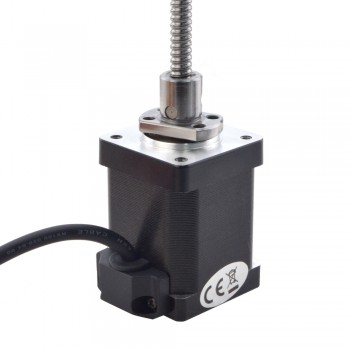

This model is a Nema 14 ball screw linear stepper motor with a 47mm body length, 1.8 degree step angle and 1.5A rated current. It is integrated with a 6mm(0.2362") diameter 150mm (5.9055") length ball screw length and a steel screw nut, the linear travel is 2mm(0.07874") per revolution. It has the characteristics of high performance, long life, low noise and high efficiency.

Electrical Specification

Manufacturer Part Number: 14E19S1504BAM5-150RS

Motor Type: External (Ball Screw)

Step Angle: 1.8°

Holding Torque: 0.2Nm(28.32oz.in)

Rated Current/phase: 1.5A

Phase Resistance: 1.6ohms

Inductance: 2.3mH±20%(1KHz)

Accuracy Grade: C7

Physical Specification

Frame Size: 35 x 35mm

Body Length: 47mm

Lead Screw Length: 150mm(5.9055")

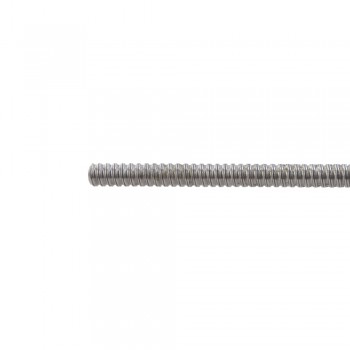

Lead Screw Diameter: Φ6mm(0.2362")

Lead/Step: 0.01mm(0.0003937")

Lead Travel/Revolution: 2mm(0.07874")

Number of Leads: 4

Lead Length: 300mm

Connection

Resources

• 14E19S1504BAM5-150RS_Full_Datasheet.pdf
• 14E19S1504BAM5-150RS.STEP

Lead Screw End Machining

Anti-Backlash Nut

OYOSTEPPER provides anti-backlash nut for external lead screw linear actuator (except Size 34) and non-captive lead screw linear actuator (except size 24 and 34).

There should be a nominal backlash between lead screw and OYOSTEPPER standard plastic nut after millions of cycles. OYOSTEPPER guarantees few millions of cycles but physical backlash can be increased. To reduce or eliminate backlash, OYOSTEPPER provides spring pressure structure of anti-backlash nut.

Encoders

According to application requirements, customer can easily choose encoders via index output or non-index type and thru output method as single ended or differential output.

Also various resolution can be chosen freely for easier and precise positioning.

All OYOSTEPPER standard encoders are optical and incremental. When you choose encoder, please carefully look into options especially size, resolution, index and output method.

Brakes

Especially Vertical applications or holding motors from sudden power-off status, OYOSTEPPER standard power-off brakes for NEMA14, 17, 23, 24 and 34 sizes will be helpful to reduce concern of customers.

Wiring, Cabling and Connectors

Flying wire leads or connectors

Twisting wire leads

Heat shrink or expandable tubing

Cable housings

Teflon Coated Screw

If customer's applications require greaseless screw and nut combination, OYOSTEPPER offers teflon coated lead screw of stepper linear actuator.

Teflon coated lead screw stepper linear actuator enables it's longer life cycle and better thrust force generation against conventional SUS lead screw.

Teflon coating can be applied in the whole range of lead screw options in OYOSTEPPER and all types of linear actuators such as External, Non-Captive, and Captive.

In addition, Anti-backlash nut also can be combined with teflon coated screw too.
