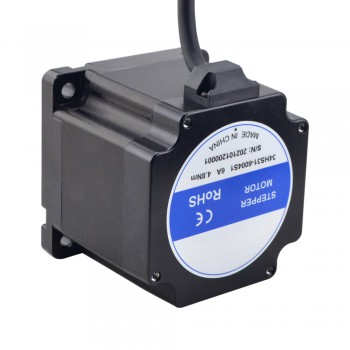

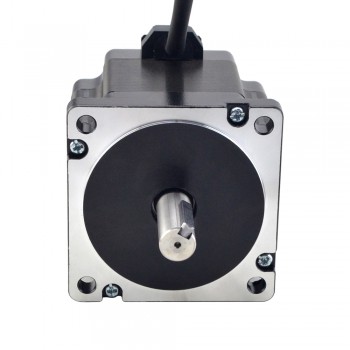

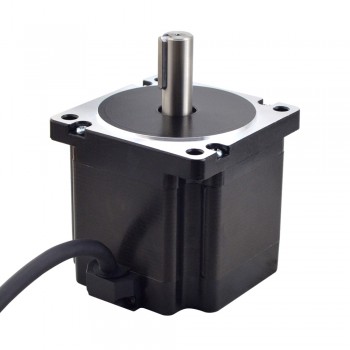

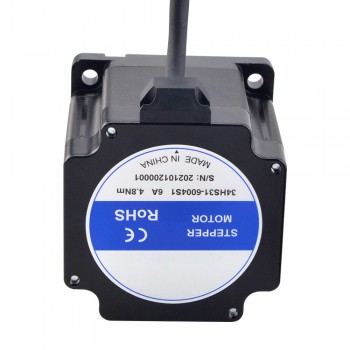

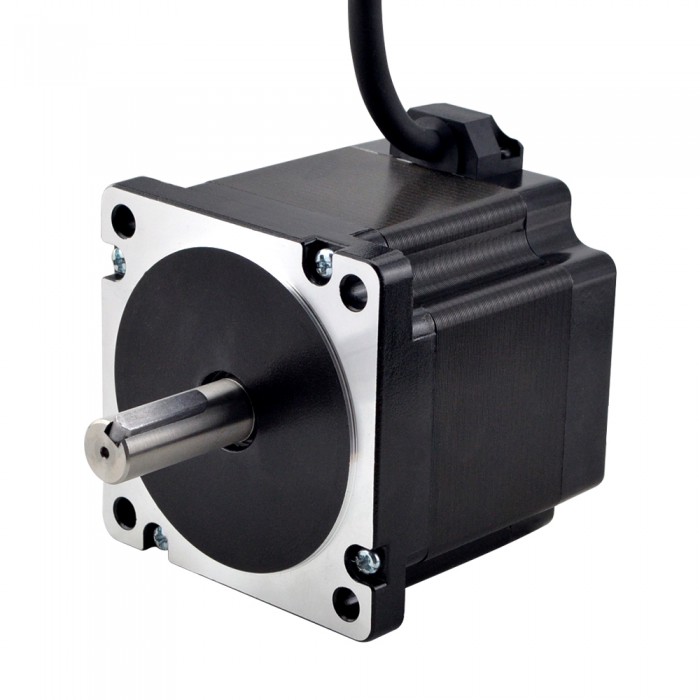

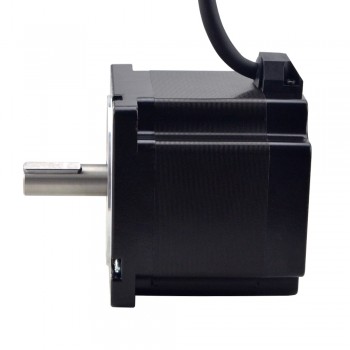

S Series Nema 34 Stepper Motor 1.8 Degree 4.8Nm(679.87oz.in) 2 Phase 6.0A Key-way Shaft

S Series Nema 34 Stepper Motor 1.8 Degree 4.8Nm(679.87oz.in) 2 Phase 6.0A Key-way Shaft
NO.:34HS31-6004S1
Post a review
Special Offer in May 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till May 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$33.74
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $32.05 5%
10 $31.38 7%
50 $30.37 10%
100 $29.35 13%
Add To Cart

S Series Nema 34 Stepper Motor 4.8Nm(679.87oz.in) 14mm Key-way Shaft 1m Cable



Electrical Specification

Manufacturer Part Number: 34HS31-6004S1

Number Of Phase: 2

Step Angle: 1.8 deg

Holding Torque: 4.8Nm(679.87oz.in)

Rated Current/phase: 6.0 A

Phase Resistance: 0.48 ohms± 10%

Inductance: 3.5 mH ± 20%(1KHz)



Physical Specification

Frame Size: 86 x 86 mm

Body Length: 80 mm

Shaft Diameter: Φ14 mm

Shaft Length: 32 mm

Keyway Shaft Length: 25 mm

Number of Leads: 4

Lead Length: 1000 mm

Weight: 2.5kg



Connection



A+ A- B+ B-
BLK GRN RED BLU



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: TQMG Series Planetary Gearbox Gear 50:1 Backlash 50 Arc-min for Nema 17 Stepper Motor BLDC Motor & Servo Motor
Next: E Series Nema 23 Stepper Motor Bipolar 2 Phase 1.8 Degree 4 Wires 1.26 Nm(178.04oz.in) 2.8A
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 480
Holding Torque (oz.in) 679.87
Inductance(mH) 3.5
Phase Resistance(ohm) 0.48
Rated Current (A) 6.0
Step Angle(deg.) 1.8
Coupling Specification
Body Length(mm) 80
Physical Specification
Frame Size(mm) Nema 34 (86 x 86)
Lead Length(mm) 1000
No. of Lead 4
Shaft Diameter(mm) 14
Shaft Length(mm) 32
Single Shaft/Dual Shaft Single Shaft
Weight(g) 2500
Output Shaft Type Keyway
IP Rating 40
