NEMA 14 Non-Captive Acme Stepper Motor Linear Actuator 1.8 Deg 0.2Nm 1.5A 47mm Stack Lead Revolution 12.7mm(0.5") Lead Screw 200mm
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till December 3th, 2024
- Note:No coupon code needed, please place order directly!
NEMA 14 Non-Captive Acme Linear Stepper Motor 1.5A 47mm Stack Screw Lead 12.7mm(0.5") Lead Length 200mm

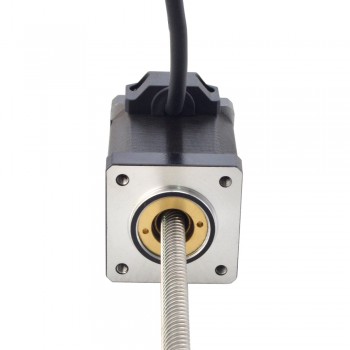

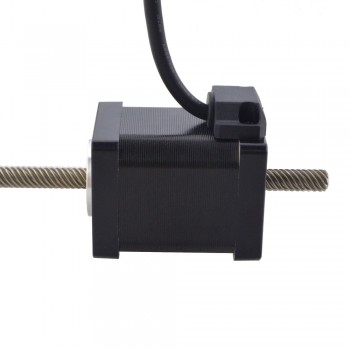

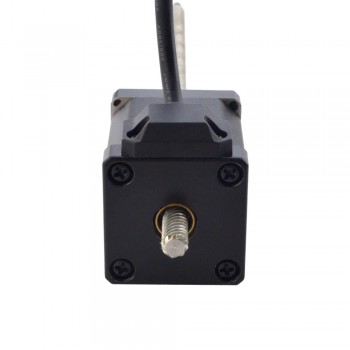

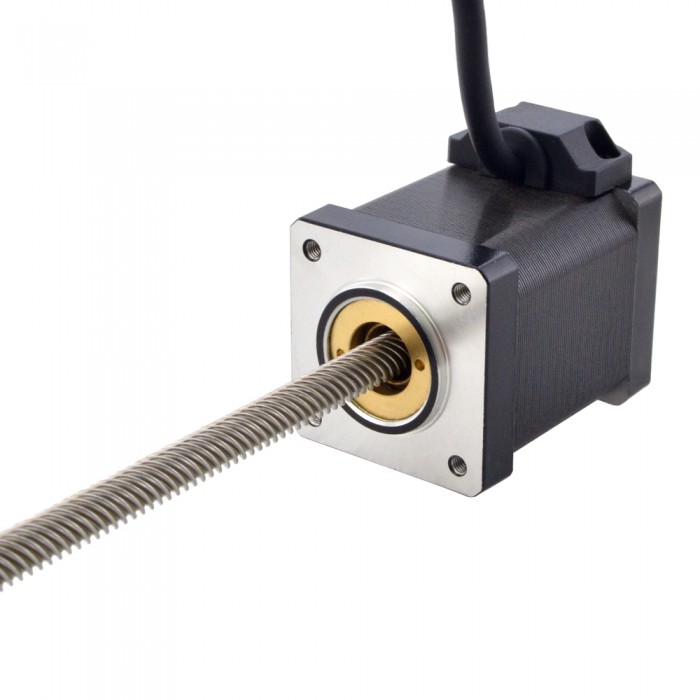

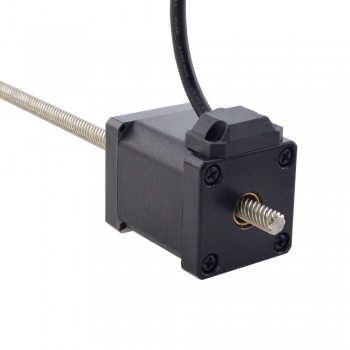

This model is a Nema 14 Non-Captive screw linear stepper motor with a 47mm body length, 1.8 degree step angle and 1.5A rated current. It is integrated with a Φ6.35mm(0.25") diameter, 200mm(7.874") lead screw length and a POM screw nut, the linear travel is 12.7mm(0.5") per revolution.
Electrical Specification
Manufacturer Part Number: 14N19S1504WF5-200RS
Motor Type: Non-Captive
Step Angle: 1.8°
Holding Torque: 0.2Nm(28.32oz.in)
Rated Current/phase: 1.5A
Phase Resistance: 1.5ohms
Inductance: 2mH±20%(1KHz)
Physical Specification
Frame Size: 35 x 35mm
Body Length: 47mm

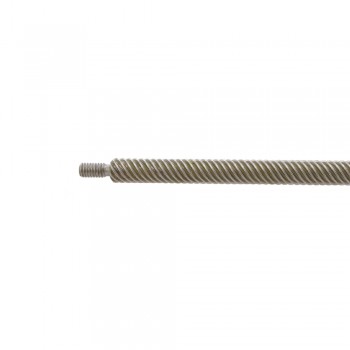

Lead Screw Length: 200mm(7.874")
Lead Screw Diameter: Φ6.35mm(0.25")
Lead/Step: 0.0635mm(0.0025")
Lead Travel/Revolution: 12.7mm(0.5")
Number of Leads: 4
Number of Thread Starts: 8
Lead Length: 500mm
Connection
A+ | A- | B+ | B- |
Red | Red/White | Green | Green/White |
Resources
14N19S1504WF5-200RS_Full_Datasheet.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
Electrical Specification | |
---|---|
Bipolar/Unipolar | Bipolar |
Inductance(mH) | 2.3 |
Phase Resistance(ohm) | 1.6 |
Rated Current (A) | 1.5 |
Step Angle(deg.) | 1.8 |
Linear Motor Type | Non-Captive |
Physical Specification | |
Body Length(mm) | 34 |
Frame Size(mm) | Nema 11 (28 x 28) |
Lead Length(mm) | 500 |
Lead Screw Diameter(mm) | 6.35 |
Lead Screw Length(mm) | 200 |
No. of Lead | 4 |
Lead Travel/Revolution(mm) | 12.7 |
Lead Travel/Step(mm) | 0.0635 |
IP Rating | 40 |
