NEMA 23 External Acme Stepper Motor Linear Actuator 3.0A 1.8 Deg 1Nm Lead Revolution 1.27mm(0.05") Lead Screw 200mm
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till October 7th, 2024
- Note:No coupon code needed, please place order directly!
NEMA 23 External Acme Linear Stepper Motor 3.0A 56mm Stack Screw Lead 1.27mm(0.05") Lead Length 200mm

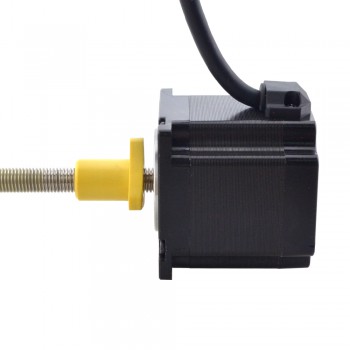

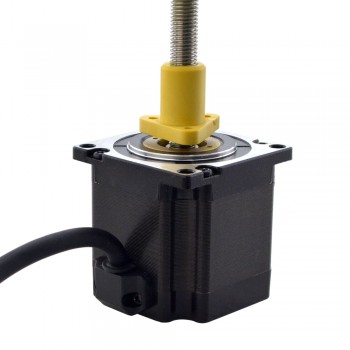

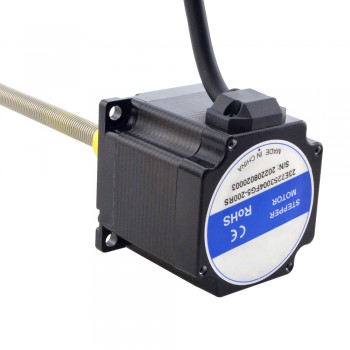

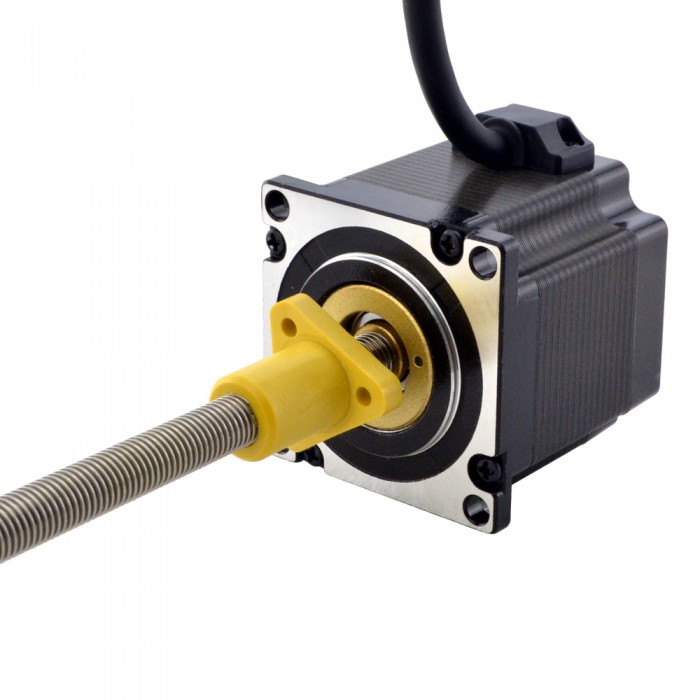

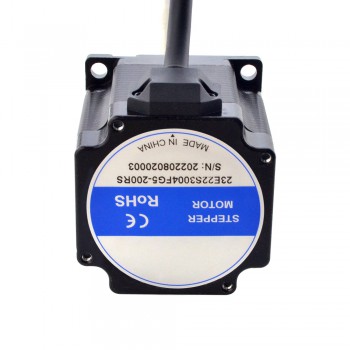

This model is a Nema 23 ACME screw linear stepper motor with a 56mm body length, 1.8 degree step angle and 3A rated current. It is integrated with a Φ9.525mm(0.375") diameter, 200mm(7.8740") ACME screw length and a POM screw nut, the linear travel is 1.27mm(0.05") per revolution. \
Electrical Specification
Manufacturer Part Number: 23E22S3004FG5-200RS
Motor Type: External(ACME)
Step Angle: 1.8°
Holding Torque: 1Nm(141.64oz.in)
Rated Current/phase: 3A
Phase Resistance: 1.1ohms
Inductance: 4.5mH±20%(1KHz)
Physical Specification
Frame Size: 57 x 57mm
Body Length: 56mm
Lead Screw Length: 200mm(7.8740")

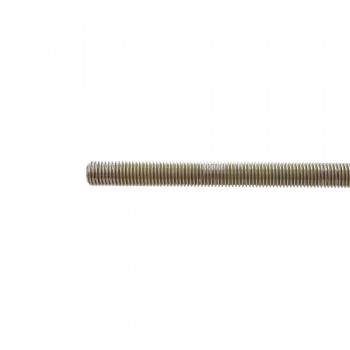

Lead Screw Diameter: Φ9.525mm(0.375")
Lead/Step: 0.00635mm(0.00025")
Lead Travel/Revolution: 1.27mm(0.05")
Number of Leads: 4
Number of Thread Starts: 1
Lead Length: 500mm
Connection
| A+ | A- | B+ | B- |
| Red | Red/White | Green | Green/White |
Resources
23E22S3004FG5-200RS_Full_Datasheet.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 4.5 |
| Phase Resistance(ohm) | 1.1 |
| Rated Current (A) | 3.0 |
| Step Angle(deg.) | 1.8 |
| Linear Motor Type | External(Acme) |
| Physical Specification | |
| Body Length(mm) | 56 |
| Frame Size(mm) | Nema 23 (57 x 57) |
| Lead Length(mm) | 500 |
| Lead Screw Diameter(mm) | 9.525 |
| Lead Screw Length(mm) | 200 |
| No. of Lead | 4 |
| Lead Travel/Revolution(mm) | 1.27 |
| Lead Travel/Step(mm) | 0.00635 |
| IP Rating | 40 |
