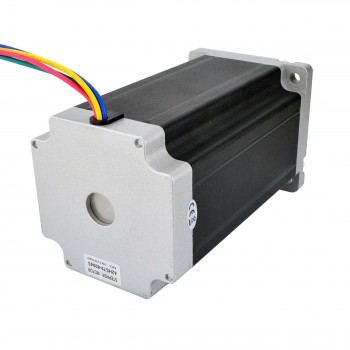

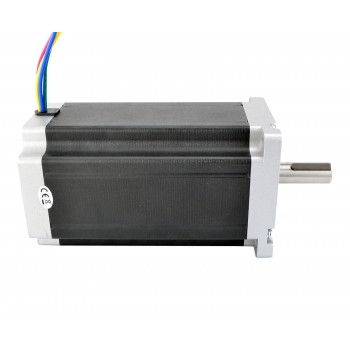

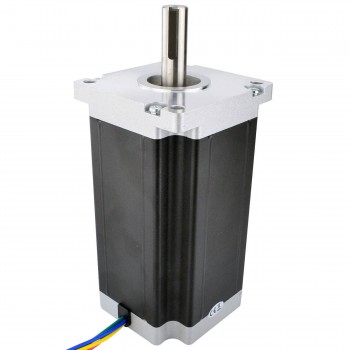

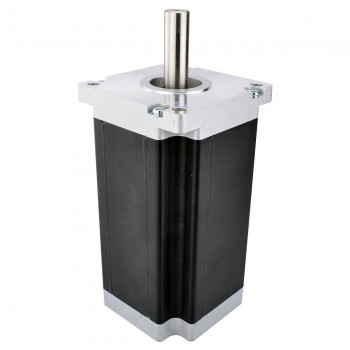

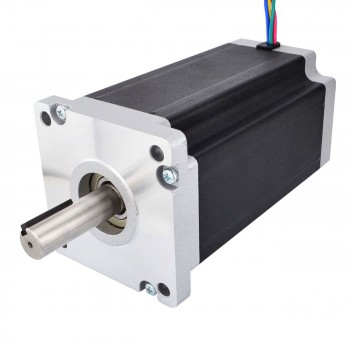

Nema 42 CNC High Torque Stepper Motor Bipolar 1.8 Degree 30Nm (4248oz.in) 8A 110x201mm 4 Wires

Nema 42 CNC High Torque Stepper Motor Bipolar 1.8 Degree 30Nm (4248oz.in) 8A 110x201mm 4 Wires
NO.:42HS79-8004S
Review: Post a review
Our Price:$208.72
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $198.28 5%
5 $194.11 7%
10 $187.85 10%
50 $181.59 13%
Add To Cart

It with size 110x110x201mm. It has 4 wires, each phase draws 8A, allowing for a huge torque up to 30Nm (4248oz.in).



Electrical Specification

Manufacturer Part Number: 42HS79-8004S

Step Angle: 1.8 deg

Holding Torque: 30Nm(4248oz.in)

Rated Current/phase: 8.0A

Voltage: 5.36V

Phase Resistance: 0.67ohms

Inductance: 11mH ± 20%(1KHz)



Physical Specification

Frame Size: 110 x 110mm

Body Length: 201mm

Shaft Diameter: Φ19mm

Shaft Length: 55.37mm

Key Way Length: 35mm

Number of Leads: 4

Lead Length: 300mm

Weight: 12.5kg



Connection

A+ A- B+ B-
Black Green Red Blue



Resources

Full Datasheet: 42HS79-8004S.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 42 CNC High Torque Stepper Motor Bipolar 1.8 Deg 4.8V 22Nm (3115oz.in) 6.0A 110x150mm 4 Wires
Next: Dual Shaft Nema 42 CNC High Torque Stepper Motor 30Nm (4248oz.in) 8A 110x201mm 4 Wires
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 3000
Holding Torque (oz.in) 4248
Inductance(mH) 11
Phase Resistance(ohm) 0.67
Rated Current (A) 8
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 201
Frame Size(mm) 110x110
Single Shaft/Dual Shaft Single Shaft
Shaft Diameter(mm) 19
Shaft Length(mm) 55.37
No. of Lead 4
Lead Length(mm) 300
Weight(g) 11700
Shaft Type Keyway
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.
