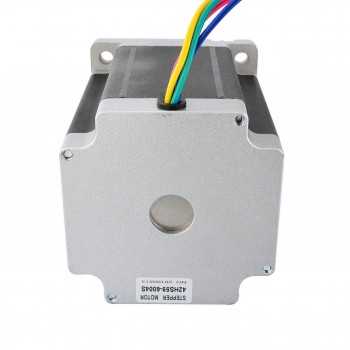

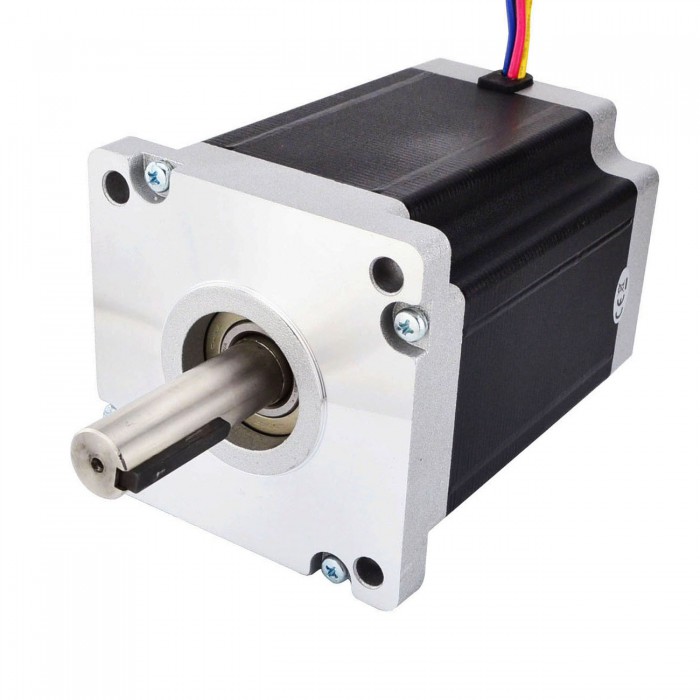

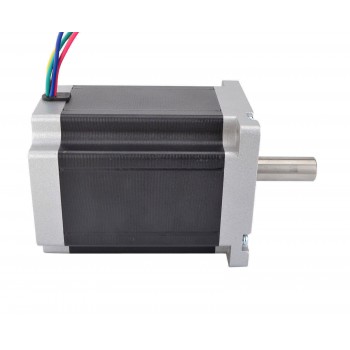

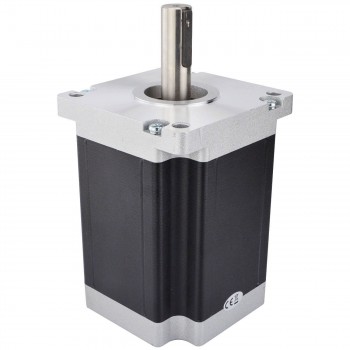

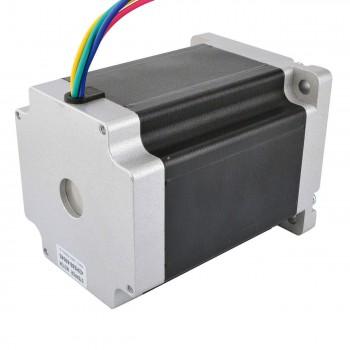

Nema 42 CNC High Torque Stepper Motor Bipolar 1.8 Deg 4.8V 22Nm (3115oz.in) 6.0A 110x150mm 4 Wires
This Nema 42 cnc stepper motor with size 110x110x150mm. It has 4 wires, each phase draws 6A, with holding torque 22Nm (3115oz.in).
Electrical Specification
Manufacturer Part Number: 42HS59-6004S
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 22Nm(3115oz.in)
Rated Current/phase: 6.0A
Voltage: 4.8V
Phase Resistance: 0.8ohms
Inductance: 14mH ± 20%(1KHz)
Physical Specification
Frame Size: 110 x 110mm
Body Length: 150mm
Shaft Diameter: Φ19mm
Shaft Length: 55.37mm
Key Way Length: 35mm
Number of Leads: 4
Lead Length: 500mm
Weight: 10.9kg
Connection
| A+ | A- | B+ | B- |
| Red | Green | Yellow | Blue |
Resources
Full Datasheet: 42HS59-6004S.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 2200 |
| Holding Torque (oz.in) | 3115 |
| Inductance(mH) | 14 |
| Phase Resistance(ohm) | 0.8 |
| Rated Current (A) | 6 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 150 |
| Frame Size(mm) | 110x110 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Diameter(mm) | 19 |
| Shaft Length(mm) | 55.37 |
| No. of Lead | 4 |
| Lead Length(mm) | 500 |
| Weight(g) | 10900 |
| Shaft Type | Keyway |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
