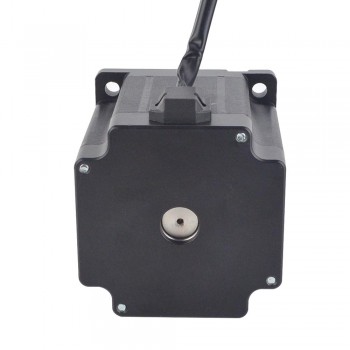

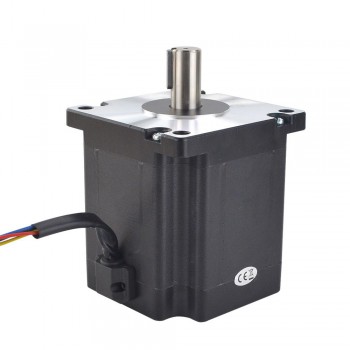

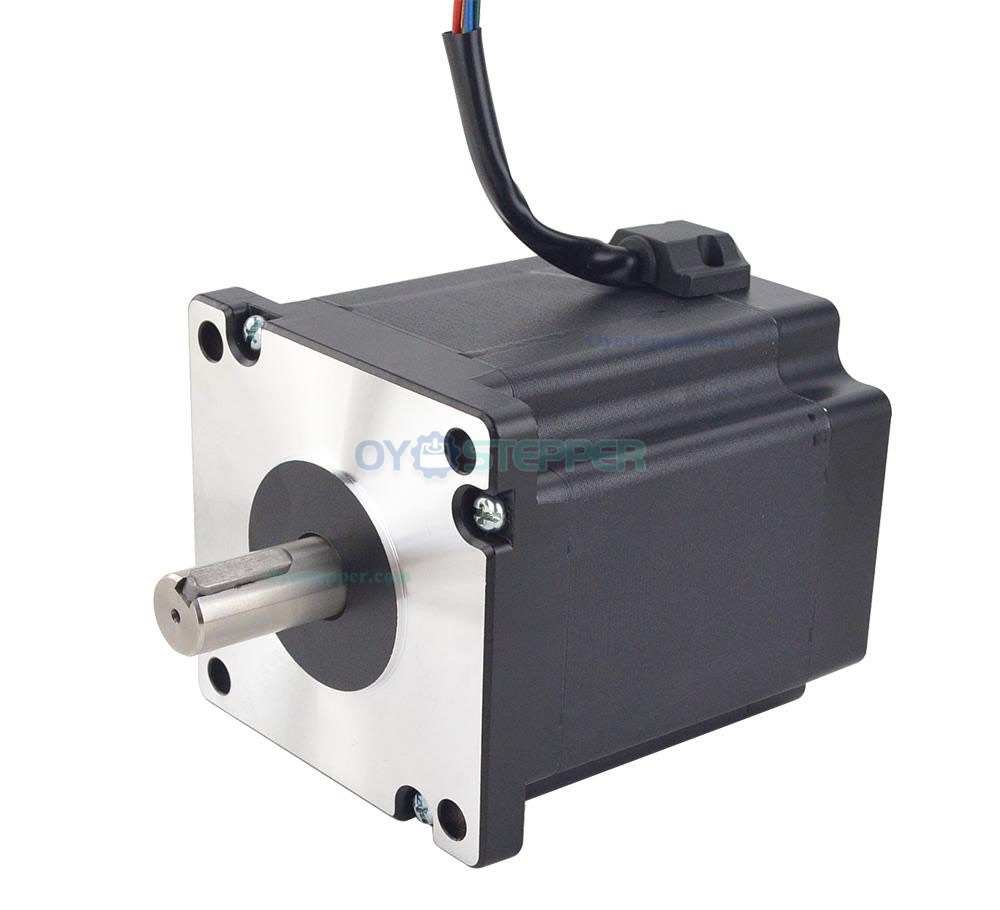

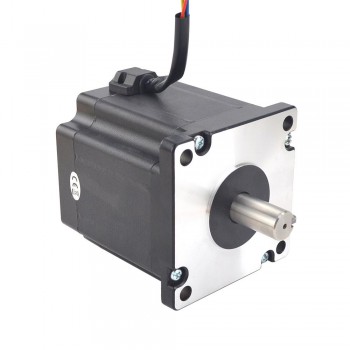

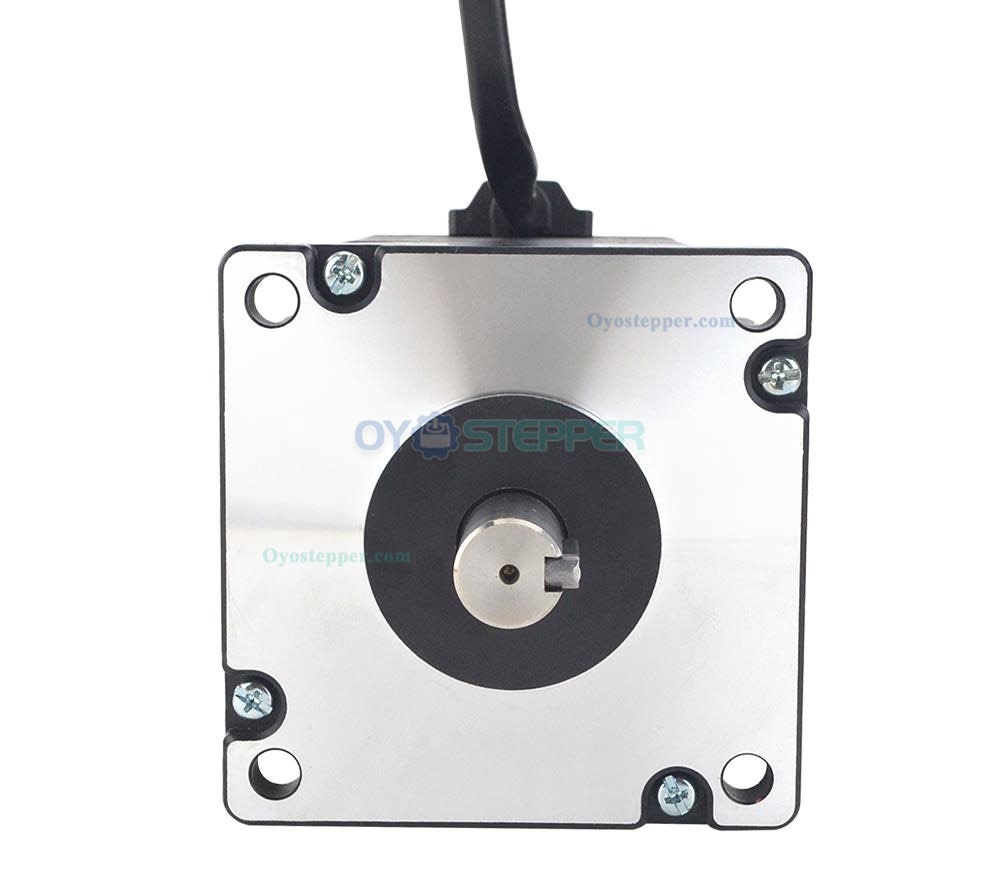

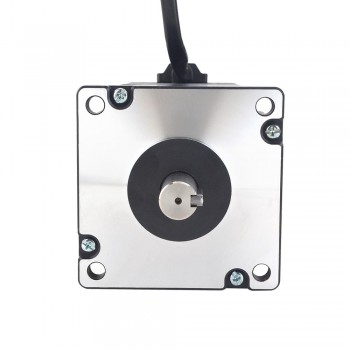

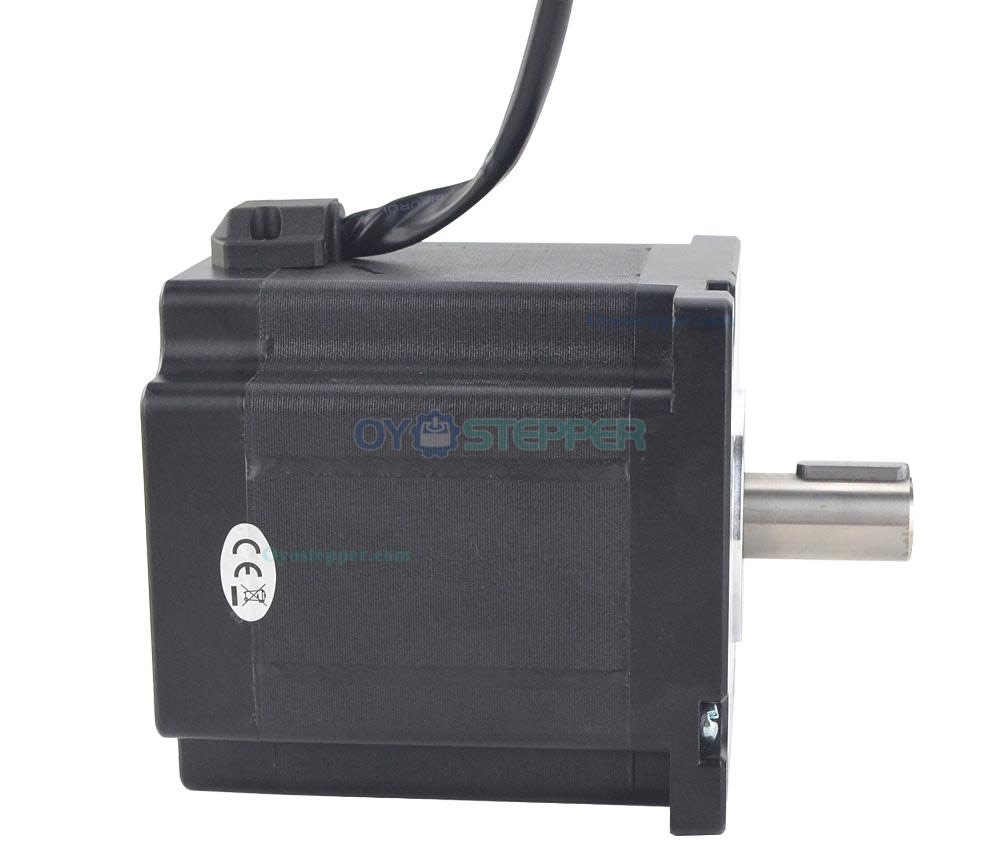

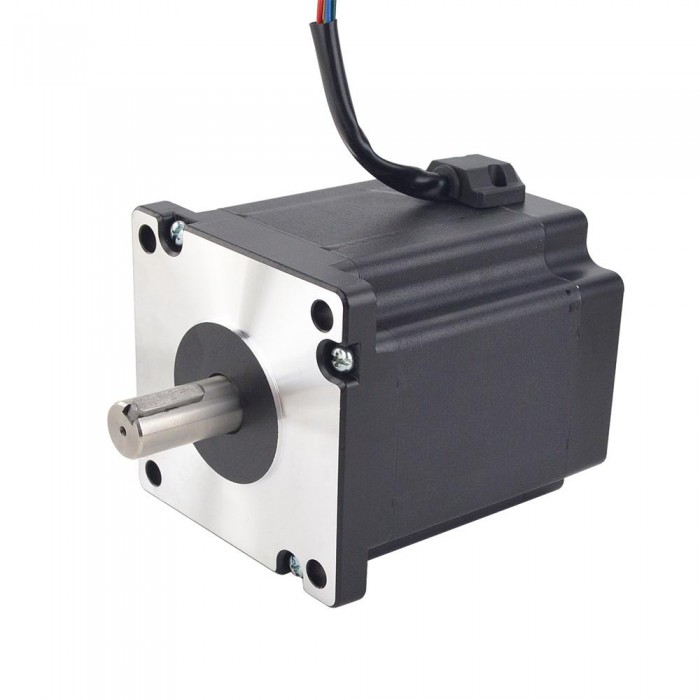

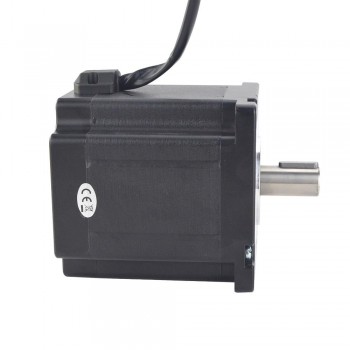

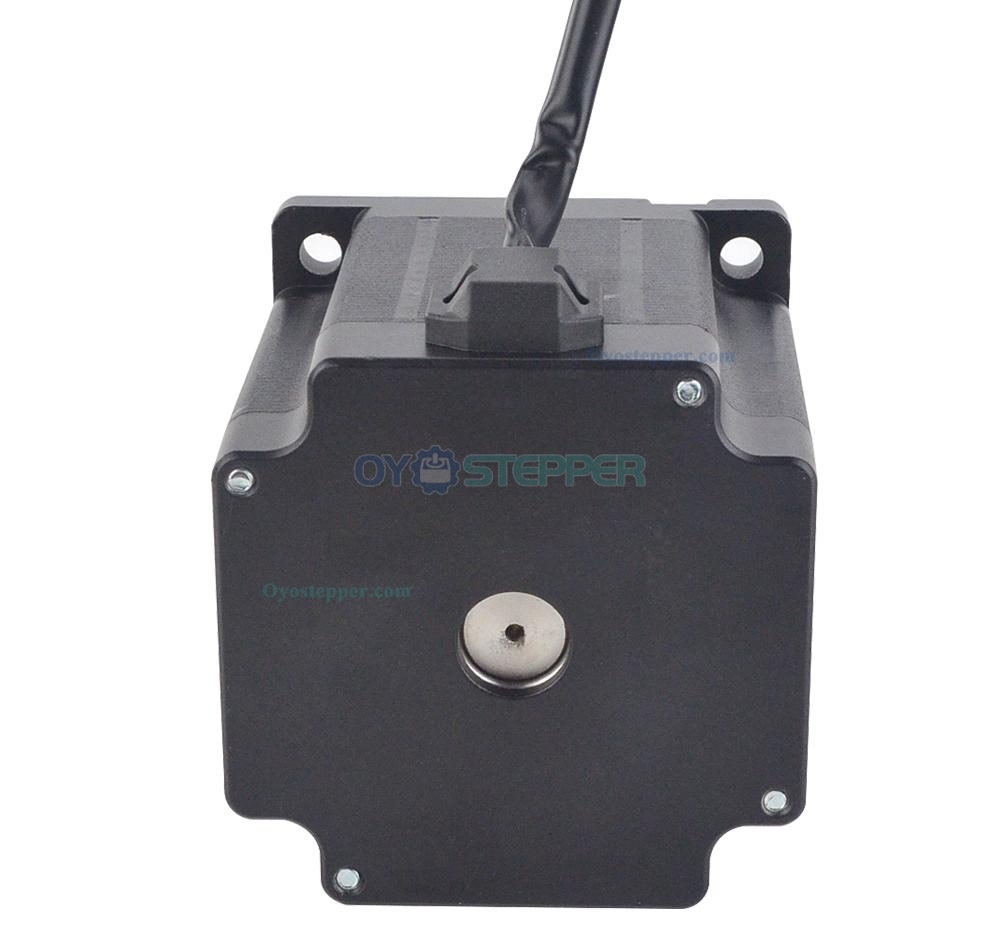

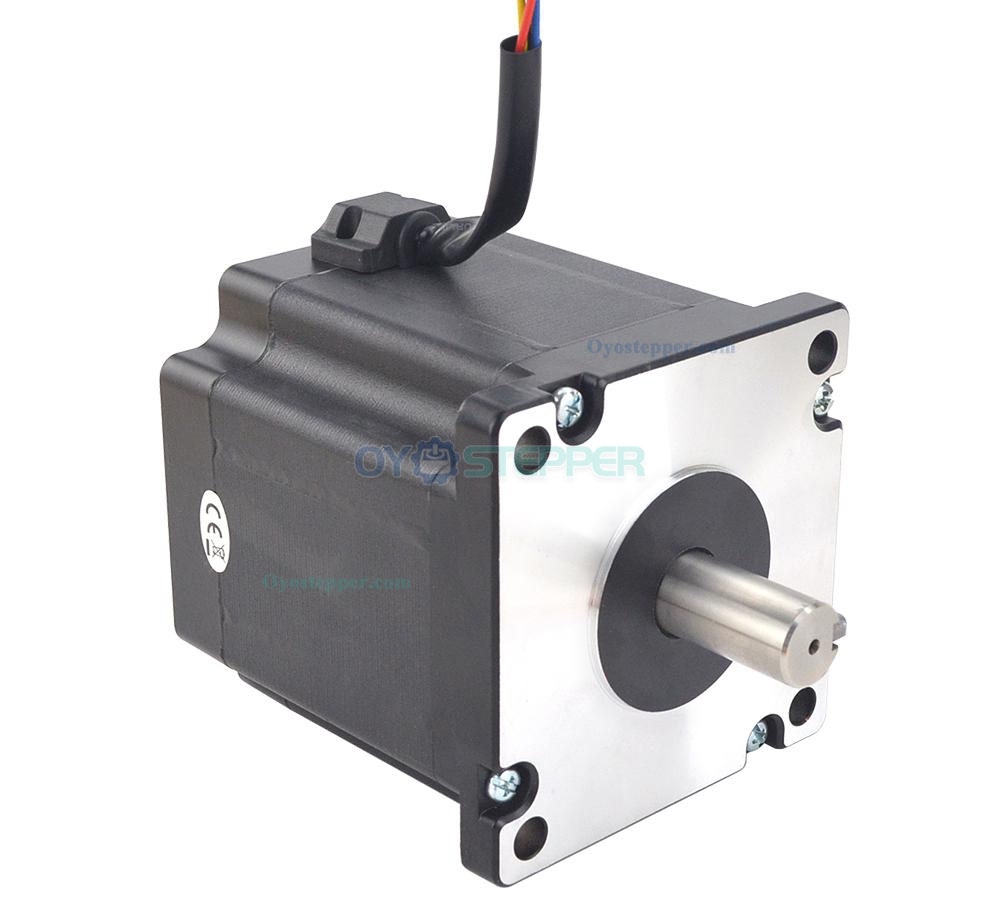

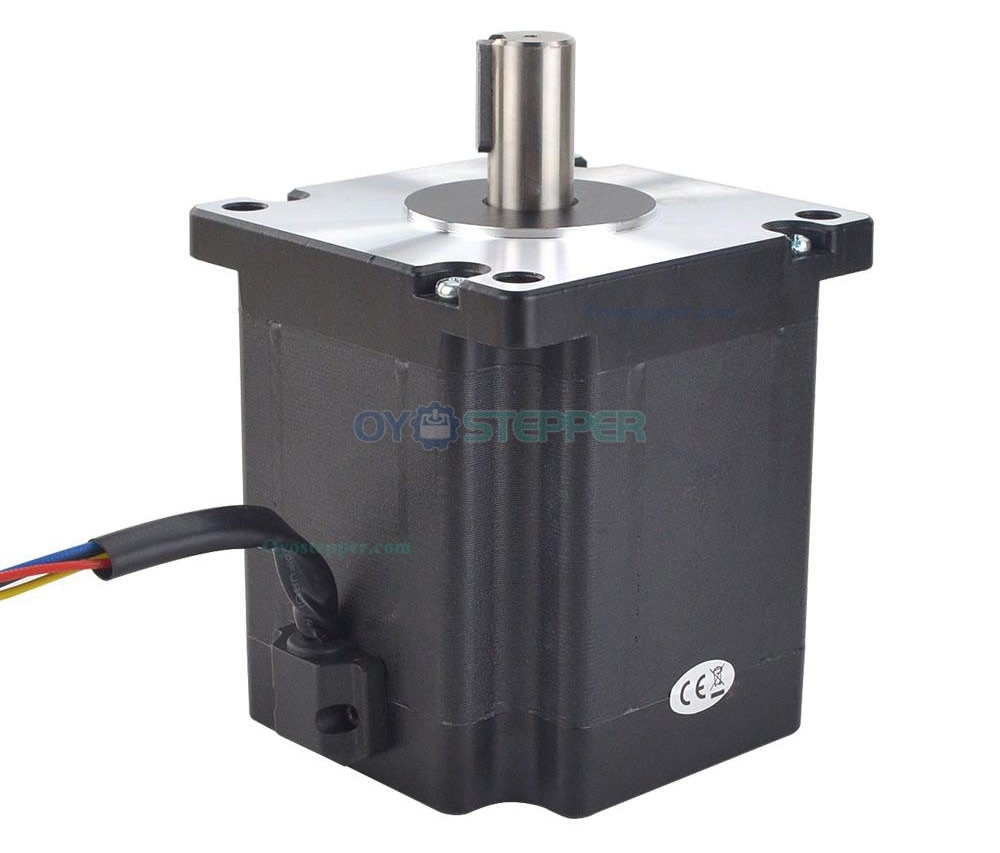

Nema 42 High Torque Stepper Motor Bipolar 1.8 Deg 12 Nm(1699.68oz.in) 2 Phase 6.0A 110x116mm 4 Wires

Nema 42 High Torque Stepper Motor Bipolar 1.8 Deg 12 Nm(1699.68oz.in) 2 Phase 6.0A 110x116mm 4 Wires
NO.:42HS46-6004S
Post a review
Special Offer in July 2024:
  • $10 Off Over $150
  • $20 Off Over $300
  • $35 Off Over $500
  • $55 Off Over $800
  • $70 Off Over $1000
  • $100 Off Over $1500
  • Enjoy Discount at Checkout!
  • Valid Till July 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$140.73
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $133.69 5%
5 $130.88 7%
10 $126.66 10%
50 $122.44 13%
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 42HS46-6004S
  • Number of Phase: 2
  • Step Angle: 1.8 deg
  • Holding Torque: 12 Nm(1699.68oz.in)
  • Rated Current/phase: 6 A
  • Phase Resistance: 0.5 ohms± 10%
  • Inductance: 8.4 mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 110 x 110 mm
  • Body Length: 116 mm
  • Shaft Diameter: Φ19 mm
  • Shaft Length: 40 mm
  • keyway Shaft Length: 25 mm
  • Number of Leads: 4
  • Lead Length: 500 mm
  • Weight: 6.6 kg

Connection

A+
A-
B+
B-
RED
GRN
YEL
BLU



Resources



Nema 42 High Torque Stepper Motor Bipolar 1.8 Deg 12 Nm(1699.68oz.in) 2 Phase 6.0A 110x116mm 4 Wires

Nema 42 High Torque Stepper Motor Bipolar 1.8 Deg 12 Nm(1699.68oz.in) 2 Phase 6.0A 110x116mm 4 Wires

Nema 42 High Torque Stepper Motor Bipolar 1.8 Deg 12 Nm(1699.68oz.in) 2 Phase 6.0A 110x116mm 4 Wires

Nema 42 High Torque Stepper Motor Bipolar 1.8 Deg 12 Nm(1699.68oz.in) 2 Phase 6.0A 110x116mm 4 Wires

Nema 42 High Torque Stepper Motor Bipolar 1.8 Deg 12 Nm(1699.68oz.in) 2 Phase 6.0A 110x116mm 4 Wires

Nema 42 High Torque Stepper Motor Bipolar 1.8 Deg 12 Nm(1699.68oz.in) 2 Phase 6.0A 110x116mm 4 Wires

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 Hollow Shaft Stepper Motor Bipolar 1.8 Deg 0.36 Nm(42.49oz.in) 1.5A 42x42x47.75mm 4 Wires
Next: Nema 42 Bipolar 1.8 Deg 30 Nm(4249.2oz.in) 6.0A 110x202mm 4 Wires 2 Phase High Torque Stepper Motor
Electrical Specification
Holding Torque (Ncm) 1200
Holding Torque (oz.in) 1699.68
Inductance(mH) 8.4
Phase Resistance(ohm) 0.5
Rated Current (A) 6
Motor Specification
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 116
Frame Size(mm) 110 x 110
Lead Length(mm) 500
No. of Lead 4
Shaft Diameter(mm) 19
Shaft Length(mm) 40
Weight(g) 6600
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.
