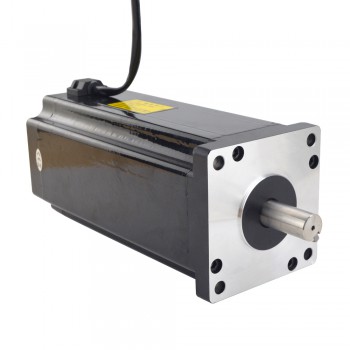

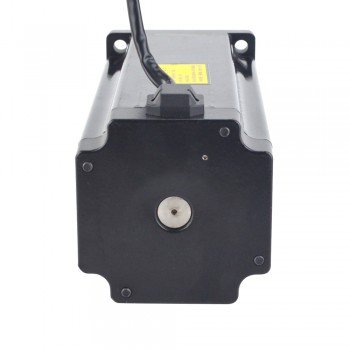

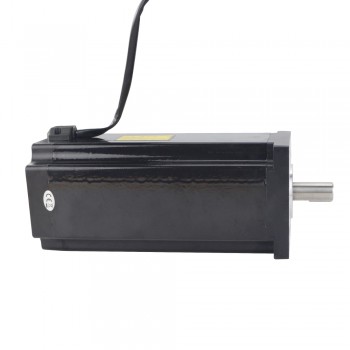

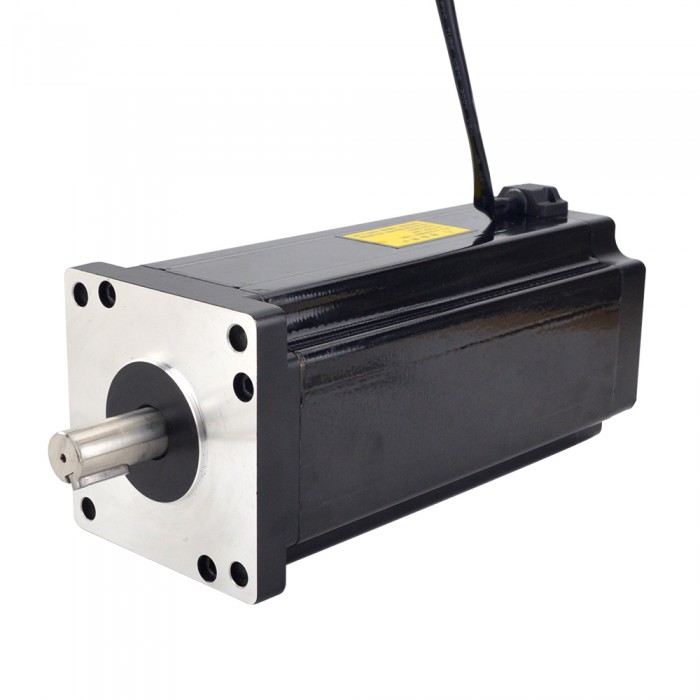

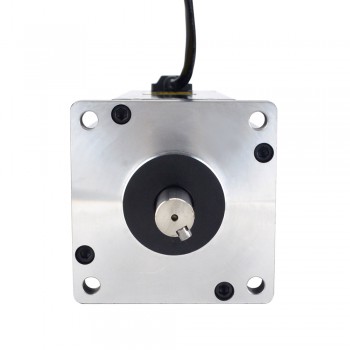

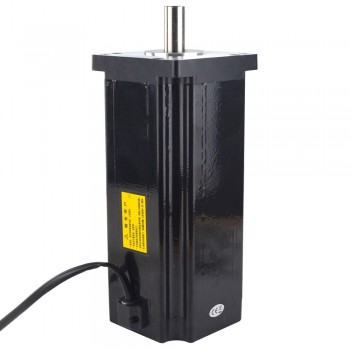

Nema 42 Stepper Motor Bipolar 1.2 Deg 25 Nm 5.0A 110x110x251.5mm High Torque Stepper Motor
Special Offer in October 2024:
- $10 Off Over $150
- $20 Off Over $300
- $35 Off Over $500
- $55 Off Over $800
- $70 Off Over $1000
- $100 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till October 15th, 2024
- Note:No coupon code needed, please place order directly!
Our Price:$199.54
Electrical Specification
Manufacturer Part Number: 42HT99-5003S
Number of Phase: 3
Step Angle: 1.2 deg
Holding Torque: 25 Nm(3541oz.in)
Rated Current/phase: 5 A
Phase Resistance: 2.9 ohms± 10%
Inductance: 27 mH ± 20%(1KHz)
Physical Specification
Frame Size: 110 x 110 mm
Body Length: 251.5 mm
Shaft Diameter: Φ19 mm
Shaft Length: 42 mm
keyway Shaft Length: 25 mm
Number of Leads: 3
Lead Length: 300 mm
Weight: 14.8 kg
Connection
|
U
|
V
|
W
|
|
RED
|
YEL
|
GRN
|
Resources
Full Datasheet: 42HT99-5003S.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Holding Torque (Ncm) | 2500 |
| Inductance(mH) | 27 |
| Phase Resistance(ohm) | 2.9 |
| Rated Current (A) | 5 |
| Step Angle(°) | 1.2 |
| No. of Phase | 3 |
| Physical Specification | |
| Body Length(mm) | 251.5 |
| Frame Size(mm) | 110 x 110 |
| Lead Length(mm) | 300 |
| No. of Lead | 3 |
| Shaft Diameter(mm) | 19 |
| Shaft Length(mm) | 42 |
| Weight(g) | 14800 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
