NEMA 23 Non-Captive Acme Stepper Motor Linear Actuator 1.8 Deg 1.8Nm 4.0A 76mm Stack Lead Revolution 10.16mm(0.4") Lead Screw 200mm

NEMA 23 Non-Captive Acme Stepper Motor Linear Actuator 1.8 Deg 1.8Nm 4.0A 76mm Stack Lead Revolution 10.16mm(0.4") Lead Screw 200mm
NO.:23N30S4004NG5-250RS
Post a review
Special Offer in March 2024:
  • 5% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till March 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$68.21
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $64.80 5%
10 $63.44 7%
50 $61.39 10%
100 $59.34 13%
Add To Cart

NEMA 23 Non-Captive Acme Linear Stepper Motor 4.0A 76mm Stack Screw Lead 10.16mm(0.4") Lead Length 200mm

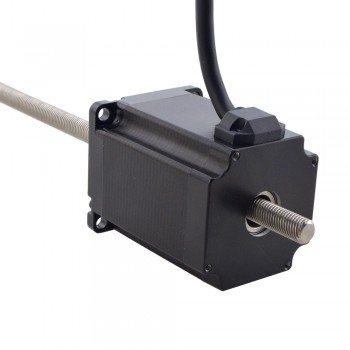

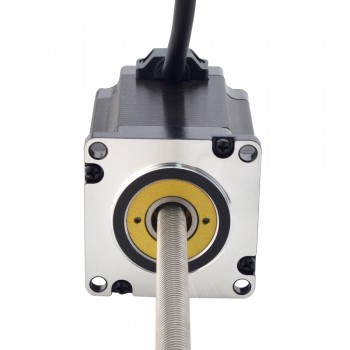

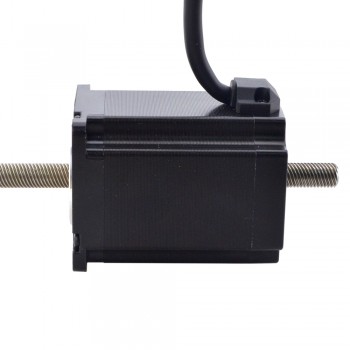

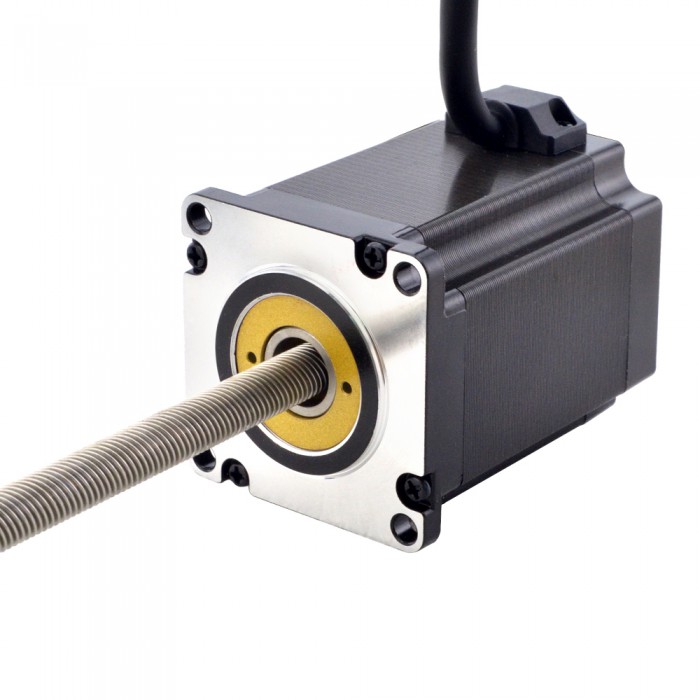

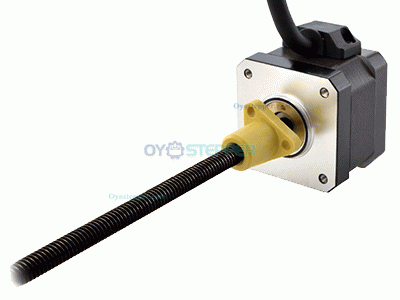

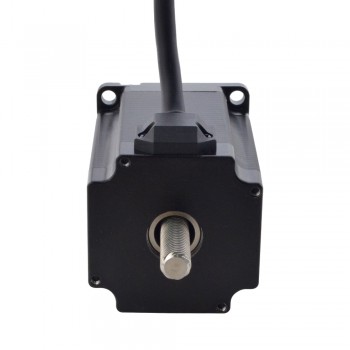

This model is a Nema 23 Non-Captive screw linear stepper motor with a 76mm body length, 1.8 degree step angle and 4A rated current. It is integrated with a Φ9.525mm(0.375") diameter, 250mm(9.8425") lead screw length and a POM screw nut, the linear travel is 10.16mm(0.4") per revolution.



Electrical Specification

Manufacturer Part Number: 23N30S4004NG5-250RS

Motor Type: Non-Captive

Step Angle: 1.8°

Holding Torque: 1.8Nm(254.95oz.in)

Rated Current/phase: 4A

Phase Resistance: 0.9ohms

Inductance: 4.5mH±20%(1KHz)



Physical Specification

Frame Size: 57 x 57mm

Body Length: 75mm

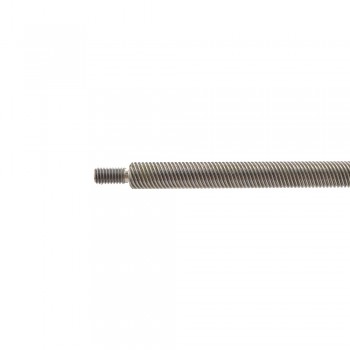

Lead Screw Length: 250mm(9.8425")

Lead Screw Diameter: Φ9.525mm(0.375")

Lead/Step: 0.0508mm(0.002")

Lead Travel/Revolution: 10.16mm(0.4")

Number of Leads: 4

Number of Thread Starts: 8

Lead Length: 500mm

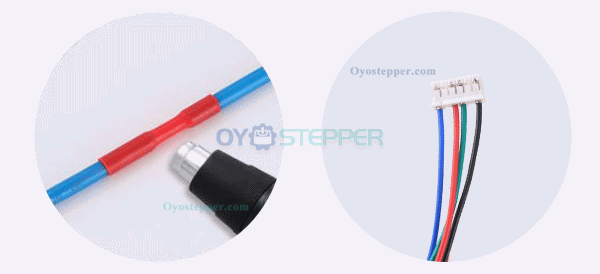

Connection

A+ A- B+ B-
Red Red/White Green Green/White



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: NEMA 23 Non-Captive Acme Stepper Motor Linear Actuator Bipolar 3.0A 1.8° 1Nm Lead Revolution 5.08mm(0.2") Lead Screw 200mm
Next: NEMA 23 Non-Captive Acme Linear Actuator 1.8 Deg 1.8Nm 4.0A 76mm Stack Lead Revolution 2.54mm(0.1") Lead Screw 200mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 4.3
Phase Resistance(ohm) 0.9
Rated Current (A) 4.0
Step Angle(deg.) 1.8
Linear Motor Type Non-Captive
Physical Specification
Body Length(mm) 75
Frame Size(mm) Nema 23 (57 x 57)
Lead Length(mm) 500
Lead Screw Diameter(mm) 9.525
Lead Screw Length(mm) 250
No. of Lead 4
Lead Travel/Revolution(mm) 10.16
Lead Travel/Step(mm) 0.0508
IP Rating 40
