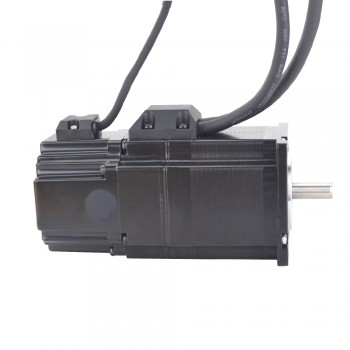

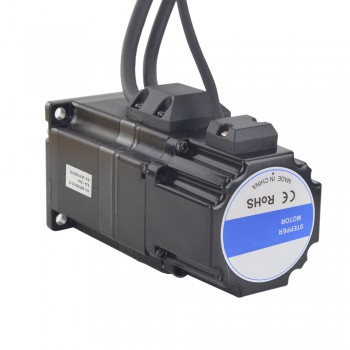

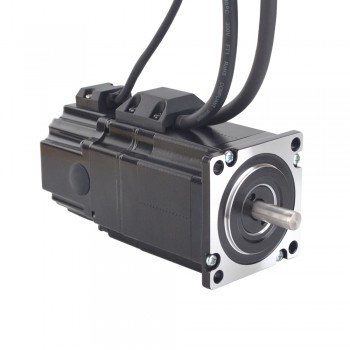

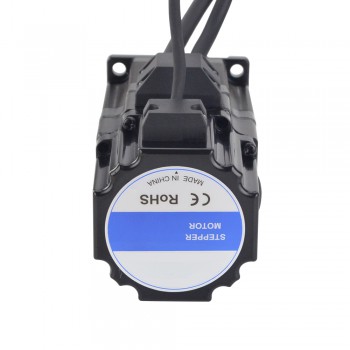

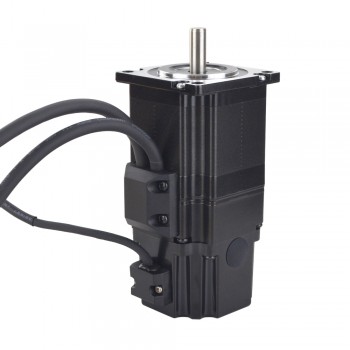

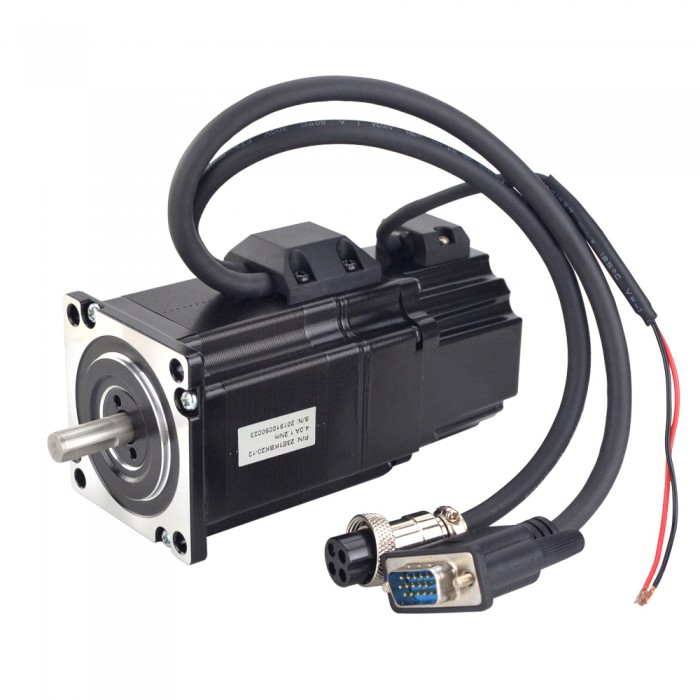

P Series Nema 23 Closed Loop Stepper Motor 1.8 Deg 1.2Nm 4.0A 2 Phase with Electromagnetic Brake

P Series Nema 23 Closed Loop Stepper Motor 1.8 Deg 1.2Nm 4.0A 2 Phase with Electromagnetic Brake
NO.:23E1KBK20-12
Post a review
Our Price:$119.96
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $113.96 5%
5 $111.56 7%
10 $107.96 10%
50 $104.37 13%
Add To Cart

Electrical Specification

Manufacturer Part Number: 23E1KBK20-12

Number of phase: 2

Step Angle: 1.8 deg

Holding Torque: 1.2 Nm(169.97 oz.in)

Rated Current/phase: 4.0 A

Phase Resistance: 0.45 ohms

Inductance: 1.4 mH ± 20%(1KHz)



Physical Specification

Frame Size: 57 x 57 mm

Body Length: 55.5 mm

Shaft Diameter: Φ8 mm

Shaft Length: 21 mm

D-Cut Shaft Length: 15 mm

Lead Length: 270 mm

Weight: 0.72 kg



Encode Control(1000CPR)

white--GND

red--+5VCC

blue--EA-

black--EA+

green--EB-

yellow--EB+



Brake Connections

Red--24V+

Red--24V-

2.0Nm



Connection

A+
A-
B+
B-
White
Green
Blue
Black



Resources



Full Datasheet: 23E1KBK20-12.pdf

Torque Curve: 23E1KBK20-12 Torque Curve.pdf



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 Closed Loop Stepper Motor Bipolar 1.8 Deg 65Ncm/92oz.in 2.10A 3.36V with Encoder 1000CPR
Next: P Series Nema 23 Closed Loop Stepper Motor 1.8 Deg 1.2Nm 2 Phase 4.0 A with Encoder 1000CPR
Motor Specification
Holding Torque (Ncm) 120
Holding Torque (oz.in) 169.97
Inductance(mH) 1.4
Lead Length(mm) 270
Motor Nema Size Nema 23
Phase Resistance(ohm) 0.45
Rated Current (A) 4
Shaft Diameter(mm) 8
Shaft Length(mm) 21
Step Angle(°) 1.8
Number Of Phase 2
Brake Specification
Driving Voltage(V) 24
Static Friction Torque(Nm) 2
Static Friction Torque(oz.in) 283.28
Encoder Specification
Resolution(CPR) 1000
Output Signal Channels 2 Channels
