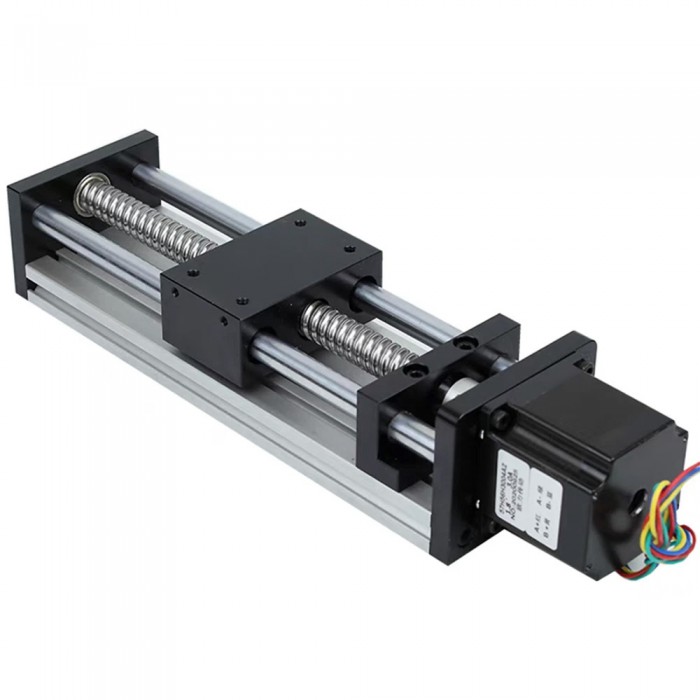

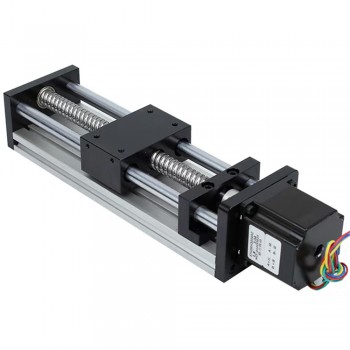

Electric CNC Linear Slide Table Motorized Ballscrew 1605 Motion Module with NEMA23 57mm Stepper Motor

Electric CNC Linear Slide Table Motorized Ballscrew 1605 Motion Module with NEMA23 57mm Stepper Motor



Parameters:

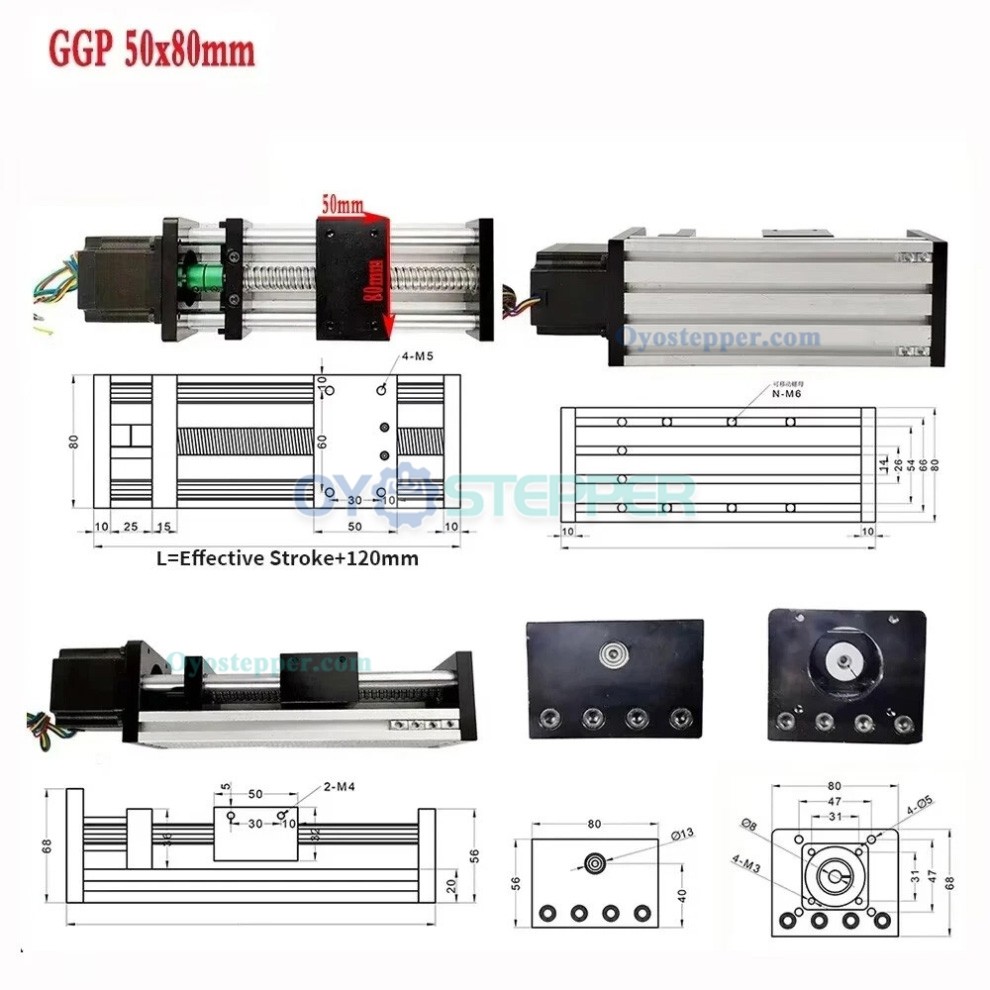

Model: GGP5080 (50×80mm Mobile Panel)

Ballscrew Type: SFU1605 (Screw Diameter 16mm, Pitch 5mm; one screw rotation moves the panel 5mm)

Ballscrew Accuracy: C7 Grade

Effective Stroke: 50mm–300mm (Optional)

Total Length: Effective Stroke + 120mm

Guide Diameter: 12mm

Guide Type: Two optical axis rods

Maximum Speed: 100mm/s

Horizontal Load Capacity: 40kg (maximum)

Vertical Load Capacity: 20kg (maximum)

Repeat Positioning Accuracy: 0.02–0.05mm

Material: Industrial aluminum profile

Motor Bracket Compatibility: Supports NEMA17 and NEMA23 stepper motors.



Package List

1 × GGP5080 Slide Table

1 × 8mm to 8mm Coupling

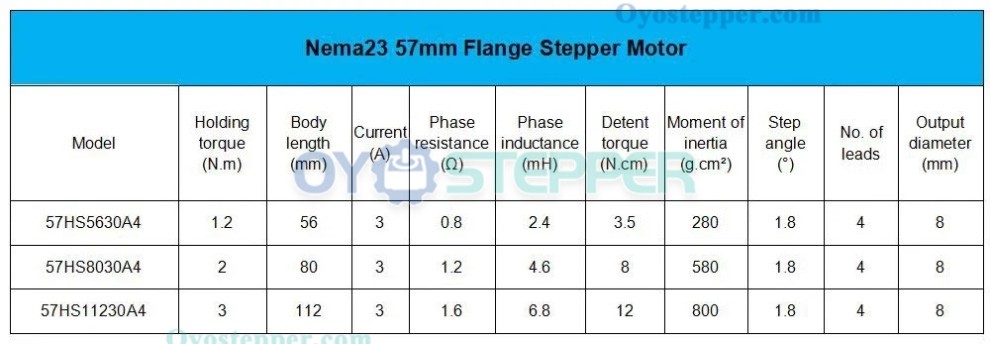

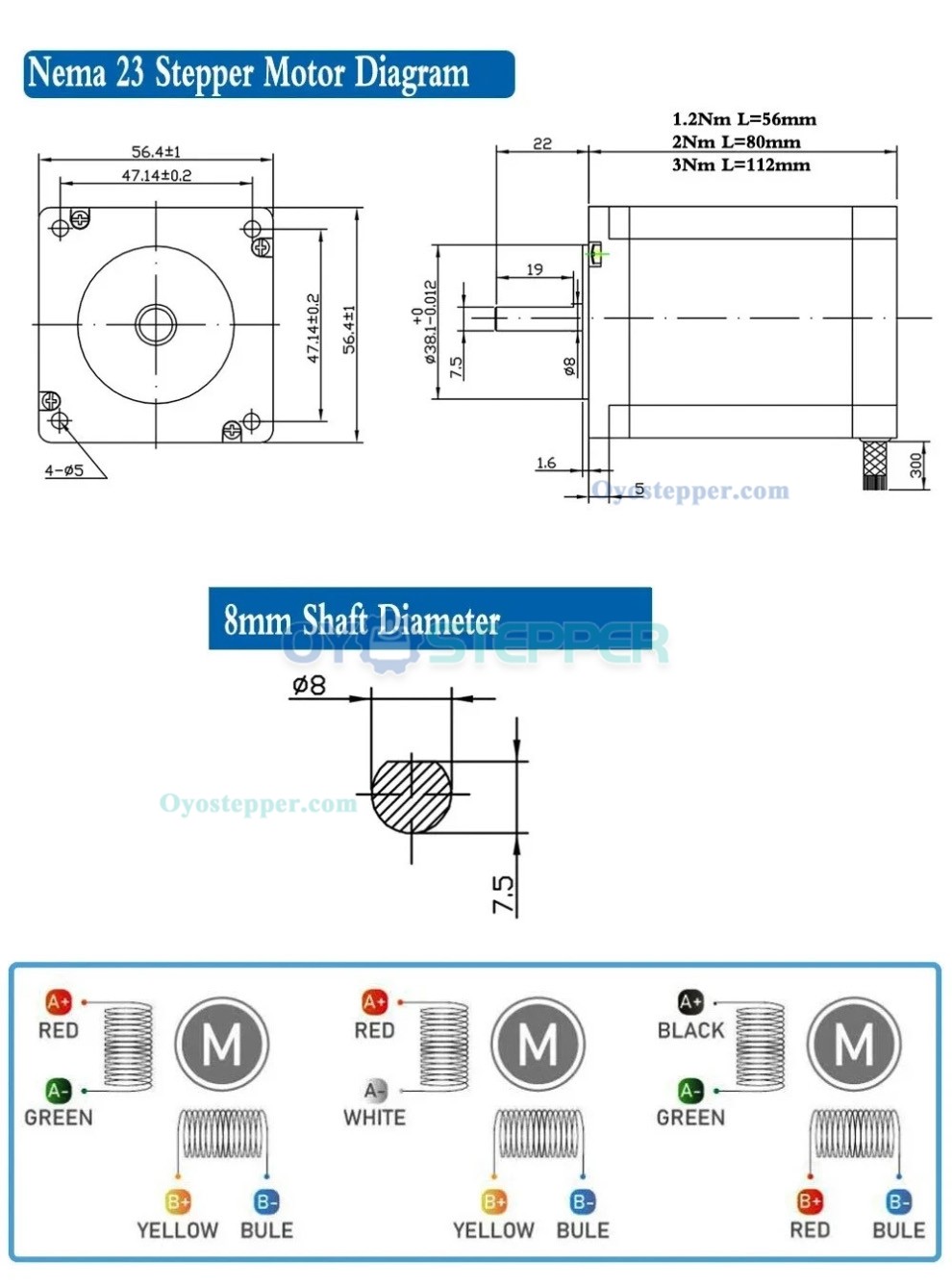

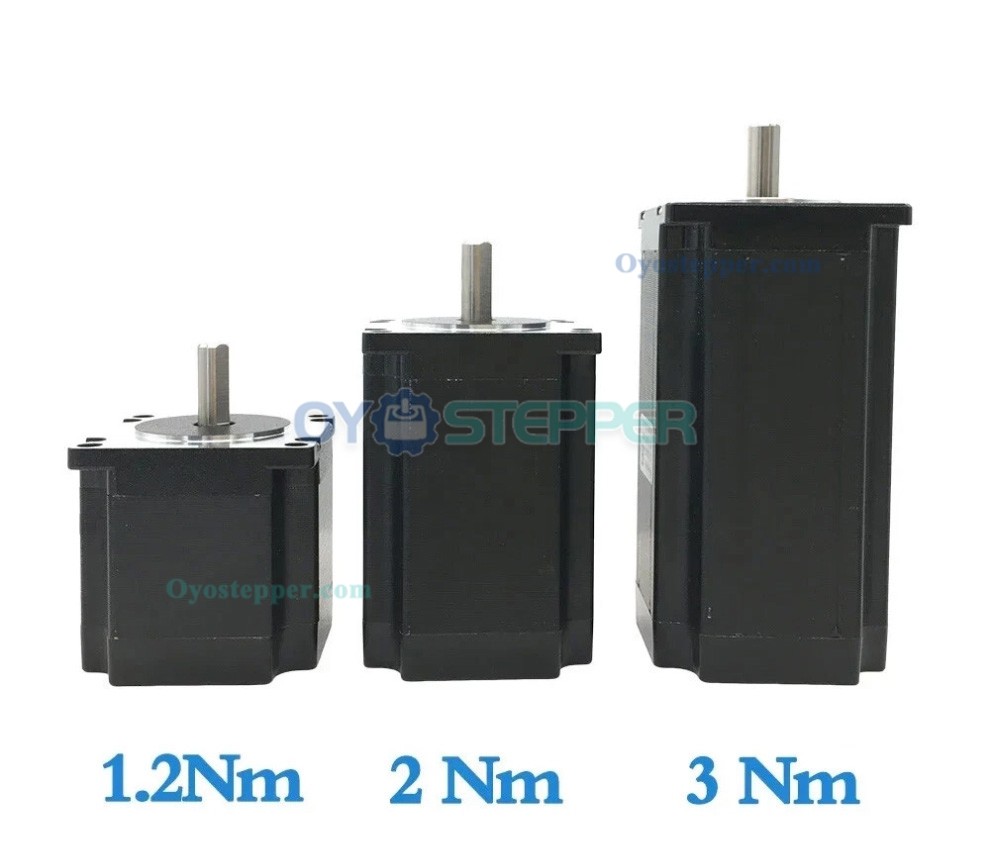

1 × NEMA23 57mm Stepper Motor (1.2Nm / 2Nm / 3Nm)
