Leadshine DM2282 2 Phase Digital Stepper Motor Driver for Nema 34, Nema 42 Stepper Motor

Leadshine DM2282 2 Phase Digital Stepper Motor Driver for Nema 34, Nema 42 Stepper Motor
NO.:DM2282
Post a review
Special Offer in June 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till June 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$154.53
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $146.80 5%
5 $143.71 7%
10 $139.08 10%
50 $134.44 13%
Add To Cart

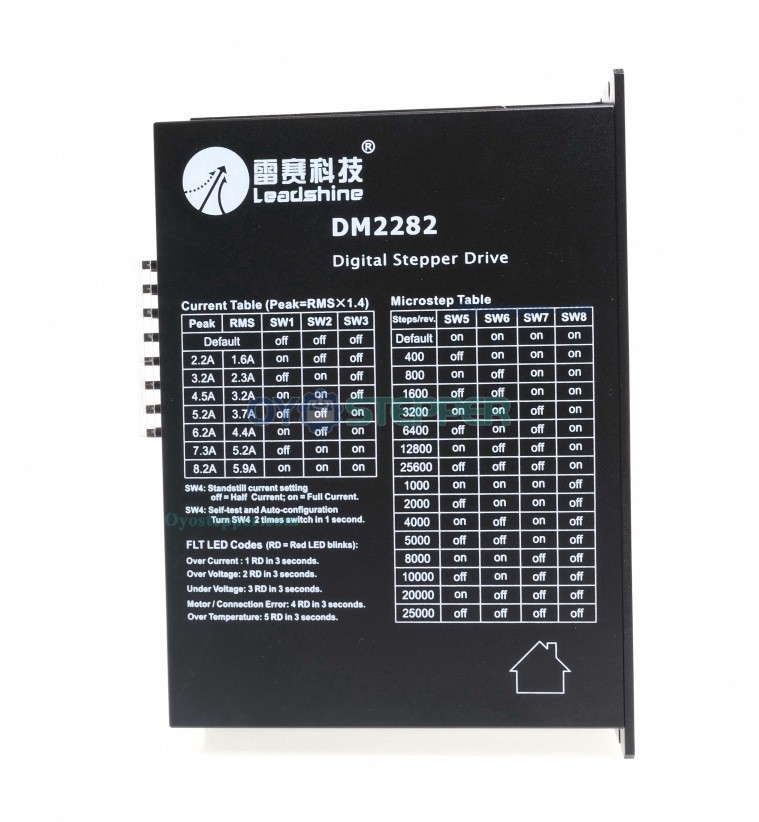

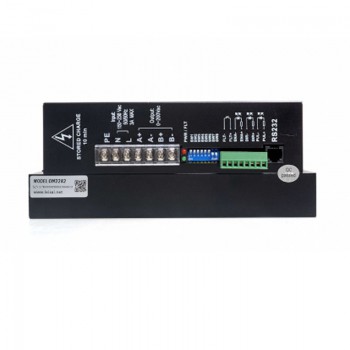

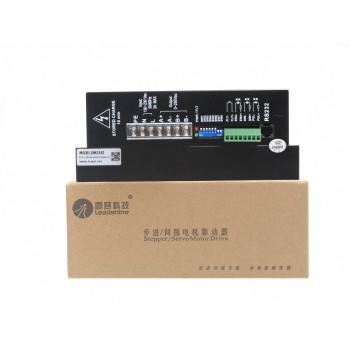

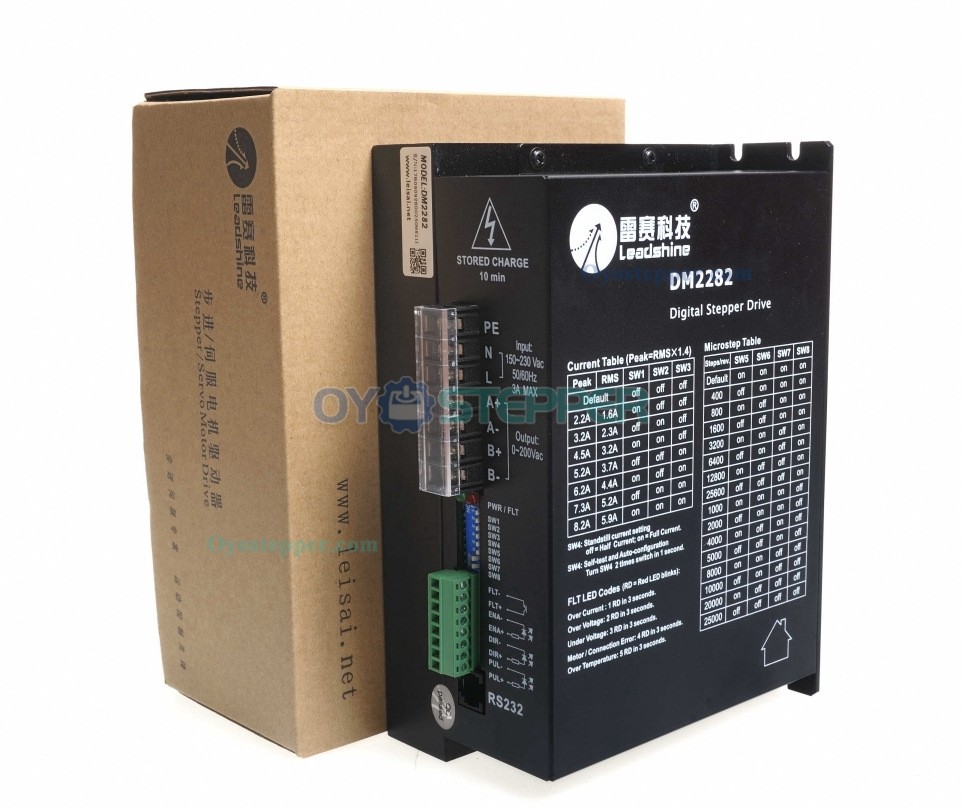

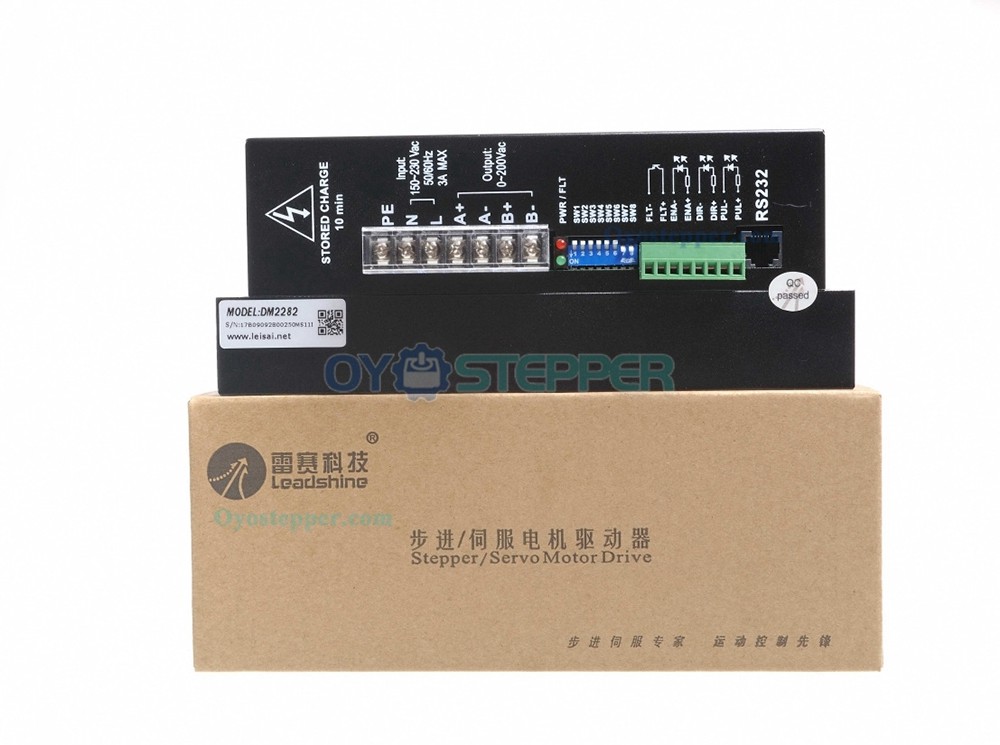

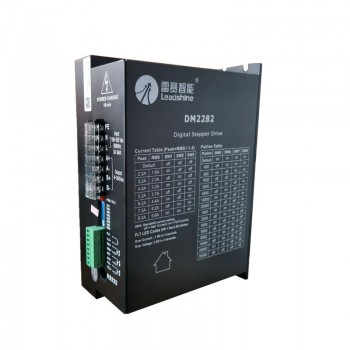

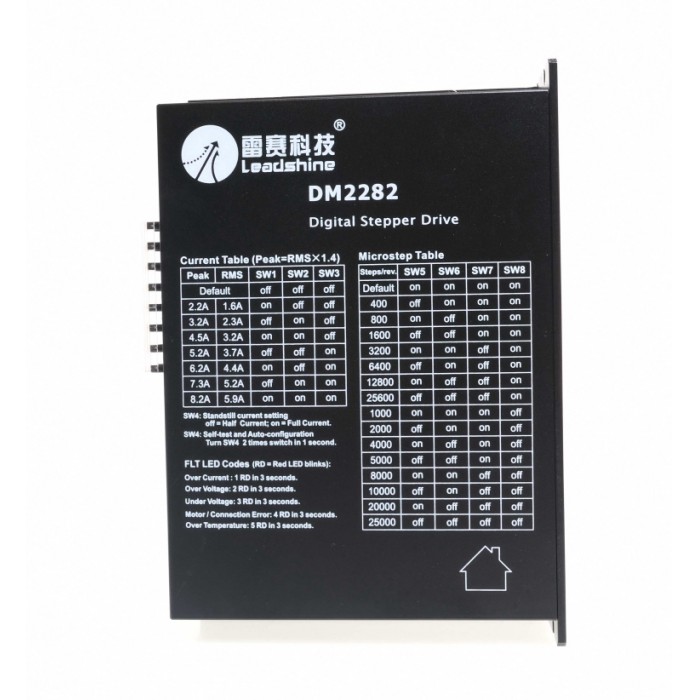

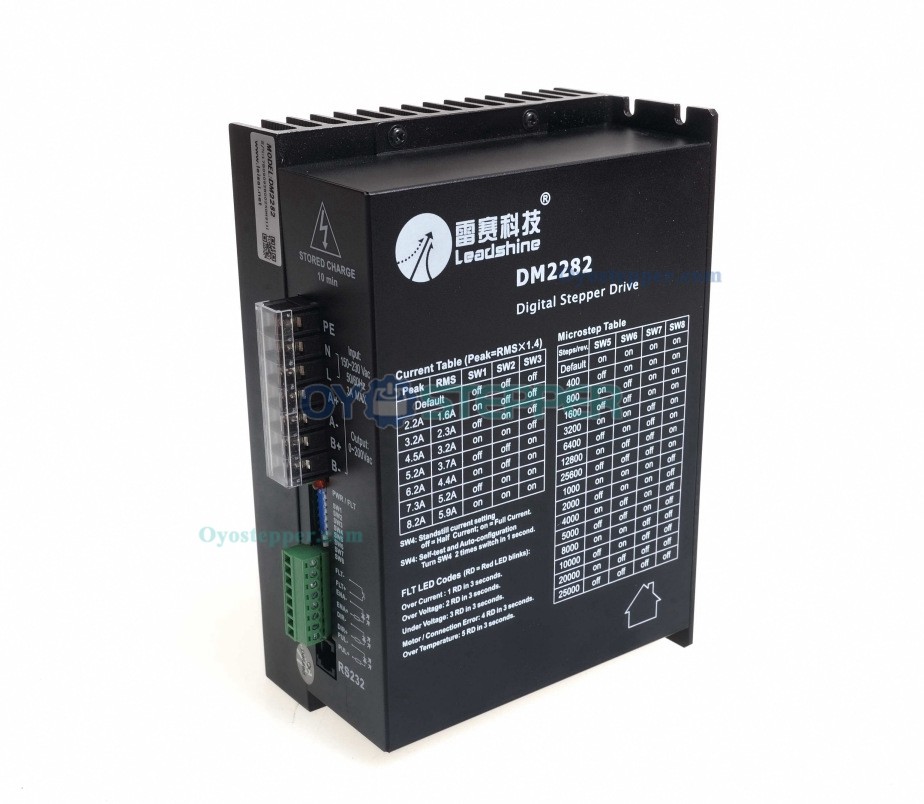

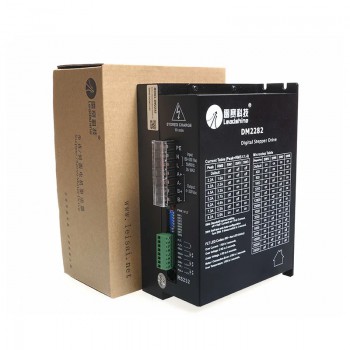

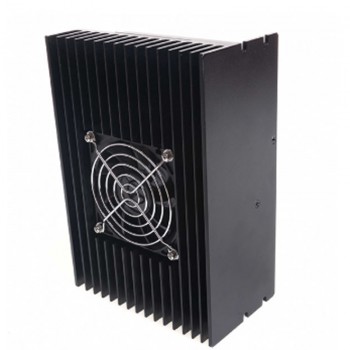

Leadshine DM2282 2 Phase Digital Stepper Motor Driver for Nema 34, Nema 42 Stepper Motor


The DM2282 is a high voltage, versatility fully digital stepping driver based on a DSP with advanced control algorithm.  It brings a unique level of system smoothness, providing better torque and nulls mid-range instability. Motor self-test and parameter auto-configuration technology offers quick responses with different motors and easy-to-use. The driven motors can run with much smaller noise, lower heating, smoother movement. Its unique features make the DM2282 suitable for applications that require low-speed smoothness.


Features:
● Step & direction (PUL/DIR) or CW/CCW (double pulse) control
● Operating voltage: 150 - 230 VAC or 212 - 325 VDC
● 200 KHz max pulse input frequency
● 16 microstep resolutions of 200-25,600 via DIP switches, or 200-51,200 via software
● 8 output current settings of 1.4-8.2A via DIP Switches, or 0.5-8.2A via software
● Configurable control command smoothing for reducing motor vibration;


APPLICATIONS:
Suitable for a wide range of stepper motors, from NEMA size 34 to 51. It can be used in various applications such as laser cutters, laser markers, labeling machines, CNC router, etc.


Electrical Specifications:
Output Peak Current: 0.5~8.2A
Input Voltage: +115~325VDC  (Typical 325VDC), 80~253VAC (Typical 230VAC)
Logic Signal Current: 7~16mA (Typical 10mA)
Pulse Input Frequency: 0~200kHz
Pulse Width: 2.5μS
Isolation Resistance: 500MΩ Min;


Operating Environment and other Specifications(Tj = 25℃/77℉):
Cooling: Natural Cooling or Forced cooling
Environment: Avoid dust, oil fog and corrosive gases;
Protection grade:IP20
Ambient Temperature: 0℃ - 50℃
Humidity: 40%RH-90%RH
Operating Temperature (Heat Sink):70℃ (158 F) Max
Vibration: 10-55Hz / 0.15mm
Storage Temperature: -20℃ - 65℃
Weight: Approx.1.3kg



Resources

Leadshine DM2282 2 Phase Digital Stepper Motor Driver for Nema 34, Nema 42 Stepper Motor

Leadshine DM2282 2 Phase Digital Stepper Motor Driver for Nema 34, Nema 42 Stepper Motor

Leadshine DM2282 2 Phase Digital Stepper Motor Driver for Nema 34, Nema 42 Stepper Motor

Leadshine DM2282 2 Phase Digital Stepper Motor Driver for Nema 34, Nema 42 Stepper Motor



TYPICAL CONNECTION SCHEMATIC:

A typical system consists of stepper motor, stepper motor driver, power supply and controller. The following image shows a typical connection schematic:



MECHANICAL SPECIFICATIONS: MM [INCH]



Leadshine DM2282 2 Phase Digital Stepper Driver for 110/130 Stepper Motor 2.2~8.2A work 80~220VAC

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Steel and Rubber Vibration Dampers with 4 M3 Screws forNEMA 17 Stepper Motor Part Accessory
Next: Leadshine 3DM2283 Digital Stepper Driver 2.1-11.7A 176-253VAC for 3-Phase Nema 34, 42, 52 Stepper Motor
Electrical Specification
No. of Phase 2
Encoder Feedback No
Integrated with Pulser No
Output Current(A) 0.5 - 8.2
Max. Pulse Input(kHZ) 200
Input Voltage(V) 180 - 253 AC
Product Series D Series
Microstep(Steps/rev.) 200 - 25600
Physical Specification
Weight(g) 1300
No reviews
