Leadshine 3DM2283 Digital Stepper Driver 2.1-11.7A 176-253VAC for 3-Phase Nema 34, 42, 52 Stepper Motor

Leadshine 3DM2283 Digital Stepper Driver 2.1-11.7A 176-253VAC for 3-Phase Nema 34, 42, 52 Stepper Motor
NO.:3DM2283
Post a review
Special Offer in June 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till June 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$154.53
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $146.80 5%
5 $143.71 7%
10 $139.08 10%
50 $134.44 13%
Add To Cart

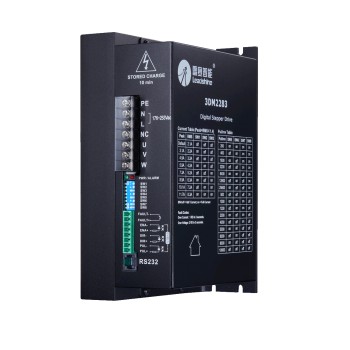

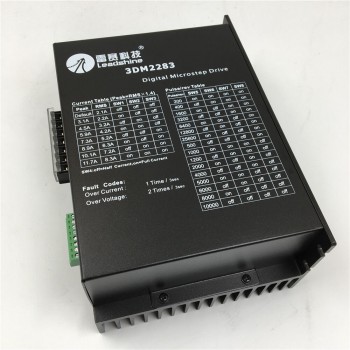

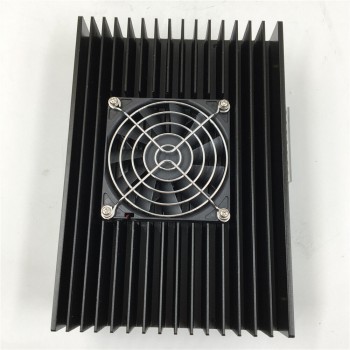

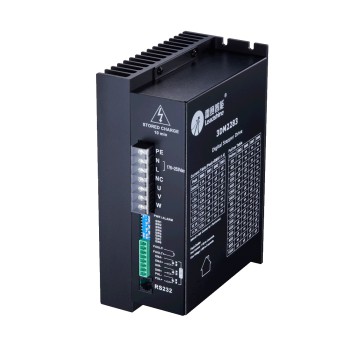

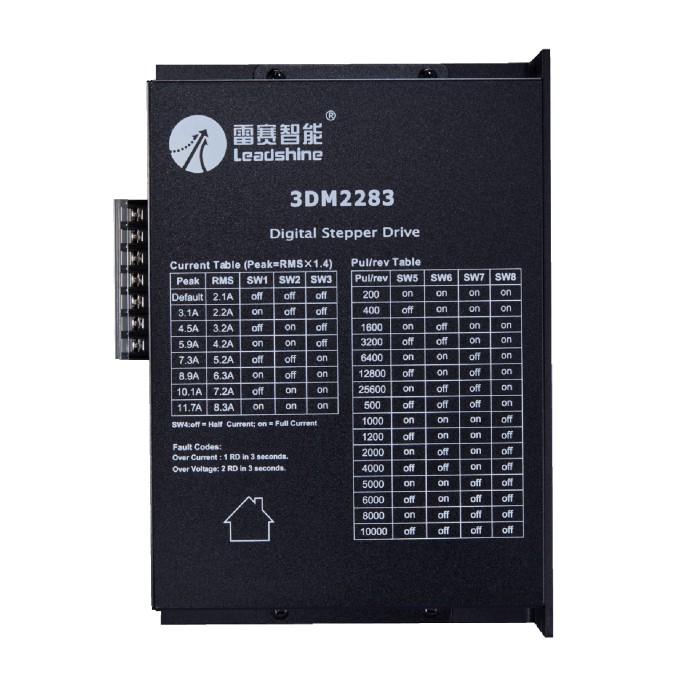

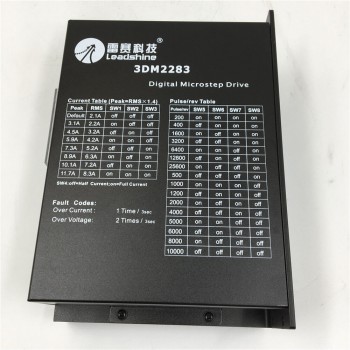

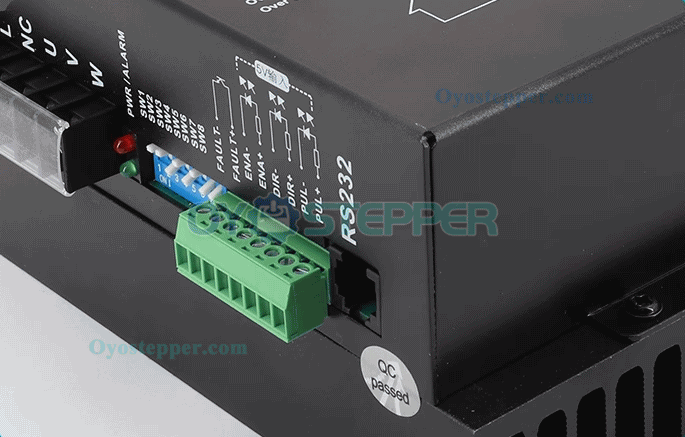

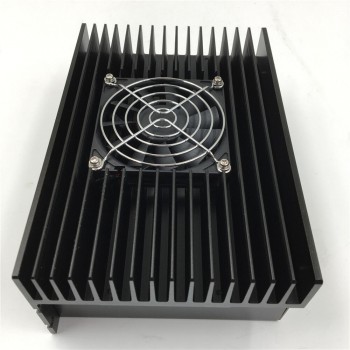

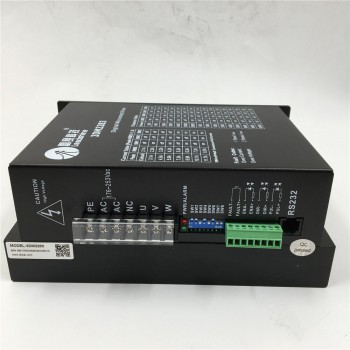

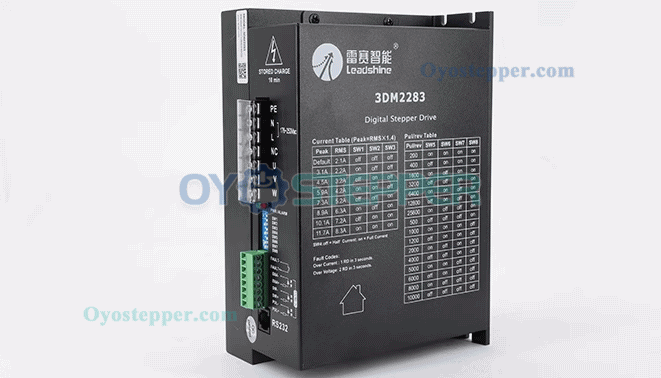

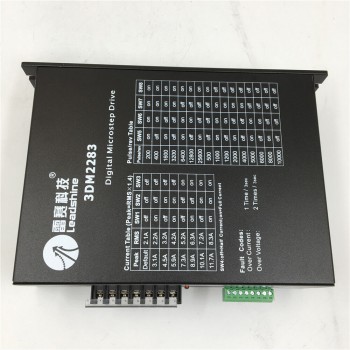

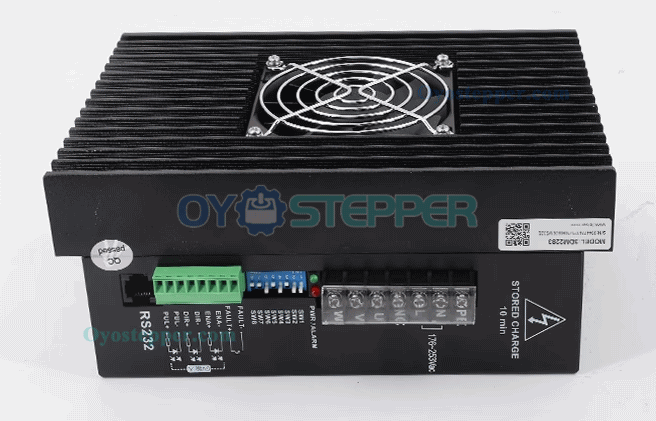

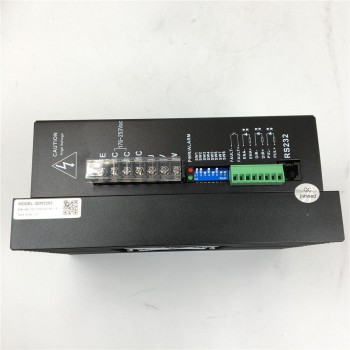

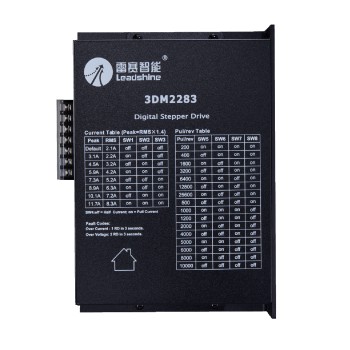

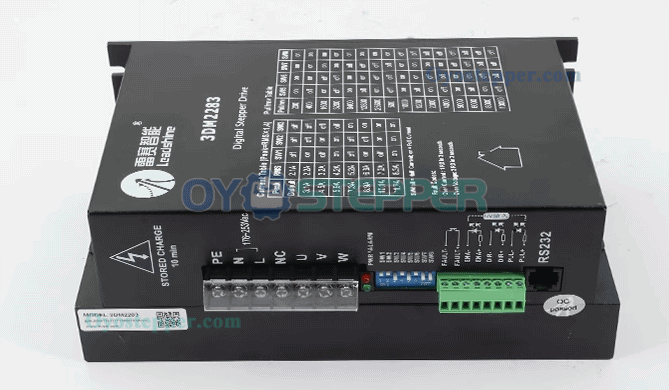

Leadshine 3DM2283 Digital Stepper Driver 2.1-11.7A 176-253VAC for 3-Phase Nema 34, 42, 52 Stepper Motor



The Leadshine 3DM2283 is a fully digital stepper drive developed with advanced DSP control algorithm based on the latest motion control technology. It has achieved a unique level of system smoothness, providing optimal torque and nulls mid-range instability. Its motor auto-identification and parameter auto-configuration feature offers quick setup to optimal modes with different motors. Compared with traditional analog drives, 3DM2283 can drive a stepper motor at much lower noise, lower heating, and smoother movement. Its unique features make 3DM2283 suitable for high requirement applications.



Key Features:

Anti-Resonance provides optimal torque and nulls mid-range instability

Motor auto-identification and parameter auto-configuration technology, offers optimal responses with different motors

Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement

Supply voltage up to 240 VAC

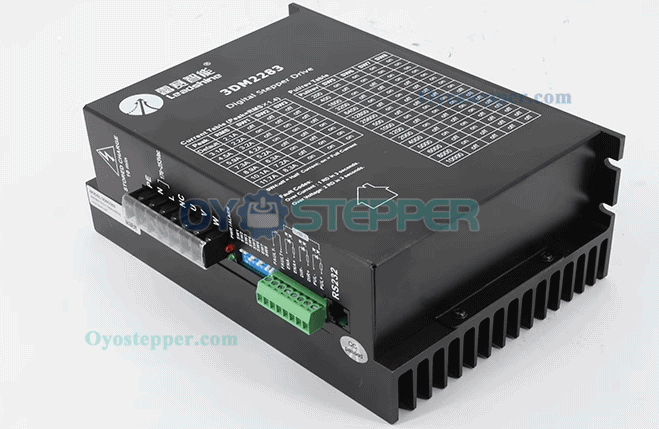

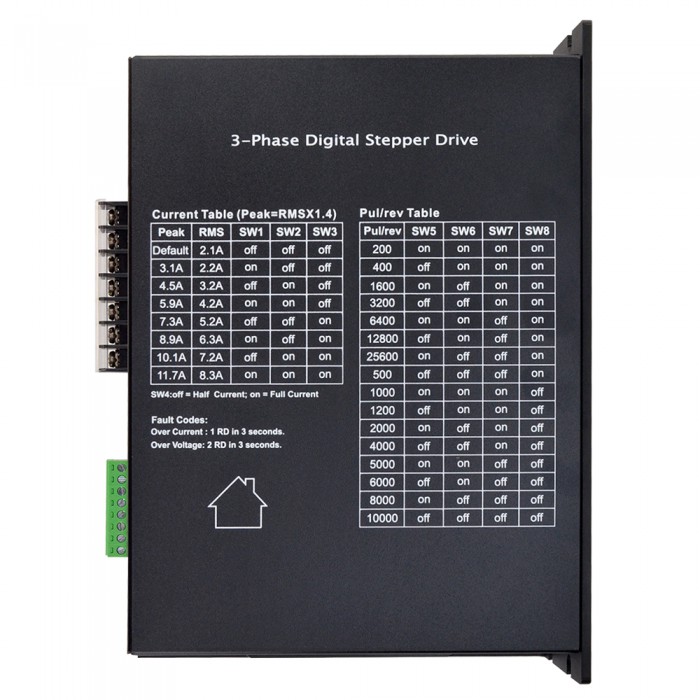

Output current programmable, from 2.1A to 11.7A. It can also be set via DIP switches

Pulse input frequency up to 200 KHz, TTL compatible and optically isolated input

Automatic idle-current reduction

Suitable for 3-phase motors

Support PUL/DIR and CW/CCW modes

Over-voltage, Under-voltage, over-current, phase-error protections



Electrical Specifications:

Output Peak Current: 2.1 - 11.7 A

Input Voltage: 176 - 253 VAC

Logic Signal Current: 7 - 16 mA (Typical 10 mA)

Pulse Input Frequency: 0 - 200 kHz

Isolation Resistance: 500 MΩ



Operating Environment and other Specifications(Tj = 25℃/77℉):

Cooling: Natural Cooling or Forced cooling

Environment: Avoid dust, oil fog and corrosive gases

Ambient Temperature: 0 - 50 ℃

Humidity: 40% - 90% RH

Operating Temperature: 70 ℃ MAX

Vibration: 10-55Hz/0.15mm

Storage Temperature: -20 - 65 ℃

Weight: Approx.1300 g (45.86 oz)
