LPV-60-12 MEAN WELL 60W 5A 12V CNC Switching Power Supply Single Output Switching Power Supply
Special Offer in May 2024:
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till May 10th, 2024
- Note:No coupon code needed, please place order directly!
Our Price:$15.94

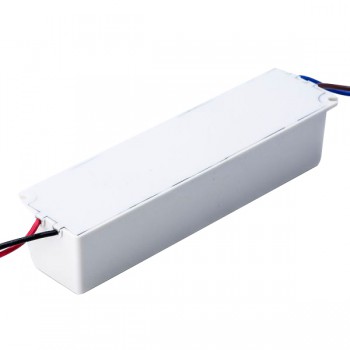

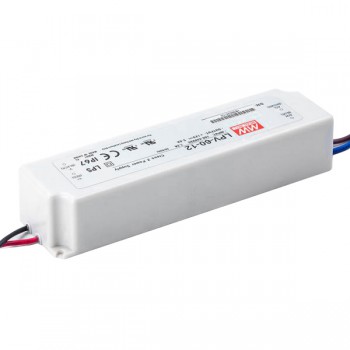

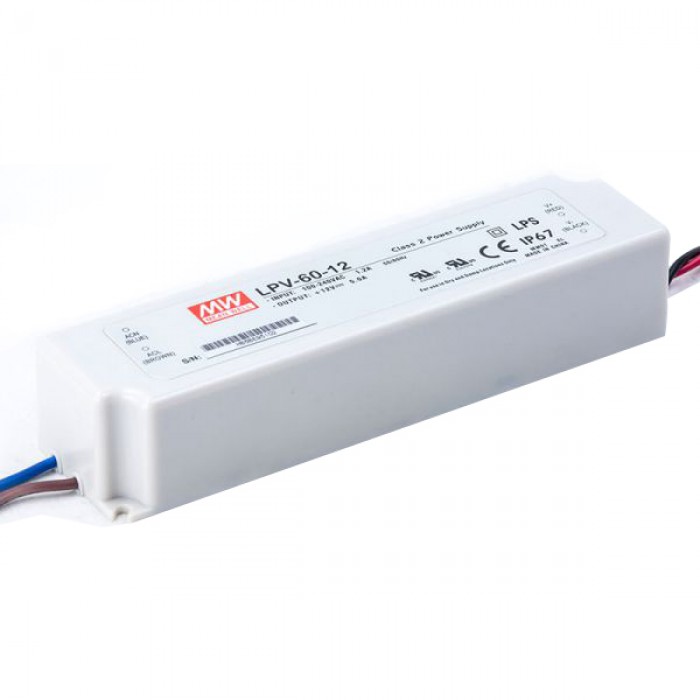

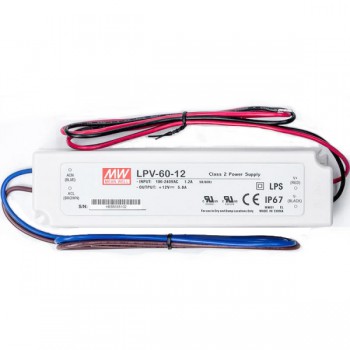

LPV-60-12 MEAN WELL 60W 5A 12V Single Output Switching Power Supply
Features
Brand MEANWELL
12V DC 5A output
AC input voltage range: 90 ~ 264VAC
Rated power: 60W
Constant voltage design
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Small and compact size
Fully encapsulated with IP67 level(Note.7)
Fully isolated plastic case
Class Ⅱ power unit, no FG
Class 2 power unit
Pass LPS
Suitable for LED related fixture or appliance
100% full load burn-in test
Low cost, high reliability
2 years warranty
Resources
- Full Datasheet:LPV-60.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Power Supply Specification | |
|---|---|
| Max. Output Current(A) | 5 |
| Power(W) | 60 |
| Brand | MEANWELL |
| Output Voltage(VDC) | 12 |
| Input Voltage(VAC/VDC) | 90 - 264 / 127 - 370 |
| PFC Function | No |
| Input Frequency(Hz) | 47 - 63 |
| Efficiency(%) | 83% |
| Power Type | Switching Power Supply |
| Dim.(LxWxH)(mm) | 162.5 x 42.5 x 32 |
