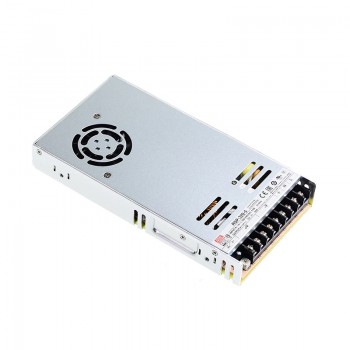

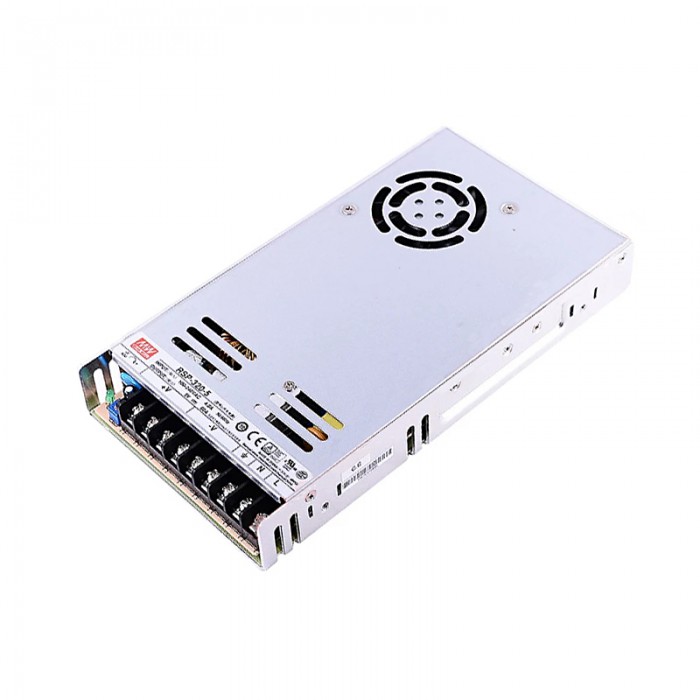

RSP-320-5 MEAN WELL CNC Power Supply 300W 5VDC 60A 115/230VAC Single Output with PFC Function
RSP-320-5 MEAN WELL 300W 5VDC 60A 115/230VAC Single Output with PFC Function
Features
Brand MEANWELL
5V DC 60A output
AC input voltage range: 88 ~ 264VAC
Rated power: 300W
Single and two phase wide input range 85~550VAC
Universal AC input / Full range
Built-in active PFC function
Forced air cooling by built-in DC Fan with fan speed control function
Protections: Short circuit / Overload / Over voltage / Over temperature
Optional conformal coating
LED indicator for power on
3 years warranty
Applications
Factory control or automation apparatus
Test and measurement instrument
Laser related machine
Burn-in facility
RF application
Resources
Full Datasheet:RSP-320.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Power Supply Specification | |
|---|---|
| Max. Output Current(A) | 60 |
| Power(W) | 300 |
| Brand | MEANWELL |
| Output Voltage(VDC) | 5 |
| Input Voltage(VAC/VDC) | 88 - 264 / 124 - 370 |
| PFC Function | Yes |
| Input Frequency(Hz) | 47 - 63 |
| Efficiency(%) | 83% |
| Power Type | Switching Power Supply |
| Dim.(LxWxH)(mm) | 215 x 115 x 30 |
