Nema 17 Non-captive Linear Stepper Motor 1.8 Degree 0.4A 26Ncm(36.8oz.in) 12V Lead Screw 320mm
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till December 3th, 2024
- Note:No coupon code needed, please place order directly!

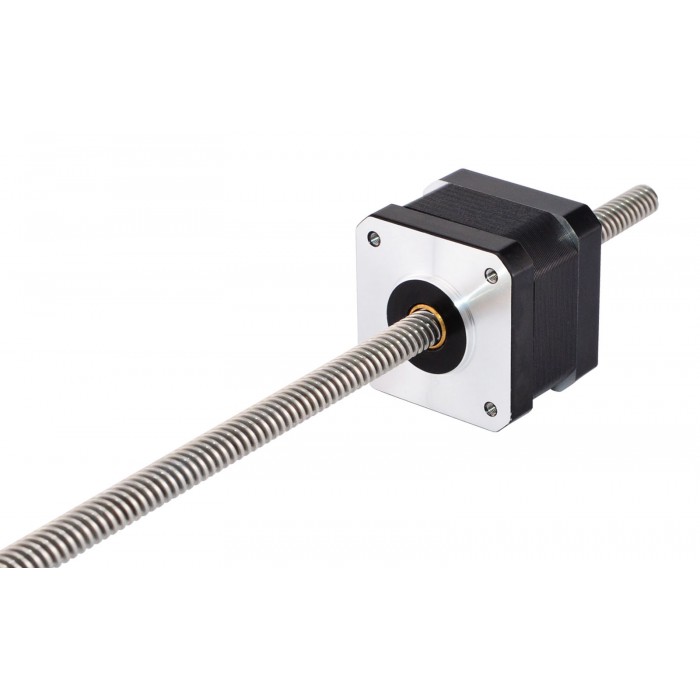

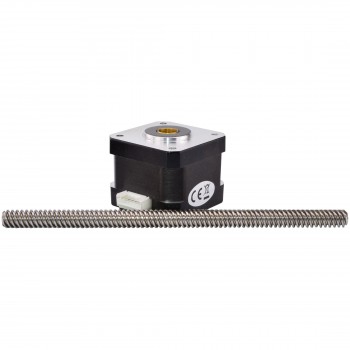

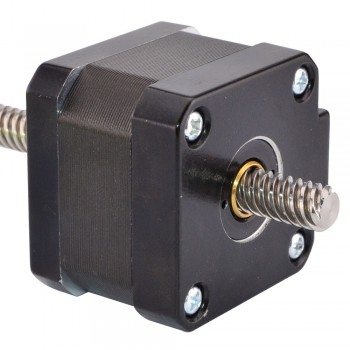

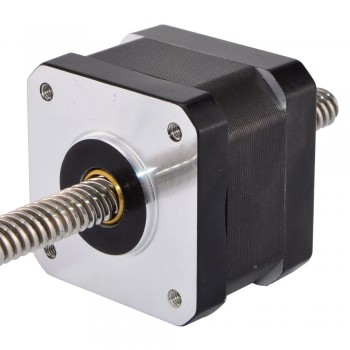

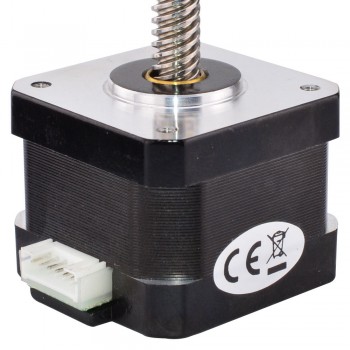

This model is economy linear stepper motor which named Nema 17 non-captive linear actuator, it was composed of 34mm 1.8 degree 0.4A Nema 17 stepper motor and 320mm length Tr8x8 linear screw.
Electrical Specification
Manufacturer Part Number: 17LS13-0404N-320G
Motor Type: Non Captive Linear Stepper
Step Angle: 1.8 deg
Holding Torque: 26Ncm(36.8oz.in)
Rated Current/phase: 0.4A
Phase Resistance: 30ohms
Voltage: 12V
Inductance: 37mH ± 20%(1KHz)
Physical Specification
Frame Size: 42 x 42mm
Body Length: 34mm
Lead Screw Length: 320mm(12.598")
Lead Screw Diameter: Φ8mm（0.315"）
Lead /Step: 0.04mm(0.0015748" )
Lead/Revolution: 0.04mm（0.0016"）
Number of Leads: 4
Lead Length: 400mm
Weight : 400g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Red
|
Gray
|
Yellow
|
Green
|
Resources
Full Datasheet: 17LS13-0404N-320G.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 26 |
| Holding Torque (oz.in) | 36.8 |
| Inductance(mH) | 37 |
| Motor Type | Non-Captive |
| Phase Resistance(ohm) | 30 |
| Rated Current (A) | 0.4 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 34 |
| Lead Screw Diameter(mm) | 8 |
| Lead Screw Length(mm) | 320 |
| Lead Revolution(mm) | 8 |
| Linear Travel / Step(mm) | 0.04 |
| No. of Lead | 4 |
| Lead Length(mm) | 400 |
| Frame Size(mm) | Nema 17 (42 x 42) |
