NEMA 23 Closed Loop Integrated Stepper Servo Motor 2Nm(283 oz-in) 24-50VDC

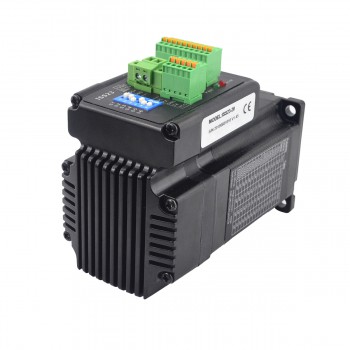

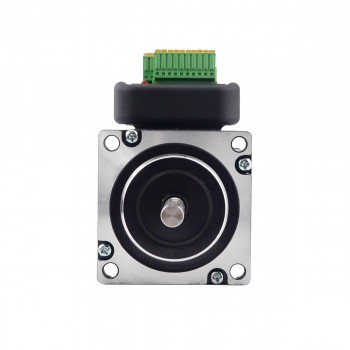

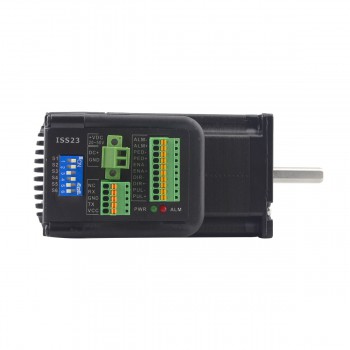

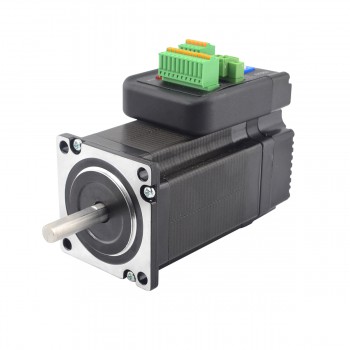

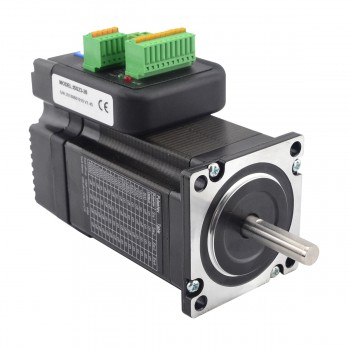

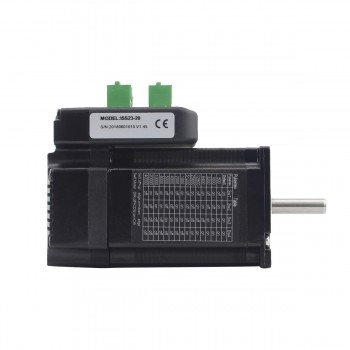

The ISS23-20 Integrated Stepper Servo Motor is merged the stepper servo driver and motor together. This motor system integrates the servo control technology into the digital stepper drive perfectly. And this product adopts an optical encoder with high speed position sampling feedback of 50 μs, once the position deviation appears, it will be fixed immediately. This product is compatible the advantages of the stepper drive and the servo drive, such as lower heat, less vibration, fast acceleration, and so on.

Key Features:

• Integrated compact size for saving mounting space
• Without losing step, High accuracy in positioning
• 100% rated output torque
• Variable current control technology, High current efficiency
• Small vibration, Smooth and reliable moving at low speed
• Accelerate and decelerate control inside, Great improvement in smoothness of starting or stopping the motor
• User-defined microsteps
• No adjustment in general applications
• Over current, over voltage and over position error protection
• Green light means running while red light means protection or off line

Technological Index:

• Input Voltage: 24~50VDC(36V Typical)
• Output Current: 4.5A,20KHz,PWM
• Max Pulse Frequency: 200K
• Default Communication Rate: 57.6kbps
• Overcurrent Peak value: 8A±10%
• Over voltage Value: 70VDC
• The over position error range can be set through the HISU
• Environment: Avoid dust,oil fog and corrosive gases
• Operating Temperature: 0~70℃MAX
• Storage Temperature: -20℃~+80℃
• Humidity: 40~90%RH
• Cooling method: Natural cooling or forced air cooling

Resources

• Manual: ISS23-20.pdf
