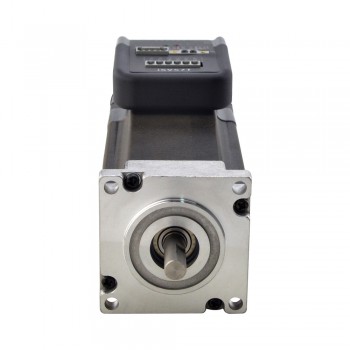

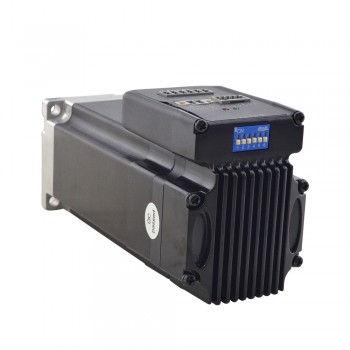

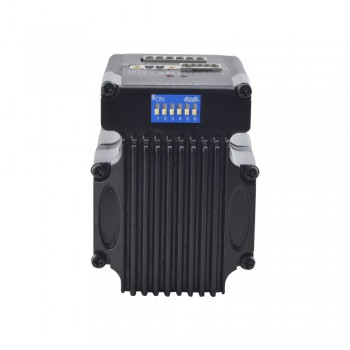

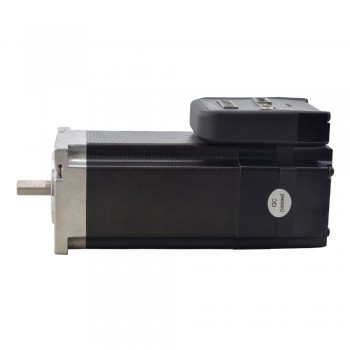

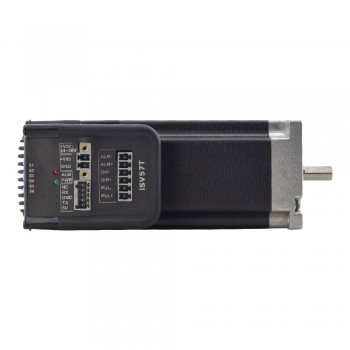

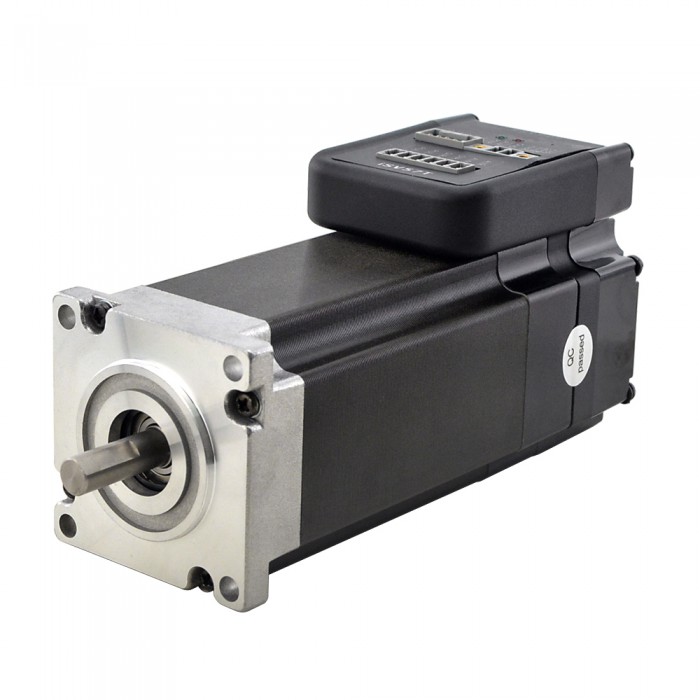

Short Shaft NEMA 23 Integrated Servo Motor 180w 3000rpm 0.6Nm(84.98oz.in) 20-50VDC 57 x 57 mm
-
Manuals and Documentation:
Manual:
Torque Curve:
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till June 30th, 2026
- Note:No coupon code needed, please place order directly!
NEMA 23 Integrated Servo Motor 180w 3000rpm 0.6Nm(84.98oz.in) 20-50VDC Servo Motor - Short Shaft
The iSV57T-180S is an integrated servo motor with a 57 mm frame, incorporating a 16‑bit encoder and driver. The 21 mm shaft is compatible with PLE series planetary gearboxes.
Features:
Input voltage: 20–50 VDC
Peak output current: 0–6 A
Step/direction command input for position control
Compatible with standard stepper‑motor mounting dimensions
Isolated pulse and direction inputs
In‑position and fault output signals
Protections: over‑voltage, over‑current, position error.
Electrical pecifications:
Manufacturer Part Number: iSV57T-180S
Rated Power(W): 180W
Input Voltage: +20~50VDC (Typical 36VDC)
Rated Torque(Nm/oz.in): 0.6/84.98(Nm/oz.in)
Peak Torque(Nm/oz.in): 1.5/212.46(Nm/oz.in)
Rated Speed(rpm): 3000rpm
Peak Speed(rpm): 4000rpm
Output Peak Current: 0~6A
Logic Signal Current: 7~16mA (Typical 10mA)
Pulse Input Frequency: 0~300kHz
Pulse Voltage: 5v(Connect a 2K ohm resistor in series, if it is 24V)
Isolation Resistance: 100MΩ
Physical Specifications:
Frame Size: 57 x 57mm
Body Length: 148mm
Shaft Diameter: 8mm
D-cut Shaft Length: 15mm
Shaft Length: 21mm
Weight: 1.54kg
Operating Environment and other Specifications(Tj = 25C/77F):
Cooling: Natural Cooling or Forced cooling
Environment: Avoid dust, oil fog and corrosive gases
Ambient Temperature: 0℃ - 40℃
Humidity: 40%RH - 90%RH
Operating Temperature(Heat Sink): 70℃ Max
Vibration: 10-50Hz / 0.15mm
Storage Temperature: -20℃ - 65℃
Resources
RS232 Adapter Cable to USB 2.0:C003
| Servo Motor Specification | |
|---|---|
| With Brake | Without brake |
| Control Modes | Pulse Mode |
| Rated Power(W) | 180 |
| Input Voltage(V) | 20~50VDC |
| Rated Speed(rpm) | 3000 |
| Rated Torque(Nm) | 0.6 |
| Peak Torque(Nm) | 1.5 |
| Output Peak Current(A) | 0~6 |
| Logic Signal Current(mA) | 7~16 |
| Pulse Input Frequency(kHz) | 0~300 |
| Pulse Voltage(V) | 5 |
| Electrical Specification | |
| Peak Speed(rpm) | 4000 |
| Physical Specification | |
| Body Length(mm) | 148 |
| Frame Size(mm) | 57 x 57 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 21 |
| Product Type | Integrated Motor |
| IP Rating | IP40 |
