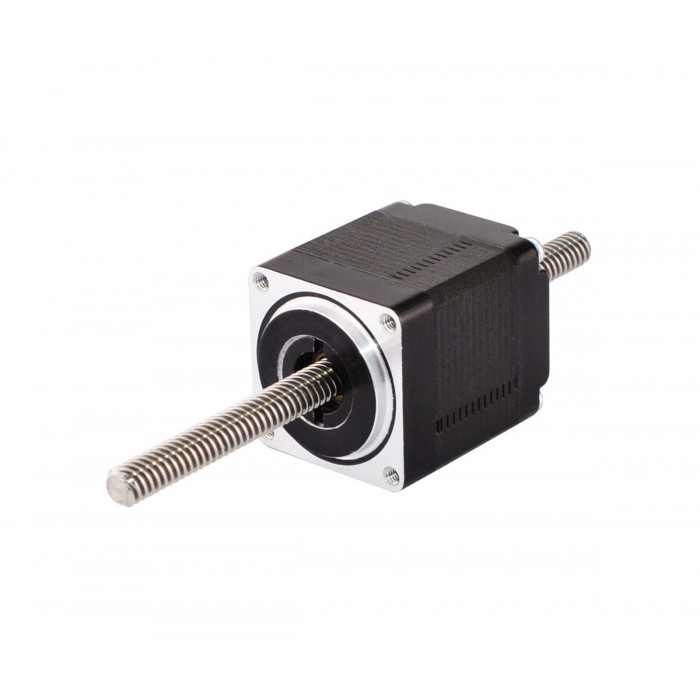

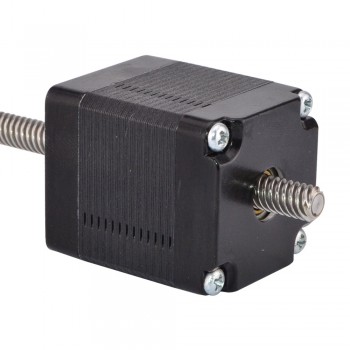

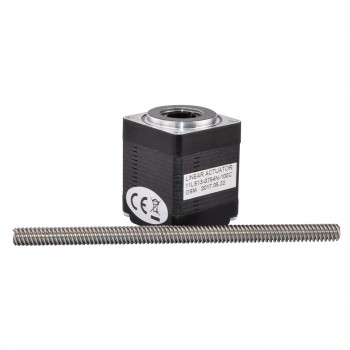

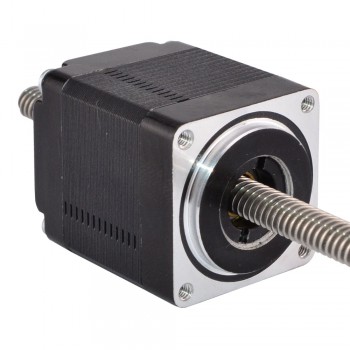

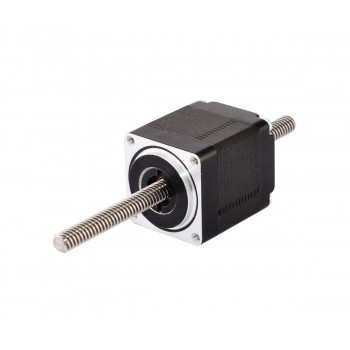

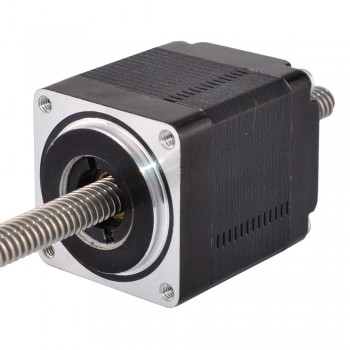

Nema 11 Non-captive Stepper Motor Linear Actuator 1.8 Deg 8.0Ncm(11.1oz.in) 0.75A 2.4V Lead Screw 100mm
This model is economy linear stepper motor which named Nema 11 non-captive linear actuator, it was composed of 34mm 1.8 degree 0.75A Nema 11 stepper motor and 100mm length Tr5.56x4.8768 linear screw.
Electrical Specification
Manufacturer Part Number: 11LS13-0754N-100C
Motor Type: Non-captive Linear Stepper
Step Angle: 1.8 deg
Holding Torque: 8.0Ncm(11.1oz.in)
Rated Current/phase: 0.75A
Phase Resistance: 3.2ohms
Voltage: 2.4V
Inductance: 2.0mH ± 20%(1KHz)
Physical Specification
Frame Size: 28 x 28mm
Body Length: 34mm
Lead Screw Length: 100mm（3.937"）
Lead Screw Diameter: Φ5.56mm（0.2189"）
Lead /Step: 0.024384mm(0.00096" )
Lead/Revolution: 4.8768mm（0.192"）
Number of Leads: 4
Lead Length: 300mm
Weight : 150g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Red
|
Green
|
Yellow
|
Orange
|
Resources
Full Datasheet: 11LS13-0754N-100C.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 8 |
| Holding Torque (oz.in) | 11.3 |
| Inductance(mH) | 2 |
| Motor Type | Non-Captive |
| Phase Resistance(ohm) | 3.2 |
| Rated Current (A) | 0.75 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 34 |
| Lead Screw Diameter(mm) | 5.56 |
| Lead Screw Length(mm) | 100 |
| Lead Revolution(mm) | 4.8768 |
| Linear Travel / Step(mm) | 0.024384 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Frame Size(mm) | Nema 11 (28 x 28) |
