Nema 11 External 34mm Stack 0.75A Lead 2mm/0.07874" Length 100mm

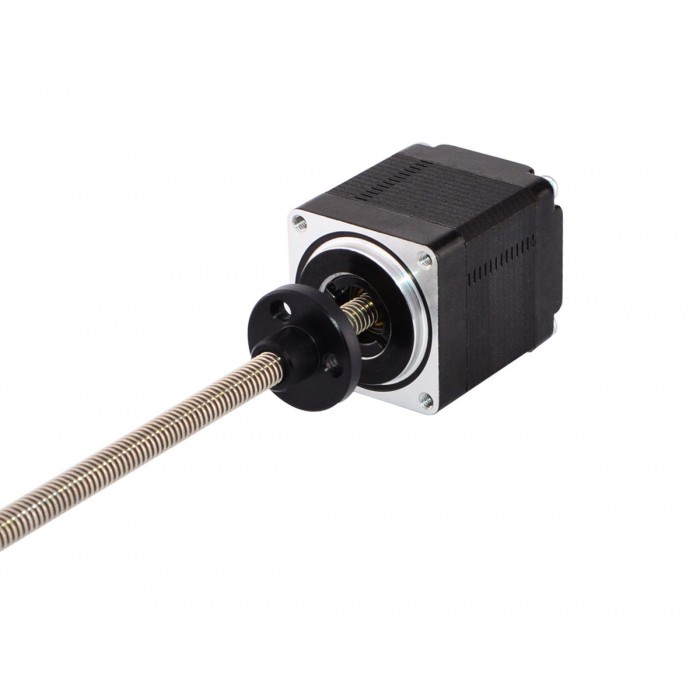

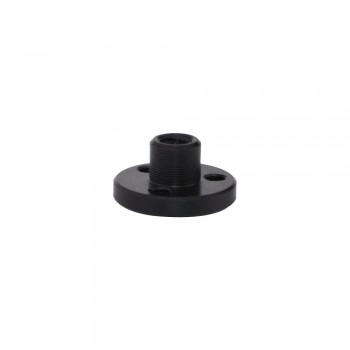

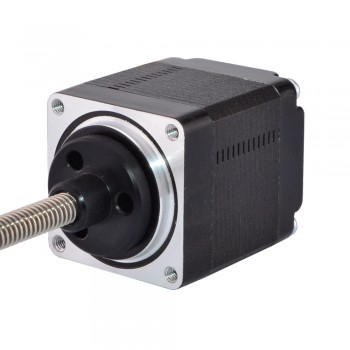

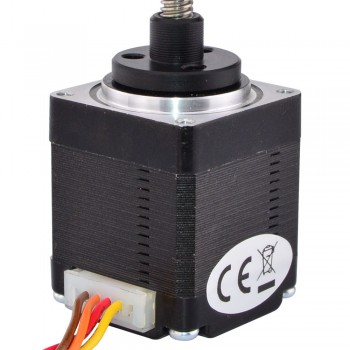

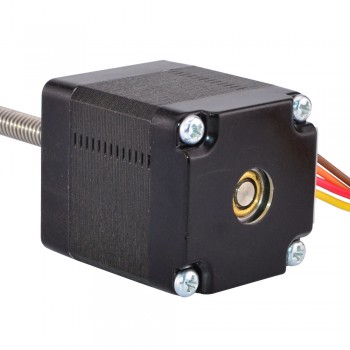

This model is economy linear stepper motor which named Nema 11 external linear actuator, the motor part is 34mm 1.8 degree 0.75A Nema 11 stepper motor. It was integrated with 100mm Tr5x2 threaded rod and a POM screw nut move along the threaded rod.
Electrical Specification
- Manufacturer Part Number: 11LS13-0754E-100B
- Motor Type: External Linear Stepper
- Step Angle: 1.8 deg
- Holding Torque: 8.0Ncm(11.1oz.in)
- Rated Current/phase: 0.75A
- Phase Resistance: 3.2ohms
- Voltage: 2.4V
- Inductance: 2.0mH ± 20%(1KHz)
Physical Specification
- Frame Size: 28 x 28mm
- Body Length: 34mm
- Lead Screw Length: 100mm（3.937"）
- Lead Screw Diameter: Φ5mm（0.1969"）
- Lead /Step: 0.01mm(0.0003937" )
- Lead/Revolution: 2mm（0.0787"）
- Number of Leads: 4
- Lead Length: 300mm
- Weight : 150g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Red
|
Brown
|
Yellow
|
Orange
|
Resources
- Full Datasheet: 11LS13-0754E-100B.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 8 |
| Holding Torque (oz.in) | 11.3 |
| Inductance(mH) | 2 |
| Motor Type | External |
| Phase Resistance(ohm) | 3.2 |
| Rated Current (A) | 0.75 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 34 |
| Frame Size(mm) | 28x28 |
| Lead Screw Diameter(mm) | 5 |
| Lead Screw Length(mm) | 100 |
| Lead Revolution(mm) | 2 |
| Linear Travel / Step(mm) | 0.01 |
| No. of Lead | 4 |
| Lead Length(mm) | 304 |
