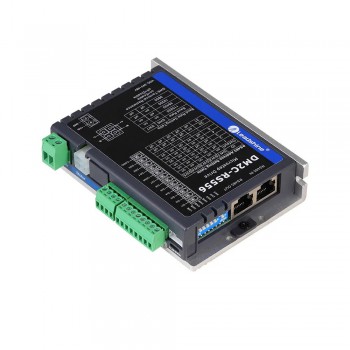

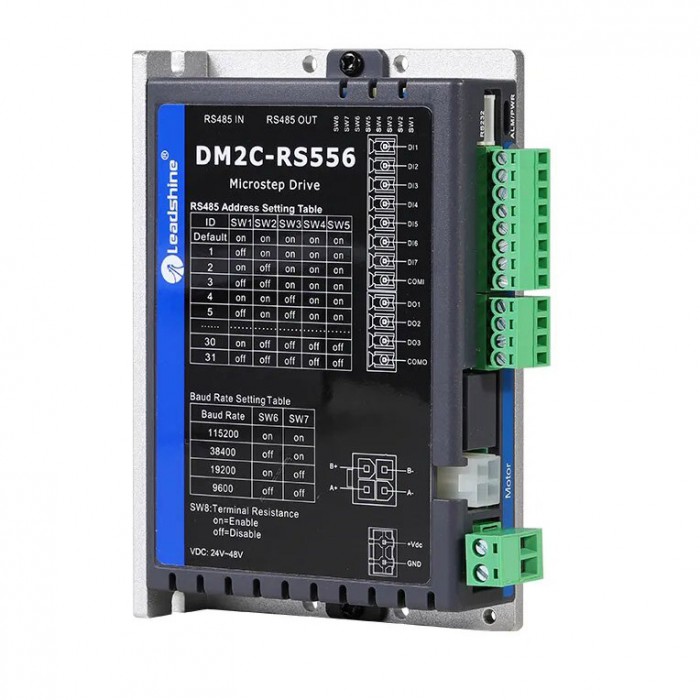

Leadshine DM2C-RS556 2.1-5.6A 20-50VDC Integrated Stepper Driver for Nema 17, 23, 24 Stepper Motor

Leadshine DM2C-RS556 2.1-5.6A 20-50VDC Integrated Stepper Driver for Nema 17, 23, 24 Stepper Motor
NO.:DM2C-RS556
Post a review
Special Offer in July 2024:
  • $10 Off Over $150
  • $20 Off Over $300
  • $35 Off Over $500
  • $55 Off Over $800
  • $70 Off Over $1000
  • $100 Off Over $1500
  • Enjoy Discount at Checkout!
  • Valid Till July 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$82.15
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $78.04 5%
10 $76.40 7%
50 $73.94 10%
100 $71.47 13%
Add To Cart

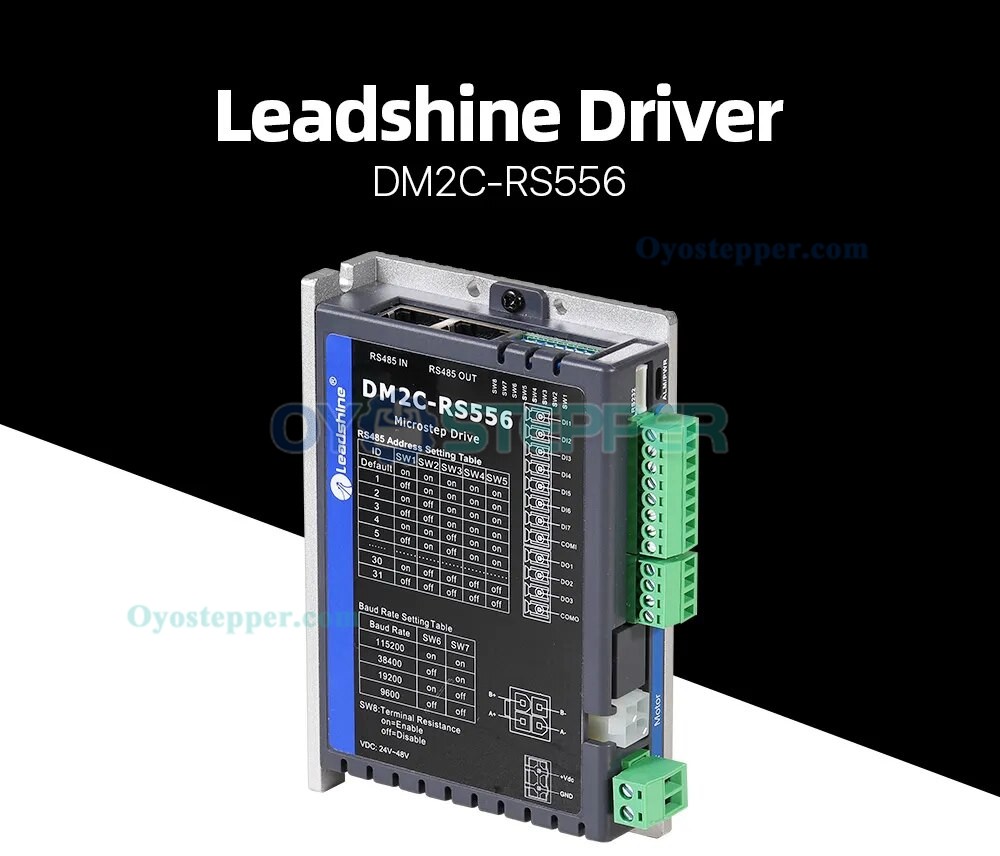

Leadshine DM2C-RS556 2.1-5.6A 20-50VDC Integrated Stepper Driver for Nema 17, 23, 24 Stepper Motor



Features:
1.Built-in single-axis controller, save the number of pulse output points of the hostcontroller.
2.Configurable 16-segment path program, support functions such as zero return /speed / position / JoG etc.

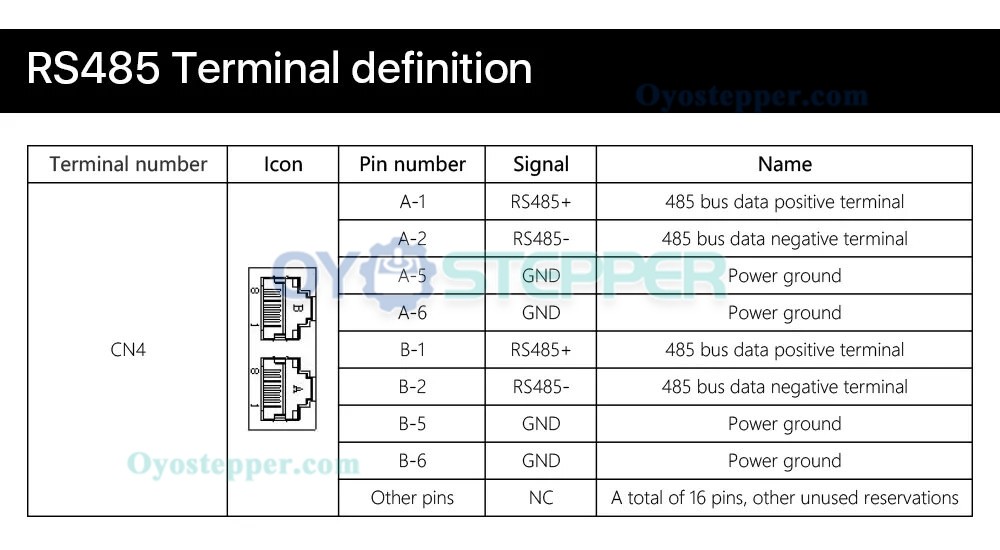

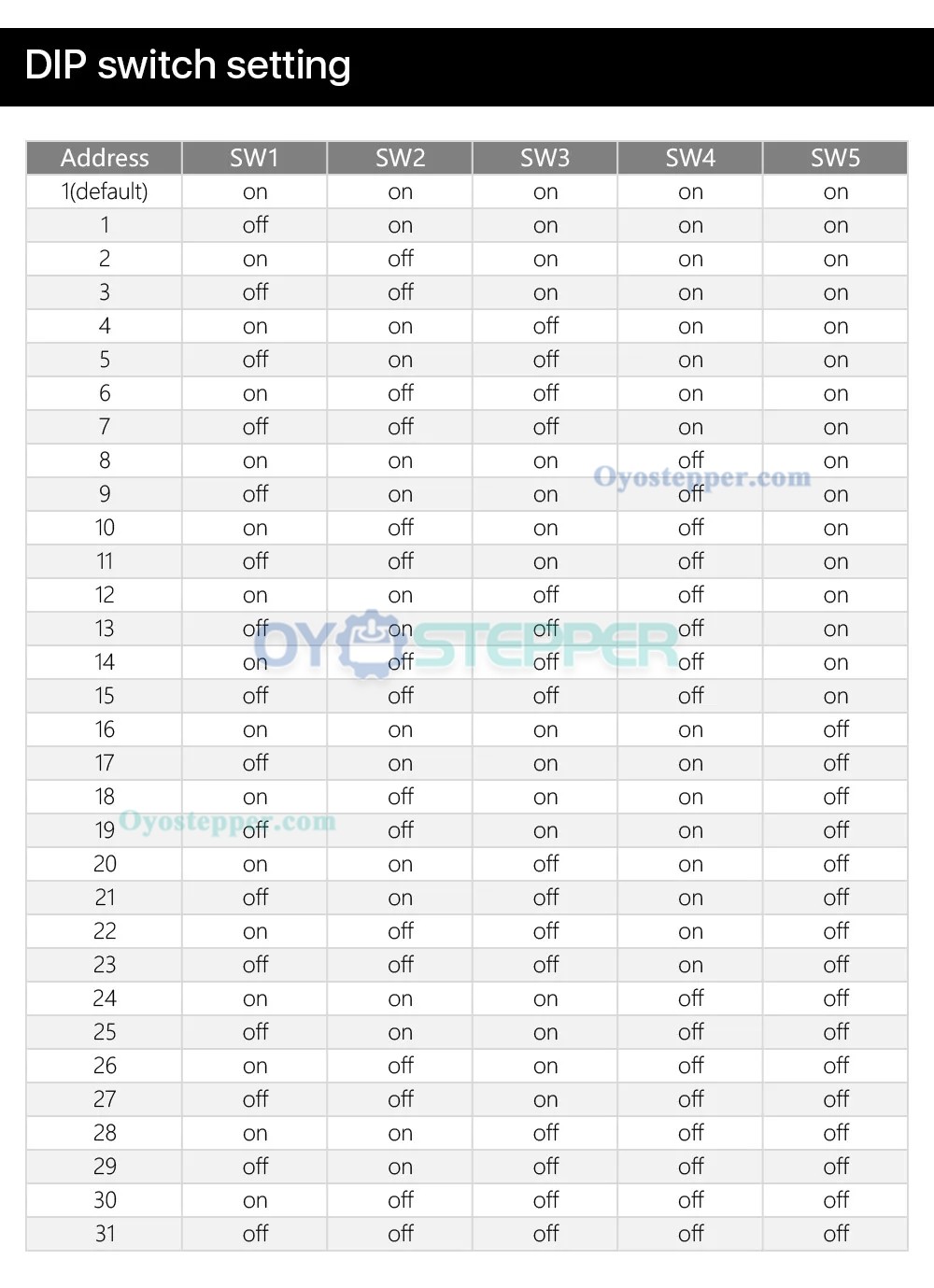

3.lsolated RS485 bus, Support up to 31 axis RS485 slave website.

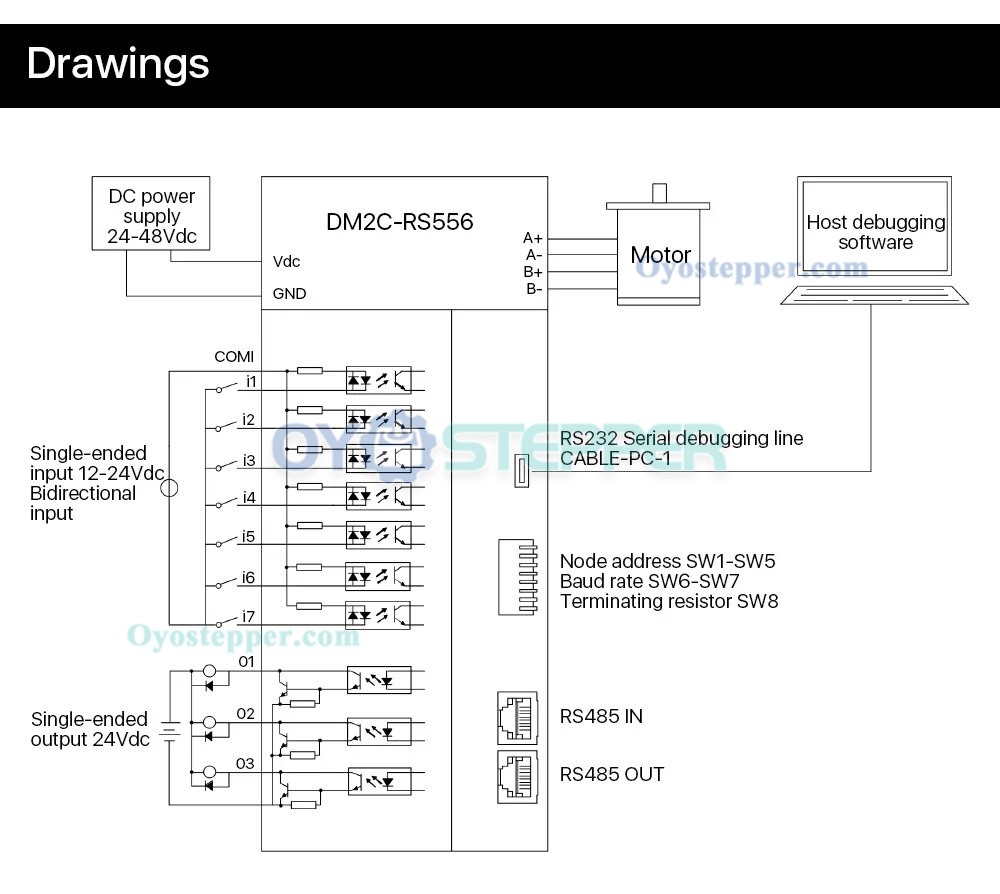

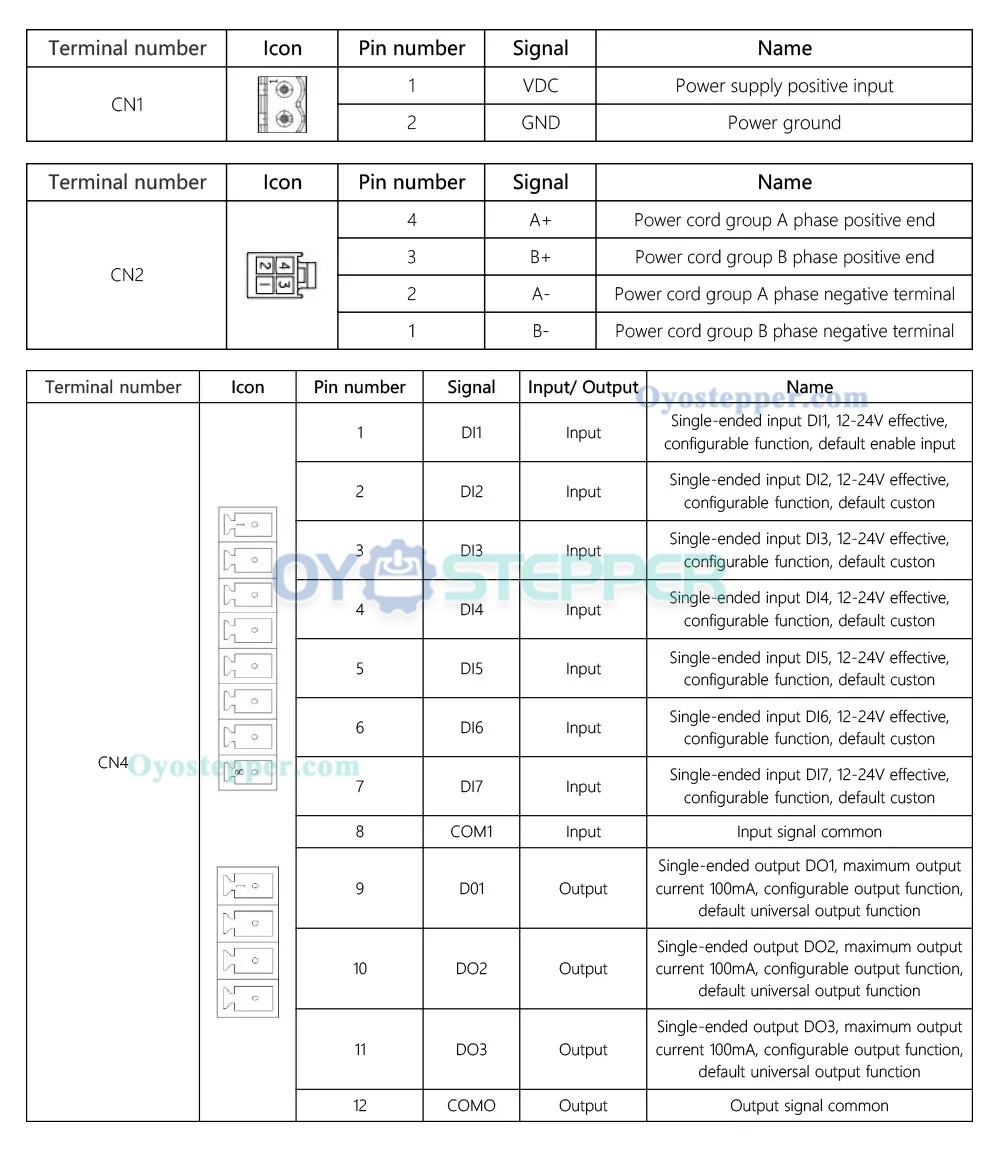

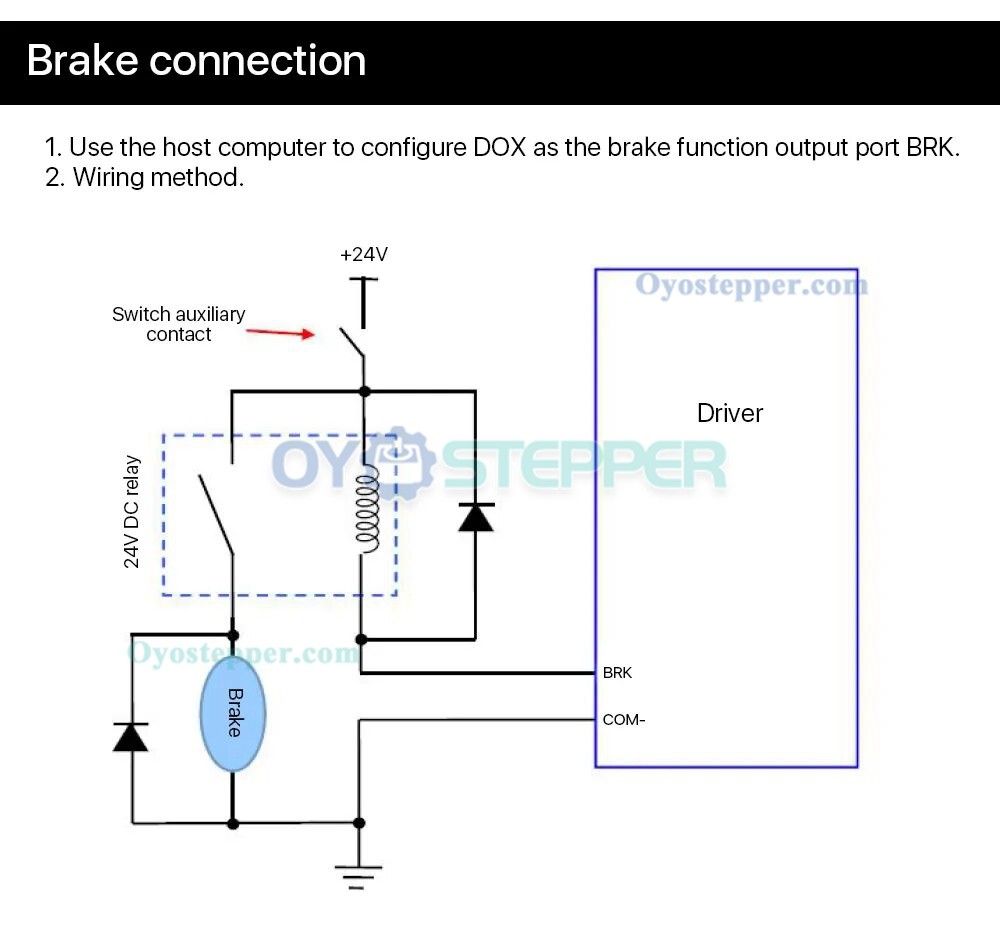

4.7 digital inputs, support input functions such as origin, limit, emergency stop, etc.5.3 digital inputs, support output functions such as alarm, in-position, brake, etc.6.Adapted to Nema 17, 23,34 Motor Base.
7.Supply voltage range 24-48VDC, maximum output current 5.6A.

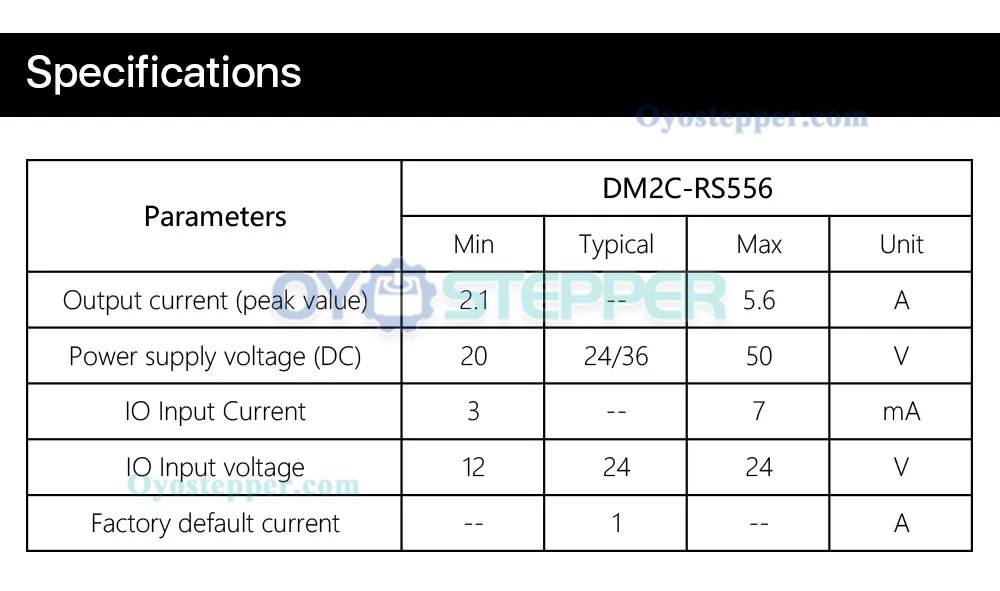

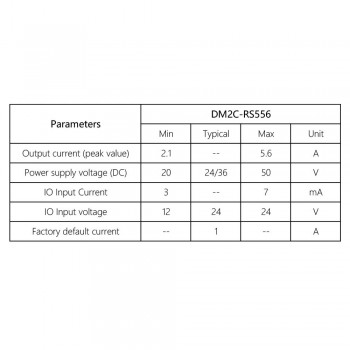

Specifications:
Model:DM2C-RS556
Output Peak Current: 2.1~5.6A
Input Voltage: +20~50VDC (Typical 24V or 36VDC)
Logic Signal Current: 3~7mA (Typical 10mA)
IO input current:3~7mA
IO input voltage:12~24VDC (Typical 24VDC)
Factory default current:1.0A
Weight:360g



Operating Environment and other Specifications:
Cooling: Natural Cooling or Forced cooling
Environment: Avoid dust, oil fog and corrosive gases
Ambient Temperature: 0℃ - 50℃
Humidity: 40-90%RH (No-condensing, no frosting)
Operating Temperature: 50℃ MAX
Vibration: 10~55Hz/0.15mm
Protection level:IP20
Storage Temperature: -20℃ -+65℃;

Leadshine DM2C-RS556 2.1-5.6A 20-50VDC Integrated Stepper Driver for Nema 17, 23, 24 Stepper Motor

Leadshine DM2C-RS556 2.1-5.6A 20-50VDC Integrated Stepper Driver for Nema 17, 23, 24 Stepper Motor

Leadshine DM2C-RS556 2.1-5.6A 20-50VDC Integrated Stepper Driver for Nema 17, 23, 24 Stepper Motor

Leadshine DM2C-RS556 2.1-5.6A 20-50VDC Integrated Stepper Driver for Nema 17, 23, 24 Stepper Motor

Leadshine DM2C-RS556 2.1-5.6A 20-50VDC Integrated Stepper Driver for Nema 17, 23, 24 Stepper Motor

Leadshine DM2C-RS556 2.1-5.6A 20-50VDC Integrated Stepper Driver for Nema 17, 23, 24 Stepper Motor

Leadshine DM2C-RS556 2.1-5.6A 20-50VDC Integrated Stepper Driver for Nema 17, 23, 24 Stepper Motor

Leadshine DM2C-RS556 2.1-5.6A 20-50VDC Integrated Stepper Driver for Nema 17, 23, 24 Stepper Motor

Leadshine DM2C-RS556 2.1-5.6A 20-50VDC Integrated Stepper Driver for Nema 17, 23, 24 Stepper Motor

Leadshine DM2C-RS556 2.1-5.6A 20-50VDC Integrated Stepper Driver for Nema 17, 23, 24 Stepper Motor

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Leadshine CL2C-RS57 0-7A 20-50VDC Nema 23 RS485 Closed Loop Stepper Motor Driver
Next: E Series Nema 17 Stepper Motor Bipolar 1.8 Degree 17Ncm(24.07oz.in) 1A 42x42x20mm 4 Wires
Electrical Specification
Integrated with Pulser No
Input Voltage(V) 24 - 50 DC
Output Current(A) 2.1 - 5.6
