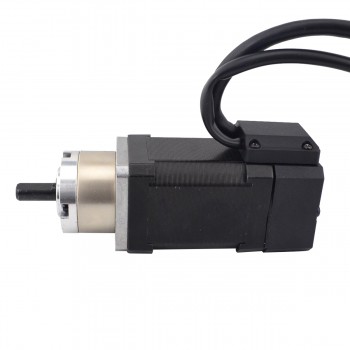

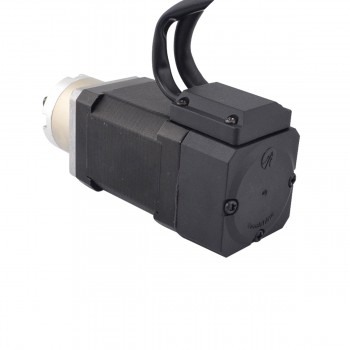

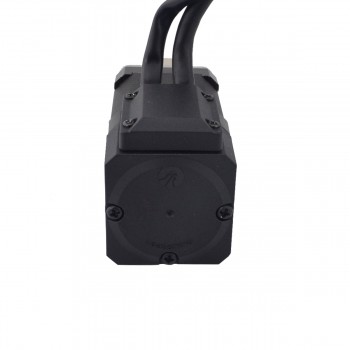

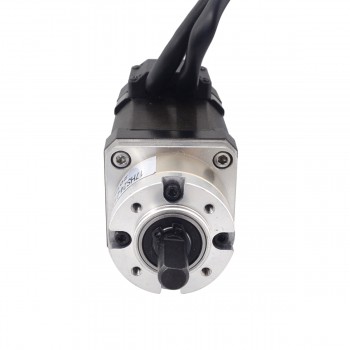

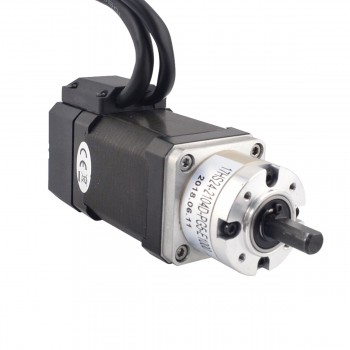

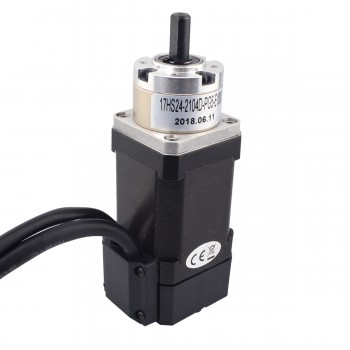

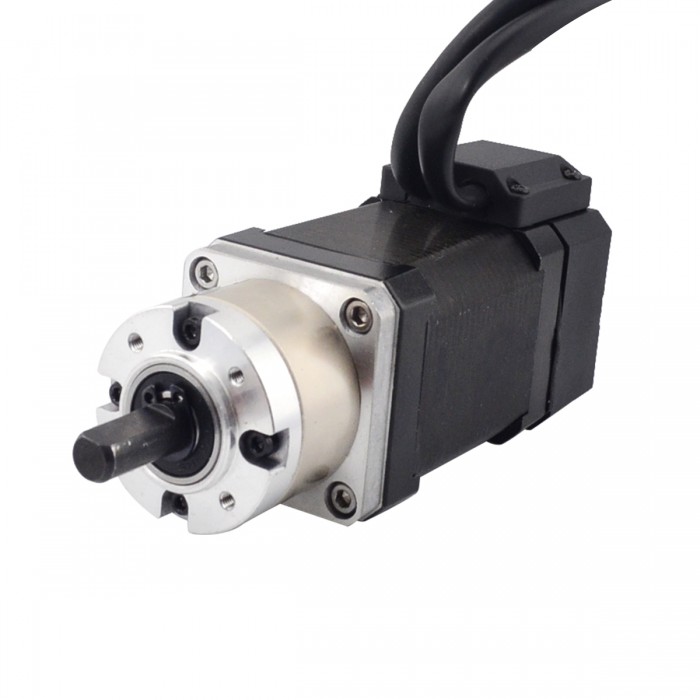

Nema 17 Closed-loop Geared Stepper L=60mm Gear Raio 5:1 Encoder 1000CPR

NO.:17HS24-2104D-PG5-E1000
Review: Post a review
Black Friday Special Offer 2020:
  • 6% Off on Total Order Amount
  • Enjoy Discount at Checkout
  • No Need Coupon Code!
  • Valid Till 3rd December, 2020
Latest price:$96.22
Buy It Now:$74.02
Quantity:- +

Buy More, Save more!
5 - 9 10 - 49 50 - 99 100 - Max
$72.34 $70.66 $68.98 $67.30
Add To Cart

Motor Specification

  • Manufacturer Part Number: 17HS24-2104D-PG5-E1000
  • Motor Type: Bipolar Stepper
  • Step Angle without Gearbox: 1.8 deg
  • Holding Torque without Gearbox: 0.65Nm(92.07oz.in)
  • Rated Current/phase: 2.10A
  • Phase Resistance: 1.6ohms
  • Voltage: 3.36V
  • Inductance: 3.00mH ± 20%(1KHz)
  • Number of Leads: 4
  • Lead Length: 500mm

Gearbox Specifications

  • Gearbox Type: Planetary
  • Gearbox Length: 27.3mm
  • Gear Ratio: 5.18
  • Efficiency: 90%
  • Shaft Diameter: Φ7mm
  • Shaft Length: 12mm
  • Backlash at No-load: <=1deg
  • Max.Permissible Torque: 2Nm(283.28oz.in)
  • Moment Permissible Torque: 4Nm(566.56oz.in)
  • Shaft Maximum Axial Load: 50N
  • Shaft Maximum Radial Load: 100N

Encoder Specification

  • Driving Voltage : 4.5V to 5.5V
  • Output current : 20mA
  • Resolution : 1000cpr
  • Output Signal : 2 Channels
  • Bore Diameter : Φ5mm
  • Output Frequency : ≤60MHz
  • Running Speed : ≤3600rpm
  • IP Protection: IP20

Connection

A+
A-
B+
B-
Green
Black
Red
Blue

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 Closed-loop Geared Stepper L=48mm Gear Raio 100:1 Encoder 1000CPR
Next: Nema 24 Closed Loop Stepper Motor E Series 3.0 Nm/424.92oz.in Encoder 1000CPR
Motor Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 65
Holding Torque (oz.in) 92.066
Inductance(mH) 3.0
Lead Length(mm) 500
Motor Nema Size Nema 17
No. of Lead 4
Phase Resistance(ohm) 1.6
Rated Current (A) 2.1
Shaft Diameter(mm) 7
Step Angle(°) 1.8
Encoder Specification
IP Protection IP20
Output Signal Channels 2
Rated Voltage(V) 5
Resolution(CPR) 1000
Running Speed(rpm) ≤3600rpm
Output Frequency ≤60KHz
