Nema 17 External Linear Stepper Motor Actuator 1.8 Deg 26Ncm(36.8oz.in) 12V Lead Screw 100mm
Special Offer in March 2024:
- 5% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till March 31st, 2024
- Note:No coupon code needed, please place order directly!
Our Price:$34.45

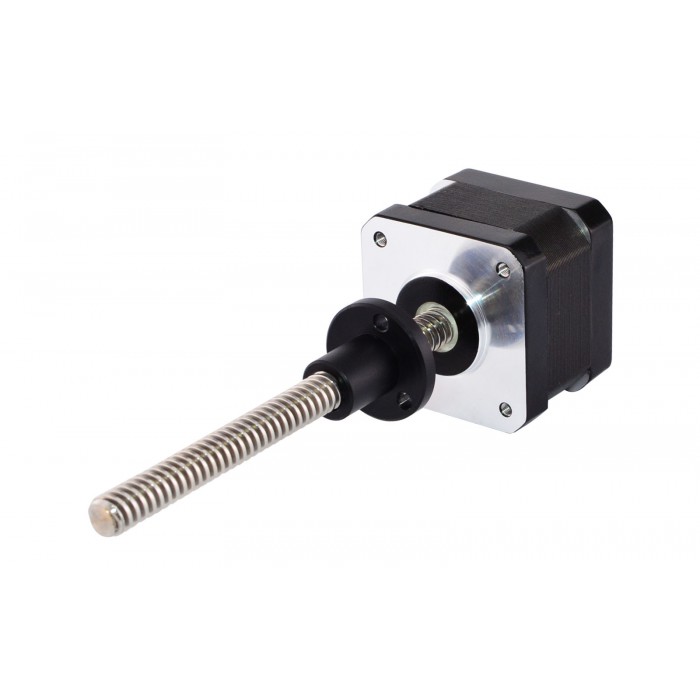

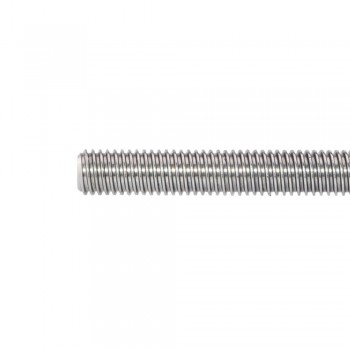

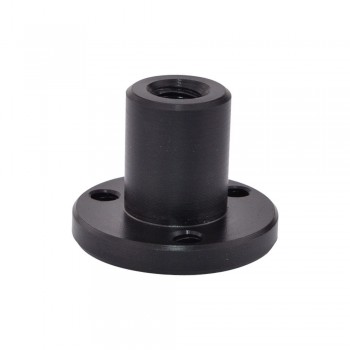

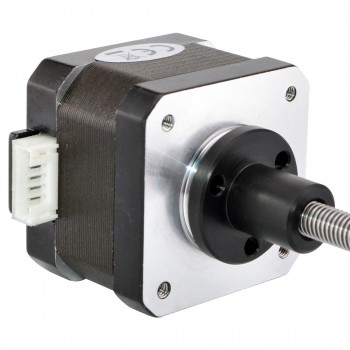

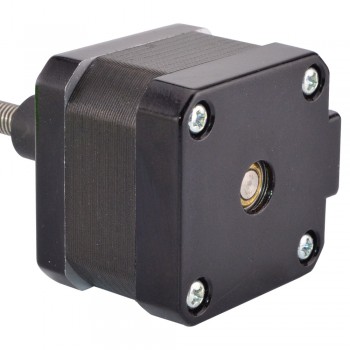

This model is economy linear stepper motor which named Nema 17 external linear actuator, the motor part is 34mm 1.8 degree 0.4A Nema 17 stepper motor. It was integrated with 100mm Tr6.35x2 threaded rod and a POM screw nut move along the threaded rod.
Electrical Specification
- Manufacturer Part Number: 17LS13-0404E-100D
- Motor Type: External Linear Stepper
- Step Angle: 1.8 deg
- Holding Torque: 26Ncm(36.8oz.in)
- Rated Current/phase: 0.4A
- Phase Resistance: 30ohms
- Voltage: 12V
- Inductance: 37mH ± 20%(1KHz)
Physical Specification
- Frame Size: 42 x 42mm
- Body Length: 34mm
- Lead Screw Length: 100mm(3.937")
- Lead Screw Diameter: Φ6.35mm(0.25")
- Lead /Step: 0.01mm(0.0003937" )
- Lead/Revolution: 2mm(0.0787")
- Number of Leads: 4
- Lead Length: 400mm
- Weight : 400g
Connection
A+
|
A-
|
B+
|
B-
|
Red
|
Brown
|
Yellow
|
Green
|
Resources
- Full Datasheet: 17LS13-0404E-100D.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
Electrical Specification | |
---|---|
Bipolar/Unipolar | Bipolar |
Holding Torque (Ncm) | 26 |
Holding Torque (oz.in) | 36.8 |
Inductance(mH) | 37 |
Motor Type | External |
Phase Resistance(ohm) | 30 |
Rated Current (A) | 0.4 |
Step Angle(°) | 1.8 |
Physical Specification | |
Body Length(mm) | 34 |
Lead Screw Diameter(mm) | 6.35 |
Lead Screw Length(mm) | 100 |
Lead Revolution(mm) | 2 |
Linear Travel / Step(mm) | 0.01 |
No. of Lead | 4 |
Lead Length(mm) | 400 |
Frame Size(mm) | Nema 17 (42 x 42) |
