Nema 17 Non-captive 34mm Stack 0.4A Lead 2mm/0.07874" Length 100mm

NO.:SKU:17LS13-0404N-100D
Review: Post a review
Latest price:$36.06
Buy It Now:$27.74
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - 99 100 - Max
$26.87 $26.01 $25.14 $24.27
Add To Cart

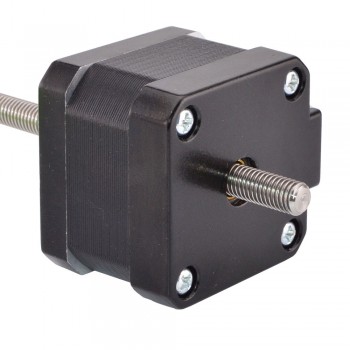

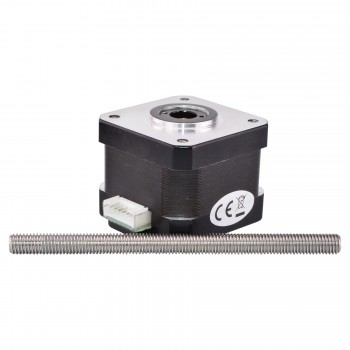

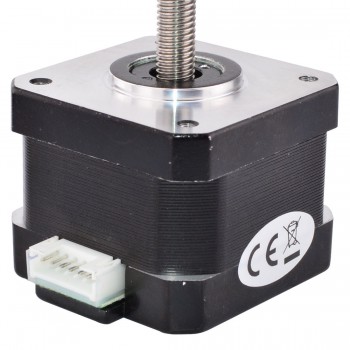

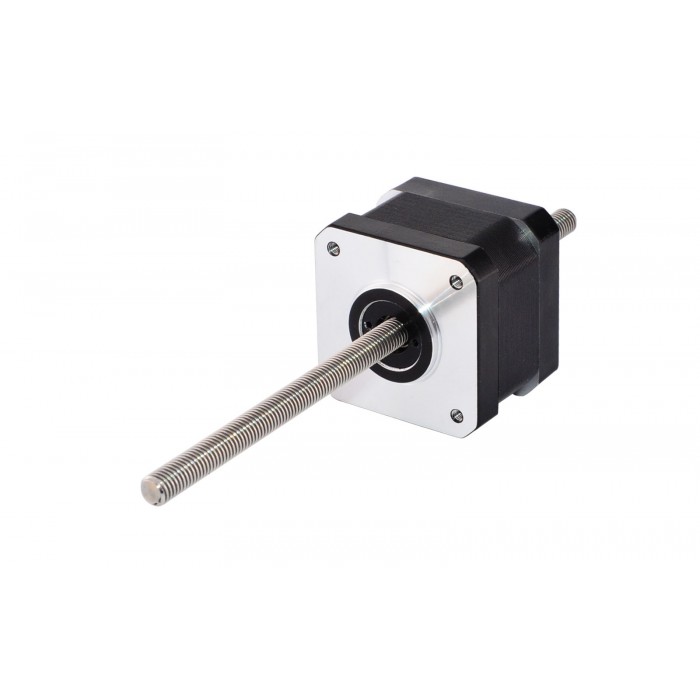

This model is economy linear stepper motor which named Nema 17 non-captive linear actuator, it was composed of 34mm 1.8 degree 0.4A Nema 17 stepper motor and 100mm length Tr6.35x2 linear screw.

Electrical Specification

  • Manufacturer Part Number: 17LS13-0404N-100D
  • Motor Type: Non Captive Linear Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 26Ncm(36.8oz.in)
  • Rated Current/phase: 0.4A
  • Phase Resistance: 30ohms
  • Voltage: 12V
  • Inductance: 37mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 34mm
  • Lead Screw Length: 100mm(3.937")
  • Lead Screw Diameter: Φ6.35mm(0.25")
  • Lead /Step: 0.01mm(0.0003937" )
  • Lead/Revolution: 2mm(0.0787")
  • Number of Leads: 4
  • Lead Length: 400mm
  • Weight : 400g

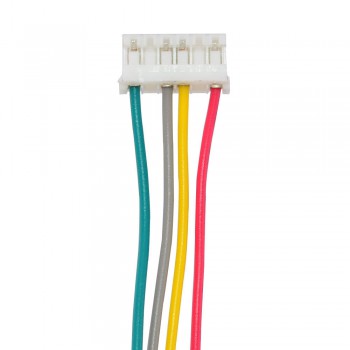

Connection

A+
A-
B+
B-
Red
Gray
Yellow
Green

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: Nema 17 External 34mm Stack 0.4A Lead 8mm/0.31496" Length 300mm
Next: Nema 17 Non-captive 34mm Stack 0.4A Lead 2mm/0.07874" Length 150mm
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 26
Holding Torque (oz.in) 36.8
Inductance(mH) 37
Motor Type Non-Captive
Phase Resistance(ohm) 30
Rated Current (A) 0.4
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 34
Frame Size(mm) 42x42
Lead Screw Diameter(mm) 6.35
Lead Screw Length(mm) 100
Lead Revolution(mm) 2
Linear Travel / Step(mm) 0.01
No. of Lead 4
Lead Length(mm) 400
