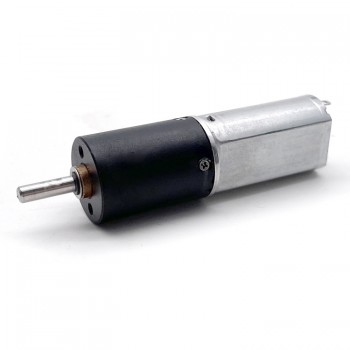

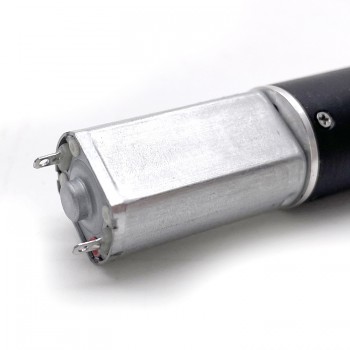

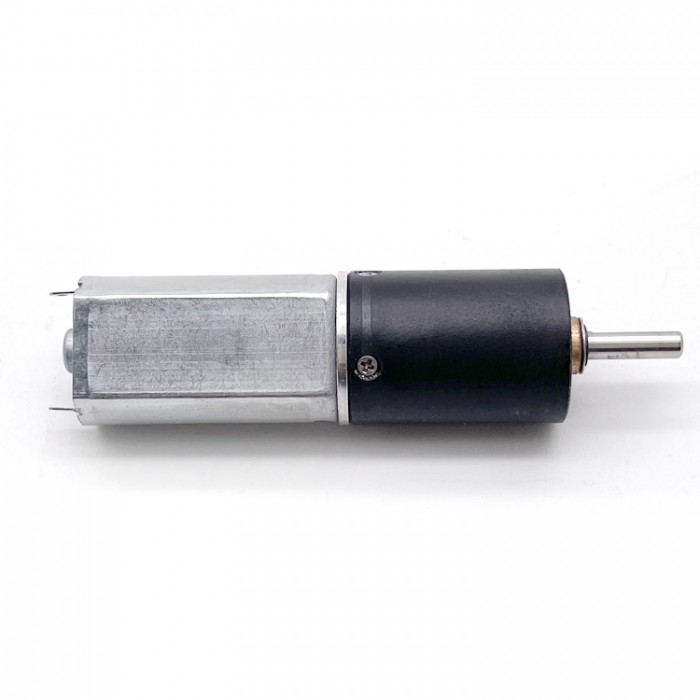

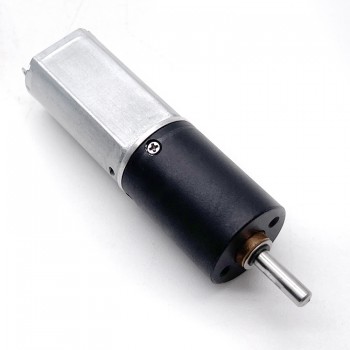

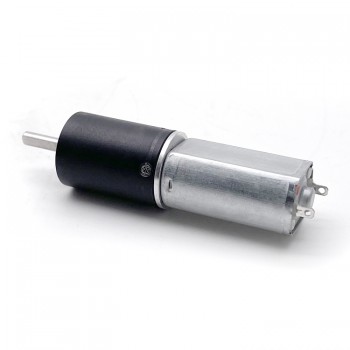

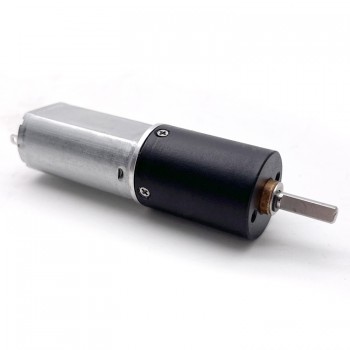

2Pcs 6V 12V Micro Brush Geared DC Motor with Gear Reducer 2.4 kg.cm 12-500 RPM
Features:
1. Small size dc gear motor with low speed and big torque.
2. 16mm gear motor provide 0.3Nm torque and more reliable.
3. Suitable to small diameter, low noise and big torque application.
4. Dc Gear motors can match encoder, 3ppr.
5. Reduction Ratio: 4/16/29/62/104/231/370/850/1996
1 stages: 4:1
2 stages: 16:1 / 29:1
3 stages: 62:1 / 104:1
4 stages: 231:1 / 370:1
5 stages: 850:1 / 1996:1
Application:
BOAT, Car, Electric Bicycle, Home Appliance;

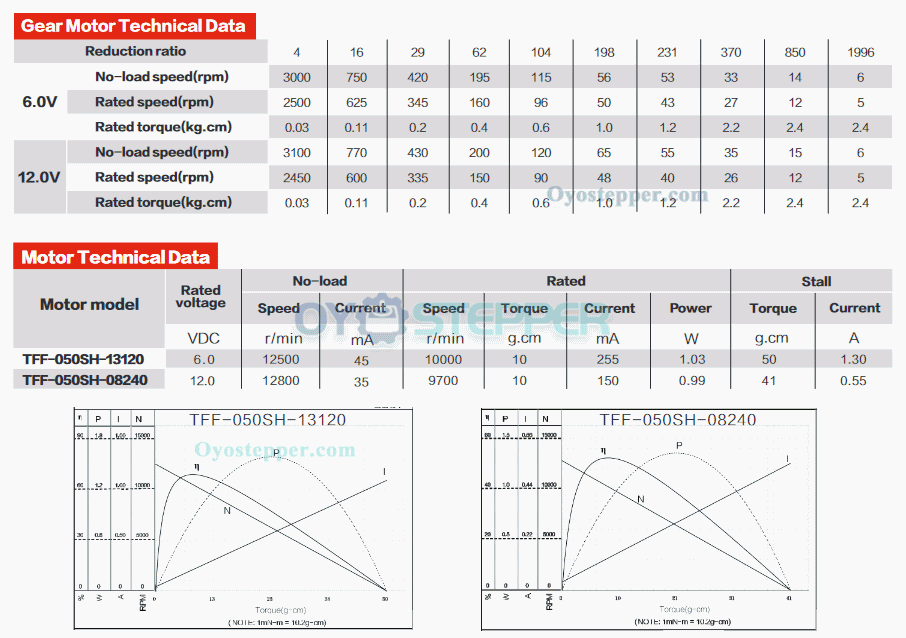

Electrical Specification:
Part Number:GMP16-050SH
Rated Voltage:12V/24VDC
Rated Torque:2.4Kg.cm max
Max momentary tolerance torque: 4.8kg.cm
Rated current:255mA(12V)/150mA(24V)
No Load Speed W/O Gearbox: 12500RPM(12V)/12800RPM(24V)
Rated Speed W/O Gearbox: 10000RPM(12V)/9700RPM(24V)
No Load Speed W Gearbox: 6-3100 RPM
Rated Speed W/ Gearbox:5-2450 RPM
Rated Power:1.03W(12V) / 0.99W(24V)
Gear type:Planetary gearbox
Motor type:Brushed
Efficiency: 75%
Axial play:0.05-0.3 Noise:30cm.40-50db

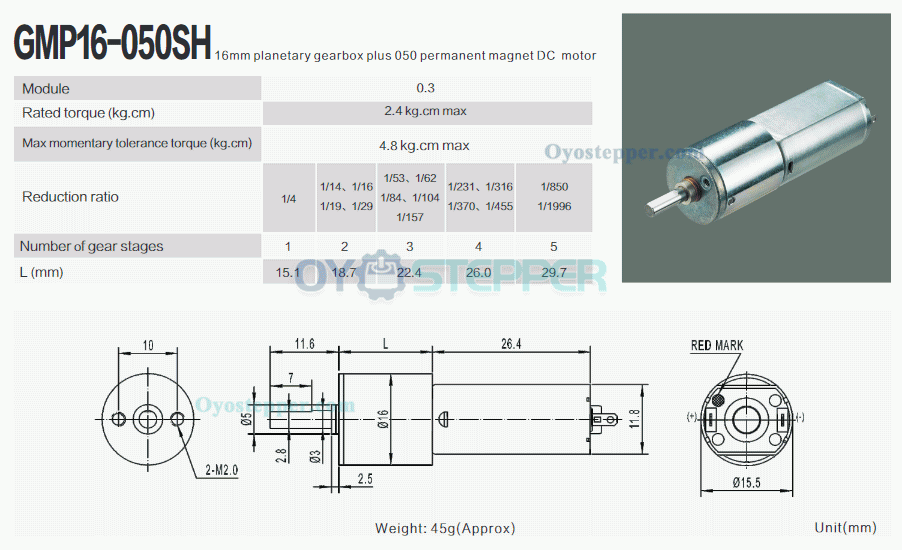

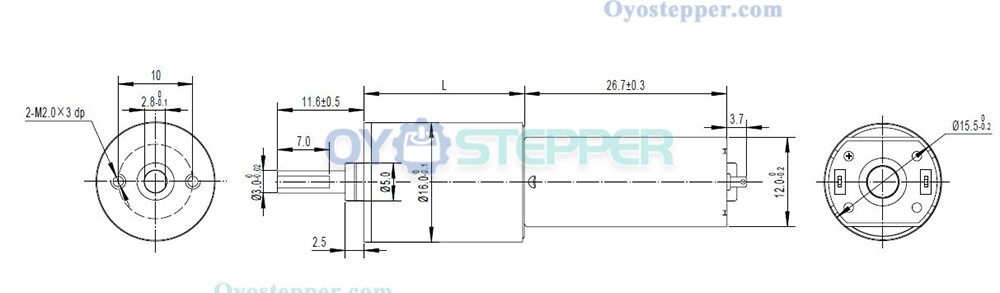

Physical Specification:
Motor Size:Φ11.8x26.4mm
Gearbox Length:15.1mm/18.7mm/22.4mm/26mm/29.7mm
Shaft Type:D-cut
D-cut Diameter:2.8mm
D-cut Length:7mm
Shaft Diameter:3mm
Shaft Length:9.1mm
Weight:45g;
Resources
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
Physical Specification | |
---|---|
Body Length(mm) | 26.7+gearbox |
Shaft Diameter(mm) | 3 |
Shaft Length(mm) | 9.1 |
Weight(g) | 45 |
Gearbox Type | Planetary gearbox |
Frame Size(mm) | Φ16 |
Gearbox Length(mm) | 15.1 / 18.7 / 22.4 / 26 / 29.7 |
Gear Ratio | 4:1 / 16:1 / 29:1 / 62:1 / 104:1 / 231:1 / 370:1 / 850:1 / 1996:1 |
Shaft Type | D-Cut |
Single Shaft/Dual Shaft | Single Shaft |
Electrical Specification | |
Rated Power(W) | 1.03 / 0.99 |
Rated Voltage(V) | 12 / 24 |
Rated Speed(rpm) | 5-2450 |
Rated Current (A) | 0.255 / 0.15 |
Rated Torque(kg.cm) | 2.4 |
