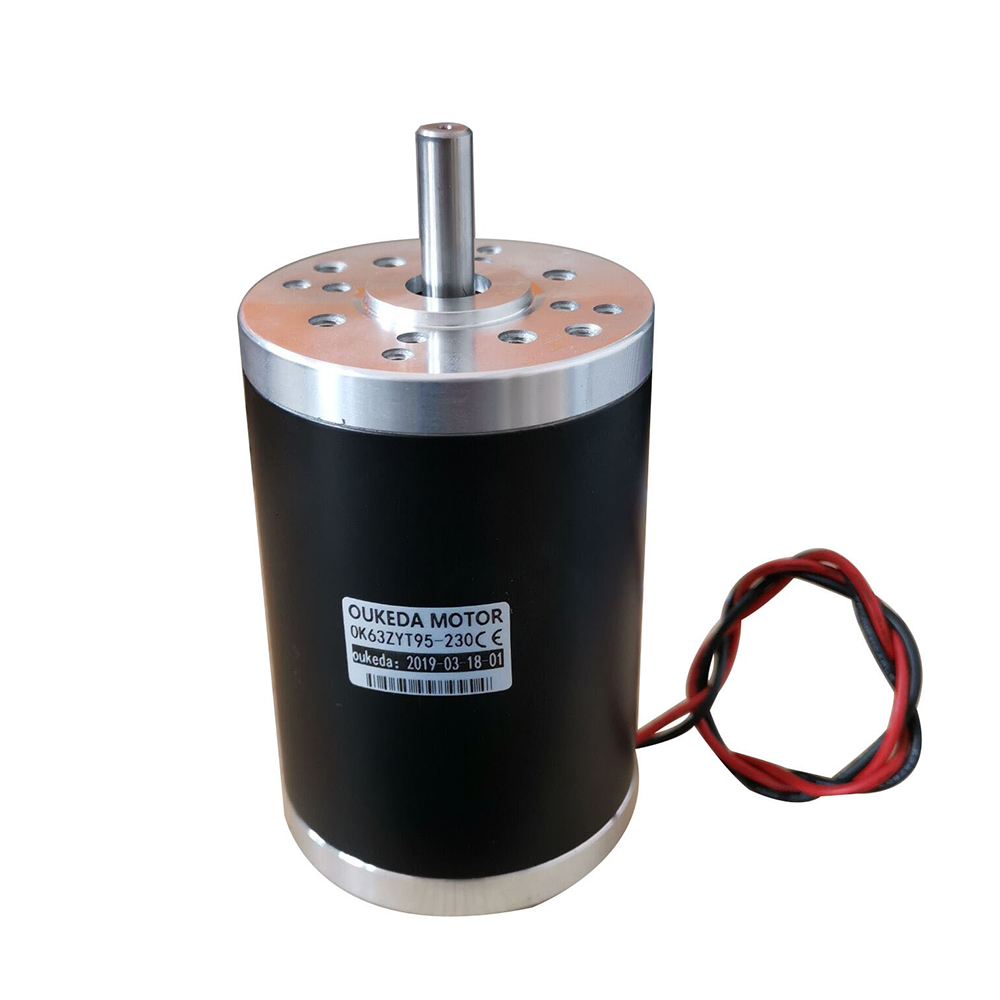

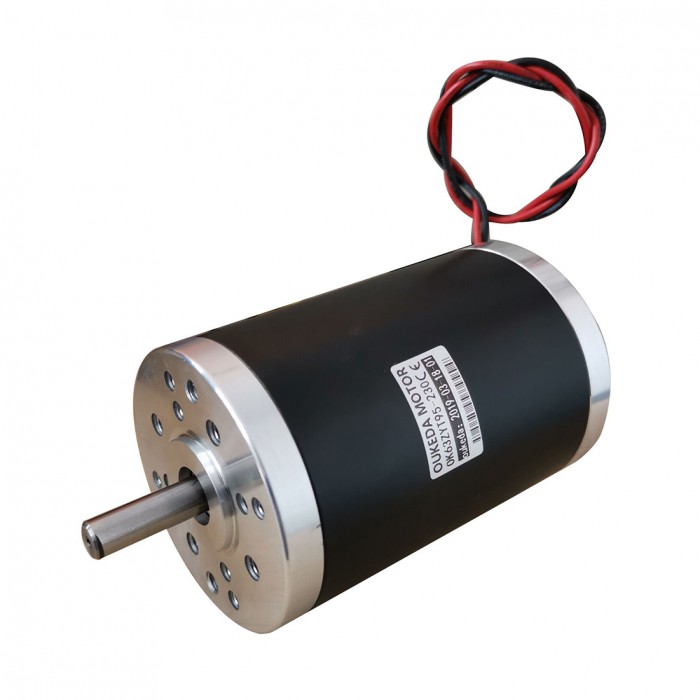

Oukeda Permanent-magnet Brushed DC motor 0.2Nm 12V/24V 10,000 RPM

Oukeda Permanent-magnet Brushed DC motor 0.2Nm 12V/24V 10,000 RPM

Electrical Specifications:
Model: OK63ZYT95-12/24
Motor Type: Brushed DC Motor
Rated Voltage: 24 VDC
Rated Speed: 9500 RPM
No-Load Speed: 10000 RPM
Rated Torque: 0.2N·m
Rated Current: 12A
Stall Torque: 2N·m
Stall Current: 104 A
No-Load Current: 2.0A
Demagnetization Current: 150A
Number of Poles: 2
Insulation Class: F
Protection Rating: IP50
Operating Temperature: -40°C to +140°C

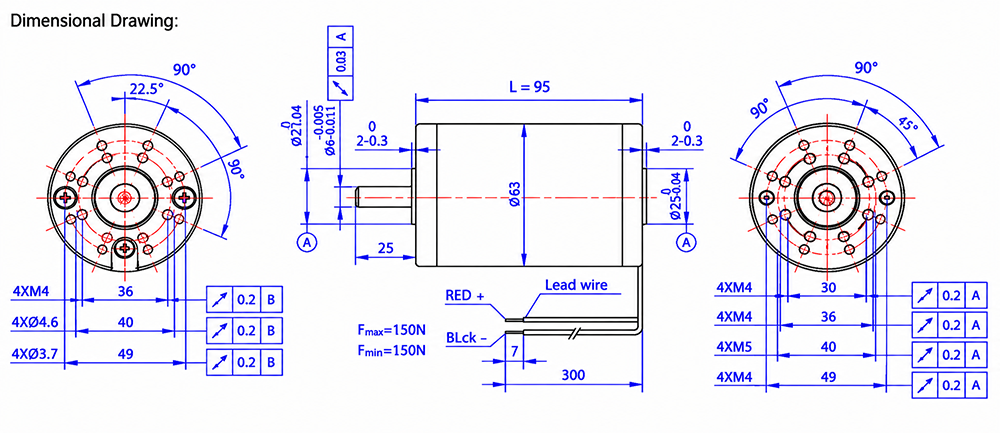

Physical Specifications:
Motor Body Length: 95 mm
Motor Body Diameter:63 mm
Output Shaft Diameter: 8 mm
Output Shaft Length: 25 mm
Lead Wire Length: 300 mm
Lead Wire Colors: Red (+), Black (-)
Weight:0.95kg
