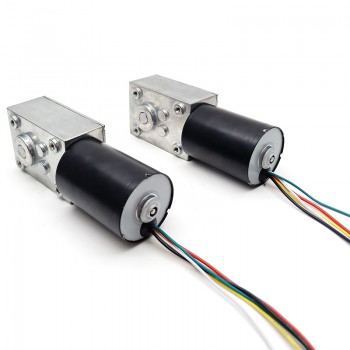

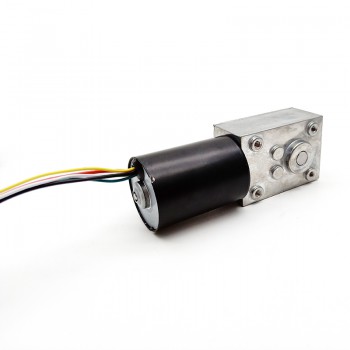

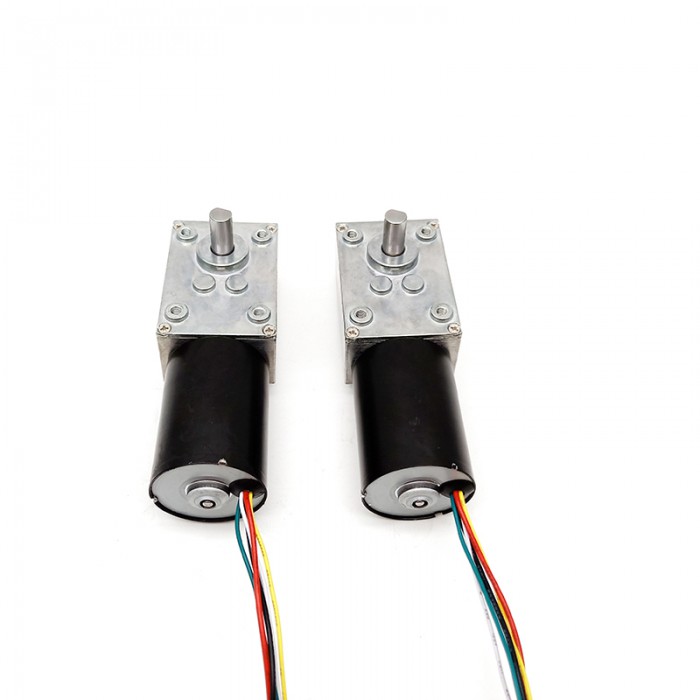

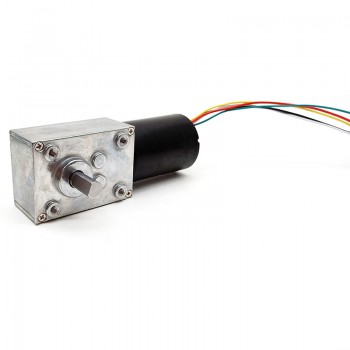

2Pcs 12V 24V High Torque DC Worm Gear Motor Permanent Magnet 10kg.cm 37*37mm

2Pcs 12V 24V High Torque DC Worm Gear Motor Permanent Magnet 10kg.cm 37*37mm
NO.:TWG4058-TEC3650
Post a review
Our Price:$81.98

Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $77.88 5%
10 $76.24 7%
50 $73.78 10%
100 $69.68 15%
Add To Cart



Features:
1.Small size dc gear motor with low speed and big torque
2.40*58mm gear motor provide 2.0Nm torque and more reliable
3.Suitable to small diameter, low noise and big torque application
4.Dc Gear motors can match encoder,12ppr-1000ppr
5.Reduction Ratio: 81、134、207、251、405、621;

3 stages: 81:1/135:1
4 stages: 207:1/251:1
5 stages: 405:1 /621:1

Application:
BOAT, Home Appliance, Medical equipement.

Electrical Specification
Part Number:TWG3246-370CA
Rated Voltage:12V/24VDC
Rated Torque:10.0Kg.cm max
Max momentary tolerance torque: 20.0kg.cm
Rated current:1400mA(12V)/800mA(24V)
No Load Speed W/O Gearbox: 6500RPM(12V)/4000RPM(24V)
Rated Speed W/O Gearbox: 5300RPM(12V)/3400RPM(24V)
No Load Speed W Gearbox: 6-80 RPM
Rated Speed W/ Gearbox:5-65 RPM
Rated Power:10.9W(12V) /7.0W(24V)
Gear type:Worm gearbox
Type:DC Worm Gear Motor
Efficiency:80%-90%
Construction:Permanent Magnet
Noise:30cm.<40db
Average Backlash no load:<3°;

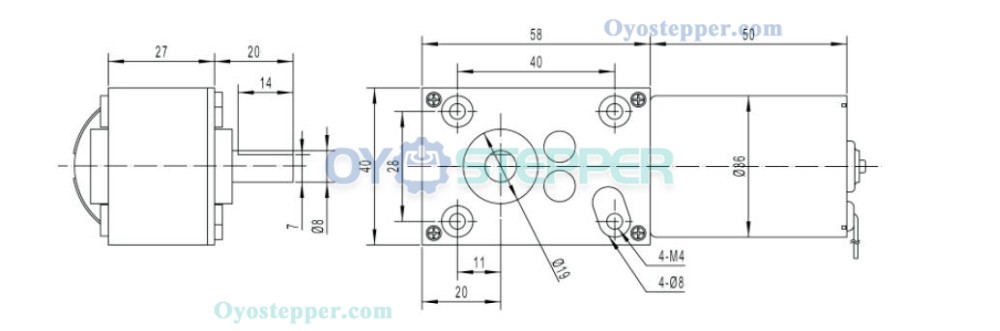

Physical Specification:
Motor Size:36 x 50mm
Motor Diameter: 36mm
Gearbox Size: 40 x 58mm
Length:50mm+Planetary gearbox
Gearbox Length:58mm
Shaft Type:D-cut
D-cut Diameter:7mm
D-cut Length:14mm
Shaft Diameter:8mm
Shaft Length:14mm
Weight:360g;

2Pcs 12V 24V High Torque DC Worm Gear Motor Permanent Magnet 10kg.cm 37*37mm



2Pcs 12V 24V High Torque DC Worm Gear Motor Permanent Magnet 10kg.cm 37*37mm

2Pcs 12V 24V High Torque DC Worm Gear Motor Permanent Magnet 10kg.cm 37*37mm

Resources

TWG4058-TEC3650.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 2Pcs 12V 24V High Torque DC Worm Gear Motor Permanent Magnet 10kg.cm 40*58mm
Next: 2Pcs 6V 12V High Torque DC Worm Gear Motor Permanent Magnet 8kg.cm 32*46mm

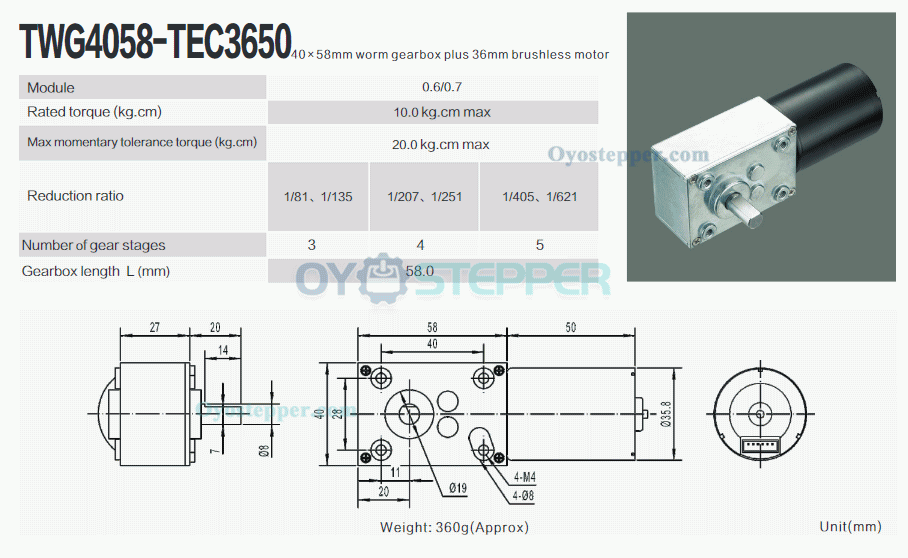

Physical Specification
Frame Size(mm) 40 x 58
Shaft Diameter(mm) 8
Shaft Length(mm) 15
Gearbox Type Worm gearbox
Body Length(mm) 50+gearbox
Gearbox Length(mm) 58
Gear Ratio 81:1 / 135:1 / 207:1 / 251:1 / 405:1 / 621:1
Shaft Type D-Cut
Single Shaft/Dual Shaft Single Shaft
Weight(g) 360

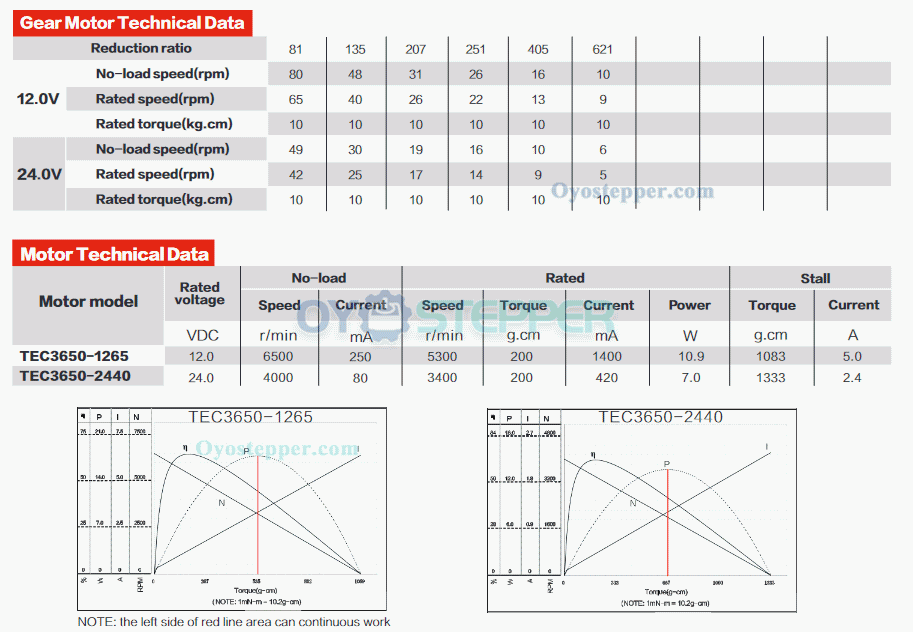

Electrical Specification
Rated Power(W) 10.9 / 7
Rated Torque(kg.cm) 10
Rated Speed(rpm) 5-65
Rated Voltage(V) 12 / 24
Rated Current (A) 1.4 / 0.8
