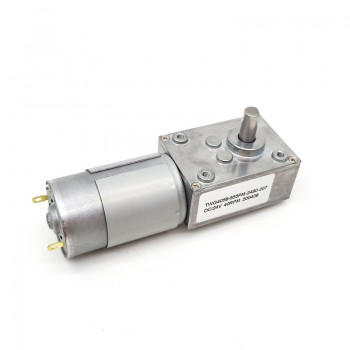

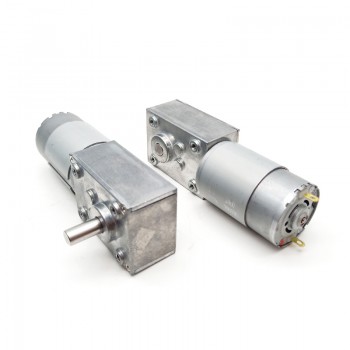

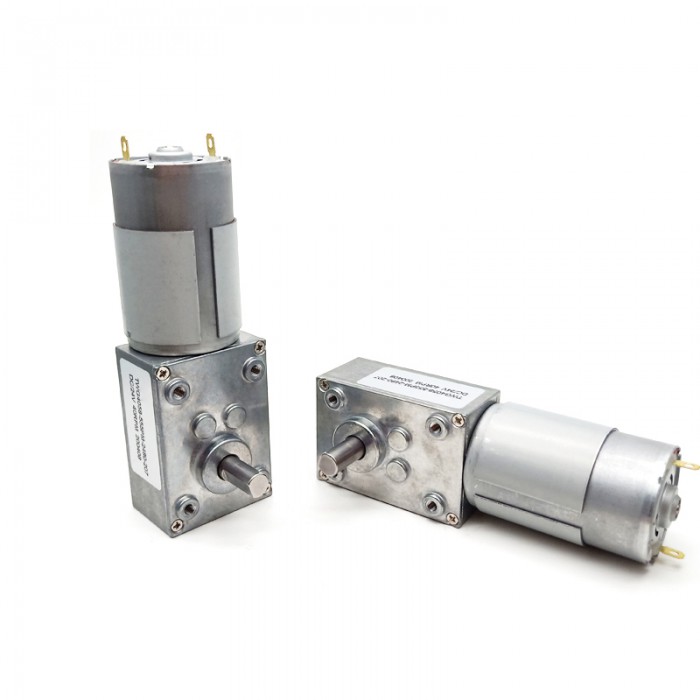

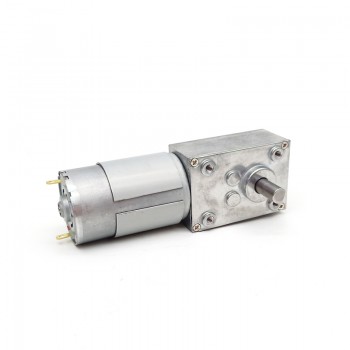

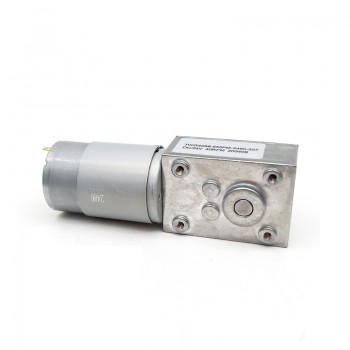

2Pcs 12V 24V High Torque DC Worm Gear Motor Permanent Magnet 10kg.cm 40*58mm

2Pcs 12V 24V High Torque DC Worm Gear Motor Permanent Magnet 10kg.cm 40*58mm
NO.:TWG4058-555PM
Post a review
Our Price:$63.98

Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $60.78 5%
10 $59.50 7%
50 $57.58 10%
100 $54.38 15%
Add To Cart



DC Worm Gear Motors is the effective solution for powerful and efficient motor drive applications. The motor is designed to deliver high torque output even at low speeds, making it suitable for a variety of industrial and automotive applications.

Features:
1.Small size dc gear motor with low speed and big torque
2.40*58mm gear motor provide 2.0Nm torque and more reliable
3.Suitable to small diameter, low noise and big torque application
4.Dc Gear motors can match encoder,12ppr-1000ppr
5.Reduction Ratio: 81、134、207、251、405、621;

3 stages: 81:1/135:1
4 stages: 207:1/251:1
5 stages: 405:1 /621:1

Application:
BOAT, Home Appliance, Medical equipement.

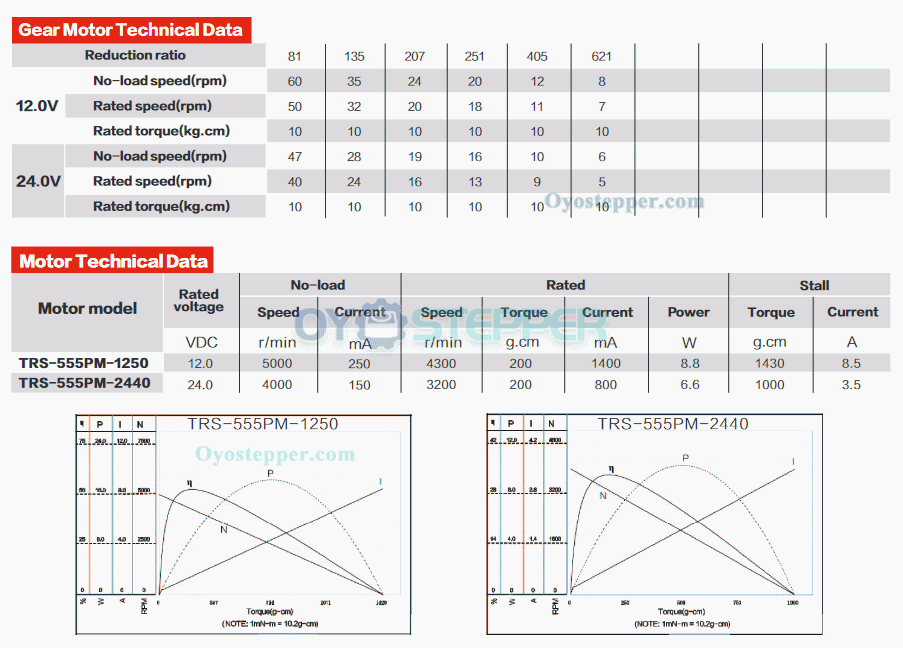

Electrical Specification
Part Number:TWG4058-TEC3650
Rated Voltage:12V/24VDC
Rated Torque:10.0Kg.cm max
Max momentary tolerance torque: 20.0kg.cm
Rated current:1400mA(12V)/800mA(24V)
No Load Speed W/O Gearbox: 5000RPM(12V)/4000RPM(24V)
Rated Speed W/O Gearbox: 4300RPM(12V)/3200RPM(24V)
No Load Speed W Gearbox: 6-80 RPM
Rated Speed W/ Gearbox:5-50 RPM
Rated Power:8.8W(12V) /6.6W(24V)
Gear type:Worm gearbox
Type:DC Worm Gear Motor
Efficiency:65%
Construction:Permanent Magnet
Noise:30cm.<40db
Average Backlash no load:<3°;

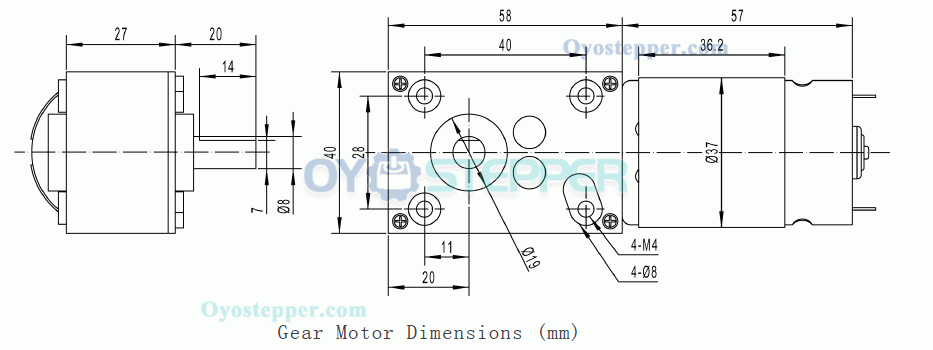

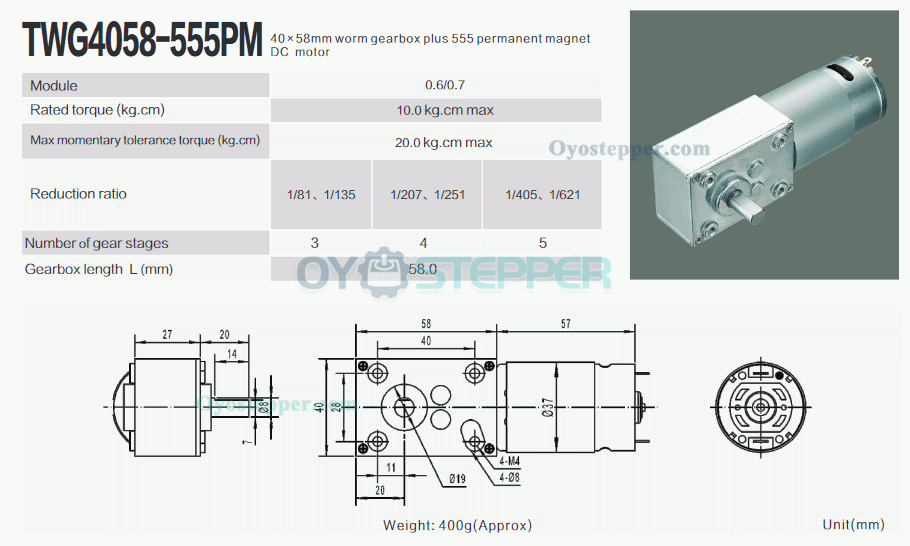

Physical Specification:
Motor Size:40*58mm
Motor Diameter: 37mm
Gearbox Size: 40 x 58mm
Length:36.2mm+Planetary gearbox
Gearbox Length:58mm
Shaft Type:D-cut
D-cut Diameter:7mm
D-cut Length:14mm
Shaft Diameter:8mm
Shaft Length:14mm
Weight:400g;

2Pcs 12V 24V High Torque DC Worm Gear Motor Permanent Magnet 10kg.cm 40*58mm



 2Pcs 12V 24V High Torque DC Worm Gear Motor Permanent Magnet 10kg.cm 40*58mm

2Pcs 12V 24V High Torque DC Worm Gear Motor Permanent Magnet 10kg.cm 40*58mm

Resources

TWG4058-555PM.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 2Pcs 12V 24V Brushless DC Worm Gear Motor 8kg.cm 4500RPM 32*76.8mm
Next: 2Pcs 12V 24V High Torque DC Worm Gear Motor Permanent Magnet 10kg.cm 37*37mm
Physical Specification
Shaft Diameter(mm) 8
Shaft Length(mm) 15
Weight(g) 400
Gearbox Type Worm gearbox
Body Length(mm) 58+gearbox
Gearbox Length(mm) 58
Gear Ratio 81:1 / 135:1 / 207:1 / 251:1 / 621:1 / 405:1
Frame Size(mm) 40 x 58mm
Shaft Type D-Cut
Single Shaft/Dual Shaft PW060
Electrical Specification
Rated Power(W) 8.8 / 6.6
Rated Voltage(V) 12 / 24
Rated Torque(kg.cm) 10
Rated Speed(rpm) 5-50
Rated Current (A) 1.4 / 0.8
