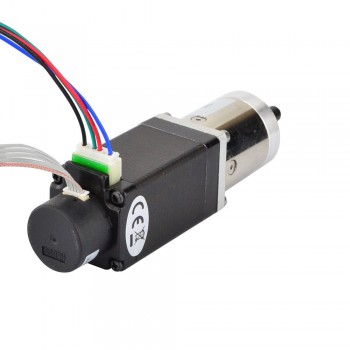

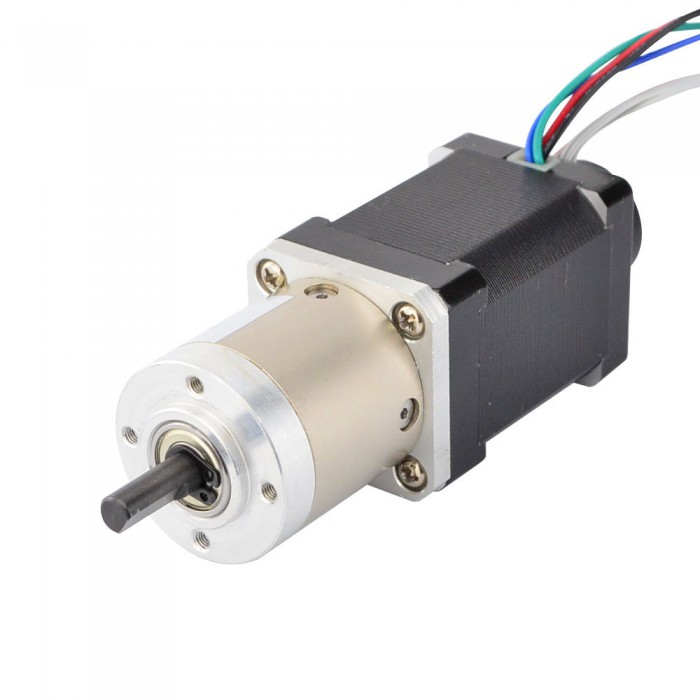

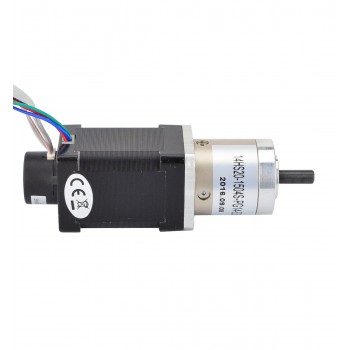

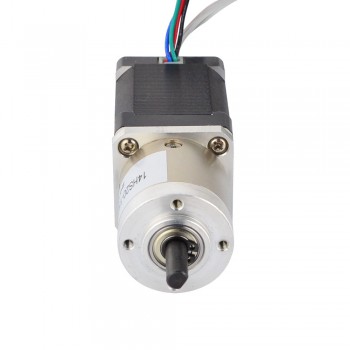

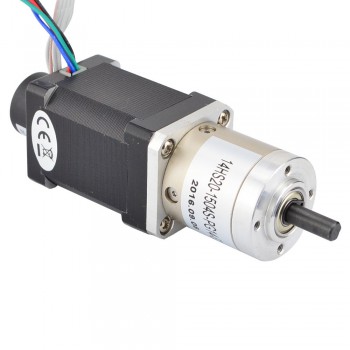

Nema 14 Closed-loop Geared Stepper 3 Phase L=52mm Gear Raio 14:1 Encoder 300CPR

NO.:14HS20-1504S-PG14-E300
Review: Post a review
Latest price:$104.51
Buy It Now:$80.39
Quantity:- +

Buy More, Save more!
3 - 9 10 - 29 30 - 99 100 - Max
$78.56 $76.73 $74.90 $73.08
Add To Cart

Motor Specification

  • Manufacturer Part Number: 14HS20-1504S-PG14-E300
  • Motor Type: Bipolar Stepper
  • Frame Size: 35 x 35mm
  • Motor Length: 52mm
  • Step Angle without Gearbox: 1.8 deg
  • Holding Torque without Gearbox: 0.4Nm(56.6oz.in)
  • Rated Current/phase: 1.5A
  • Phase Resistance: 2.8ohms
  • Voltage: 4.2V
  • Inductance: 3.8mH ± 20%(1KHz)
  • Number of Leads: 4
  • Lead Length: 400mm

Gearbox Specifications

  • Gearbox Type: Planetary
  • Gearbox Length: 36.8mm
  • Gear Ratio: 13.73
  • Efficiency: 80%
  • Shaft Diameter: Φ6mm
  • Shaft Length: 18mm
  • D-Cut length: 12mm
  • Backlash at No-load: <=1deg
  • Max.Permissible Torque: 4Nm(566.4.oz.in)
  • Moment Permissible Torque: 8Nm(1132.9oz.in)
  • Shaft Maximum Axial Load: 50N
  • Shaft Maximum Radial Load: 100N

Encoder Specification

  • Driving Voltage : 5V
  • Output current : 50mA
  • Resolution : 300ppr
  • Output Signal : 2 Channels
  • Bore Diameter : Φ4mm
  • Output Frequency : ≤1MHz
  • Running Speed : ≤5000rpm

Connection

A+
A-
B+
B-
Black
Green
Red
Blue

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 3 Phase Nema 42 Stepper Motor Bipolar 13 Nm(1841.32oz.in) 3.0A 110x110x130.5mm
Next: Nema 8 Closed Loop Stepper Motor 0.054 Nm/7.65oz.in Encoder 1000CPR
Motor Specification
Bipolar/Unipolar Bipolar
Body Length(mm) 52
Holding Torque w/o Gearbox(Ncm) 40
Holding Torque w/o Gearbox(oz.in) 56.6
Inductance(mH) 3.8
Lead Length(mm) 400
Motor Nema Size Nema 14
No. of Lead 4
Phase Resistance(ohm) 2.8
Rated Current (A) 1.5
Shaft Diameter(mm) 6
Shaft Length(mm) 18
Step Angle(°) 1.8
Encoder Specification
IP Protection IP20
Output Current(mA) 50
Output Frequency ≤0.03MHz
Rated Voltage(V) 5V
Resolution(CPR) 300
Running Speed(rpm) ≤5000rpm
Output Signal Channels 2 Channels
Physical Specification
Weight(g) 450
