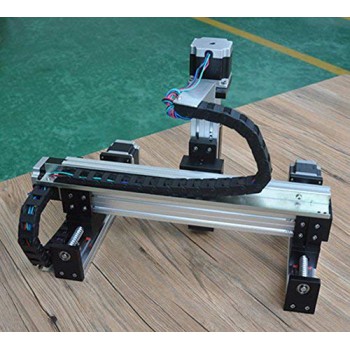

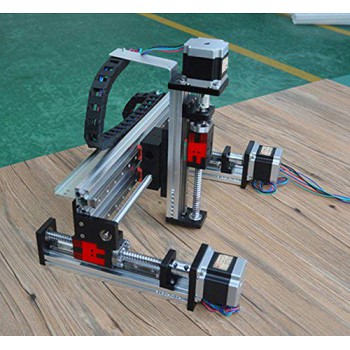

Gantry Linear Guide Stage XYZ Slide Table X=100mm,Y=100mm, Z=50mm Stroke Linear Stage Module

Gantry Linear Guide Stage Stroke Linear Stage Module XYZ Slide Table X=100mm,Y=100mm, Z=50mm

The universal assembly structure of the three-axis linear module supports both planar and curved motion paths. It helps improve application flexibility and contributes to reducing equipment assembly time in applicable scenarios.

Product Description

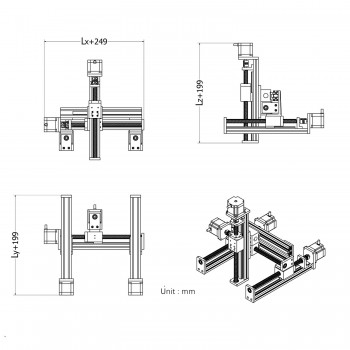

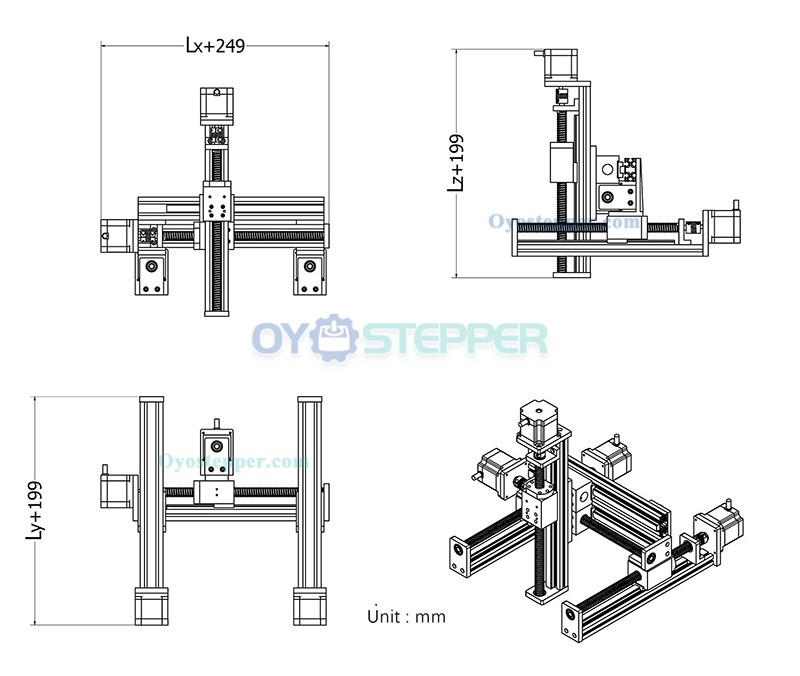

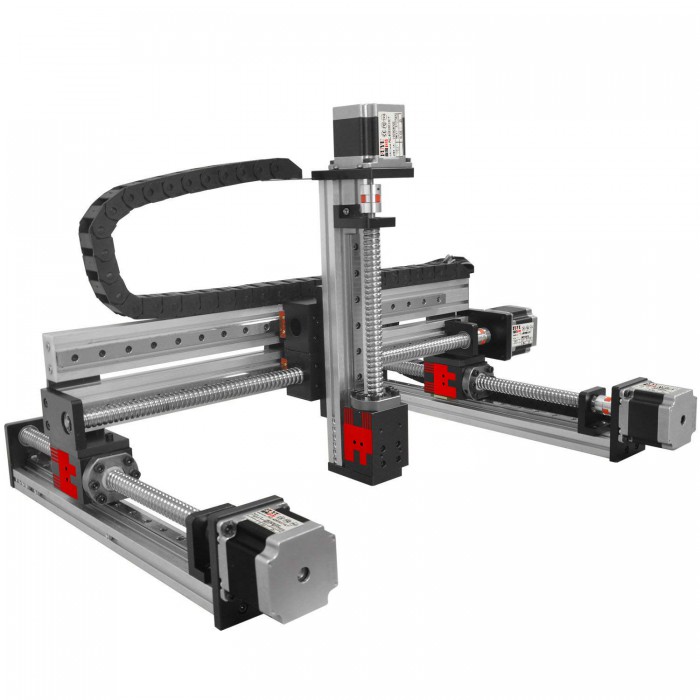

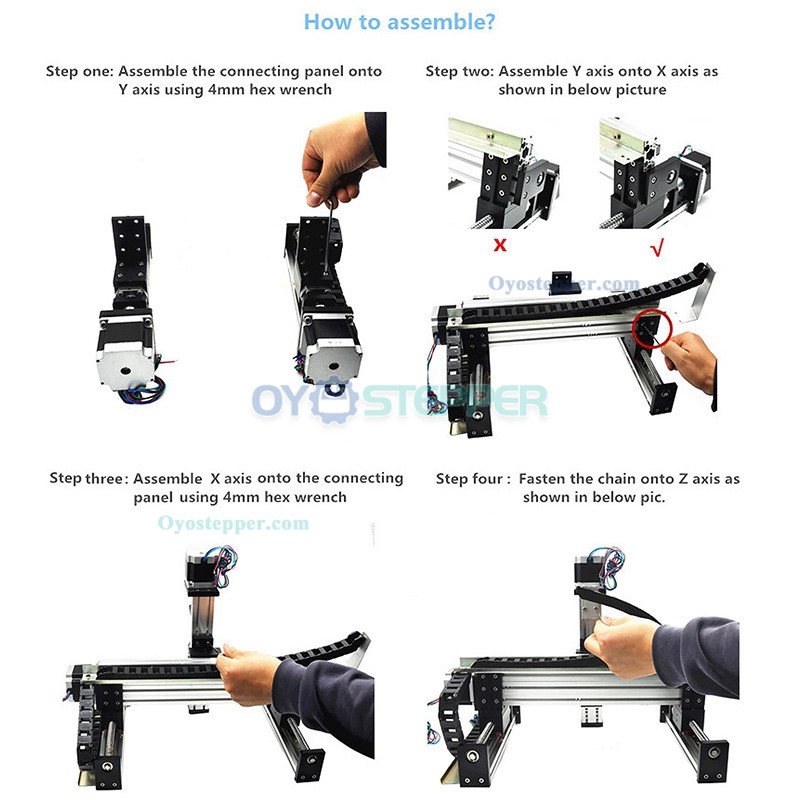

This linear stage gantry are made of:

1.) Linear guide stage*4(X*1,Y*2,Z*1)

2.) Limit switch*6

3.) Connection panels kit and towline

Feature:
This linear stage is applicable to CNC machines for tasks such as drilling, cutting, welding, painting, and engraving.

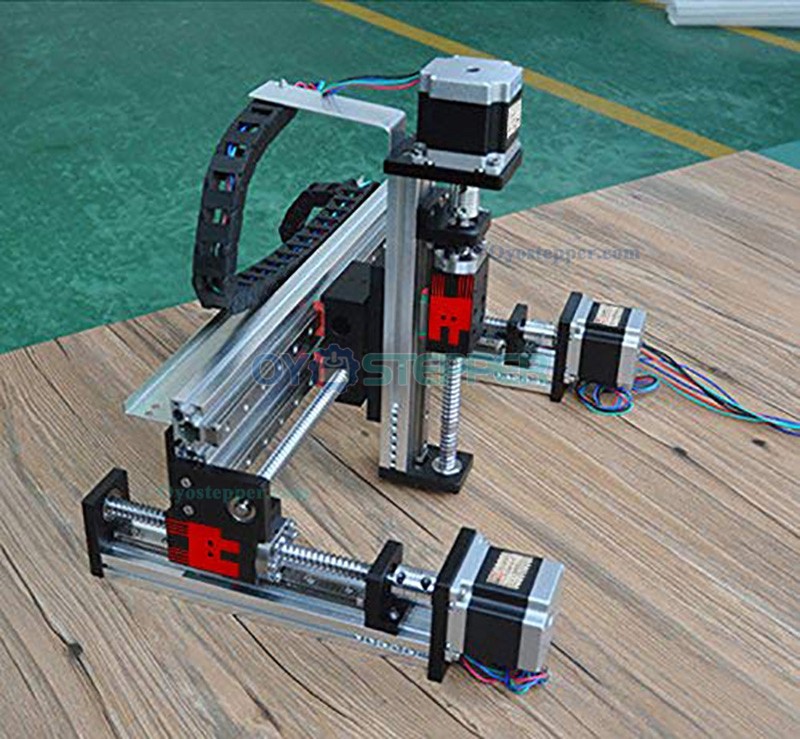

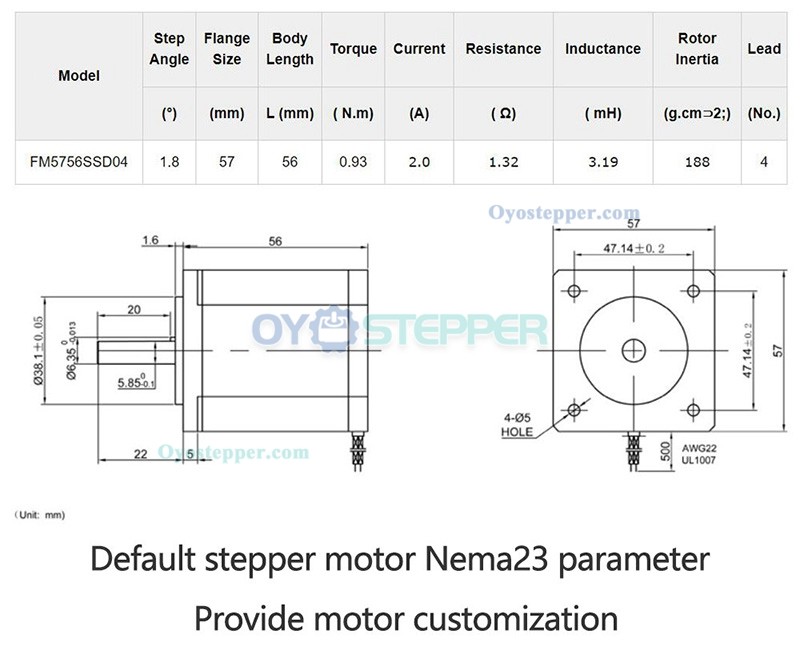

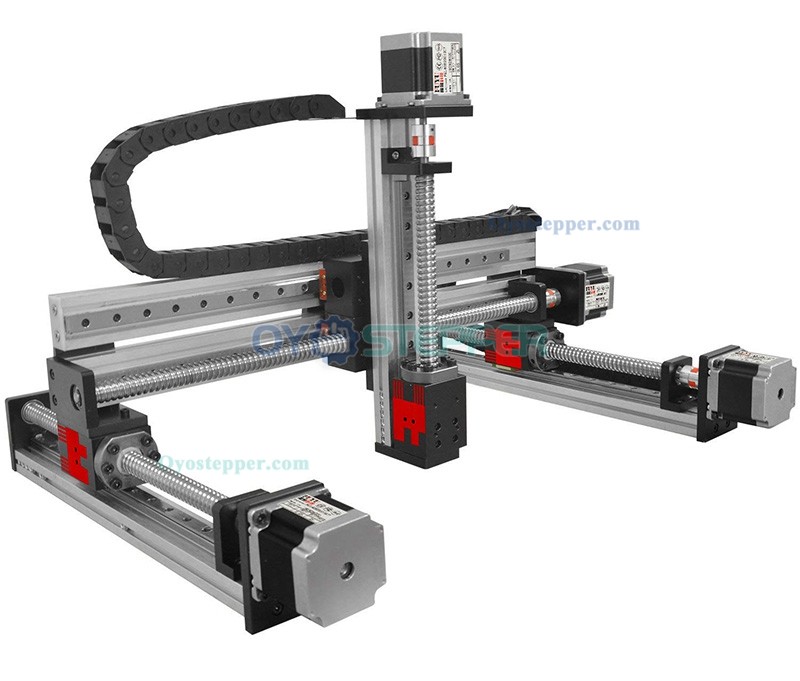

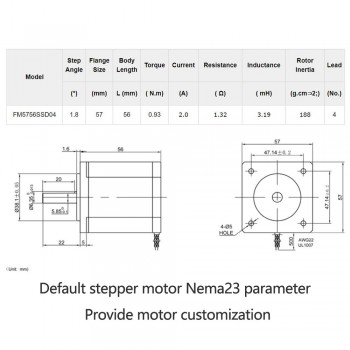

The NEMA 23 stepper motor drives each guide, supporting the required torque for load movement.

Each linear guide is equipped with an M4 screw on the side to assist with installing a limit switch.

X-axis travel range: 100–1000mm.
Y-axis travel range: 100–1000mm.
Z-axis travel range: 50–500mm.
Customization available for travel length, motor type, and multi-axis configurations. Please contact us for details if needed.

G1605/G1610 ball screw linear guides support motion accuracy of up to ±0.03mm, and contribute to reduced noise during operation.
