FBL80 Linear Actuator High Speed Belt Drive CNC Linear Guide Slide Rail with Nema34 Stepper Motor

FBL80 Linear Actuator High Speed Belt Drive CNC Linear Guide Slide Rail with Nema34 Stepper Motor
NO.:FBL80
Post a review
Our Price:$431.94

Quantity:- +

Add To Cart

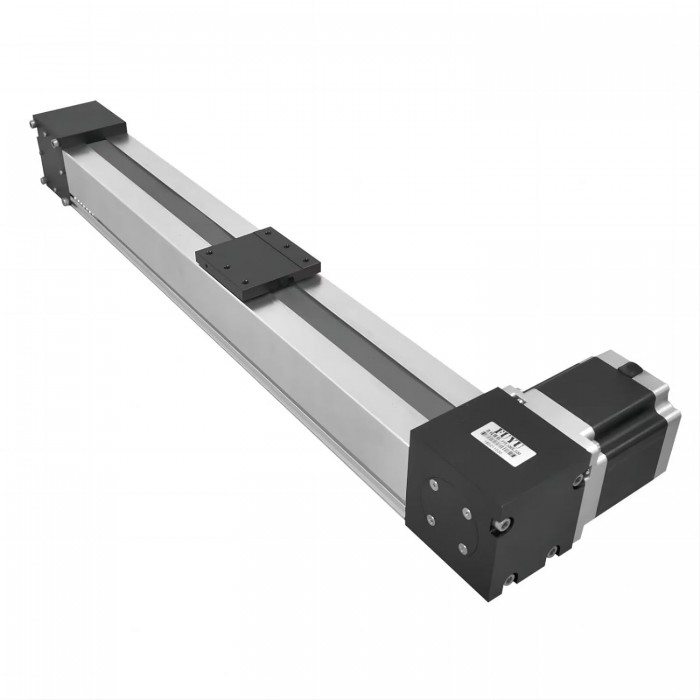

Linear Actuator High Speed CNC Linear Guide Slide Rail FBL80 100-2000mm with Nema34 Stepper Motor



Feature:

Default NEMA34 stepper motor, offer sufficient power, linear module speed can be as fast as 3000mm/s.

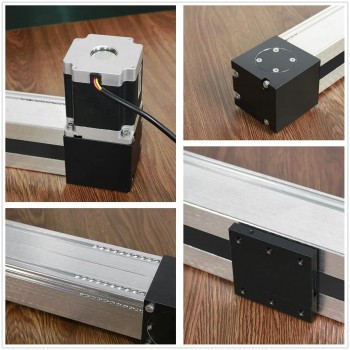

Linear actuator with M5 screws on the baseboard and sideway are easy for install and uninstall.

Aluminum made panel ensured stable performance, travel stroke from 100mm to 3900mm.

Silver polished aluminum for avoid rusting,tools complete sealed with belt structure make dustproof and IP65 waterproof.

Easy maintenance due to belt driven transmission,vertical loading capacit up to 5kg,horizontal loading capacity can be as heavy as 30kg.



Description:

Application range: Laser cutting machine,PV back sheet cutting engraving machine transportation mechanical arm, assistant device, Electric research test function demonstration, kinds of industrail automatic production line, kinds of precision machinery processing.

Industry:Semiconductor device, LED online device, solar equipment, FPD equipment.

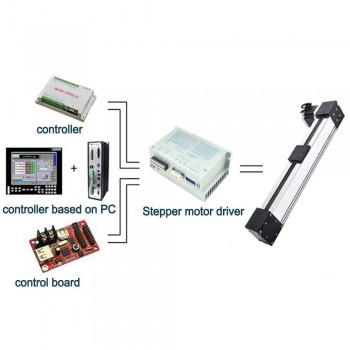

Optional Accessories:Power supply, drive, limit switch, controller, connection board, drag chain.

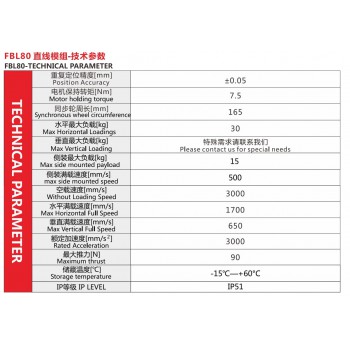

Specification:

Effective Stroke: 100-3900mm,contact us when you need strokes above 2000mm

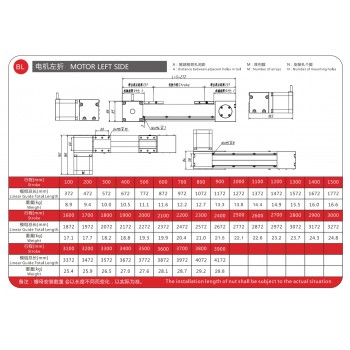

Total Length: L=S+272mm

Total Height: 85mm

Slide Width: 85mm

Maximum Horizontal Load: 30kg

Max Vertical Load: Please contact us

Max Horizontal Speed:300~1700mm/s[max loading]

Max Vertical Speed: 300~600mm/s[max loading]

Max Speed: 3000mm/s[No loading]

Repeat position accurancy: ±0.05mm

Driven Type: Belt Drive

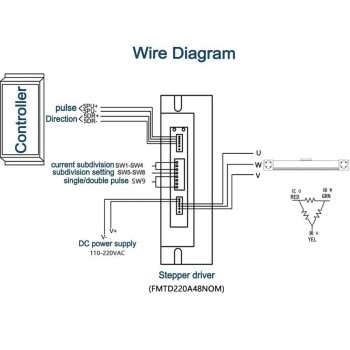

Stepper Motor Parameter:

Phase : 3 phase

Motor flange size: 86mm

Motor length: 98mm

Holding torque: 5 N.m

Current: 3.0A

Lead wire: 3

Weight: 2.8kg
