Nema 8 Non-captive Stepper Motor Linear Actuator Bipolar 1.8 Deg 0.24A 5V Lead Revolution 2mm/0.07874" Lead Screw 150mm
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till December 3th, 2024
- Note:No coupon code needed, please place order directly!

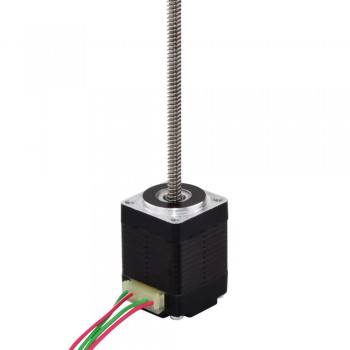

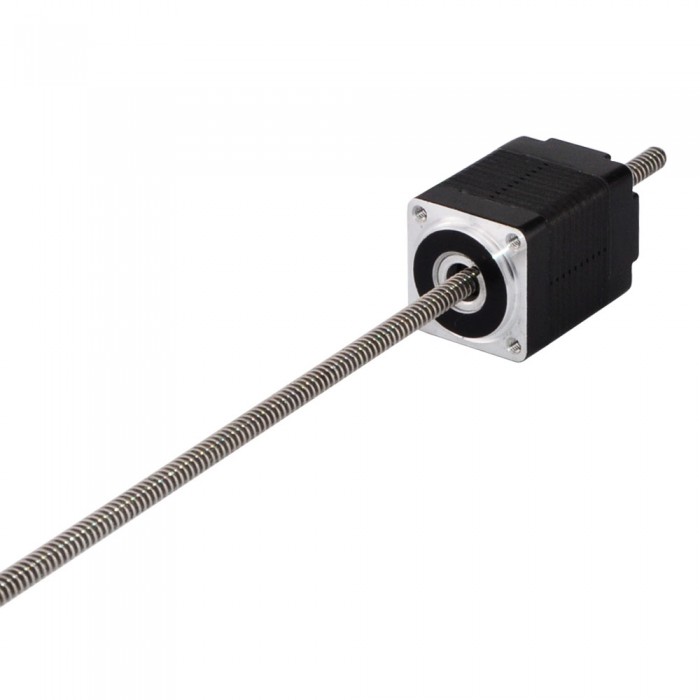

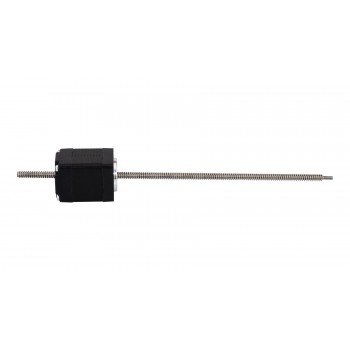

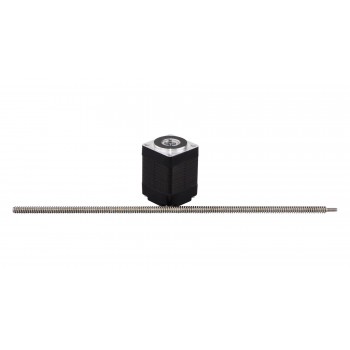

This model is almost exactly same as Haydon Kerk 21000 series size 8 non-captive stepper motor linear actuator. The motor part is 30mm body 1.8 degree 0.24A Nema 8 stepper motor, and it works with a 3.5mm (0.1378") diameter 150mm (5.9055") length lead screw, the linear travel is 2mm (0.07874") per revolution.
Electrical Specification
Manufacturer Part Number: 8LS11-0244AC-150N
Motor Type: Non-captive Linear Stepper
Step Angle: 1.8°
Minimal Thrust: 33N (300pps)
Rated Current/phase: 0.24A
Phase Resistance: 20.4ohms
Voltage: 5V
Inductance: 3.88mH±20%(1KHz)
Physical Specification
Frame Size: 20 x 20mm
Body Length: 30mm

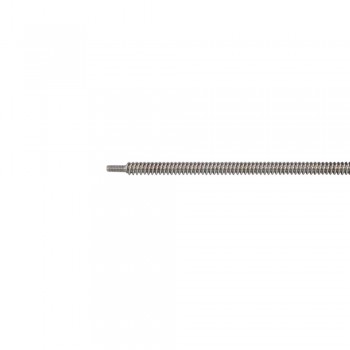

Lead Screw Length: 150mm(5.9055")
Lead Screw Diameter: Φ3.5mm(0.1378")
Lead/Step: 0.01mm(0.0003937" )
Lead Travel/Revolution: 2mm(0.07874")
Number of Leads: 4
Lead Length: 300mm
Weight : 43g
Connection
A+
|
A-
|
B+
|
B-
|
Red
|
Red/White
|
Green/White
|
Green
|
Resources
Full Datasheet: 8LS11-0244AC-150N.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
Electrical Specification | |
---|---|
Bipolar/Unipolar | Bipolar |
Inductance(mH) | 3.83 |
Minimal Thrust(N) | 33 |
Motor Type | Non-Captive |
Phase Resistance(ohm) | 21.3 |
Rated Current (A) | 0.24 |
Step Angle(°) | 1.8 |
Physical Specification | |
Body Length(mm) | 30 |
Lead Screw Diameter(mm) | 3.5 |
Lead Screw Length(mm) | 150 |
Lead Revolution(mm) | 2 |
Linear Travel / Step(mm) | 0.01 |
No. of Lead | 4 |
Lead Length(mm) | 300 |
Frame Size(mm) | Nema 08 (20 x 20) |
