Linear Motion Guide CNC Sliding Table Linear Table Slide Fit NEMA 23 Stepper Motor/ 60mm Servo Motor

Linear Motion Guide CNC Sliding Table Linear Table Slide Fit NEMA 23 Stepper Motor/ 60mm Servo Motor

Specifications:

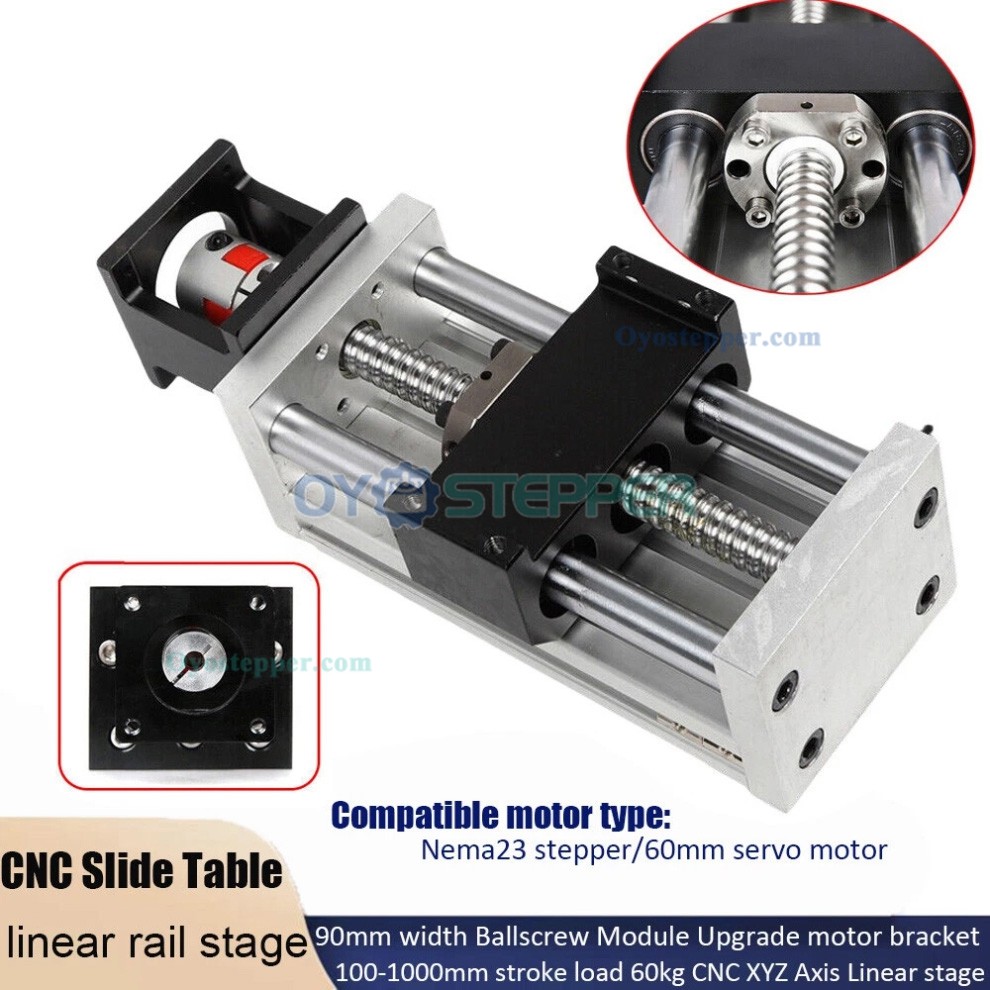

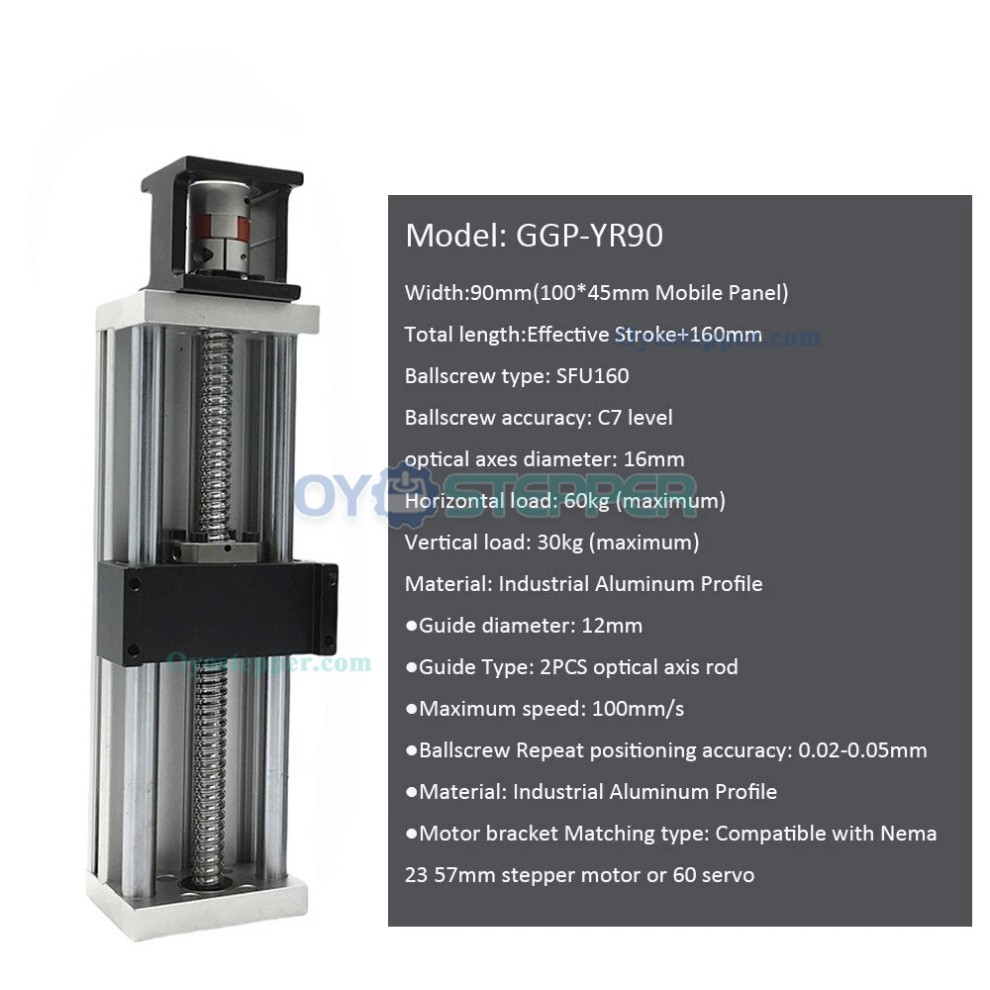

Model: GGP-YR90 (mobile panel 100 × 45 mm)

Width: 90 mm

Total length: effective stroke + 160 mm

Effective stroke options: offered in multiple lengths (confirm selected stroke before purchase)

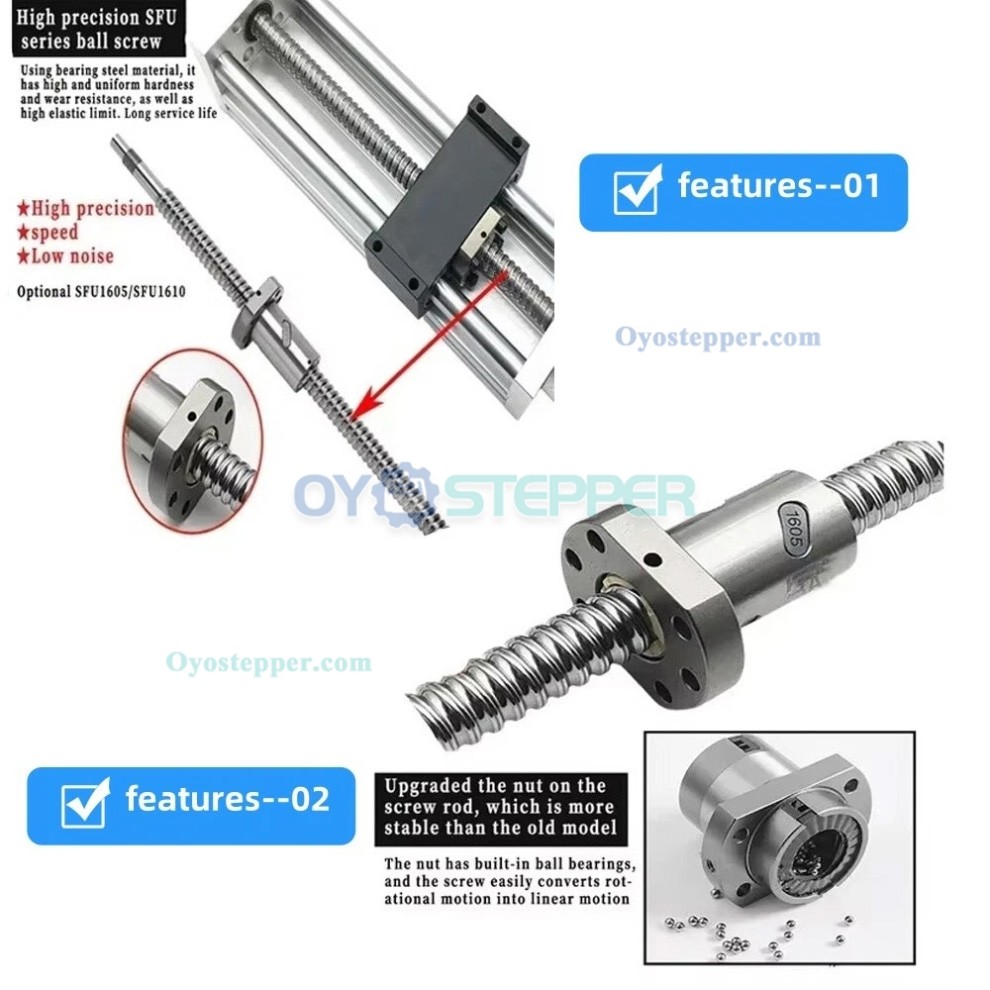

Ballscrew: SFU1605 or SFU1610

SFU1605: Ø16 mm, 5 mm pitch (≈5 mm travel per revolution)

SFU1610: Ø16 mm, 10 mm pitch (≈10 mm travel per revolution)

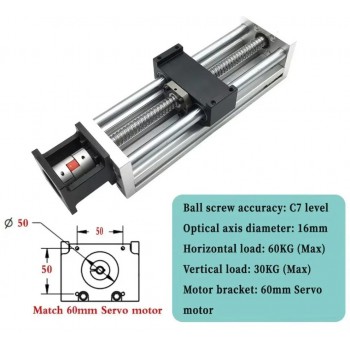

Ballscrew accuracy: C7

Guide system: 2 optical-axis rods; diameter varies by configuration

Rated speed: up to 100 mm/s

Rated loads: 60 kg horizontal; 30 kg vertical

Repeat positioning (ballscrew): 0.02–0.05 mm

Material: industrial aluminum profile

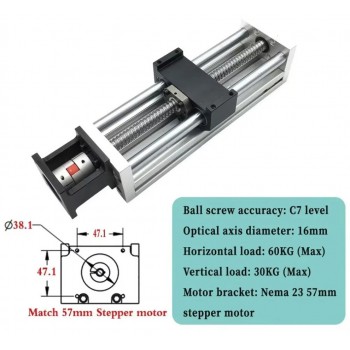

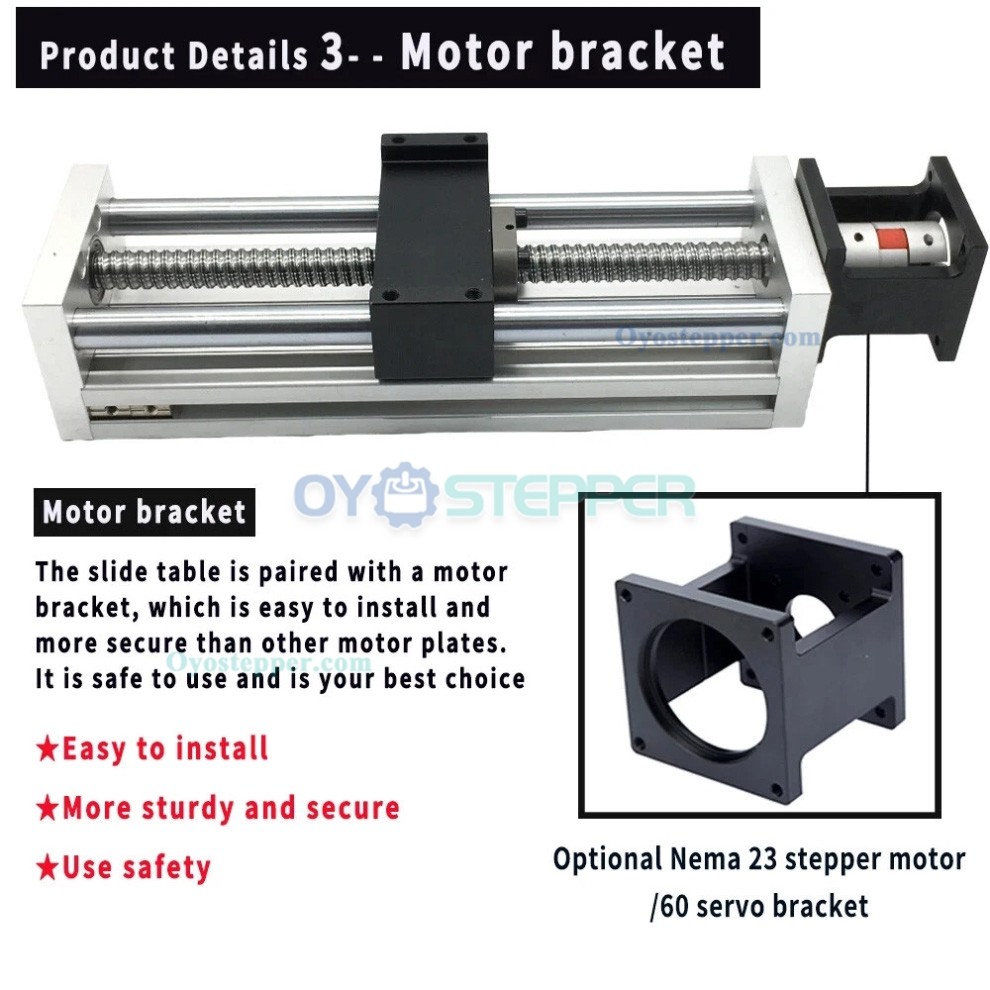

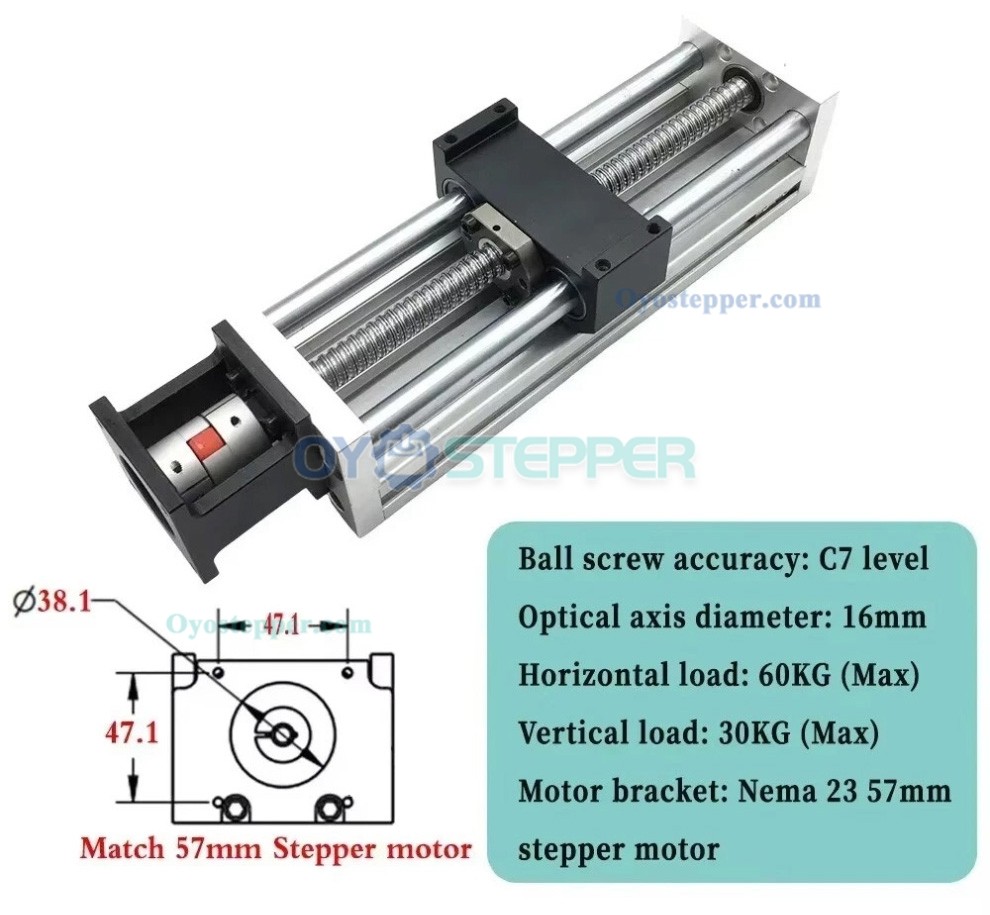

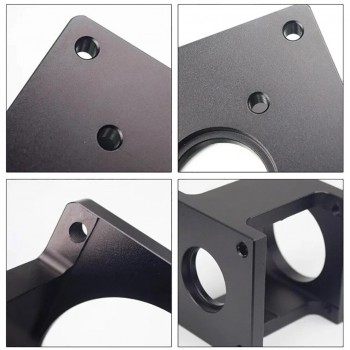

Motor mount: compatible with NEMA 23 (57 mm) stepper or 60 mm servo motor (200 W / 400 W / 600 W).



Package Contents:

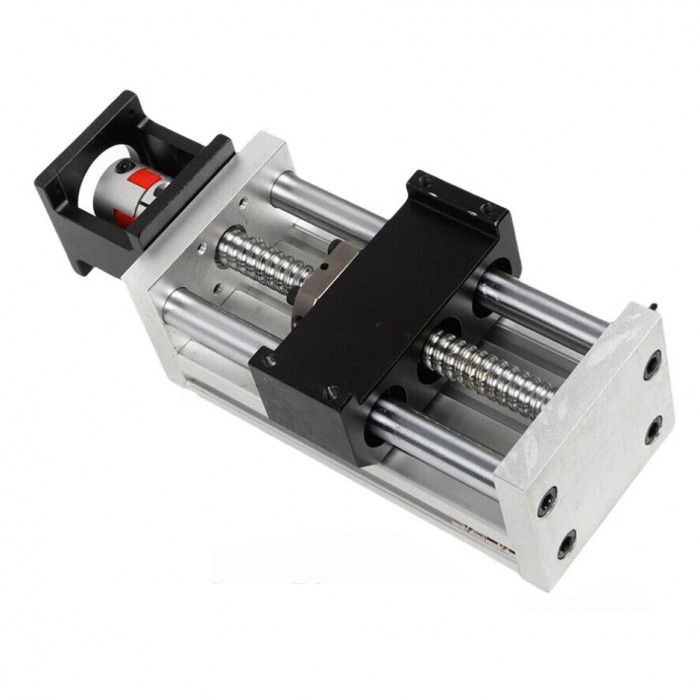

1 × GGP-YR90 motorized slide table

1 × Coupling (8 mm for NEMA 23 or 14 mm for 60 mm servo motor);
