XYZ Axis CNC Sliding Table Linear Rail Guide Slide Stage Linear Motion Guide Fit Nema 23/34

XYZ Axis CNC Sliding Table Linear Rail Guide Slide Stage Linear Motion Guide Fit Nema 23/34

Models:
Slide Table + 8mm Couping(For Nema23)
Slide Table + 14mm Couping(For Nema34)

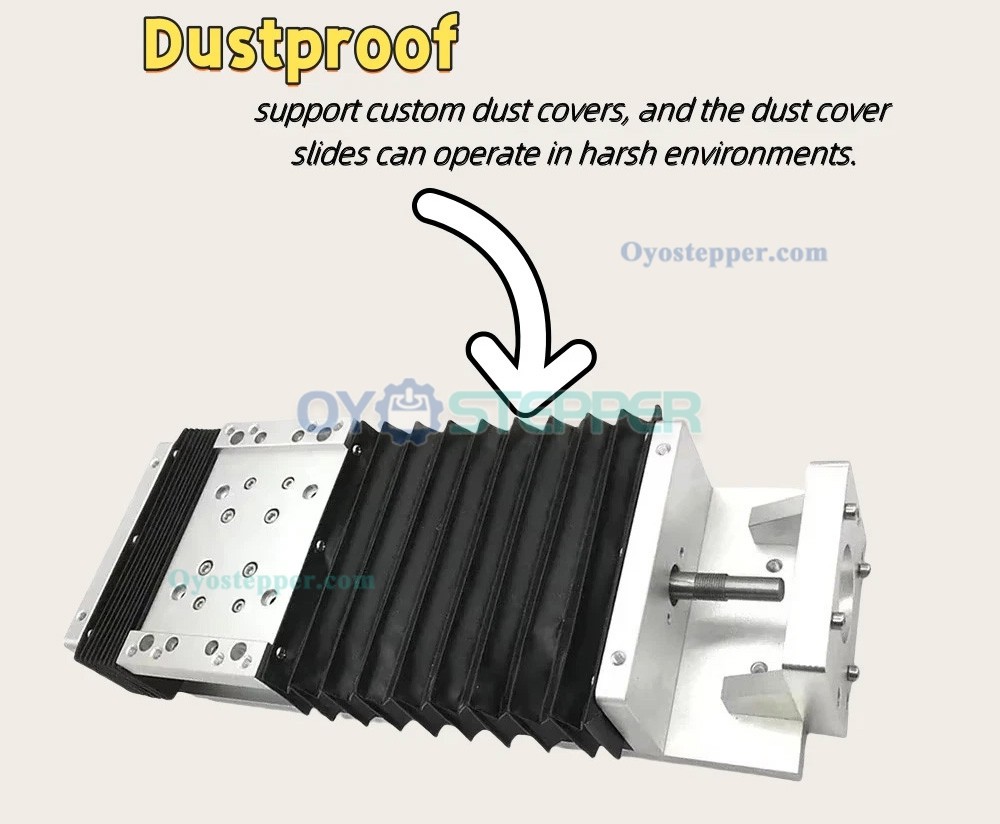

Slide Table + 8mm Couping+Dust Cover
Slide Table + 14mm CoupingDust Cover


Features:

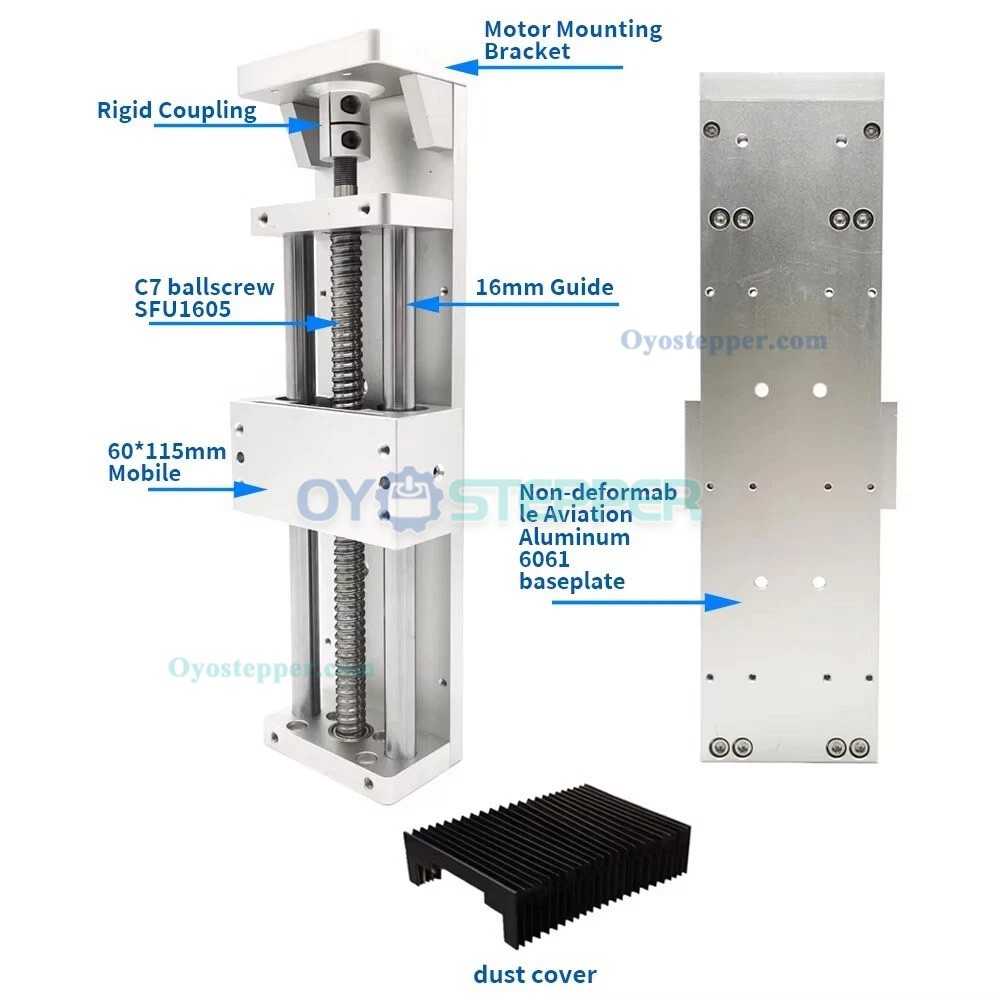

Material: The bottom plate is made from aviation aluminum 6061.

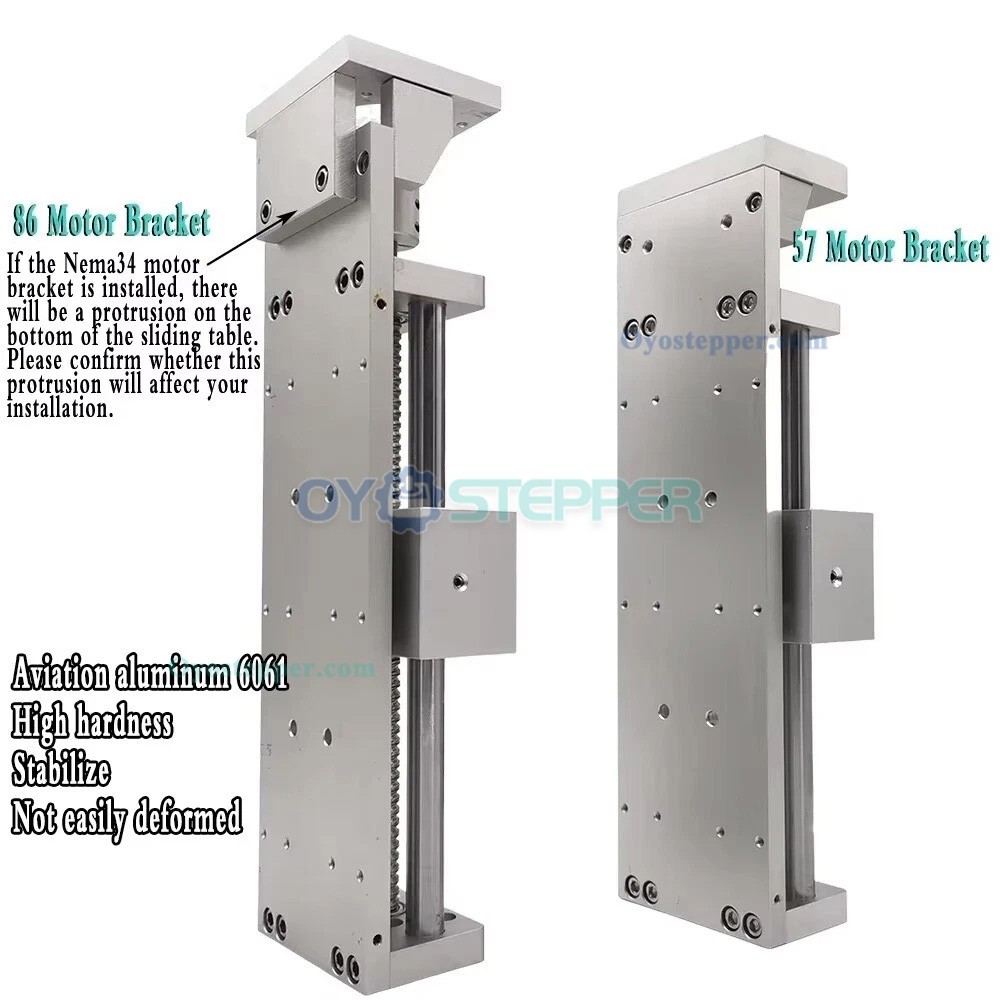

The 14mm thick motor bracket helps reduce shaking during operation.

The system supports various motor brackets, such as Nema23, Nema34 stepper motors, and 60mm or 80mm servo motors.

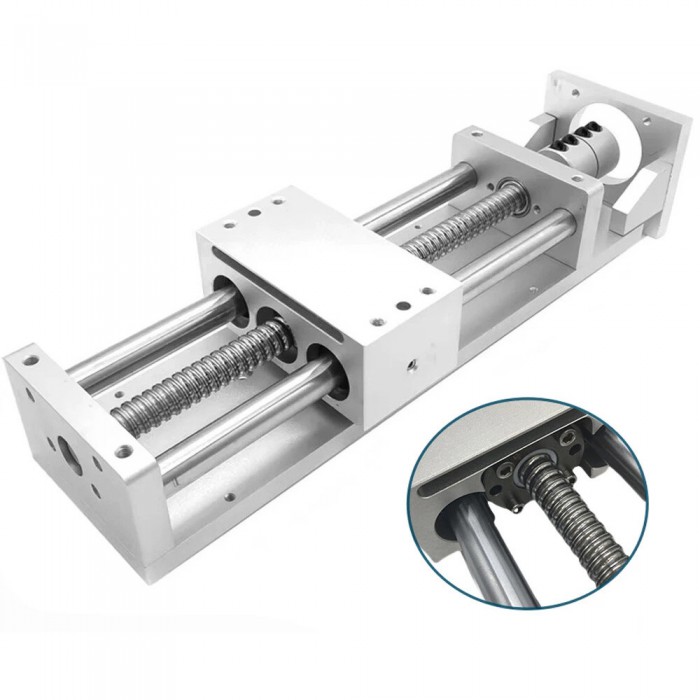

SFU1605 ballscrew with a 16mm diameter and 5mm pitch. For every full rotation, the moving panel moves 5mm.

The ballscrew has a repeat positioning accuracy of ±0.02mm.



Specifications:

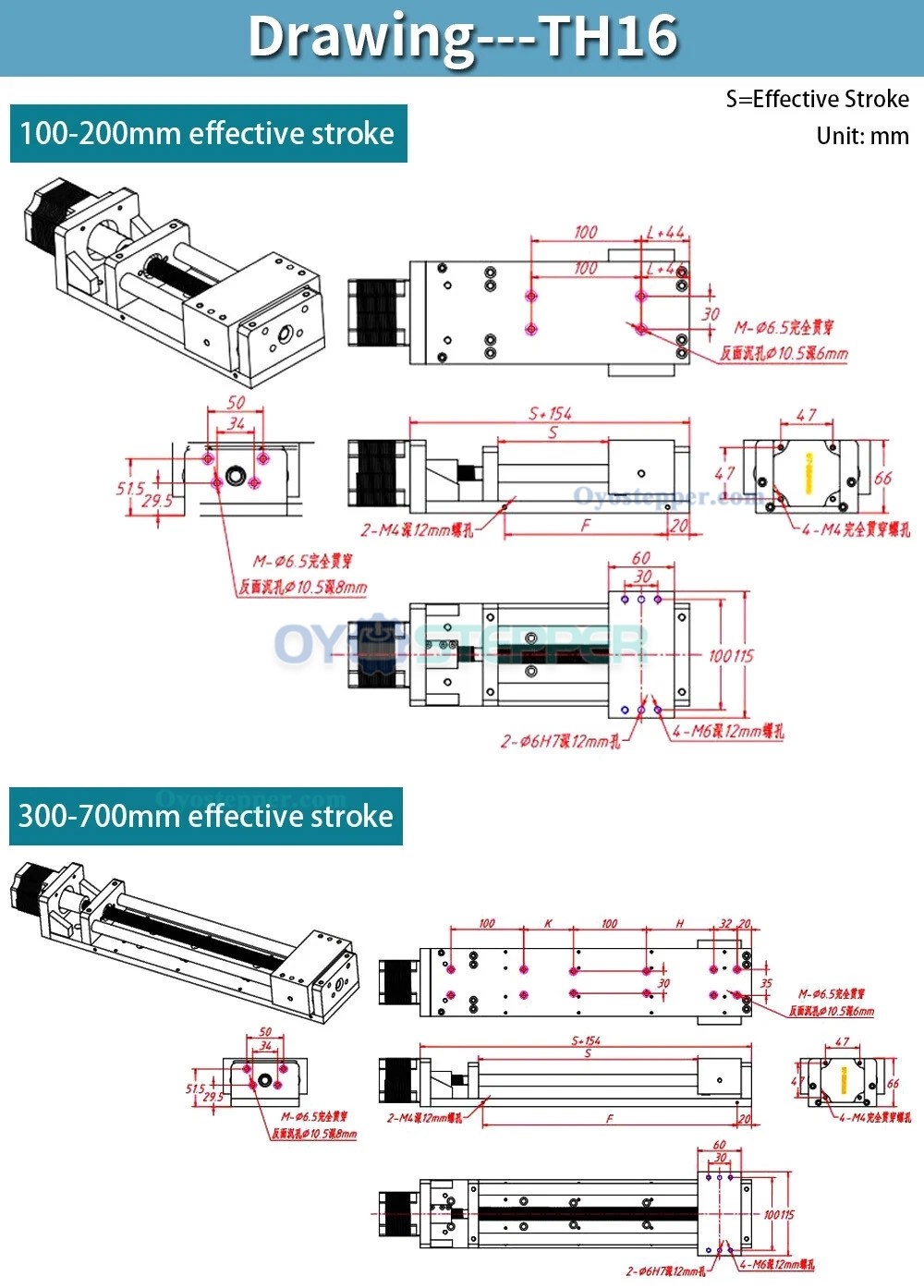

Model: TH16

Ballscrew Accuracy: C7 level

Effective Stroke: 100mm-500mm (Note: Adding a dust cover will reduce the stroke)

Mobile Panel Size: 60*115mm

Guide Diameter: 16mm

Guide Type: Optical axis guide

Maximum Horizontal Load: 30kg

Maximum Vertical Load: 25kg

Material: Aviation Aluminum 6061 (surface sandblasting oxidation for rust resistance).

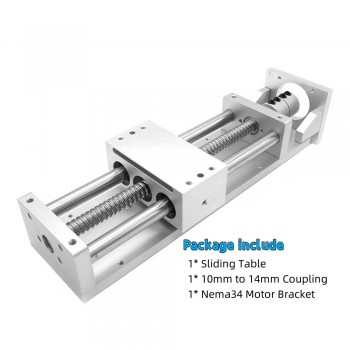

Package options:

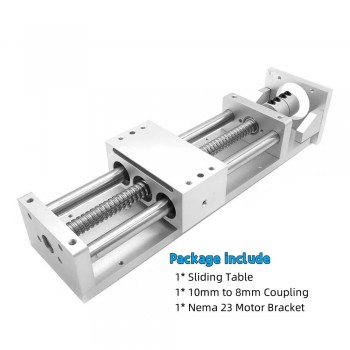

Type 1:

1Pc Sliding Table

1Pc Coupling

1Pc Nema 23/Nema 34 Motor Bracket


Type 2:

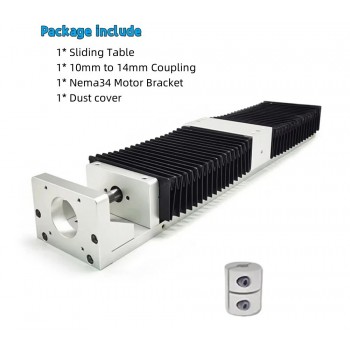

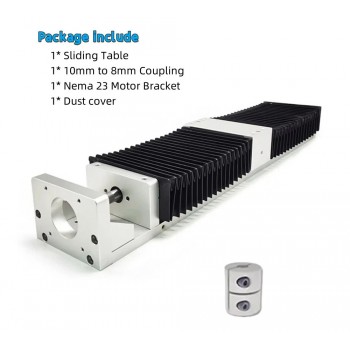

1Pc Sliding Table

1Pc Coupling

1Pc Nema 23/Nema 34 Motor Bracket

1Pc Dust Cover (Note: Adding a dust cover may reduce the stroke)
