Heavy Duty Linear Motion Guide Ball Screw Stage 70-100kg HGR15 X Y Z CNC Slide Table

Heavy Duty Linear Motion Guide Ball Screw Stage 70-100kg HGR15 X Y Z CNC Slide Table

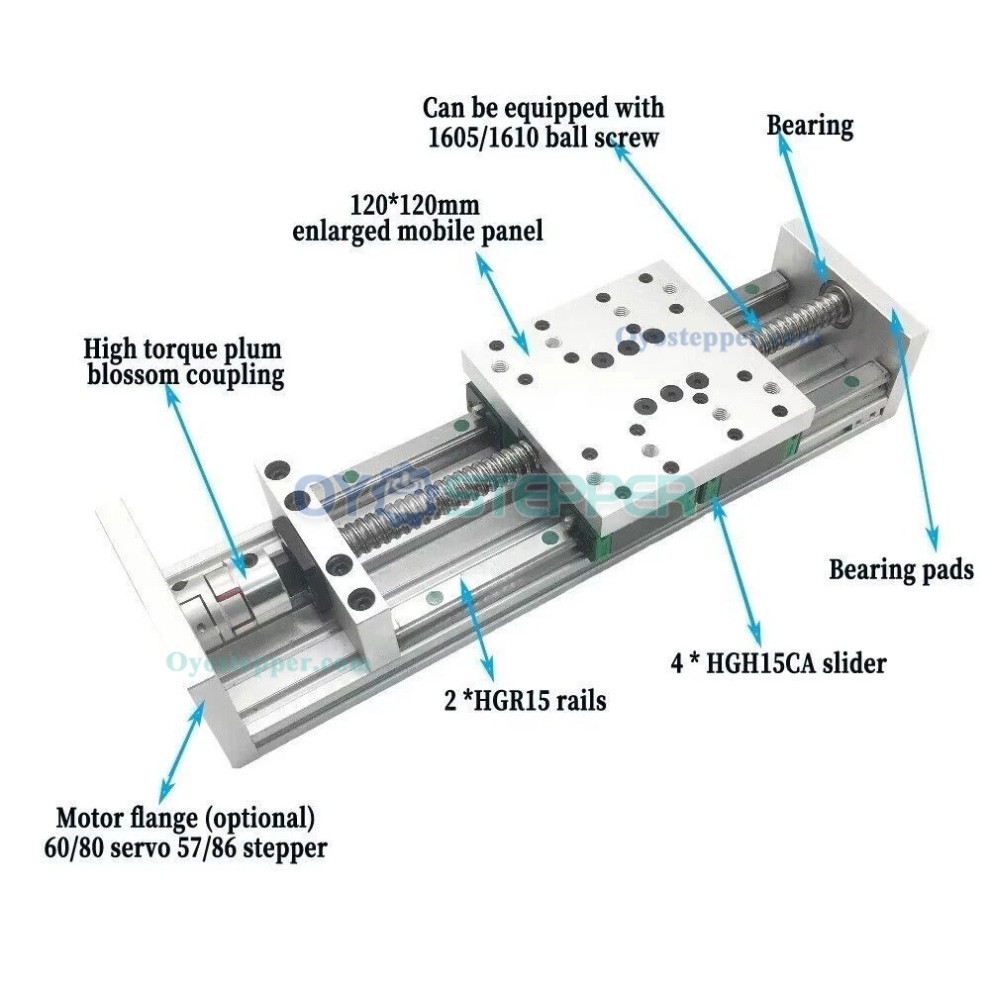

Specifications — SXG120×120 Sliding Table

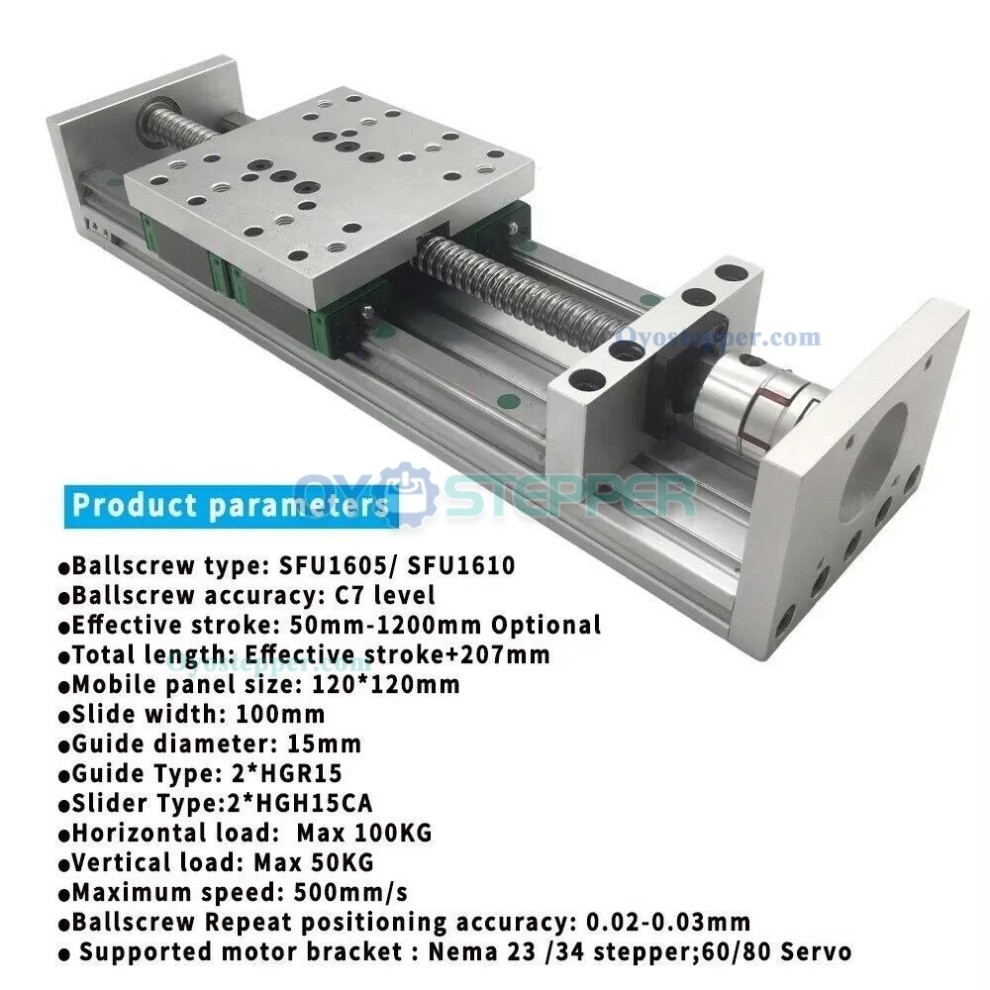

Model: SXG120×120

Mobile panel: 120 × 120 mm

Slide width: 100 mm

Ballscrew: SFU1605 (Ø16 mm, 5 mm pitch; ≈5 mm travel per revolution)

Ballscrew accuracy: C7

Effective stroke options: 50–1200 mm

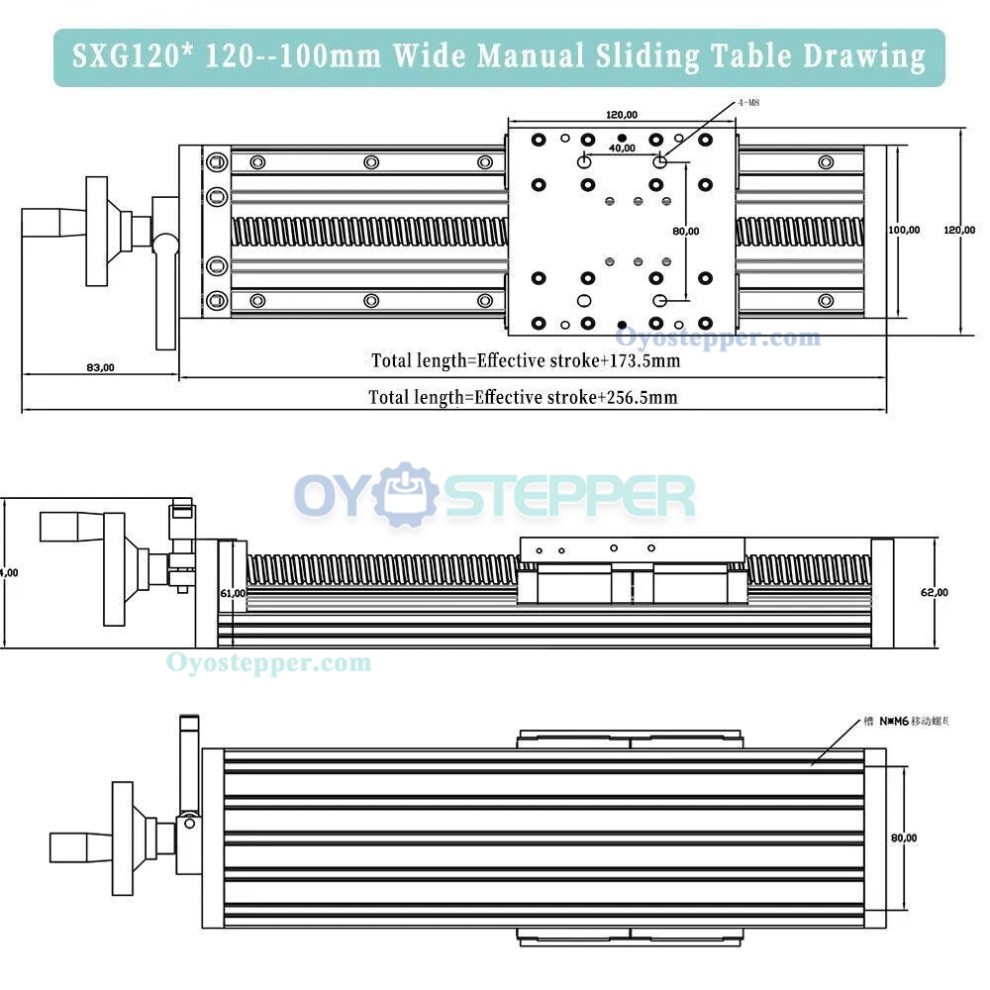

Total length: effective stroke + 207 mm

Guides: 2 × HGR15 rails, 2 × HGH15CA carriages

Guide diameter (rail spec): 15 mm

Rated speed: up to 500 mm/s

Rated loads: horizontal 100 kg; vertical 50 kg

Repeat positioning (ballscrew): 0.02–0.03 mm

Motor bracket compatibility: NEMA 23 / NEMA 34 stepper; 60 mm / 80 mm servo

Materials: ballscrew and rails—carbon/bearing steel; base plate—aluminum alloy


Reminder:

Verify stroke length, motor interface, and coupling size before ordering.

Install and operate within the stated mechanical and environmental ranges.





Package Options

For NEMA 23 bracket:

1 × SXG120×120 sliding table

1 × 8 mm coupling (for NEMA 23, 57 mm stepper)


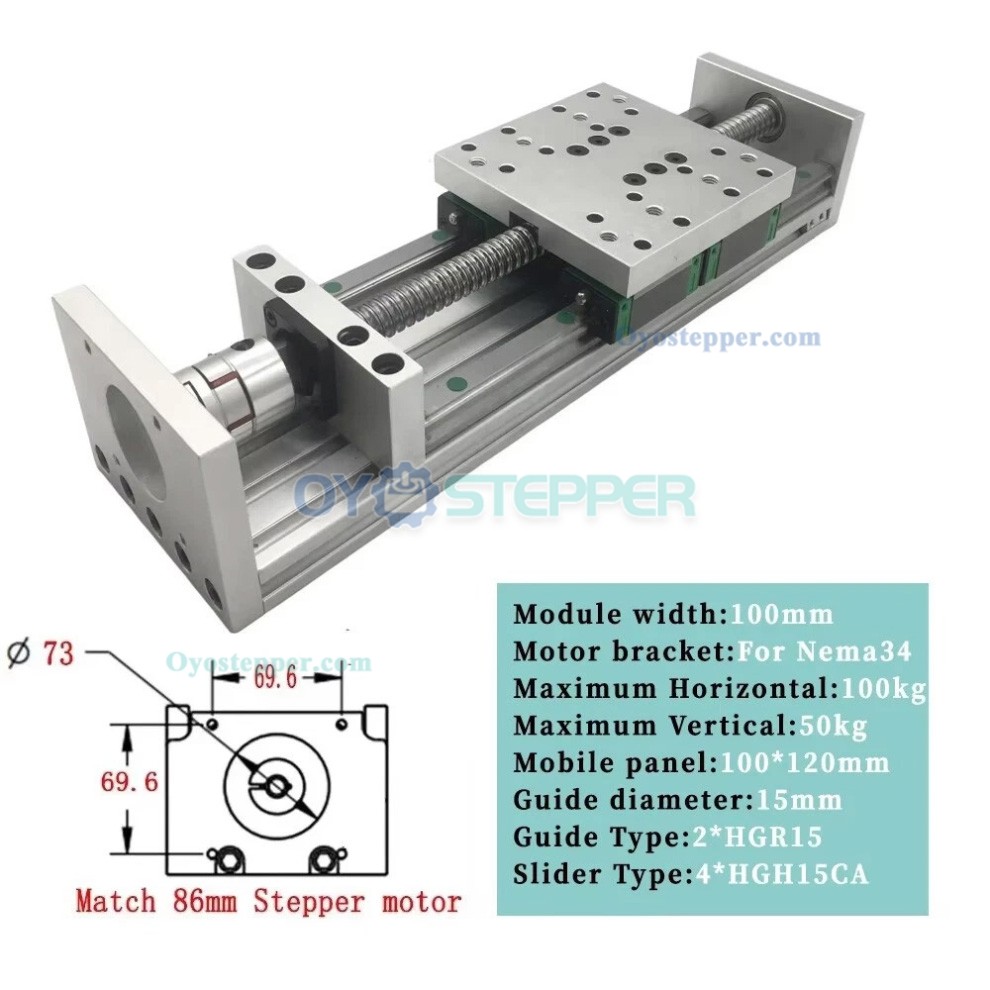

For NEMA 34 bracket:

1 × SXG120×120 sliding table

1 × 14 mm coupling (for NEMA 34, 86 mm stepper)



For 60 mm servo bracket:

1 × SXG120×120 sliding table

1 × 14 mm coupling (for 60 mm servo motor)


For 80 mm servo bracket:

1 × SXG120×120 sliding table

1 × 19 mm coupling (for 80 mm servo motor)
