Oukeda Brushless DC Motor 127Ncm 200W 24V 1800RPM 3 Phase Φ60mm Keyway
Oukeda Brushless DC Motor 127Ncm 200W 24V 1800RPM 3 Phase Φ60mm Keyway
Electrical Specification:
Manufacturer Part Number:OK60BL140-215-30J5
Motor Type: BLDC Motor
Number of Phase:3
Number of Poles:8
Rated Voltage:24V
Rated Speed:1500RPM
No Load Speed:1800RPM
No Load Current(Max):1.8A
Rated Torque:127Ncm
Rated Current:11A
Rated Power:200W

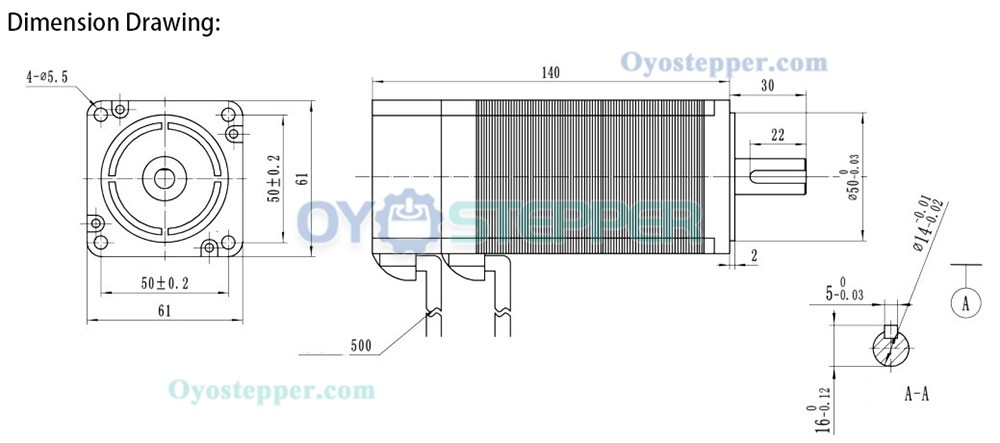

Physical Specification:
Frame Size: Φ60mm
Body Length: 140mm
Shaft Diameter: Φ5
Shaft Length: 30mm
Kewway Length:22mm
Number of Leads:8
Lead Length: 500mm
Weight:2kg;
.jpg "Oukeda Brushless DC Motor 127Ncm 200W 24V 1800RPM 3 Phase Φ60mm Keyway")
.jpg "Oukeda Brushless DC Motor 127Ncm 200W 24V 1800RPM 3 Phase Φ60mm Keyway")
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Rated Current (A) | 11 |
| No. of Phase | 3 |
| Rated Power(W) | 200 |
| Rated Torque(Nm) | 127.00 |
| Rated Voltage(V) | 24 |
| Rated Speed(rpm) | 1500 |
| Physical Specification | |
| Body Length(mm) | 140 |
| Frame Size(mm) | 60 |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 30 |
| Shaft Type | Keyway |
| Single Shaft/Dual Shaft | Single Shaft |
| Weight(g) | 2000 |
