Nema 17 External Linear Actuator 1.8 Degree 12V 0.4A 32Ncm Lead Lead Revolution Screw 330mm 6 Wires

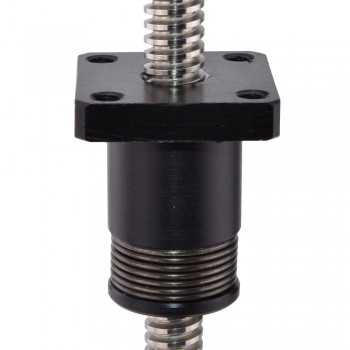

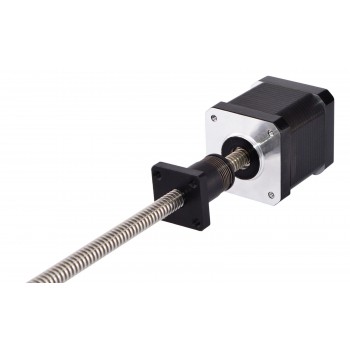

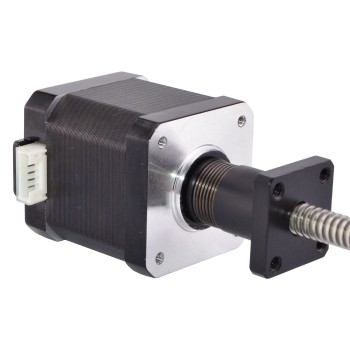

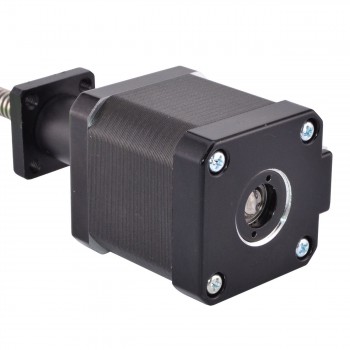

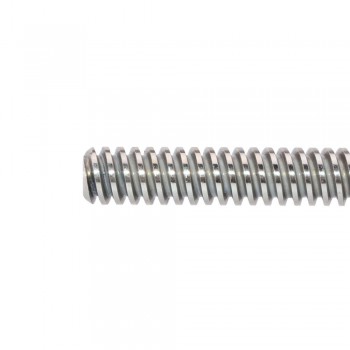

This nema 17 linear stepper motor with Anti-backlash screw nut, the motor part is 12V 0.4A 48mm 1.8 degree 6 wires Nema 17 stepper motor. It was integrated with 330mm Tr8x2 threaded rod and a Anti-backlash screw nut move along the threaded rod.
Electrical Specification
Manufacturer Part Number: 17LS19-0406E-330Y
Motor Type: External Linear Stepper
Step Angle: 1.8 deg
Holding Torque: 32Ncm(36.24oz.in)
Rated Current/phase: 0.4A
Phase Resistance: 30 ohms
Voltage: 12V
Inductance: 25mH ± 20%(1KHz)
Physical Specification
Frame Size: 42 x 42mm
Body Length: 48mm
Lead Screw Length: 330mm（12.992"）
Lead Screw Diameter: Φ8mm（0.315"）
Lead /Step: 0.01mm(0.0003937" )
Lead/Revolution: 2mm（0.0787"）
Number of Leads: 6
Lead Length: 400mm
Weight : 400g
Connection
|
A+
|
O+
|
A-
|
B+
|
O-
|
B-
|
|
RED
|
BRN
|
YEL
|
GRY
|
ORG
|
GRN
|
Resources
Full Datasheet: 17LS19-0406E-330Y.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Unipolar |
| Holding Torque (Ncm) | 32 |
| Holding Torque (oz.in) | 45.3 |
| Inductance(mH) | 25 |
| Motor Type | External |
| Phase Resistance(ohm) | 30 |
| Rated Current (A) | 0.4 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 48 |
| Lead Screw Diameter(mm) | 8 |
| Lead Screw Length(mm) | 330 |
| Lead Revolution(mm) | 2 |
| Linear Travel / Step(mm) | 0.01 |
| No. of Lead | 6 |
| Lead Length(mm) | 400 |
| Frame Size(mm) | Nema 17 (42 x 42) |
