CNC Linear Stage Linear Guide Slide Module Mini Motorized Linear Stage 50-300 Stroke with Nema11 Motor Kit

CNC Linear Stage Linear Guide Slide Module Mini Motorized Linear Stage 50-300 Stroke with Nema11 Motor Kit

Features:

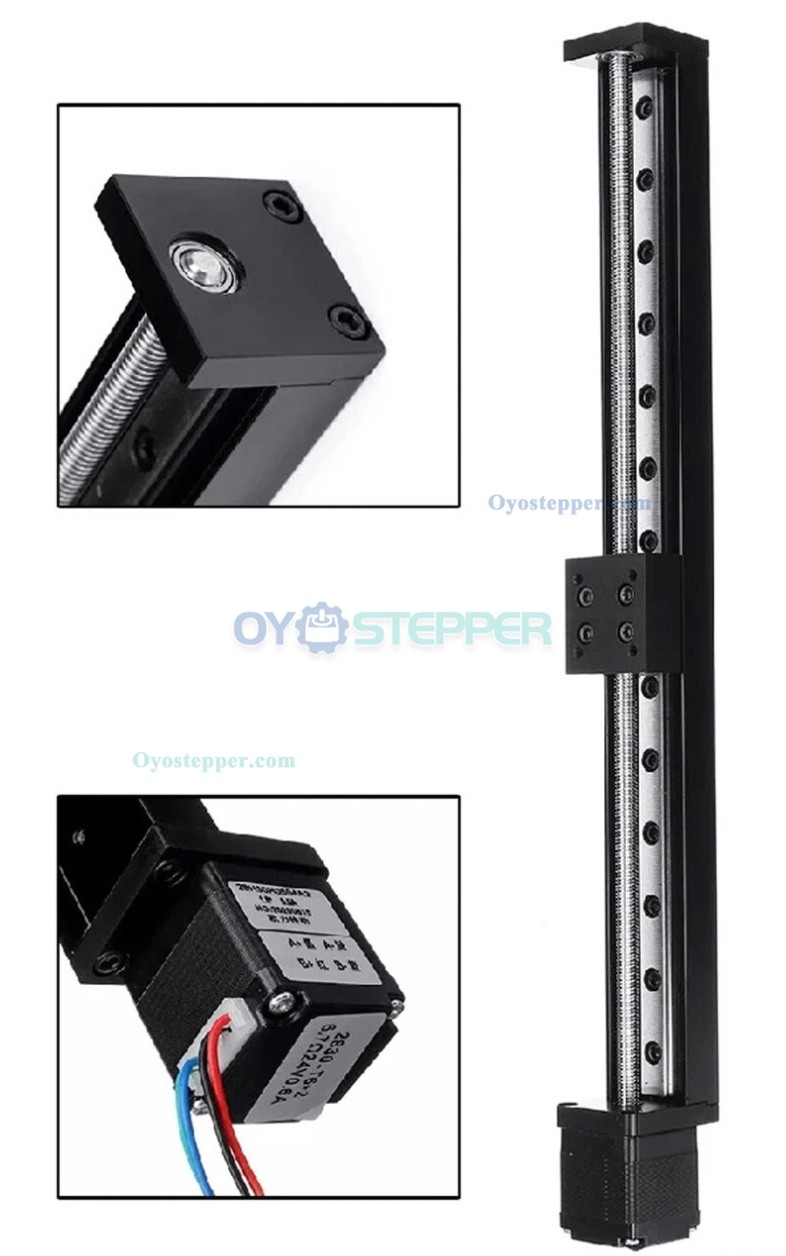

Linear Guide Slide Module with a micro-sized integrated design (30mm width).

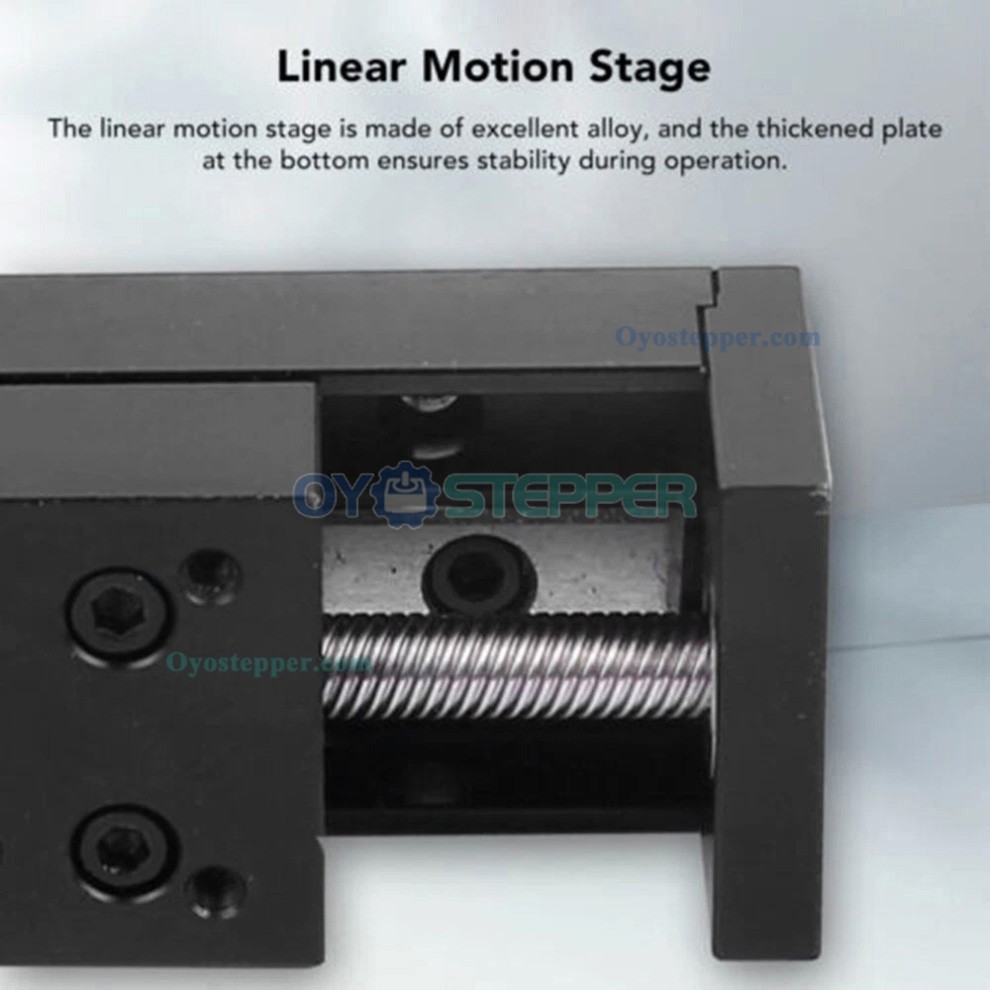

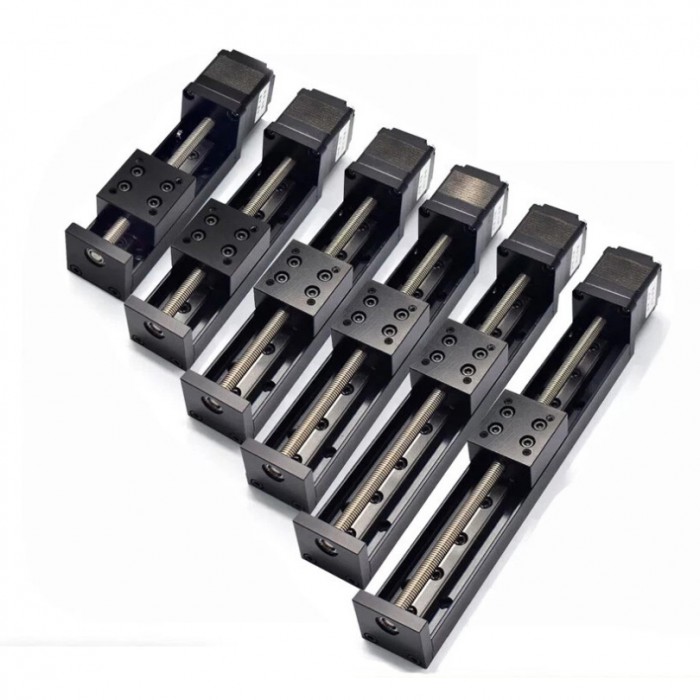

Aluminum alloy base with bearing steel track dual-core configuration. Horizontal load capacity: 5kg; Vertical load capacity: 1kg. Adjustable stroke: 50-300mm.

Equipped with a gold handwheel and travel scale, paired with a 6mm trapezoidal lead screw (available in 1mm, 2mm, 4mm, 6mm, and 12mm leads).

Built-in NEMA11 28 stepper motor (0.6A current/0.07N·m torque) with a space-saving monocoque design for displacement control.

Application: Used for automated processing scenarios, such as 3D printers, CNC machines, laser cutters, automatic screwdrivers, soldering equipment, and dispensing systems.



Package Includes:

1 x T06 Trapezoidal screw slide table

1 x NEMA11 28mm Stepper Motor



Slide Table Specifications:

Model: T06

Slide Type: Trapezoidal screw slide table

Horizontal Load: 5kg (maximum)

Vertical Load: 1kg (maximum)

Effective Stroke: 50-300mm

Total Length: Effective stroke + 75mm

Mobile Panel Size: 30mm x 32mm

Repeat Positioning Accuracy: 0.02mm-0.03mm

Maximum Speed: 80mm/s

Rail Width: 6mm

Block: MGN8H

Screw Precision: C7

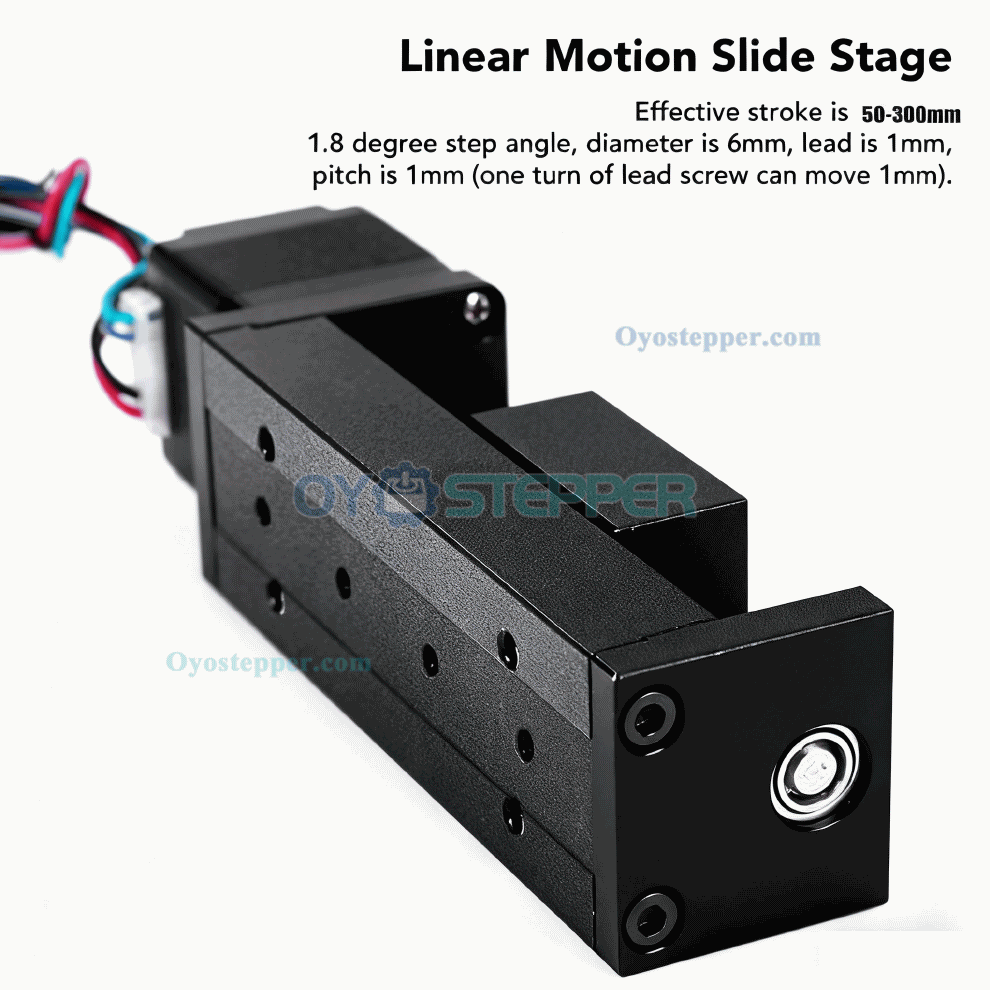

Pitch: 1mm, 2mm, 4mm, 6mm, 12mm (e.g., Pitch 1mm means that the motor rotates once and the moving panel moves 1mm)

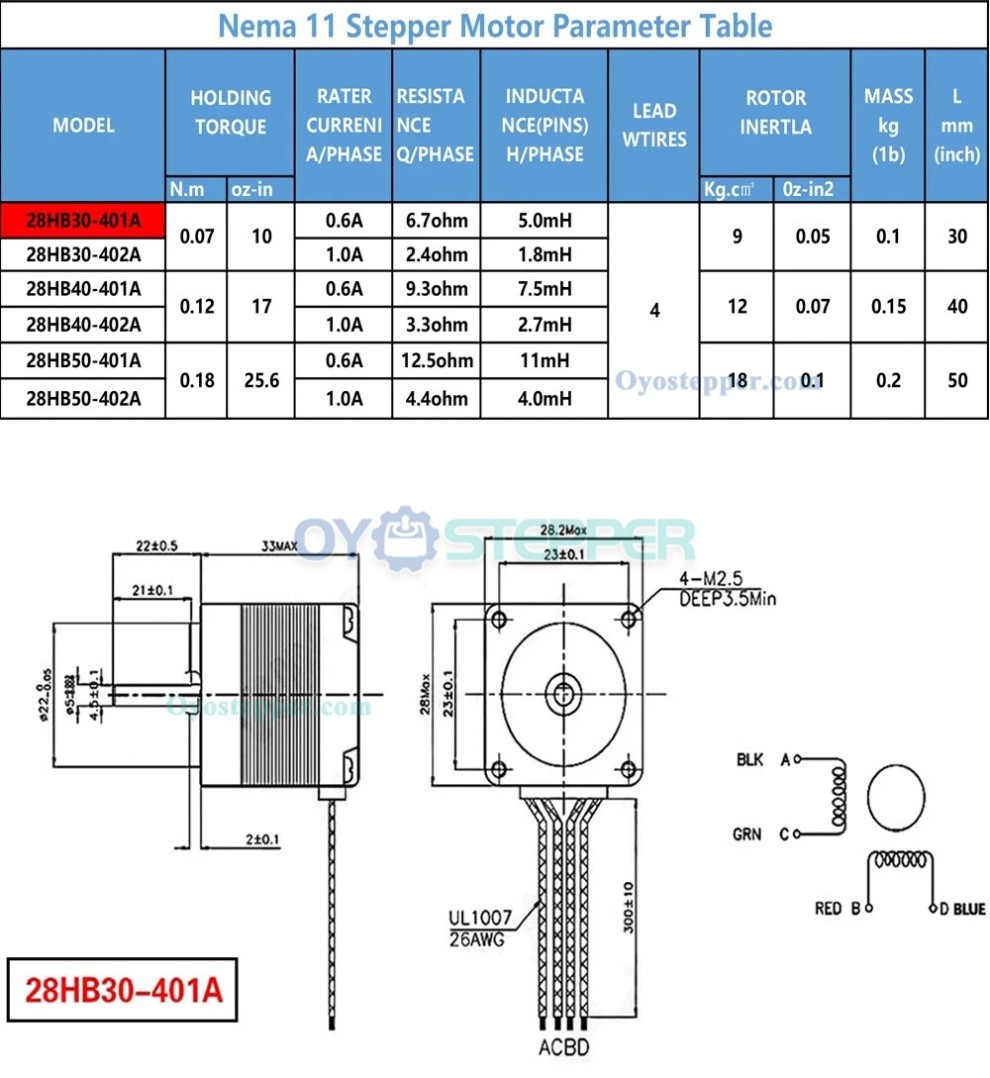

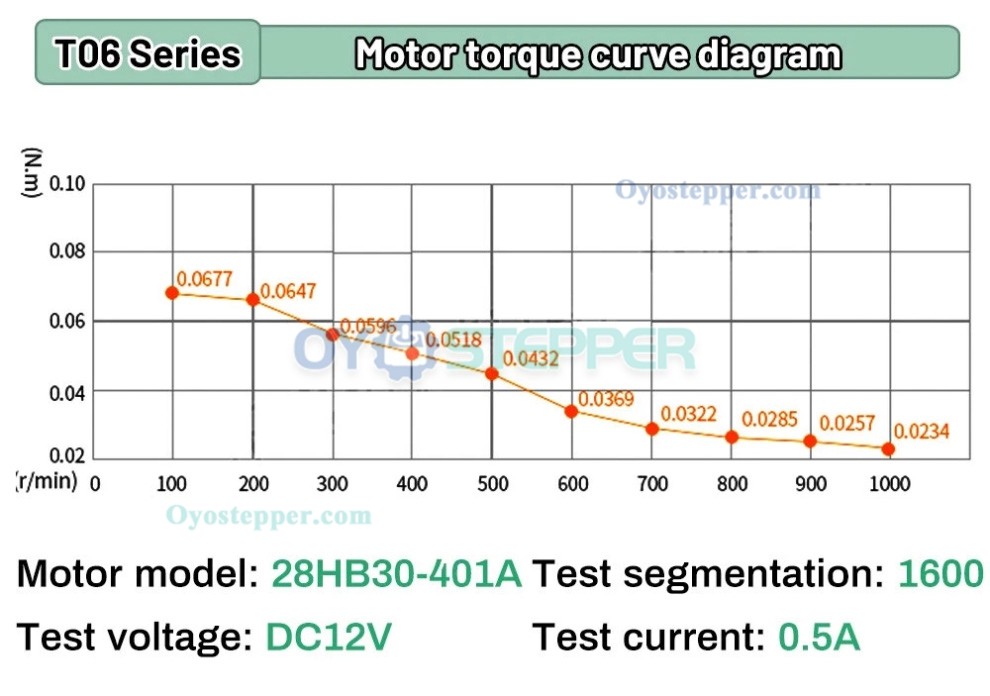

Stepper Motor Specification:

Model: 28HB30-401A

Motor Flange Size: NEMA 11 (28mm)

Holding Torque: 0.07N·m

Body Length: 30mm

Shaft Diameter: 5mm

Type: Hybrid Motor

Phase: 2 Phase

Current: 0.6A

Certification: CCC, CE, ISO

Step Angle: 1.8 degrees
