Mini Motorized Linear Translation Stage CNC Sliding Table with Neme 11 Stepper Motor & TB6600 Drver Kit

Mini Motorized Linear Translation Stage CNC Sliding Table with Neme 11 Stepper Motor & TB6600 Drver Kit



Features:

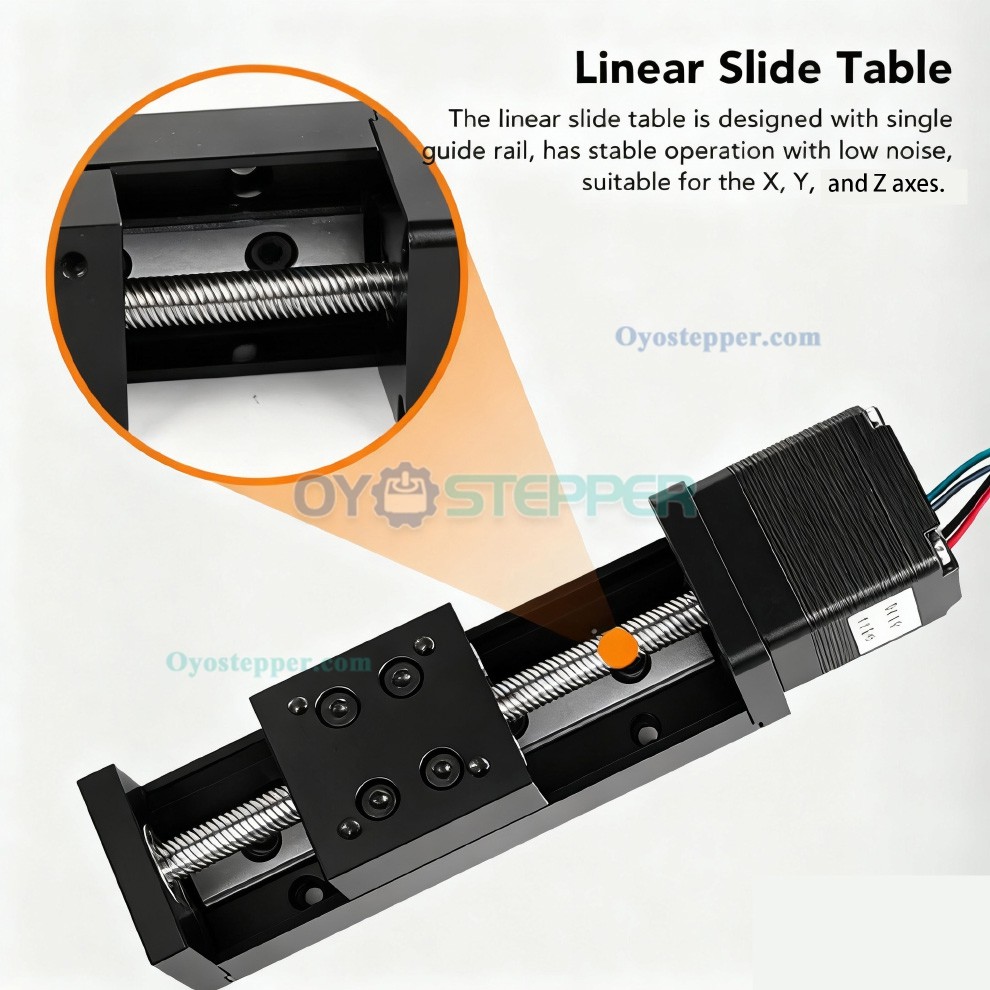

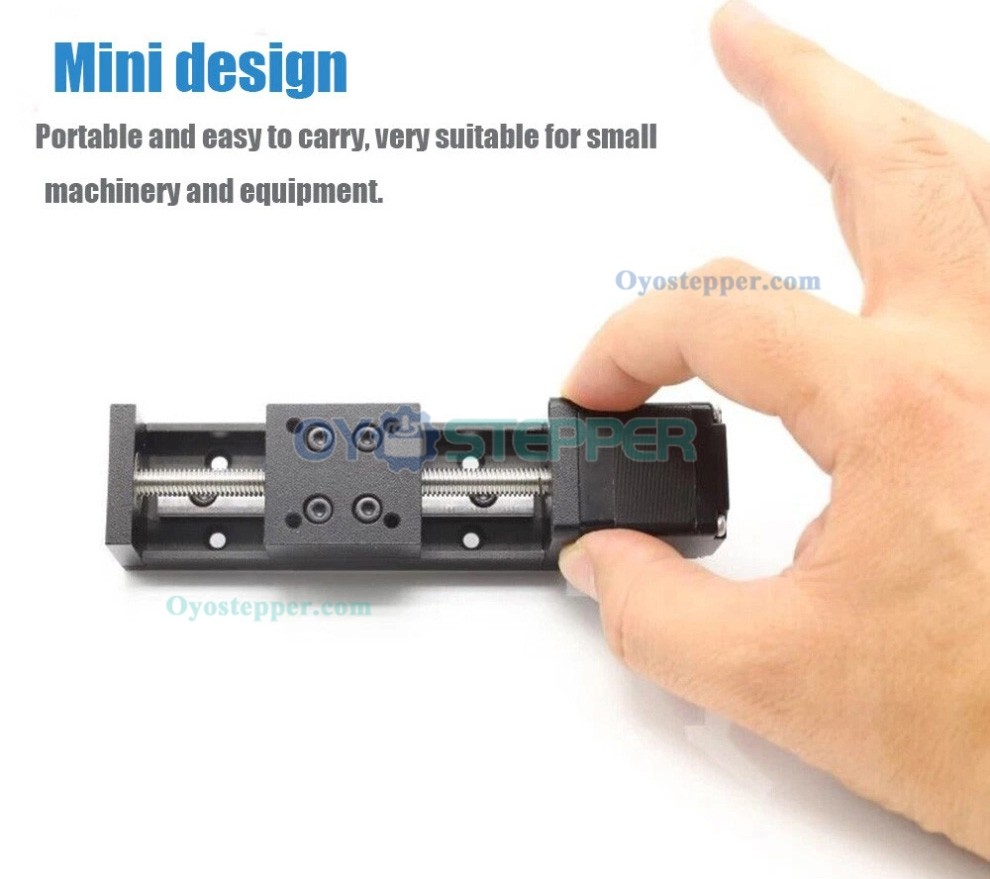

 Linear guide slide module with a micro-sized integrated design (30mm width).

Aluminum alloy base with bearing steel track dual-core configuration. Horizontal load capacity: 5kg; Vertical load capacity: 1kg. Adjustable stroke: 50-300mm.

Equipped with a gold handwheel and travel scale, paired with a 6mm trapezoidal lead screw (available with 1/2/4/6/12mm leads).

Built-in NEMA11 28 stepper motor (0.6A current, 0.07N·m torque).

Application: Used for automated processing applications such as 3D printers, CNC machines, laser cutters, automatic screwdrivers, soldering equipment, and dispensing systems.

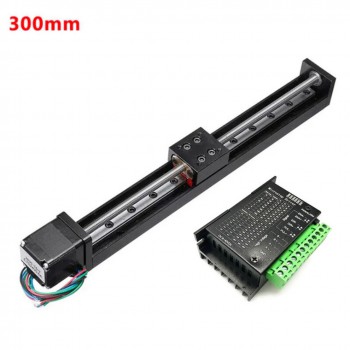

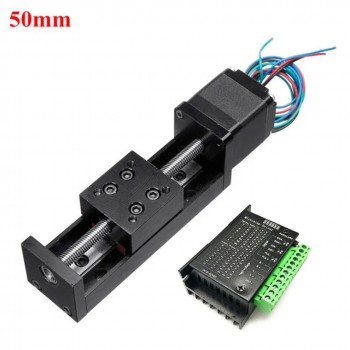

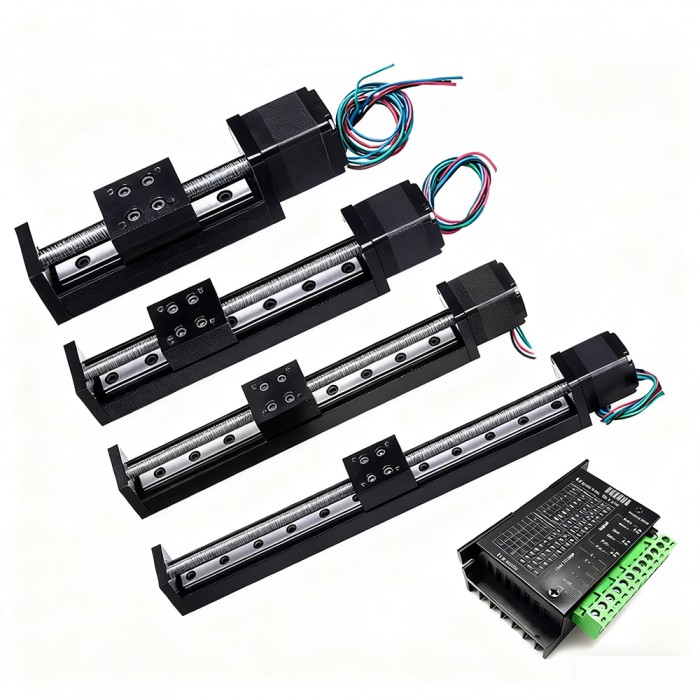

Package Includes:

1 x T06 Trapezoidal screw slide table

1 x NEMA11 28mm Stepper Motor

1 x TB6600 Driver

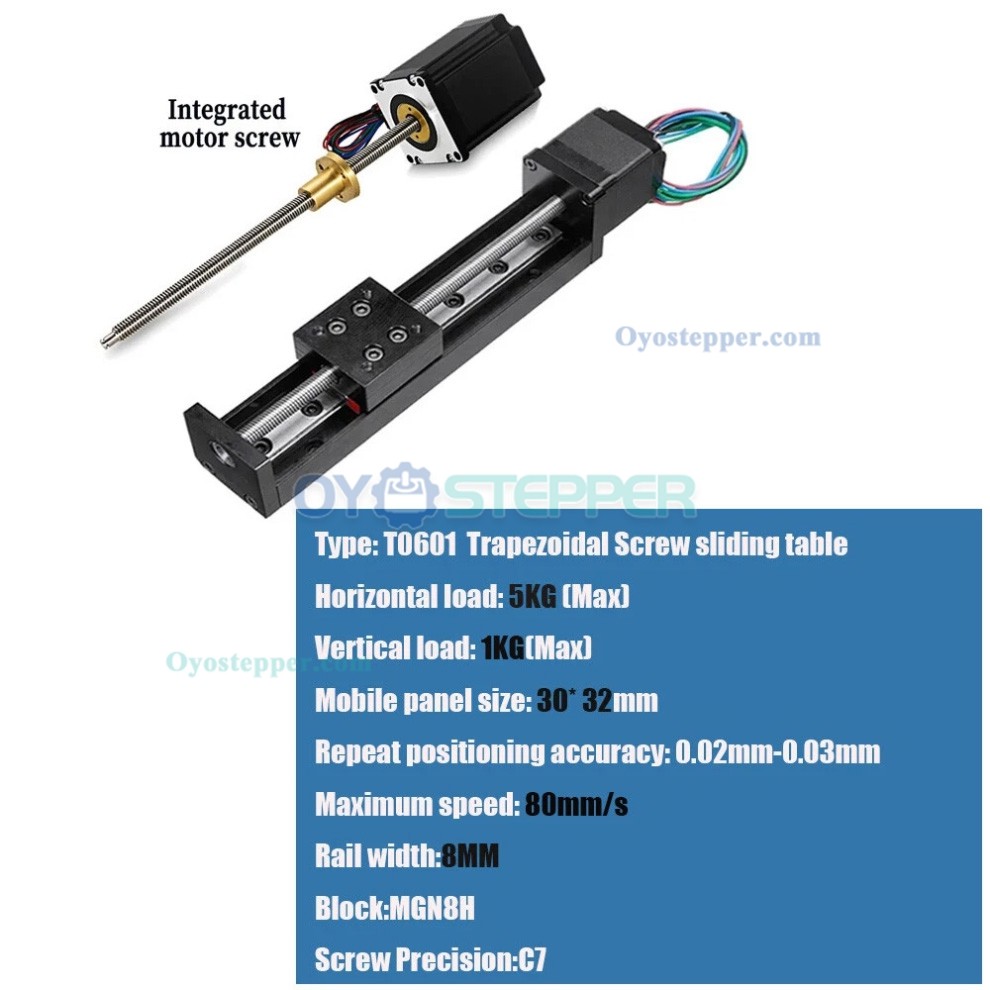

Specifications:

Model: T06

Slide Type: Trapezoidal screw slide table

Horizontal Load: 5kg (maximum)

Vertical Load: 1kg (maximum)

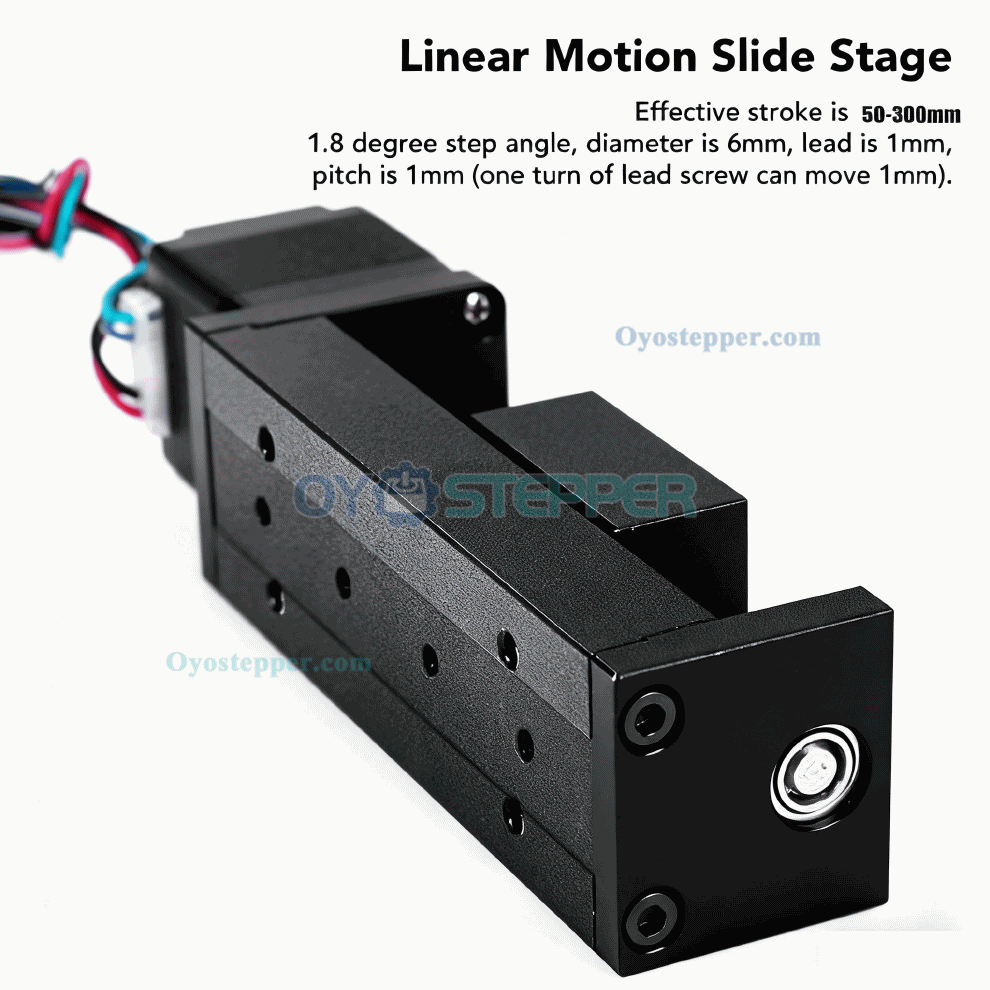

Effective Stroke: 50-300mm

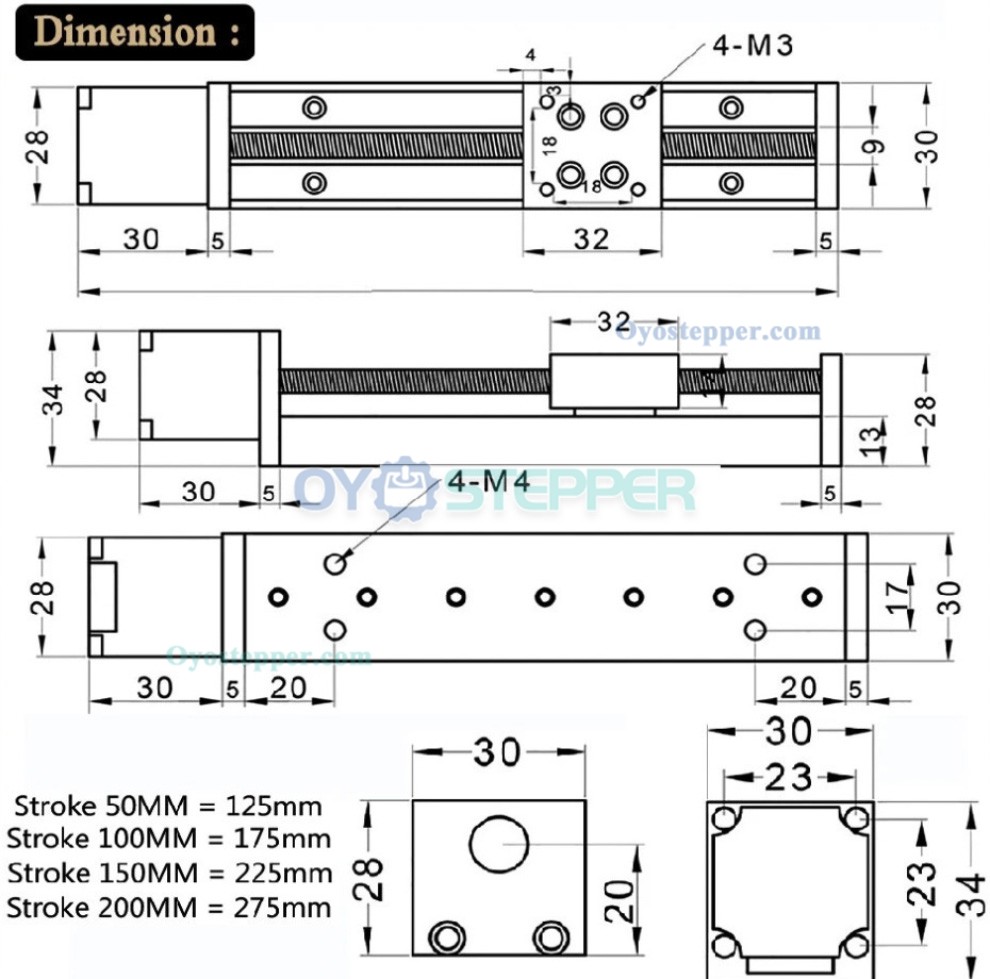

Total Length: Effective stroke + 75mm

Mobile Panel Size: 30mm x 32mm

Repeat Positioning Accuracy: 0.02mm-0.03mm

Maximum Speed: 80mm/s

Rail Width: 6mm

Block: MGN8H

Screw Precision: C7

Pitch: 1mm

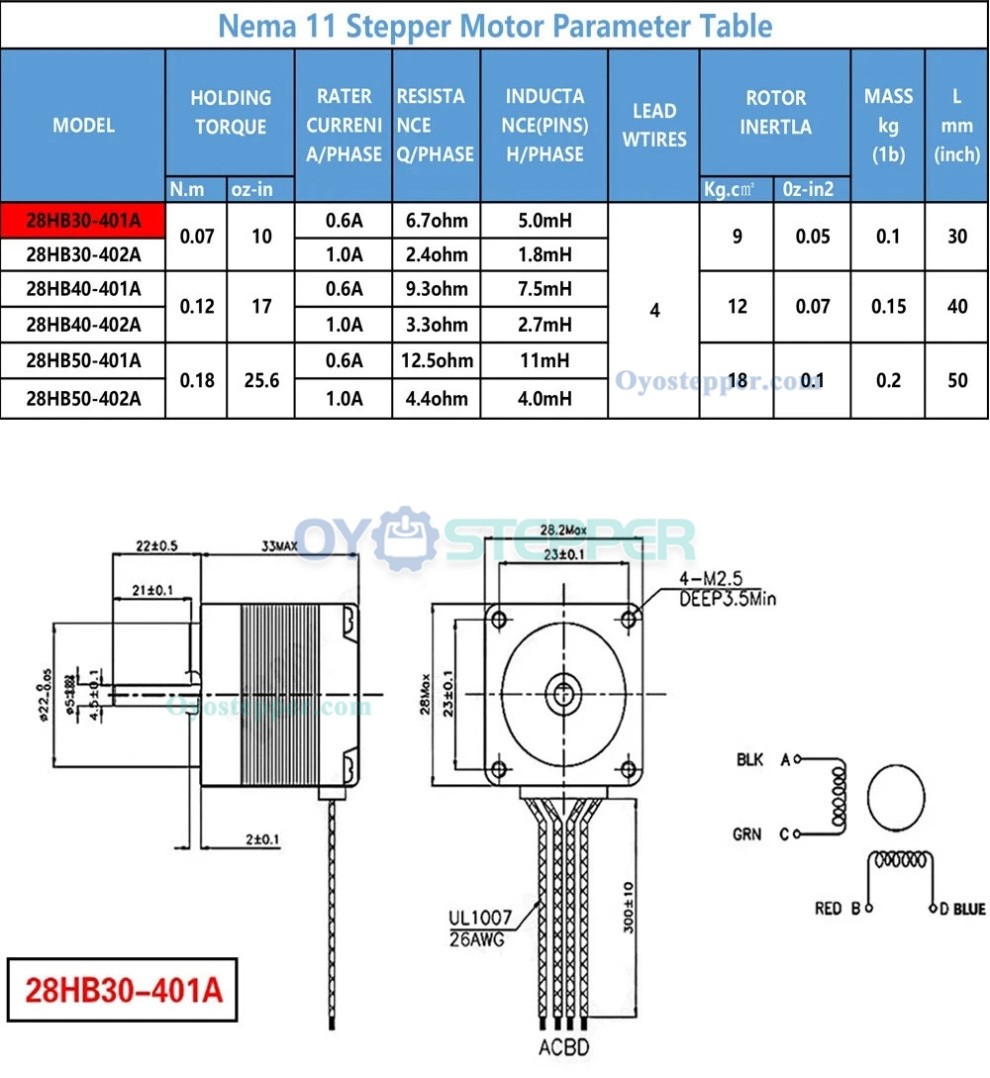

Stepper Motor Specifications:

Model: 28HB30-401A

Motor Flange Size: NEMA 11 (28mm)

Holding Torque: 0.07N·m

Body Length: 30mm

Shaft Diameter: 5mm

Type: Hybrid Motor

Phase: 2 Phase

Current: 0.6A

Certification: CCC, CE, ISO

Step Angle: 1.8 degrees

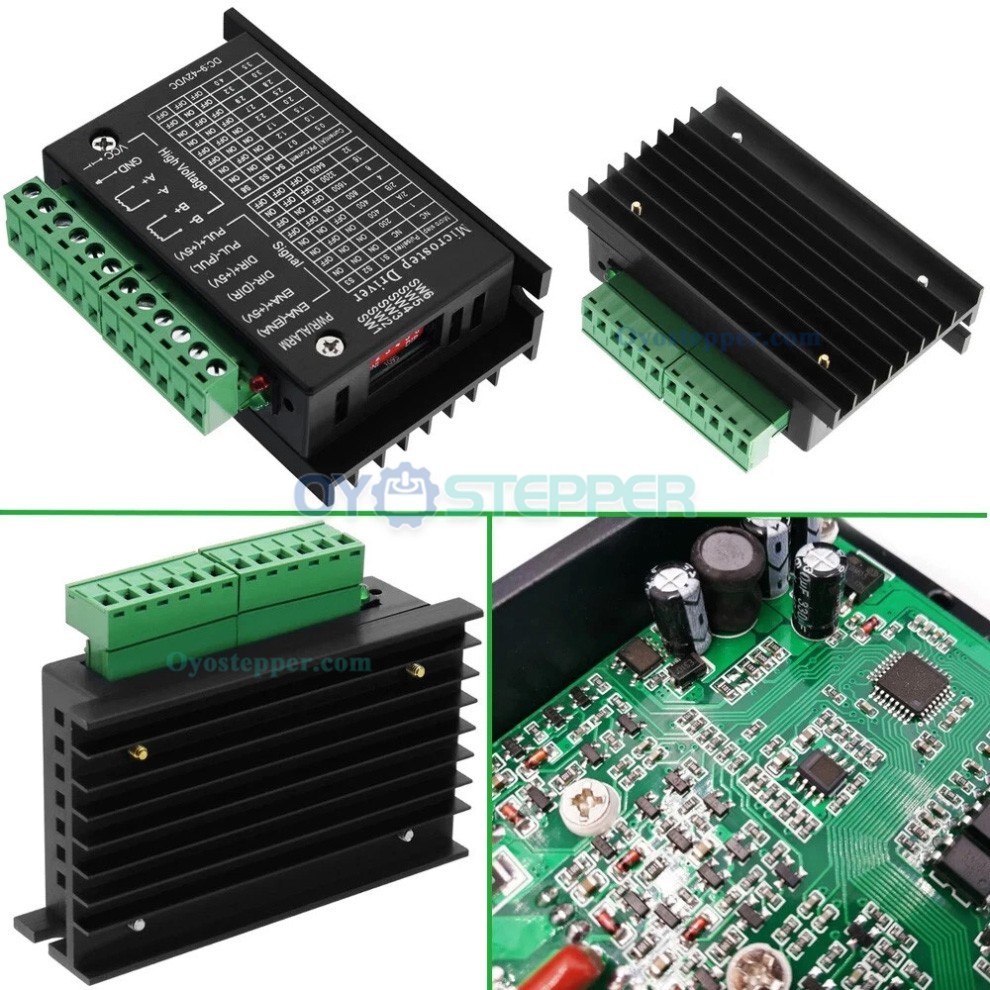

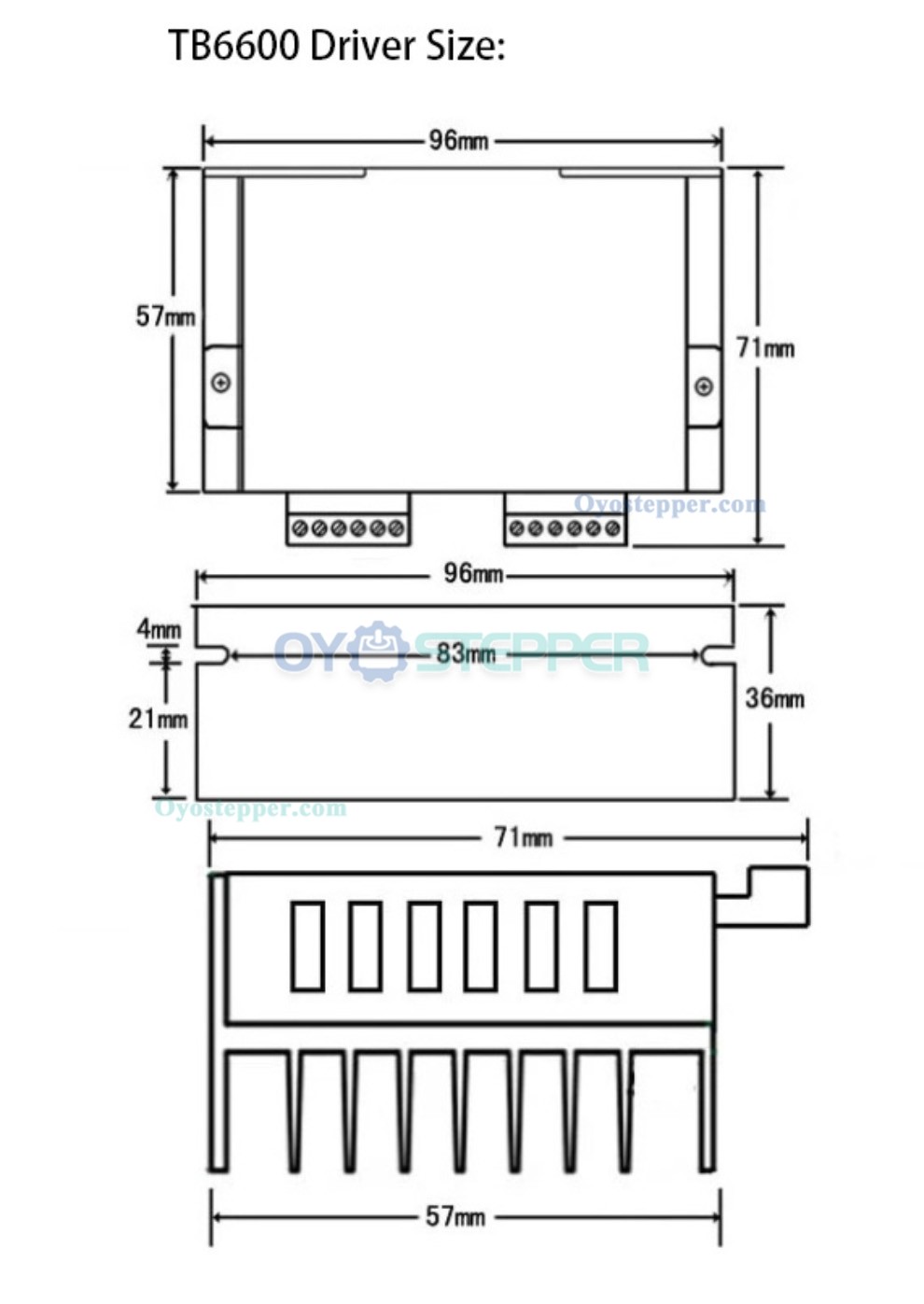

Motor Driver Specifications:

Model: TB6600

Adapted Motor: 42mm/57mm flange stepper motor

Input Voltage: DC 9-42V

Input/Output Current: 0.5-3.5A

Maximum Power: 150W

Subdivision: 1, 2, 4, 8, 16, 32

Operating Temperature: -10°C to 45°C

Storage Temperature: -40°C to 70°C

Humidity: Non-condensing, no water exposure
