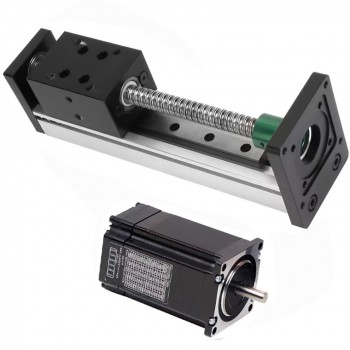

Mini Linear Slide Stage 42mm Width Single Guide Rail CNC Ball Screw Module with Neme 23 Stepper Motor

Mini Linear Slide Stage 42mm Width Single Guide Rail CNC Ball Screw Module with Neme 23 Stepper Motor



Models:

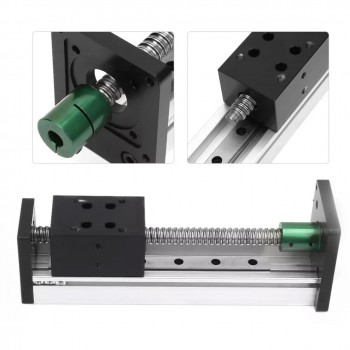

Only CNC Linear Stage (8mm Coupling)

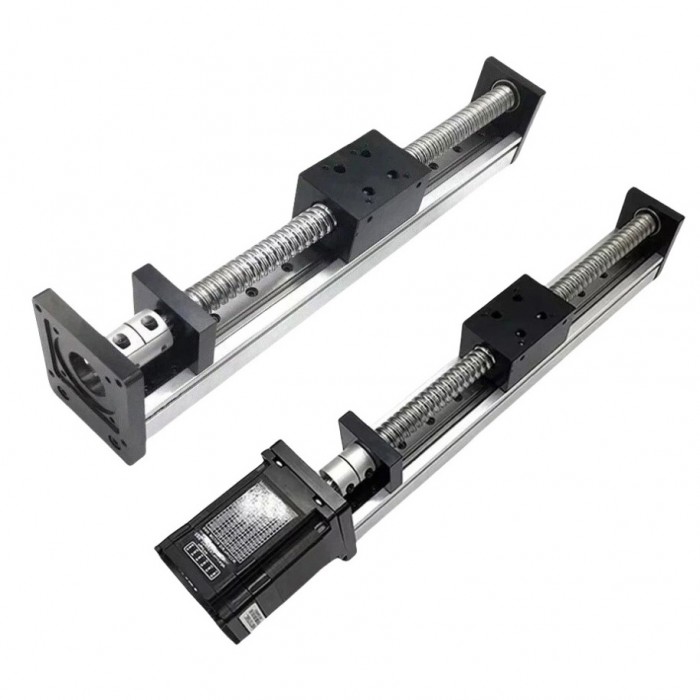

CNC Linear Stage +Nema 23 Motor(1.2Nm)
CNC Linear Stage +Nema 23 Motor(2Nm)
CNC Linear Stage +Nema 23 Motor(3Nm)



Features:

C7-grade ballscrew with repeat positioning accuracy of 0.02–0.03mm

Stroke options of 100–300mm for installation

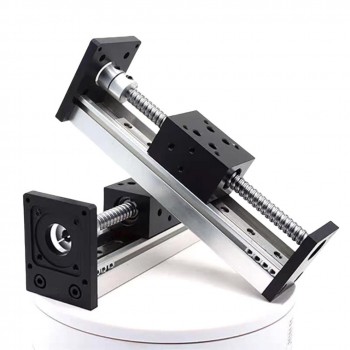

Guide system using MGW12R rails and MGW12C sliders;

Structural material made of industrial aluminum profile;

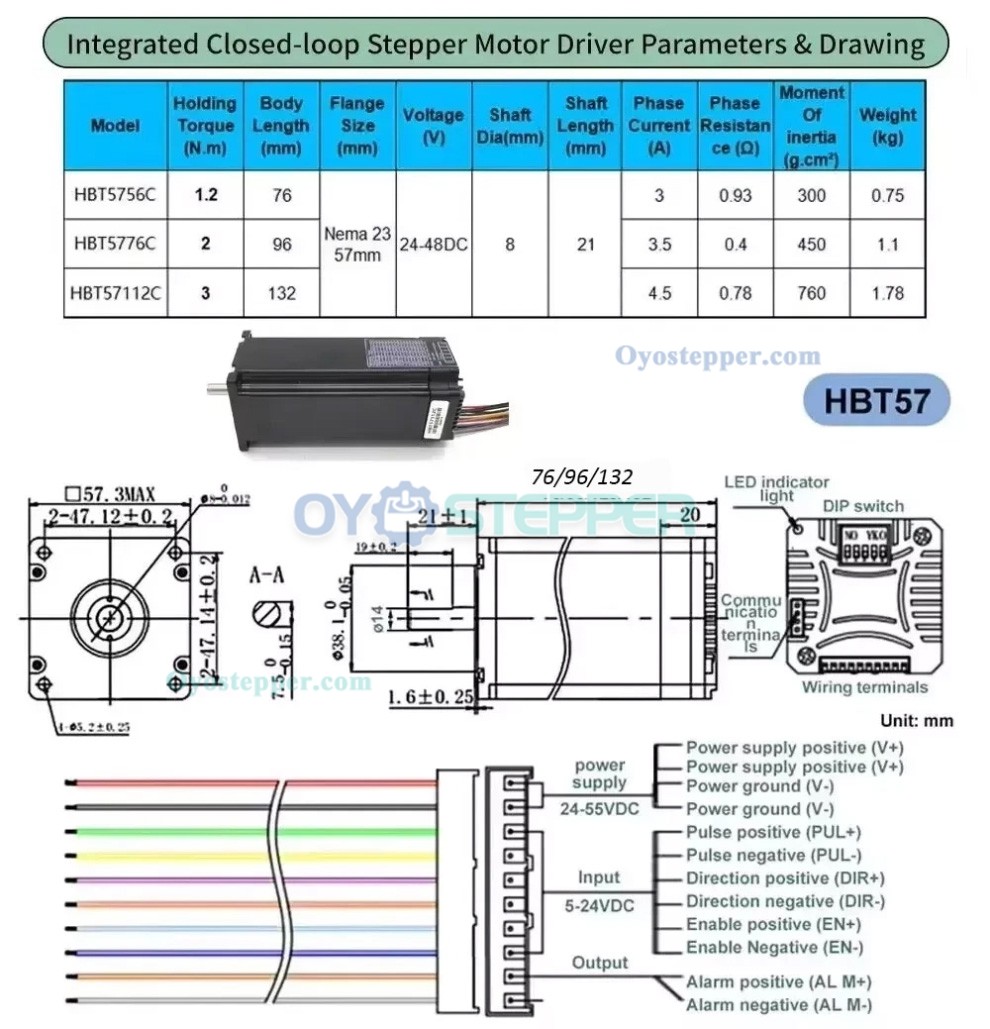

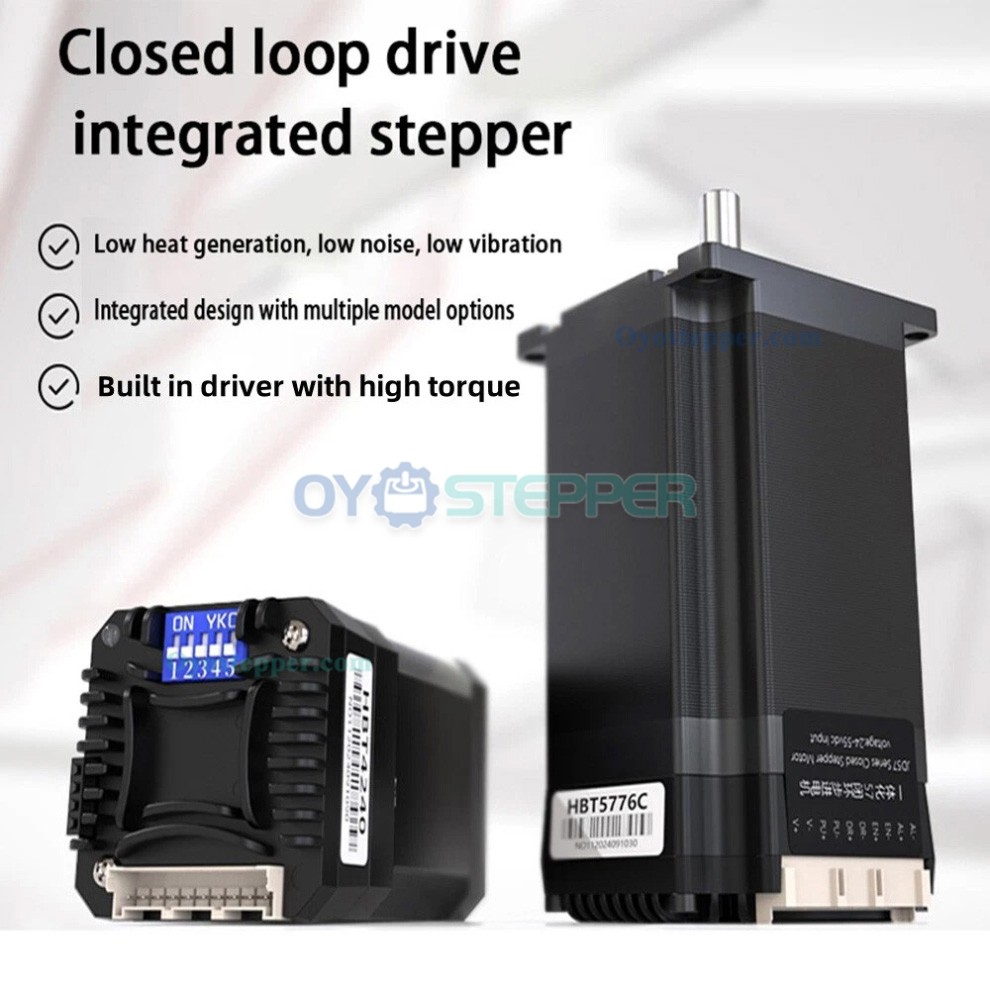

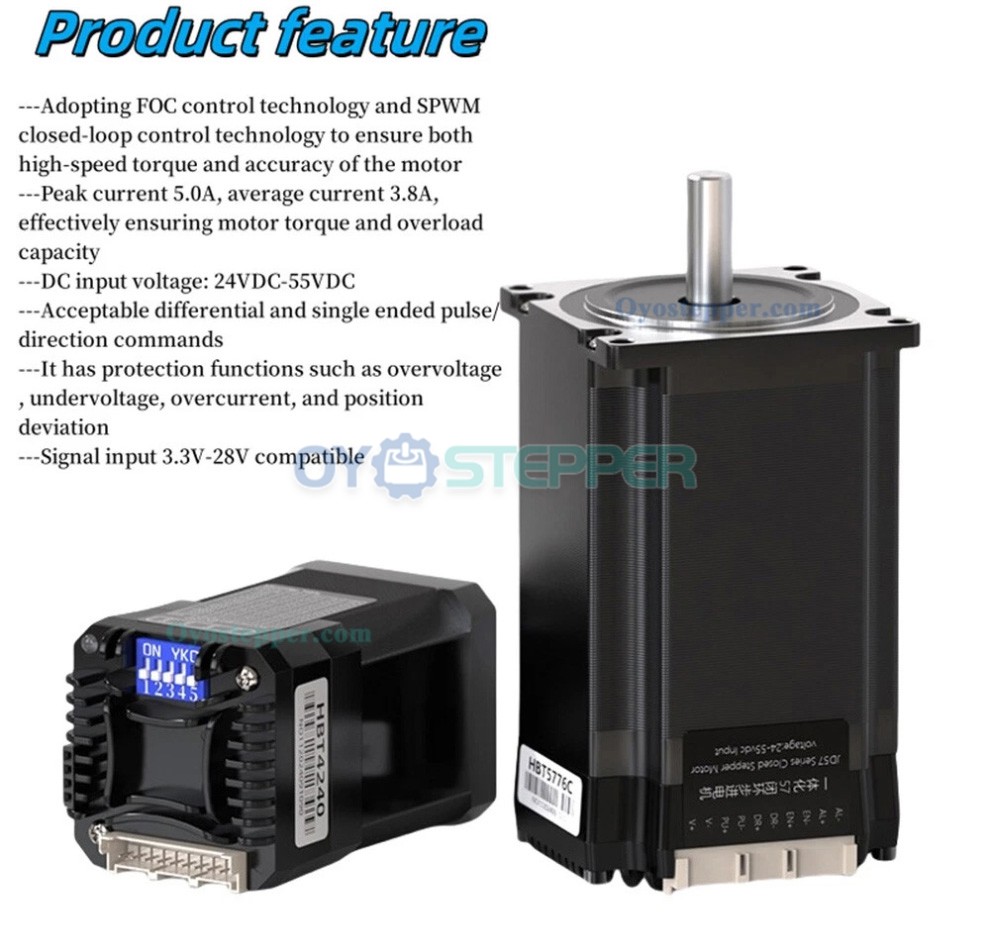

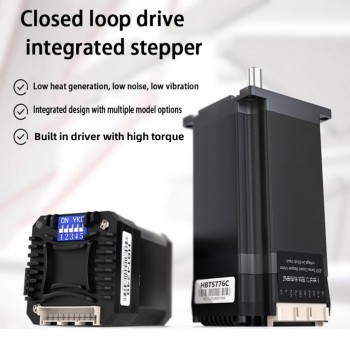

Optional integrated NEMA23 stepper motor with 8mm shaft, 3A current, and 1000-line encoder

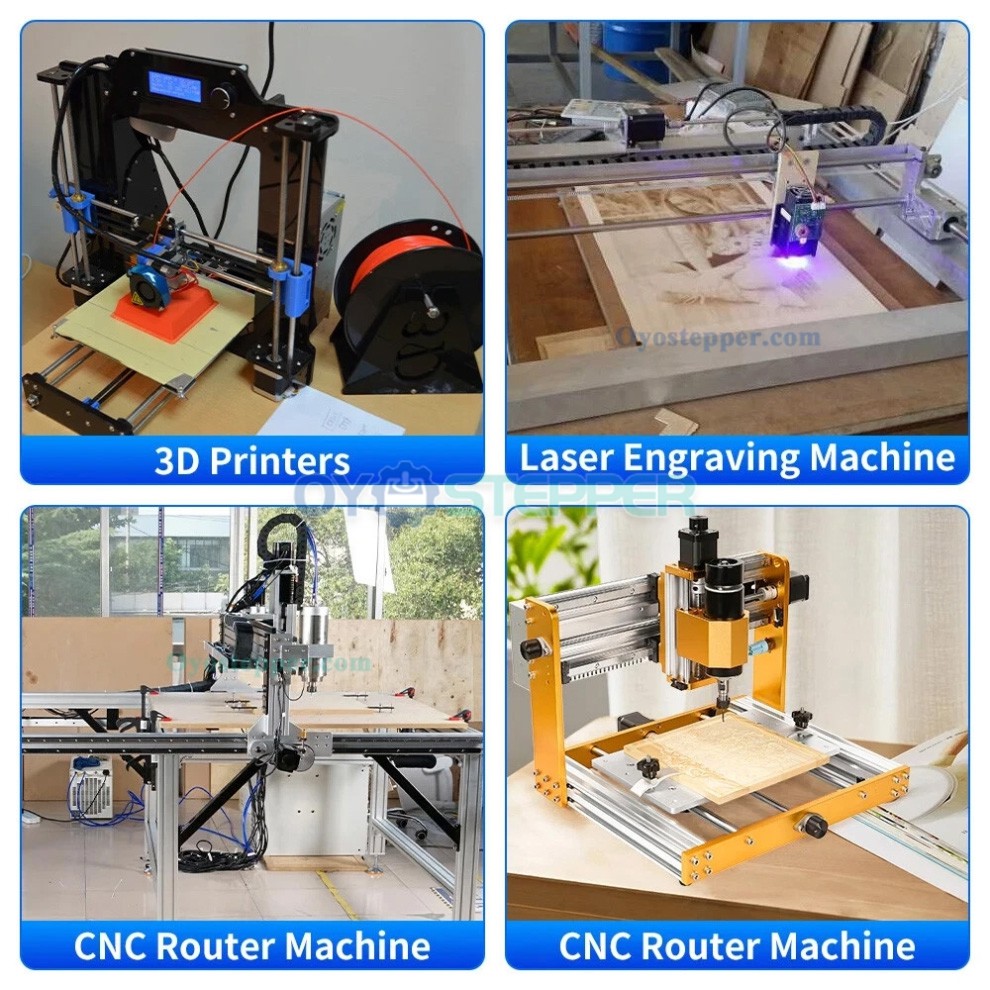

Supports use in CNC, laser cutting, 3D printing, and automation systems



Application:
The DXG6042 linear slide stage actuator uses an SFU1605 ballscrew with C7-grade ballscrew. It is designed for CNC machinery, automation systems, and related applications requiring controlled linear motion.


Parameters:

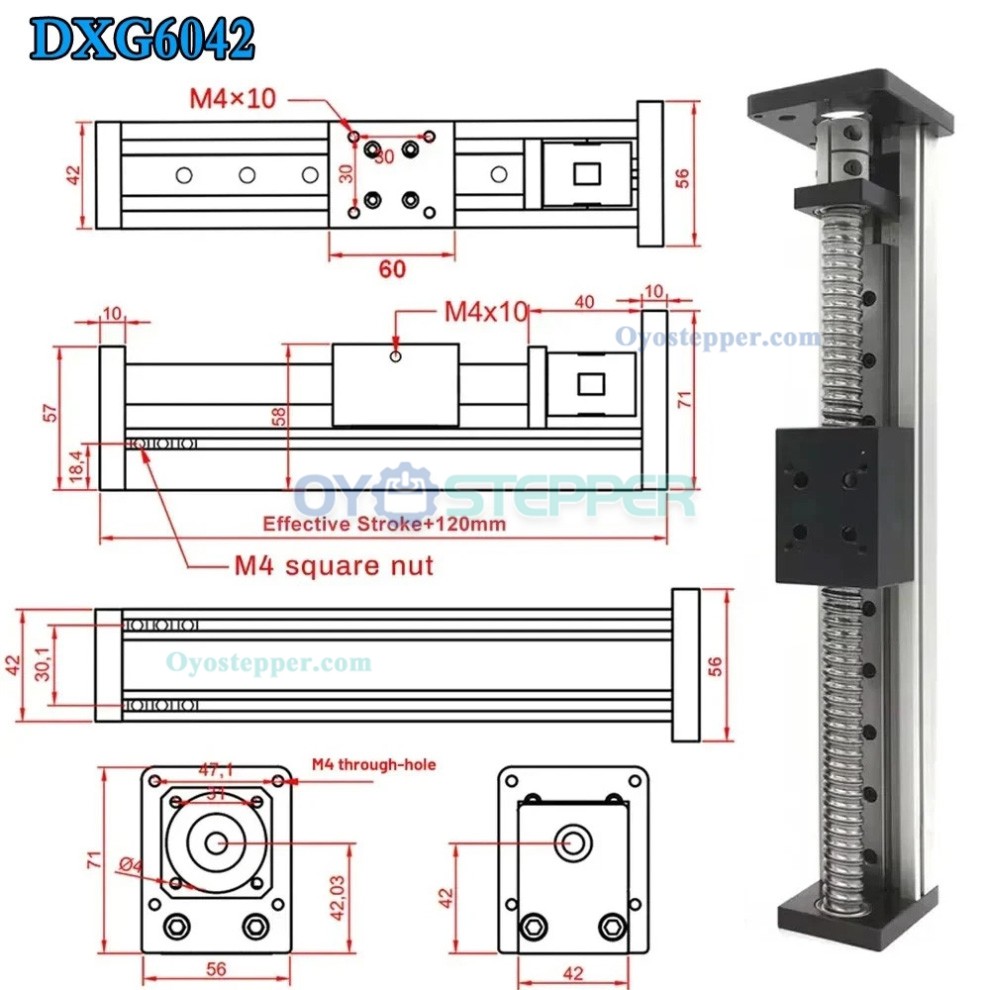

Model: DXG6042 (42mm width)

Ballscrew Type: SFU1605 (Screw Diameter 16mm, Pitch 5mm; one screw rotation moves the panel 5mm)

Ballscrew Accuracy: C7 Grade

Effective Stroke: 100–300mm (optional)

Total Length: Effective Stroke + 120mm

Motor Compatibility: Supports NEMA17 / NEMA23 stepper motors

Mobile Panel Size: 60×42mm

Module Width: 42mm

Guide Diameter: 12mm

Guide Type: MGW12R;

Slider Type: MGW12C;

Horizontal Load Capacity: 40kg (max);

Vertical Load Capacity: 20kg (max);

Maximum Speed: 500mm/s;

Repeat Positioning Accuracy: 0.02–0.03mm;

Material: Industrial Aluminum Profile;
