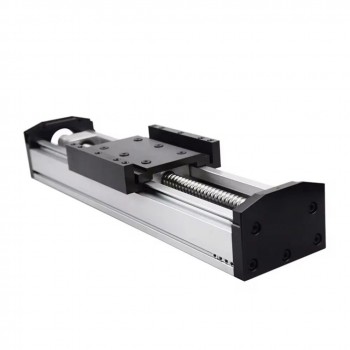

Mini Fully Sealed CNC Ball Screw Slide Table Kit Motorized Linear Guide Module

Mini Fully Sealed CNC Ball Screw Slide Table Kit Motorized Linear Guide Module



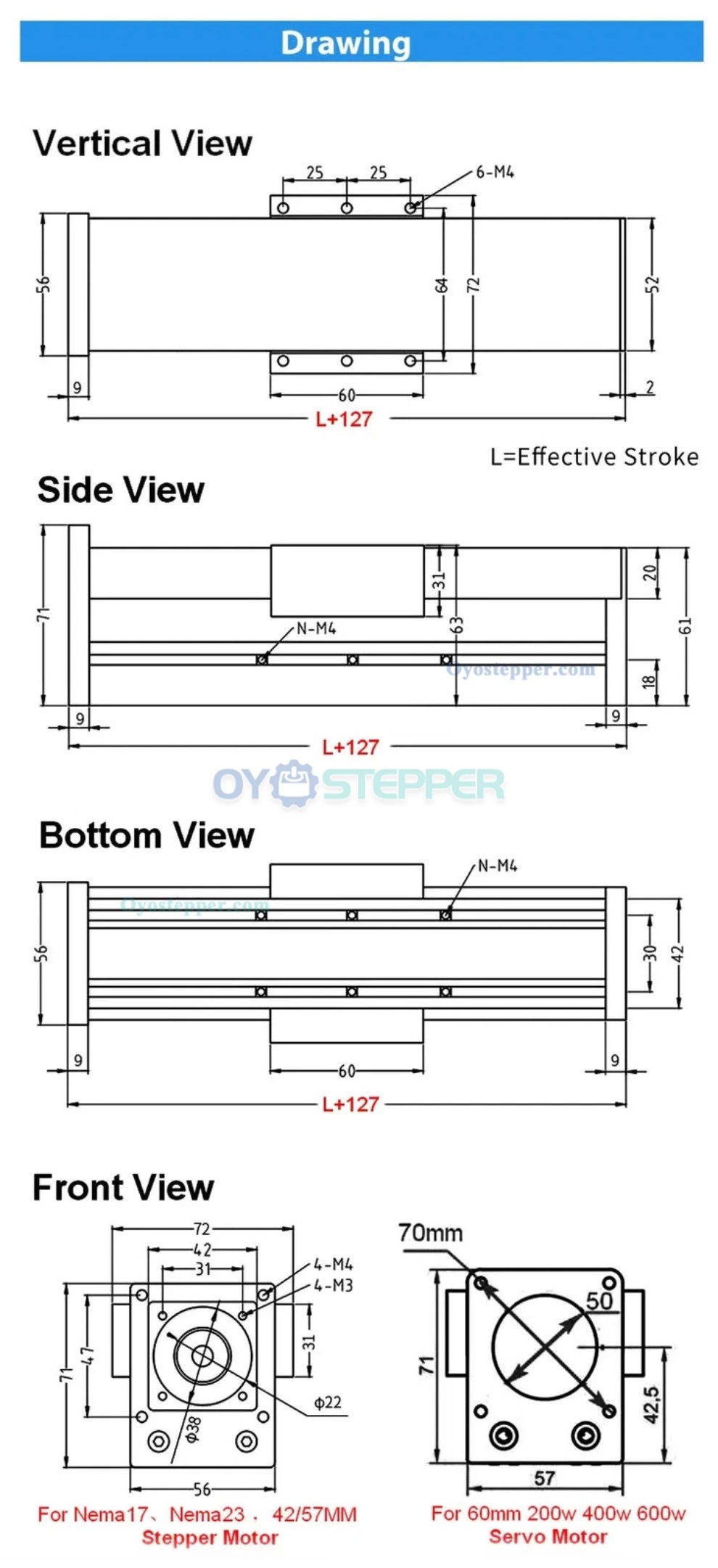

Product Parameters:

Model: QMF40 (40mm width, 40kg load)

Material: Industrial Aluminum Profile

Stroke: 100mm-300mm (choose according to your needs)

Horizontal load: 40kg (max)

Vertical load: 20kg (max)

Motor bracket: 57mm stepper motor

Module width: 42mm

Repeat positioning accuracy: 0.03mm-0.05mm

Guide: 1 x MGN12R (12mm width)

Block: 1 x MGN12C

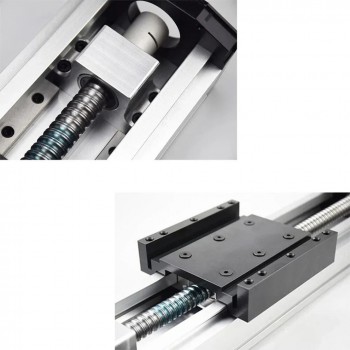

Ball screw material: Bearing steel

Ball screw type: SFU1605 (Screw diameter 16mm, Pitch 5mm)

Ball screw accuracy: C7

Max moving speed: 250mm/s



Model: QMF90 (90mm width, 70kg load)

Material: Industrial Aluminum Profile

Stroke: 100mm-300mm (choose according to your needs)

Guide rail type: 2 x MGN12

Sliders type: 4 x MGN12C

Horizontal load: 70kg (max)

Vertical load: 35kg (max)

Motor bracket: For NEMA23 57mm stepper motor

Module width: 90mm

Repeat positioning accuracy: 0.03mm-0.05mm

Ball screw material: Bearing steel

Ball screw type: SFU1605 (Screw diameter 16mm, Pitch 5mm)

Ball screw accuracy: C7

Max moving speed: 250mm/s



NEMA23 Motor Specifications:

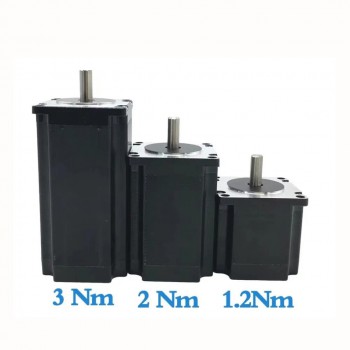

Body Length:56mm (1.2Nm), 80mm (2Nm),112mm (3Nm)
Current: 3A
Shaft Diameter: 8mm
Number of Phases: 2 phases, 4 wires
Step Angle: 1.8° (2-phase, 4-lead)
Wiring Length:1 meter

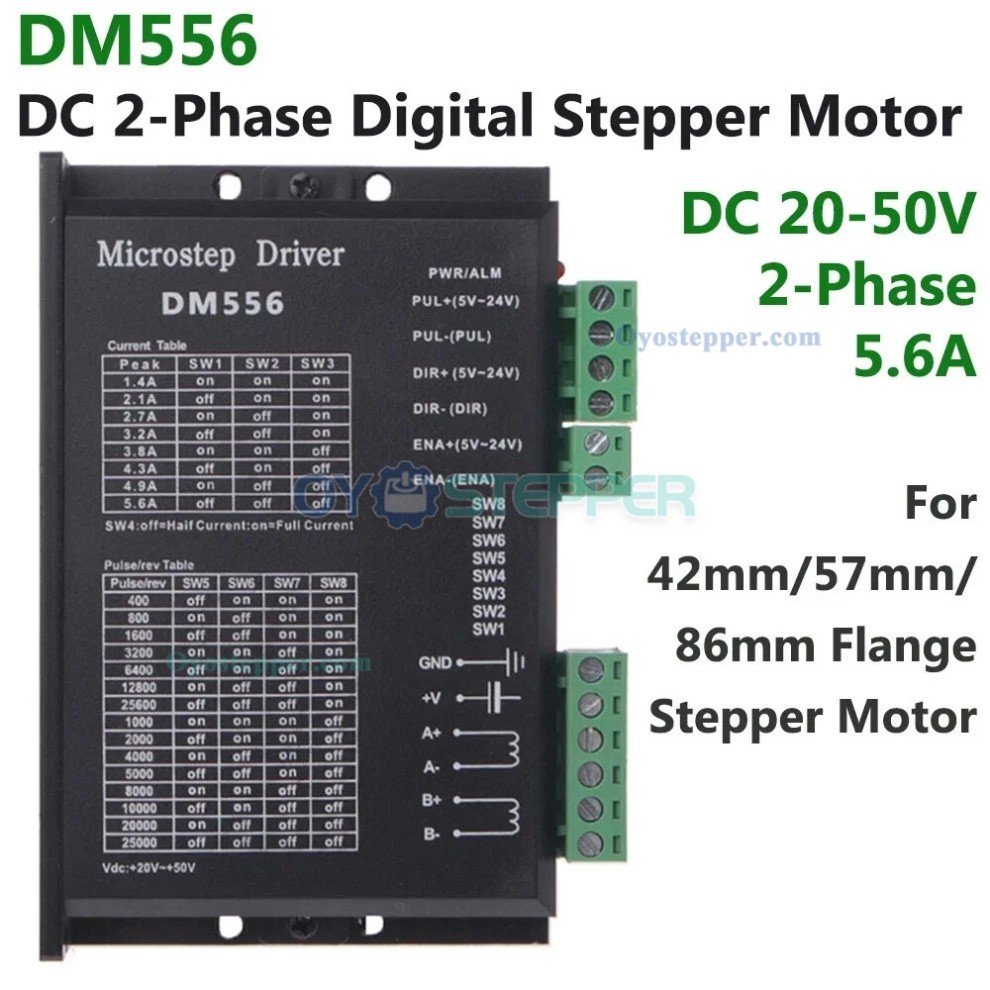

Driver Configuration: TB6600 or DM556

Package list:

Package Type 1:

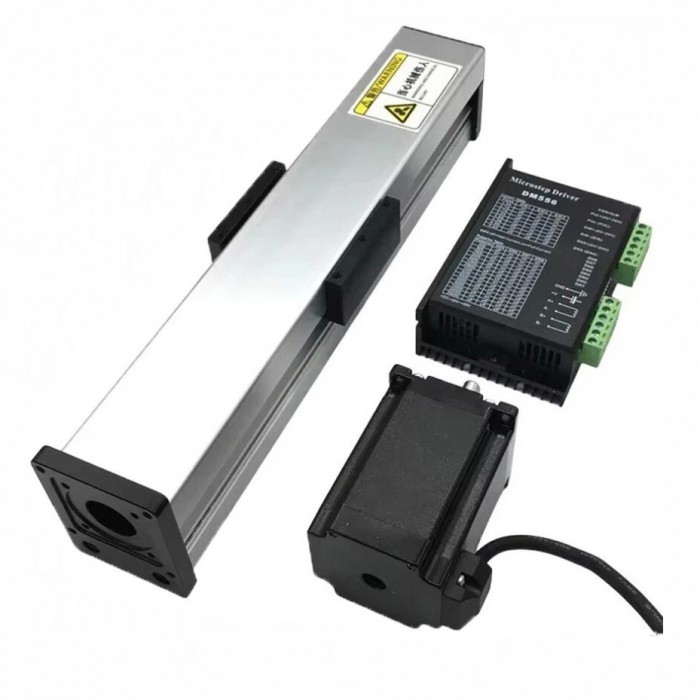

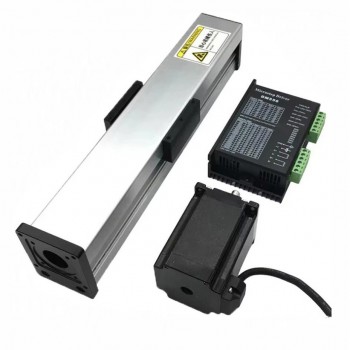

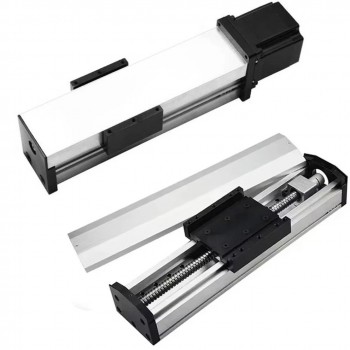

1 x Sliding table with cover (40mm/90mm width)

1 x 8mm coupling for NEMA23 stepper motor


Package Type 2:

1 x Sliding table with cover (40mm/90mm width)

1 x NEMA23 57mm stepper motor (1.2/2/3Nm)


Package Type 3:

1 x Sliding table with cover (40mm/90mm width)

1 x NEMA23 57mm stepper motor (1.2/2/3Nm)

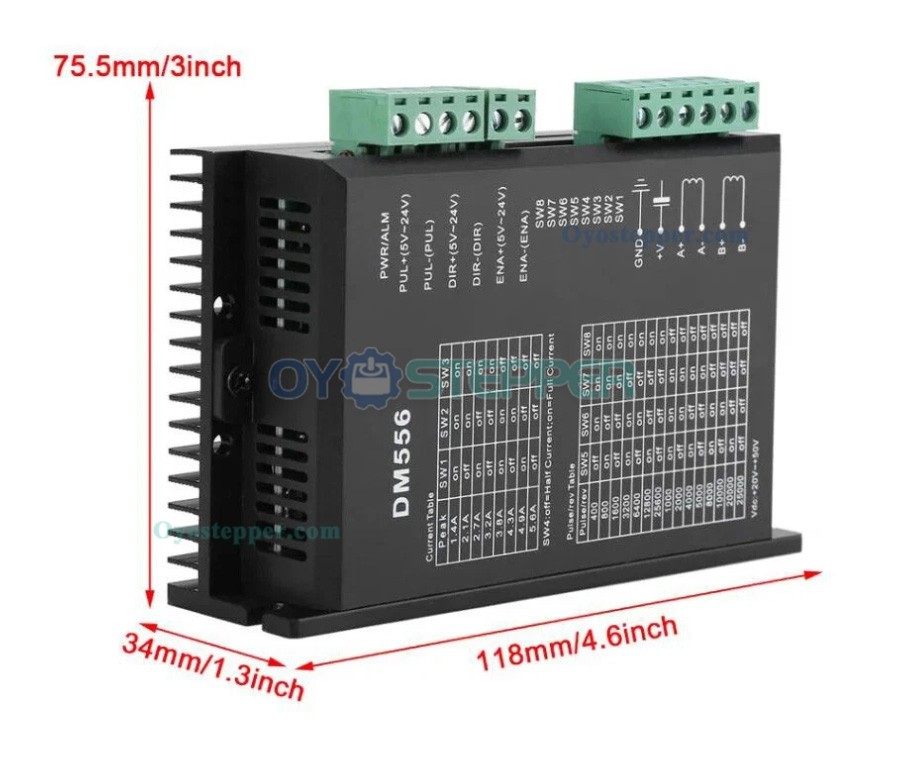

1 x DM556 motor driver
